Contents
Safety information 4
Safety instructions 5
Product description 7
Control panel 7
Programmes 8
Settings 9
Before first use 10
Daily use 12
Hints and tips 14
Care and cleaning 15
Troubleshooting 17
Technical information 19
ENVIRONMENT CONCERNS 19
IKEA GUARANTEE 20
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door when
it is open.
•Cleaning and user maintenance shall not be made by
children without supervision.
ENGLISH 4
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and other
working environments;
–by clients in hotels, motels, bed & breakfast and other
residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum) must
be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
•Obey the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery basket
with the points down or in a horizontal position.
•Do not keep the appliance door open without supervision to
prevent to fall on it.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the appliance.
•The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
•The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
Safety instructions
Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the appliance is installed
below and adjacent to safe structures.
ENGLISH 5
Electrical connection
Warning! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• This appliance complies with the E.E.C.
Directives.
• Only for UK and Ireland. The appliance
has a 13 amp mains plug. If it is
necessary to change the fuse in the
mains plug, use fuse: 13 amp ASTA (BS
1362).
Water connection
• Make sure not to cause damage to the
water hoses.
• Before you connect the appliance to new
pipes or pipes not used for a long time,
let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.

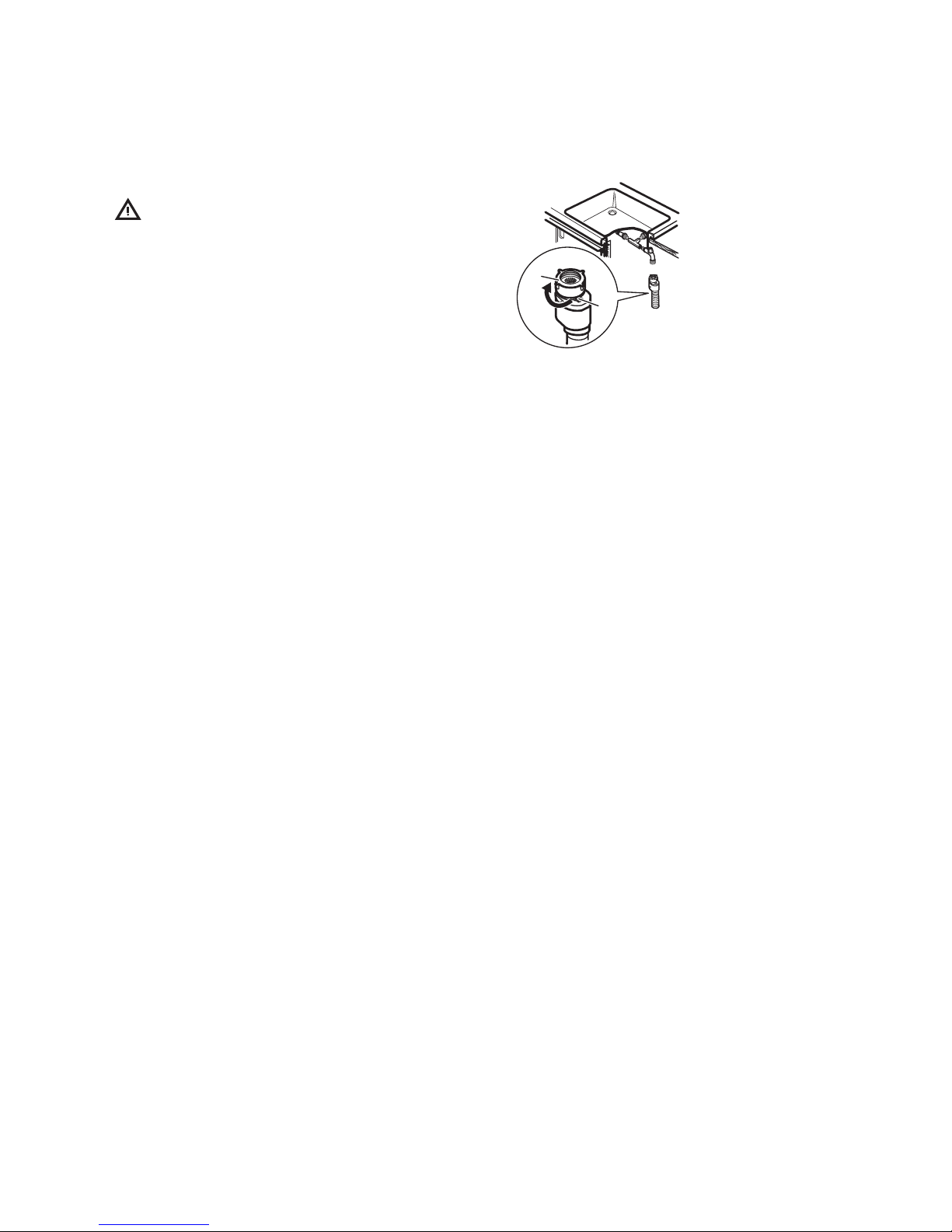

• The water inlet hose has a safety valve
that prevents the hose to loosen. To
disconnect the hose, press the lever (B)
and turn the fastener (A) clockwise.
A
B
• The water inlet hose has an external
transparent sheath. If the hose is
damaged, the water in the hose
becomes dark.
• If the water inlet hose is damaged,
immediately disconnect the mains plug
from the mains socket. Contact the
Authorised Service Centre to replace the
water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Service
• Contact the Authorised Service Centre to
repair the appliance. We recommend
only the use of original spare parts.
• When you contact the Authorised Service
Centre, ensure that you have the
following information that is available on
the rating plate.
Model :
PNC :
ENGLISH 6
Serial Number :
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
Product description
8
7
6
5
4
1
3
2
1Lower spray arm
2Filters
3Rating plate
4Rinse aid dispenser
5Detergent dispenser
6Salt container
7Upper spray arm
8Upper basket
Control panel
1 32 4
1On/off button
2Programme buttons
3Delay button
4Indicators
Indicators
Indicator Description
End indicator.
ENGLISH 7
Indicator Description
Salt indicator. It is always off while the programme operates.
Rinse aid indicator. It is always off while the programme operates.
Programmes
Programme Degree of soil
Type of load
Programme pha-
ses
Consumption values
1)
Duration
(min)
Energy
(kWh)
Water
(l)
2) Heavy soil
Crockery, cut-
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
150 - 170 1.5 - 1.6 13 - 15
Normal soil
Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
120 - 130 1.3 - 1.6 15 - 17
3) Fresh soil
Crockery and
cutlery
• Wash 60 °C or
65 °C
• Rinses
30 0.8 9
4) Normal soil
Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
195 1.050 12
5) All • Prewash 14 0.1 4
1)
The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
2)
Programme with prolonged rinsing time in high temperature for extra hygienic wash-up. Ideal for baby bottles or
when a family member is ill.
3)
With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4)
With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with
normal soil. (This is the standard programme for test institutes).
5)
Use this programme to quickly rinse the dishes. this prevents the remaining food to bond on the dishes and bad
odours to come out from the appliance. Do not use detergent with this programme.
Information for test institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC) that
is on the rating plate.
ENGLISH 8
Settings
Programme selection mode and user
mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings can
be changed:
• The level of the water softener according
to the water hardness.
• The activation or the deactivation of the
acoustic signal for end of programme.
These settings will be saved until you
change them again.
How to set the programme selection mode
The appliance is in programme selection
mode when only the indicator of the
programme is on.
When you activate the appliance, usually it
is in programme selection mode. However,
if this does not happen, you can set the
programme selection mode in the following
way:
Press and hold simultaneously and
until the appliance is in programme
selection mode.
The water softener
The water softener removes minerals from
the water supply, which would have a
detrimental effect on the washing results
and on the appliance.
The higher the content of these minerals, the
harder your water is. Water hardness is
measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
Water hardness
German degrees
(°dH)
French degrees
(°fH)
mmol/l Clarke de-
grees
Water softener level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
ENGLISH 9
German degrees
(°dH)
French degrees
(°fH)
mmol/l Clarke de-
grees
Water softener level
<4 <7 <0.7 < 5 1 2)
1)
Factory setting.
2)
Do not use salt at this level.
How to set the water softener level
The appliance must be in programme
selection mode:
1. To enter the user mode, press and hold
simultaneously and until the
indicators , and start to flash.
2. Press .
• The indicators and go off.
• The indicator continues to flash.
• The indicator starts to flash. The
number of flashes indicates the level.
– E.g. 5 flashes + pause + 5 flashes
= level 5.
3. Press repeatedly to change the
setting. Each time you press the level
number increases. After level 10 you will
start again from level by 1.
4. Press the on/off button to confirm the
setting.
Acoustic signals
The acoustic signals operate when the
appliance has a malfunction and it is not
possible to deactivate them.
There is also an acoustic signal that
operates when the programme is
completed. By default, this acoustic signal is
on, but it is possible to deactivate it.
How to deactivate the acoustic signal for
the end of programme
The appliance must be in programme
selection mode.
1. To enter the user mode press and hold
simultaneously and until the
indicators , and start to flash.
2. Press .
• The indicators and go off.
• The indicator continues to flash.
• The end indicator indicates the
current setting: End indicator on=
Acoustic signal on.
3. Press to change the setting.
• End indicator off = Acoustic signal
off.
4. Press the on/off button to confirm the
setting.
Before first use
1. Make sure that the current level of the
water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.
ENGLISH 10
Autres manuels pour RENGÖRA
12
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels IKEA Lave-vaisselle
IKEA
IKEA LAGAN Manuel utilisateur
IKEA
IKEA IUD8500BX0 Manuel utilisateur
IKEA
IKEA IDT930SAGX0 Manuel utilisateur
IKEA
IKEA LAGAN Manuel utilisateur
IKEA
IKEA LAGAN Manuel utilisateur
IKEA
IKEA TORSBODA Manuel utilisateur
IKEA
IKEA IUD8000R Manuel utilisateur
IKEA
IKEA SKINANDE Manuel utilisateur
IKEA
IKEA SKINANDE Manuel utilisateur
IKEA
IKEA DISHWASHER Manuel utilisateur
IKEA
IKEA UNDERCOUNTER DISHWASHER PLASTIC GIANT TUB... Manuel utilisateur
IKEA
IKEA RENLIG Manuel utilisateur
IKEA
IKEA MEDELSTOR Manuel utilisateur
IKEA
IKEA PROFFSIG Manuel utilisateur
IKEA
IKEA HYGIENISK Manuel utilisateur
IKEA
IKEA RENGÖRA Manuel utilisateur
IKEA
IKEA SKINANDE Manuel utilisateur
IKEA
IKEA LAGAN Manuel utilisateur
IKEA
IKEA SKINANDE Manuel utilisateur
IKEA
IKEA PROFFSIG Manuel utilisateur
