EU Declaration of conformity

We declare under our sole responsibility that this product corresponds to the directives

2014/35/EU, 2006/42/EC, 2014/30/EU and 2011/65/EU and conforms

with the following

standards or other normative documents: EN 61010-1,

EN 61010-2-051,

EN 61326-1, EN

60529 and EN ISO 12100.

A copy of the complete EU Declaration of Conformity can be requested at [email protected].

Safety instructions............................................................................... 4

/// General information................................................................... 4

/// Device design............................................................................. 4

/// Permissible medium / contaminants / side reactions.................... 5

/// Procedures during sample runs................................................... 5

/// Accessories ................................................................................ 5

/// Power supply/Switching off the device ....................................... 6

/// For protection of the equipment ................................................ 6

Unpacking .......................................................................................... 6

/// Unpacking ................................................................................. 6

/// Scope of delivery........................................................................ 6

Operation ........................................................................................... 7

Technical Data .................................................................................. 11

EU Declaration of conformity .............................................................. 3

Intended use....................................................................................... 6

/// Use............................................................................................ 6

/// Area of use (only indoors) .......................................................... 6

Explication of warning symbols ........................................................... 4

/// Warning symbols ....................................................................... 4

/// General Symbols ........................................................................ 4

Assembly ............................................................................................ 7

Exchanging under layer photo........................................................... 8

Warranty ........................................................................................ 10

Maintenance and cleaning ................................................................ 9

Error codes ..................................................................................... 10

Accessories

...................................................................................... 10

Source language: German

/// General information

›

Read the operating instructions in its entirety before using the device and follow the

safety instructions.

› Keep the operating instructions in a place where it can be accessed by everyone.

› Ensure that only trained staff work with the device.

› Follow the safety instructions, guidelines, occupational health and safety and accident

prevention regulations.

Attention – Magnetism!

› Effects of the magnetic ﬁeld have to be taken into account (e.g. data storage media, cardiac

pacemakers ...).

Explication of warning symbols

Safety instructions

/// Warning symbols

Indicates an (extremely) hazardous situation, which, if not avoided,

will result in death, serious injury.

DANGER

Indicates a hazardous situation, which, if not avoided,

can result in

death, serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, can

result in injury.

CAUTION

!Indicates practices which, if not avoided, can result in equipment

damage.

NOTICE

Indicates the risks due to magnetism.

ATTENTION

/// General Symbols

Note

Indicates steps of actions that require particular attention.

Position number

Indicates device components relevant to actions.

A–––

Correct / result

Indicates the correct execution or the result of an action step.

Wrong

Indicates the incorrect execution of an action step.

/// Device design

Danger!

› With substances capable of forming an explosive mixture, appropriate safety measures must

be applied, e.g. working under a fume hood.

› To avoid body injury and property damage, observe the relevant safety and accident

prevention measures when processing hazardous materials.

/// Permissible medium / contaminants / side reactions

Danger!

› Only process media that will not react dangerously to the extra energy produced through

processing. This also applies to any extra energy produced in other ways, e.g. through light

irradiation.

Warning!

› Beware of hazards due to:

- glass breakage,

- incorrect container size,

- overﬁlling of media,

- unsafe condition of container.

› Process pathogenic materials only in closed vessels under a suitable fume hood.

›

Please contact IKA if you have any questions.

›

Please consider any possible contaminations and unwanted chemical reactions.

›

It may be possible for wear debris from rotating accessory parts to reach the material being

processed.

›

When using PTFE-coated magnetic bars, the following has to be noted: Chemical reactions

of PTFE occur in contact with molten or solute alkali metals and alkaline earth metals, as well

as with ﬁne powders of metals in groups 2 and 3 of the periodic system at temperatures

above 300 °C – 400 °C. Only elementary ﬂuorine, chlorotriﬂuoride and alkali metals attack it;

halogenated hydrocarbons have a reversible swelling effect.

(Source: Römpps Chemie-Lexikon and ”Ulmann”, Volume 19)

/// Procedures during sample runs

Warning!

› Wear your personal protective equipment in accordance with the hazard category of the

media to be processed. There may be a risk from:

- splashing and evaporation of liquids.

- ejection of parts.

- release of toxic or combustible gases.

› Reduce speed if:

- medium splashes out of vessel because the speed is too high,

- device is not running smoothly,

- container moves on the base plate,

- an error message is displayed.

Caution!

›

Device surface is partially made of glass:

Glass surface can be damaged by impact.

- If glass surface is damaged it could cause injury, don`t use the device anymore.

› Use only the AC adapter supplied.

›

Set up the device in a spacious area on an even, stable, clean, non-slip, dry and ﬁreproof surface.

›

The base plate must be clean and undamaged.

›

Check the device and accessories for damage before each use. Do not use damaged components.

/// Accessories

›

Safe operation is guaranteed only with the use of original IKA accessories.

› Observe the operating instructions of the accessories.

Unpacking

/// Unpacking

Unpack the device carefully. Any dam-

age should immediately be reported to

the carrier (mail, rail or freight forward-

ing company).

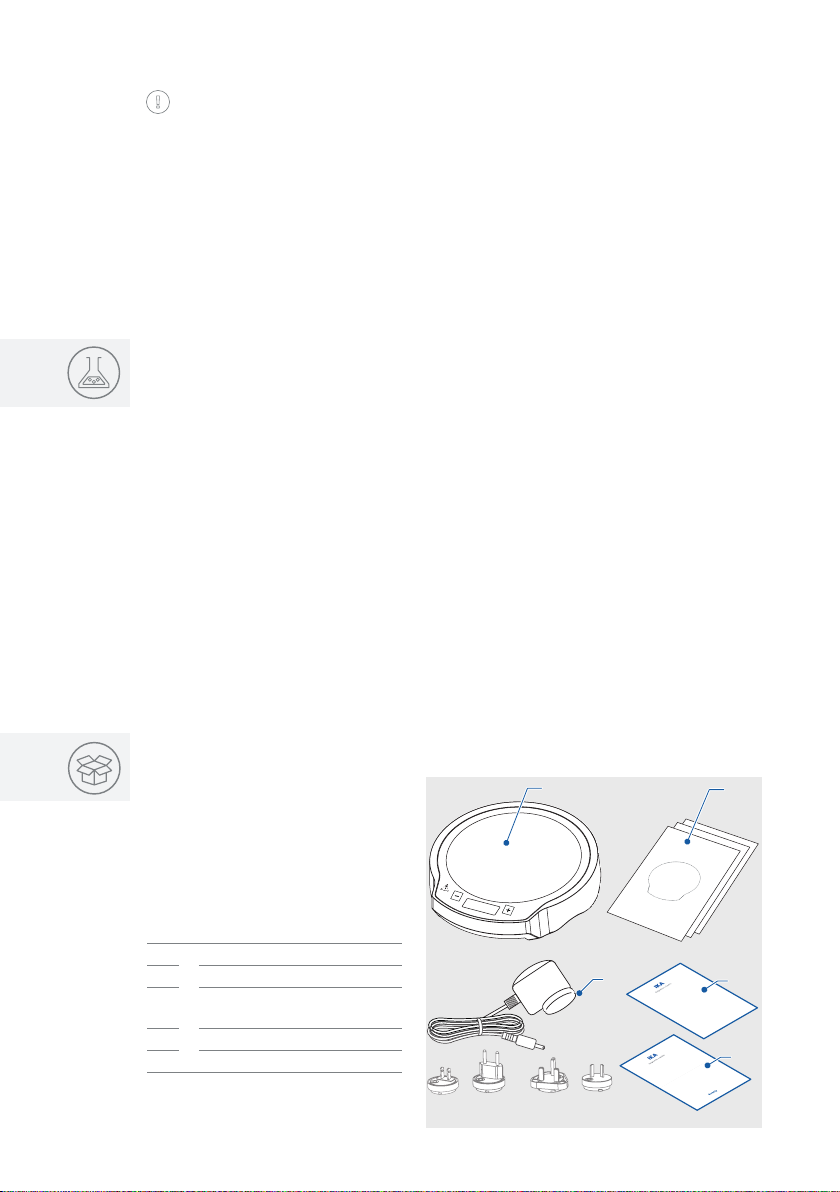

/// Scope of delivery

IKA myPlate

AustraliaEurope

Switzerland

USA

China

10 x

AIKA myPlate

Bblank photo papers (10 x)

Cpower supply unit with

exchangeable adapters

Duser guide

Ewarranty card

/// For protection of the equipment

› The device may only be opened by qualiﬁed and IKA approved experts.

› Protect the device and accessories from bumps and impacts.

› Keep the base plate clean.

/// Use

› The magnetic stirrer has been designed for mixing liquids.

/// Area of use (indoor use only)

› Laboratories

› Pharmacies

› Universities

› Schools

› The device is suitable for all areas (EMC class A and B).

› The safety of the user cannot be guaranteed:

- if the device is operated with accessories that are not supplied or recommended by the

manufacturer.

- if the device is operated improperly or contrary to the manufacture’s speciﬁcations.

- if the device or the printed circuit board are modiﬁed by third parties.

Intended use

/// Power supply/Switching off the device

Warning!

› The device will automatically restart following any interruption to the power supply.

› The outlet for the mains plug must be easily accessible.

› The device can only be disconnected from the mains outlet by pulling out the power cord set

or the connector plug.

rpm

1112

rpm

1112

...

rpm

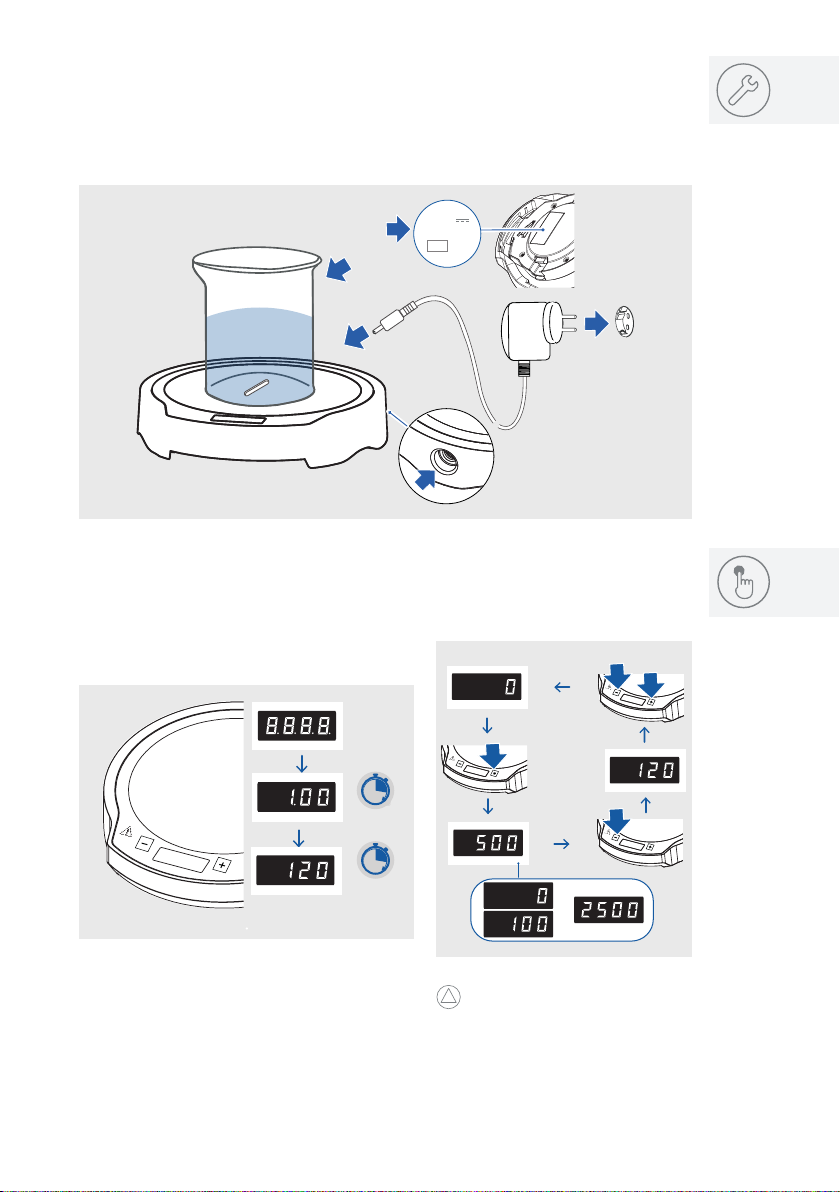

›After connecting to the mains, the display shows

all the segments displayed, the software version,

and the speed set last time, at which the device

runs then.

›

Touch “+” to increase the speed, “-“ to lower the

speed, and both of the keys to set the speed to

“0“.

The setting range for the speed is from 0/100

rpm to 2500 rpm.

The set speed value is shown on the display.

The set speed value might blink until

the actual speed reaches it.

!Note!

When turn off and restart again, the

device would run at the speed set last

time.

Assembly

Operation

1 12 V

300 mA

LPS

› Observe the ambient conditions (temperature, humidity, etc.) listed under “Technical Data”.

›Connect the device to a socket.

Place a magnetic rod in a vessel which is penetrable for magnetic field lines and fill the vessel

with the medium to be processed. And then place the vessel on the center of the base plate.

Exchanging under layer photo

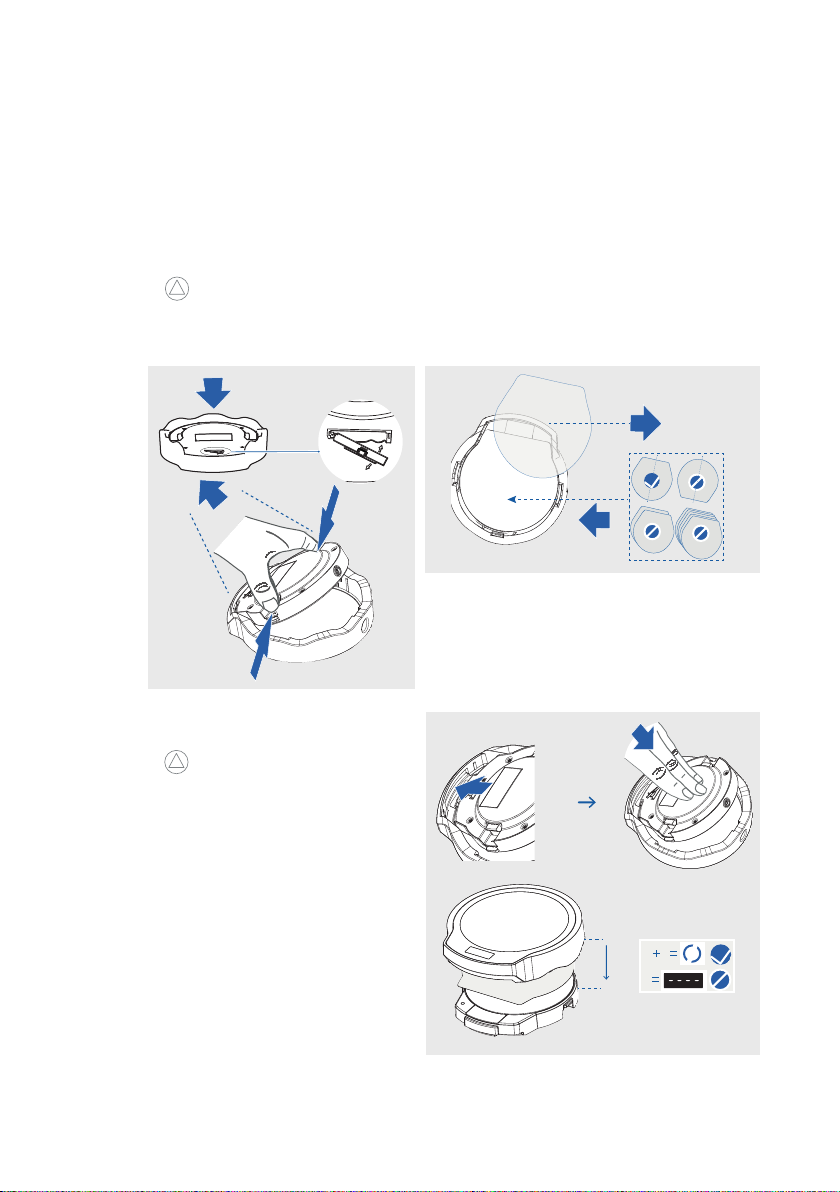

/// Exchanging under layer photo

The default under layer photo is white, and you may exchange it with your desired photo.

Procedure

›Place the device upside down. Grip and press the two locking knobs on both sides of the

stirring part. Lever up the stirring part.

›Exchange the photo.

!Note!

Pay attention to the correct orientation when exchanging the photo!

Never allow to apply 2 or more photos at the same time.

›Assemble the stirring part back to

the external part.

!Note!

The beak of the stirring part must

be inserted into the concave of the

external part ﬁrstly and then press it

into the external part. The locking

knob will lock automatically.

Never allow to run the device with-

out assembling with the external

part, otherwise the device will not

run but only show “- - - - “ as there

is an ambient light sensor integrated

in the stirring part.

A B

rpm

/// Proper handling

The device is maintenance-free. It is only subject to the natural wear and tear of components and

their statistical failure rate.

Cleaning:

Remove the device from the mains before cleaning.

Dyes Isopropyl alcohol

Building materials Water containing detergent / isopropyl alcohol

Cosmetics Water containing detergent / isopropyl alcohol

Food Water containing detergent

Fuels Water containing detergent

Other materials Please consult IKA

Dirt Cleaning agent

Maintenance and cleaning

›

Wear protective gloves during cleaning the devices.

› Electrical devices may not be placed in the cleansing agent for the purpose of cleaning.

› Do not allow moisture to get into the device when cleaning.

›

Before using another than the recommended method for cleaning or decontamination, the

user must ascertain with IKA that this method does not destroy the device.

Ordering spare parts:

When ordering spare parts, please indicate:

›

device type.

›

serial number, see product label (bottom of product).

›

line item and description of spare part, see: www.ika.com.

›

software version (upon device starting up).

Repairs:

Please only send devices in for repair that have been cleaned and are free of materials which might

present health hazards.

For this, use the “certiﬁcate of compliance” form which you can obtain from IKA or can download

a version for printing from the IKA website at www.ika.com.

If your appliance requires repair, return it in its original packaging. Storage packaging is not su-

cient when sending the device - also use appropriate transport packaging.

/// An overview

Magnetic stir bar:

›

TRIKA®25

›

IKAFLON®20

›

IKAFLON®30

›

RSE stir bar remover

See more accessories on

www.ika.com.

Accessories

Warranty

Error codes

/// Troubleshooting correctly

The stirrer displays an error code; following is an overview of possible errors and solutions.

Proceed as follows in such cases:

› Turn off the device.

› Carry out corrective measures.

› Restart the device.

Error code | Causes | Effect | Solutions

E 4 - Motor control is unavailable

Causes › motor blocked or overloaded

Effect › motor switched off

Solutions › reduce load torque or use smaller magnetic rods

› reduce target speed

If the actions described fails to resolve the fault or another error code is displayed then take one of

the following steps:

›

contact the service department.

›

send the device for repair, including a short description of the fault.

/// Regulations

In accordance with IKA warranty conditions, the warranty period is 24 months. For claims under the

warranty please contact your local dealer. You may also send the device direct to our factory, enclosing the

delivery invoice and giving reasons for the claim. You will be liable for freight costs.

The warranty does not cover worn out parts, nor does it apply to faults resulting from improper use,

insufficient care or maintenance not carried out in accordance with the instructions in this operating

manual.

Table des matières

Autres manuels IKA Équipement de laboratoire

IKA

IKA KMO 3 basic Manuel utilisateur

IKA

IKA RET control Manuel utilisateur

IKA

IKA RV 10 basic Manuel utilisateur

IKA

IKA MATRIX Orbital Delta F0.5 Manuel utilisateur

IKA

IKA RV 10.1 Guide de l'utilisateur

IKA

IKA MIDI MR 1 digital Manuel utilisateur

IKA

IKA RCT basic Manuel utilisateur

IKA

IKA Vortex 2 Manuel utilisateur

IKA

IKA A11 basic Manuel utilisateur

IKA

IKA Plate RCT digital Manuel utilisateur

IKA

IKA Big Squid Manuel utilisateur

IKA

IKA Roller 6 digital Manuel utilisateur

IKA

IKA H 44 Manuel utilisateur

IKA

IKA HBR 4 control Manuel utilisateur

IKA

IKA VC 10 lite Manuel utilisateur

IKA

IKA HG 600 Manuel

IKA

IKA MINISTAR digital Manuel utilisateur

IKA

IKA Mini MR standard Manuel utilisateur

IKA

IKA HABITAT Manuel utilisateur

IKA

IKA RET control Manuel utilisateur

IKA

IKA T 25 digital ULTRA-TURRAX Manuel utilisateur

IKA

IKA C 200.RC Manuel

IKA

IKA T25 easy clean digital Manuel utilisateur

IKA

IKA HB digital Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur

Yamato

Yamato BM510 Manuel utilisateur

IKA myPlate Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques
