Ijinus LNU Manuel utilisateur
Installation Guide
LNU : Battery powered ultrasonic level sensors
Measurement of water heights
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
2
Table of contents
Table of contents...............................................................................................................................................................2
1. Introduction....................................................................................................................................................................3
2. Three main ranges of measurements (depending on max distance to measure) .......................................................3
3. Necessary equipment (4 configuration examples) .......................................................................................................4
a. Temporary Installation................................................................................................................................................4
b. Permanent installation of a unique level sensor (continuous monitoring or self-monitoring of water networks)...5
c. Permanent installation of a several level sensors and a logger (continuous monitoring or self-monitoring of water
networks):...........................................................................................................................................................................5
d. Other configurations...................................................................................................................................................5
4. Quick configuration with the software Avelour ...........................................................................................................6
a. Necessary equipment .................................................................................................................................................6
a. Prerequisite.................................................................................................................................................................6
b. First step : Run Avelour and connect to the sensor to configure...............................................................................6
c. Second step : Selection of the sensor to configure, eventually a firmware update would be suggested .................7
d. Third step : Configuration of Measures part ..............................................................................................................8
Calibration of the sensor Case N°1 (Ideal)........................................................................................................................11
Calibration of the sensor Case N°2 (Classic example of a manhole with an invert).........................................................12
Calibration of the sensor Case N°3 (complex) –Expert mode..........................................................................................14
e. Fourth step : Data reading in real time.....................................................................................................................18
f. Fifth Step : Retrieve and see locally your data by radio ...........................................................................................19
g. Sixth step: Data export .............................................................................................................................................19
h. Seventh step : Pair devices .......................................................................................................................................20
i. Eighth step : Data sending ........................................................................................................................................20
5. Elements for good practice and installation examples...............................................................................................23
6. Document History ........................................................................................................................................................26
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
3
1. Introduction
This solution is an Ijinus product grouping water height measurement by aerial ultrasonic,
with automatic measurement cycle changes depending on thresholds, flow rate
transformation through conversion tables. Some sensors are equipped with connectors
for coupling with an overflow detector or to control water sampler.
In addition to measuring, these sensors can also be paired with others or serve as data
concentrators (for version with communication 2g, 3g or Sigfox).
2. Three main ranges of measurements (depending on max distance to measure)
LNU0300
Measure up to 3m
LNU0600
Measure up to 6m
LNU1001
Measure up to 10m
External ultrasonic
probe
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
4
for example the two figures below show the indication of the diameter of the area that
will be studied by two probes models (3 and 6 m) according to the distance
3. Necessary equipment (4 configuration examples)

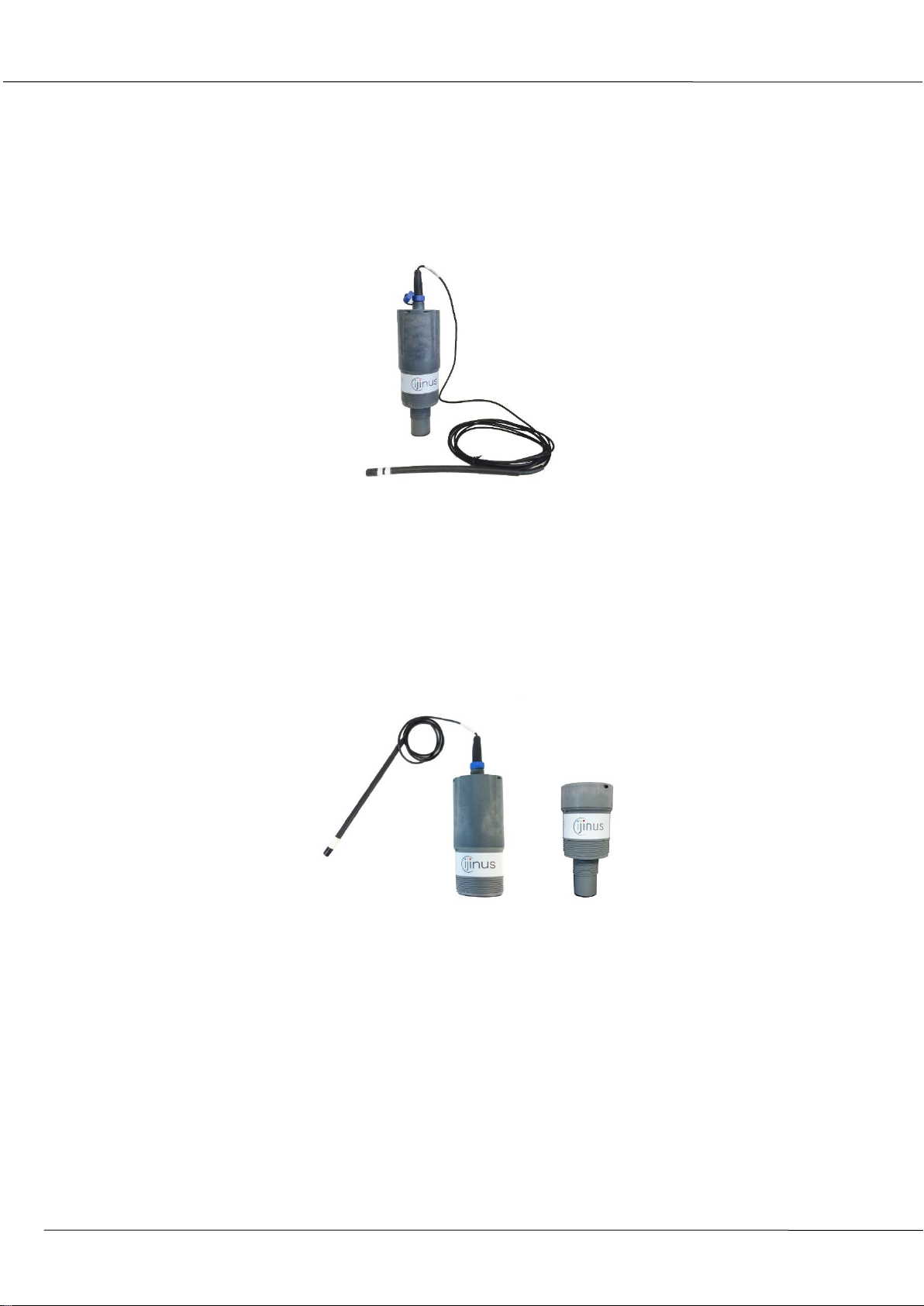

a. Temporary Installation
The sensor is autonomous and battery powered (lithium battery), it measures water level by air ultrasonic
waves. It has internal logger and data can be retrieved on-site (by radio using the programming kit : Wiji).
Fixation, either single
or double metal plate
Ultrasonic sensor
Single battery
Ultrasonic sensor with
connector
Water sampler cable
Overflow detector
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
5
b. Permanent installation of a unique level sensor (continuous monitoring or self-monitoring of
water networks)
For level measurement that is battery powered (replaceable lithium) and send data by GSM/GPRS, 3G (depending on
the sensor).
Sensor integrating a logger, communication GSM/GPRS, 3G modem and its deported antenna
c. Permanent installation of a several level sensors and a logger (continuous monitoring or self-
monitoring of water networks):
For level measurement that is battery powered (replaceable lithium) send data locally by short range radio, and
the logger (LOG0500) retrieve the data of the level sensors and send them by GSM/GPRS.
Communicative logger with its deported antenna and a level sensor
d. Other configurations.
Actually, the communication protocols available for the Ijinus devices are the following:
-Radio for a HF configuration and data retrieval : Wiji protocol
-Wireless communication for remote data monitoring : 2G (for Sms), GPRS, 3G, Sigfox, NB-IoT (LTE-M 3GPP)
-Currently being integrated: 4G, 6LOWPAN
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
6
Example of a level sensor with Sigfox communication
4. Quick configuration with the software Avelour
We will show here the classical version of the system programing, level measurement and data sending by
Gsm/Gprs/3G.
a. Necessary equipment
-The software Avelour in 6.04 version minimum
-Programing Wiji kit or Wiji key
Avelour
Wiji kit
Wiji key
a. Prerequisite
i. The material is considered to be directly functional, the battery can be use directly
ii. All indications contained in this document correspond to programming with Avelour in version
6.04 mini
b. First step : Run Avelour and connect to the sensor to configure
After connection of the Wiji kit equiped with its antenna (or the Wiji key) on your laptop or PC USB port, run the
software Avelour version 6.04 minimum. Click on the button “Connect to a wireless device” then the sensor or
logger will be directly visible by its part number (SN) without the need to activate anything else (ex IJA0101-
0000 3559). Locate the sensor's serial number (SN) on the sensor label and click "OK".
On the first connection with the sensor only the serial number will appear. The following connections you will
see also the name of the installation site or another name that you define.
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
7
c. Second step : Selection of the sensor to configure, eventually a firmware update would
be suggested
During its connection with the sensor, the following pop up appears :
When connected, and only if the sensor already has measures in memory, the following options will suggest you
to retrieve the measures:
After your choice of these options, if the sensor is not up to date (case of new firmware developed since your
last connection or you are now connected with a new version of the software Avelour). It is strongly
recommended to read carefully the different messages in the options windows.
The firmware update can last a moment so it is advised to do it while in your office. On-site prefer the best radio
connection (so not if the metal plate of a man hole is closed).

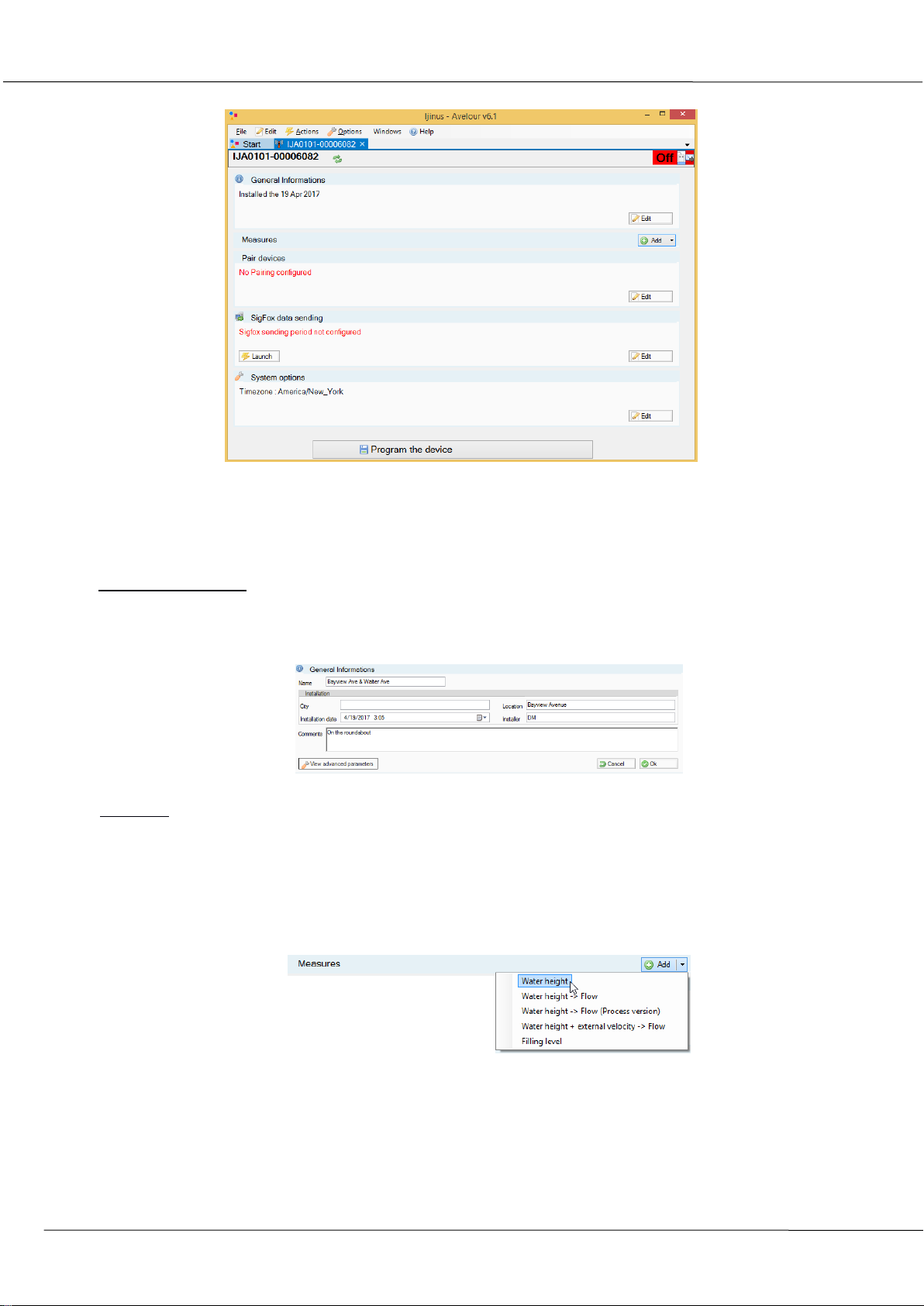

When the sensors is ready, Avelour will look like bellow :
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
8
d. Third step : Configuration of Measures part
This part is divided in several paragraphs. Each part will be detailed.
General informations
This part is useful to describe the measurement point. The most important information would be the name that
will help you to find your sensor at a future connection.
Measures
Choice of the application to configure
This part is the most important, it allows you to configure your sensor.
First of all, and the simplest click on the button “Add”, then choose “Water height”.

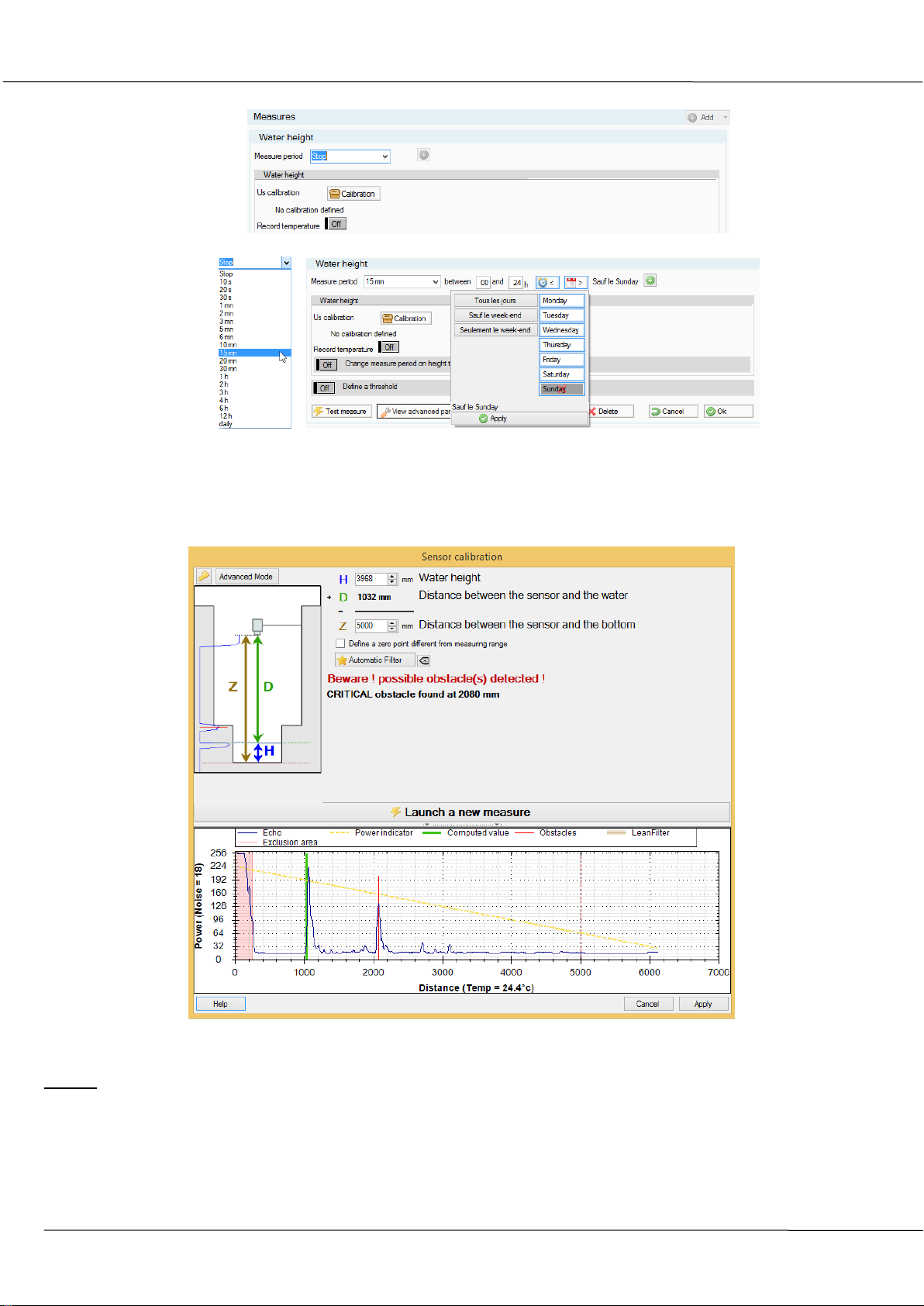

Choice of the measure period
In this new menu, select the period you want the sensor to measure (in this example every 15min)
To the right of the measure period selector, 2 little icons allowing a deferred programming according to the
time period and day of the week you can choose from. So far the sensor is not calibrated.
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
9
Calibration of the water height
After clicking the calibration button the bellow windows appears:
It is difficult to establish rules but globally 3 cases may arise:
CASE 1 : Ideal case: unique echo (test in lab or if the sensor front flat water surface for example)
A simple calibration would be possible.
Quick programming using Avelour
Manuel d’utilisation K0J00010
IJINUS NA -c/o ALTIOS USA, 10-34 44th Drive11101 Long Island City - United States - www.ijinus.com - sales@ijinus.com
10
CASE 2 : Case of a classic man hole with at the bottom an invert. The figure bellow shows two echoes (the
invert and the water). A calibration in advanced mode will be possible. First check that the sensor is well
positioned, fronting and perpendicular to the water.
CASE 3 : Complex case
the presence of many echoes make difficult the calibration the easiest way. A priority should be to move the
sensor if possible otherwise go to the expert mode. (Only for experienced users).
