IGS SPC-100 Manuel utilisateur

SPC-100

Rev.01

USER MANUAL

Product Overview

1-1. Characteristic

Real-time particle monitoring and control

Precision measurement and long-term stability

0.3㎛, 0.5㎛, 1.0㎛, 2.5㎛, 5.0㎛, 10.0㎛6-CH particle monitoring

268 * 128 mono graphic LCD applied

Simultaneous display of particle, temperature and humidity measurements

RS485 communication (Modbus RTU)

WI-Ficommunication Station Mode : TCP/IP, Wi-Fi(2.4GHz) communication support

1-2. Applications

Semiconductor cleanroom particle, temperature, humidity measurements

Particle, temperature and humidity measurement in pharmaceutical and hospital cleanroom

Various semiconductor equipment

IAQ (Indoor Air Quality) monitoring and control device for home and industrial

Home and industrial air conditioner

Model SPC-100

Operating Voltage 12Vdc ±10% (DC Adapter plug: inner diameter 2.1, outer diameter 5.5PIE)

Current consumption Max. 350mA @ 12Vdc

Operating principle Laser scattering

Measurement particle size range >0.3㎛, >0.5㎛, >1.0㎛, >2.5㎛, >5.0㎛, >10㎛

Measurement range 0 ~ 10,000,000 pcs/L (1pcs/L = 28.3pcs/cf)

Counting efficiency ≥50%@0.3μm , 100%@>0.5μm( 0°C ~ 40°C, 50 ±10%RH )

Temperature measuring range -40 ~ +125℃ / ±1℃

Humidity measuring range 0 ~ 100% / ±5.0%

Wi-Fi output Protocol Station Mode (TCP/IP Communication)

Digital Output RS485 Modbus

Operating Temperature 10… +60℃

Storage Temperature 0… +70℃

Dimension ( W*H*D) 110*185*44.3 (Wi-Fi Without Antenna)

Weight 387g

1-3. Specifications

RF frequency bands

Maximum RF output power

WLAN: 2412-2472 MHz / BLE: 2402-2480 MHz

WLAN: 19.8 dBm / BLE: 9.8 dBm

Product Function and How To Use

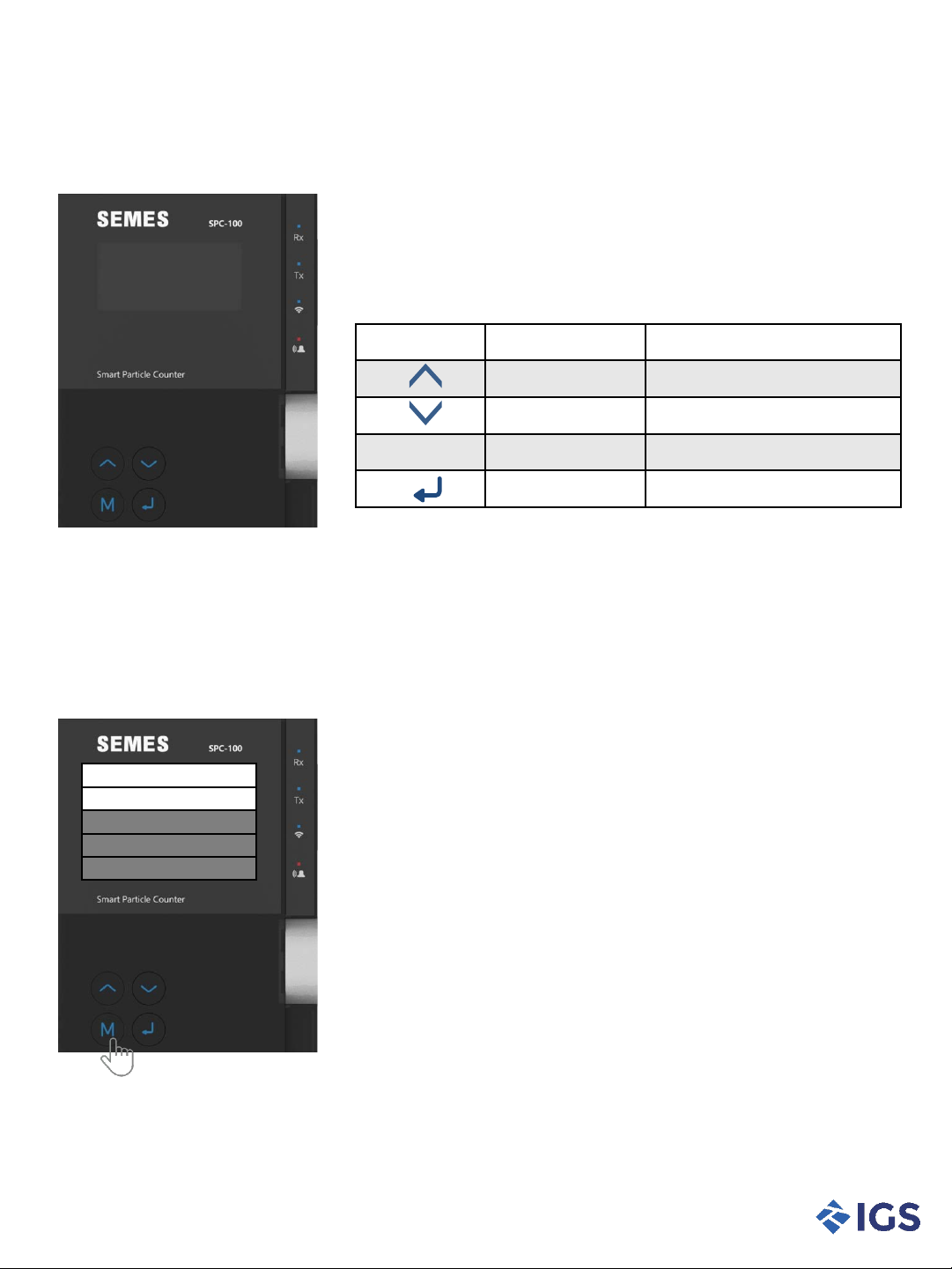

KEY KEY Name Description

UP KEY Move up and increase value

DOWN KEY Move down and decrease value

MENU KEY Enter configuration mode

ENTER KEY Enter

Operating configuration

Configuration Mode

Sensor display Settings

Equipment Settings

Sensor Alarm Settings

Wi-Fi Settings

➋

➊

➌

➍➋Equipment Settings

Equipment Default Settings.

➌Sensor Alarm Settings

Set an alarm for each Particle Size Range.

➍Wi-Fi Settings

Settings required for Wi-Fi communication.

➊Sensor Display Settings

Particle size range setting displayed on the initial screen

Click the MENU button to enter

configuration mode.

Sensor Display Settings

Left Upper 0.3 um

Right Upper 0.5 um

Left Lower 1.0 um

Right Lower 2.5 um

Product Function and How To Use

Sensor Display Settings

Click the ENTER button to enter

Sensor Dispalys Settings.

Configuration Mode

Sensor Display Settings

Equipment Settings

Sensor Alarm Settings

Wi-Fi Settings

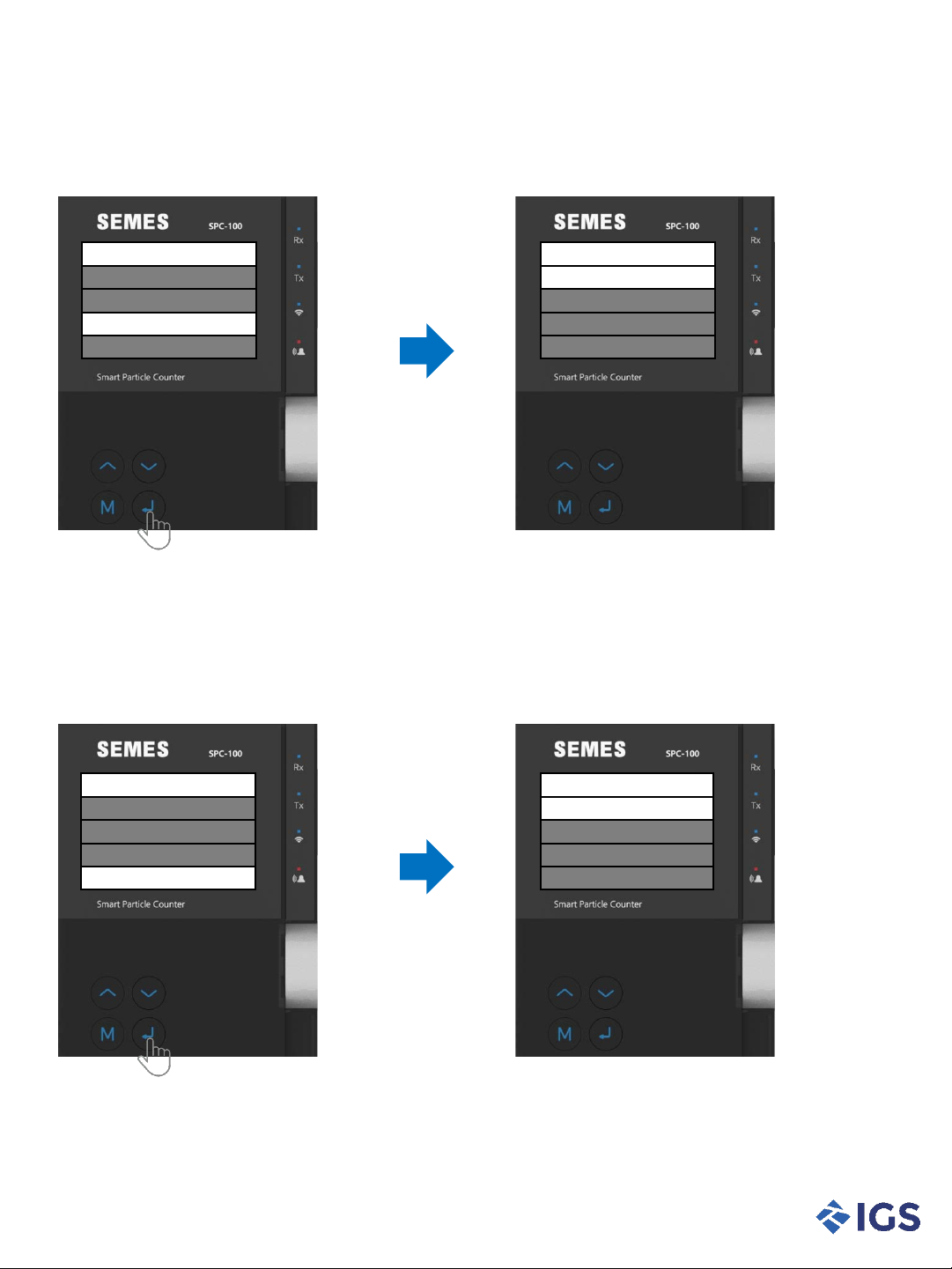

Equipment Settings

Configuration Mode

Sensor Display Settings

Equipment Settings

Sensor Alarm Settings

Wi-Fi Settings

Particle size range setting

displayed on the initial screen

Equipment Settings

Language Settings English

Equipment ID 1

Baud Rate 115200bps

temperature unit ℃

Equipment Default Settings.

Click the ENTER button to enter

Equipment Settings.

Product Function and How To Use

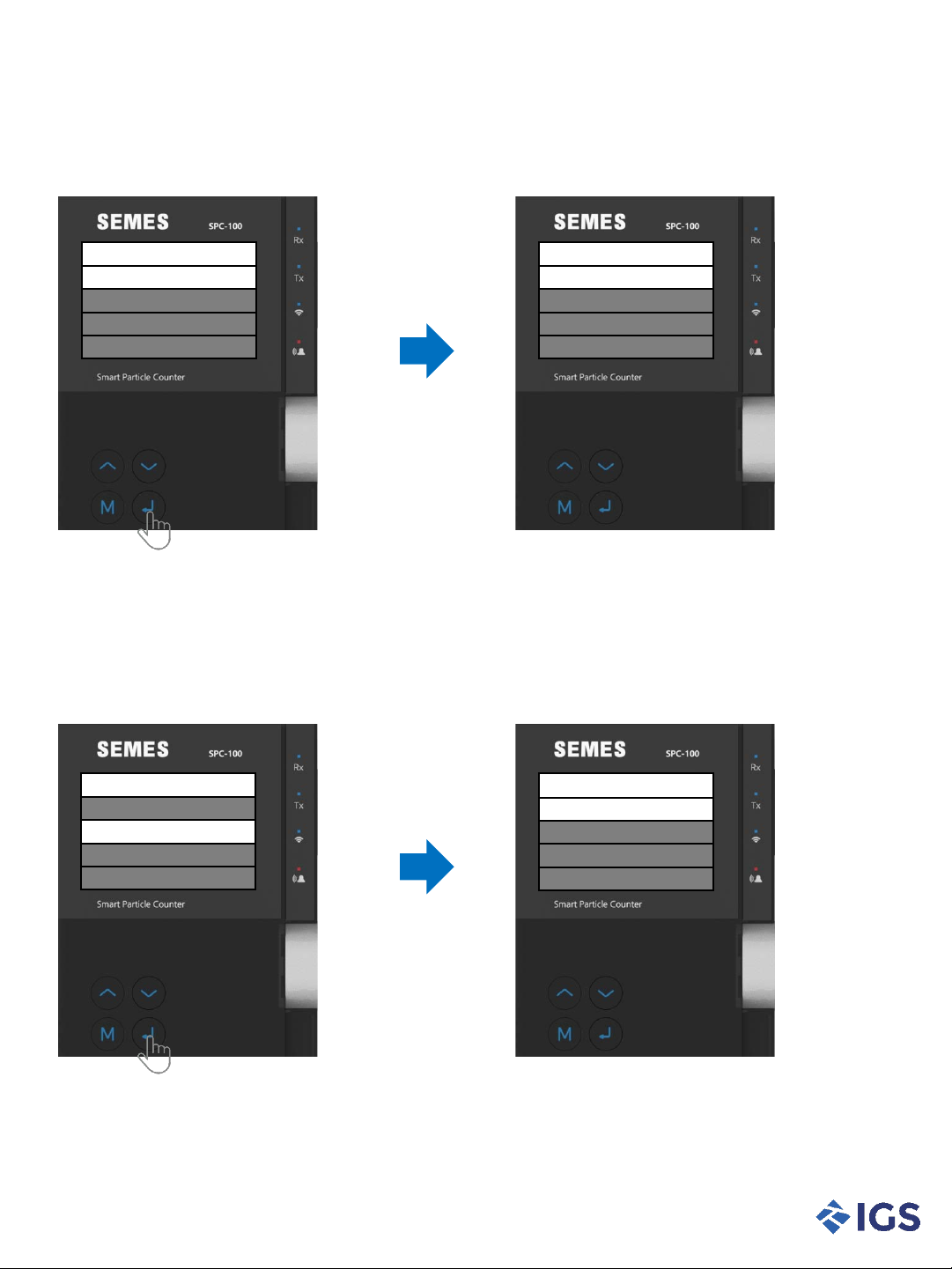

Sensor Alarm Settings

Click the ENTER button to enter

Sensor Alarm Settings.

Configuration Mode

Sensor Display Settings

Equipment Settings

Sensor Alarm Settings

Wi-Fi Settings

Configuration Mode

Sensor Display Settings

Equipment Settings

Sensor Alarm Settings

Wi-Fi Settings

Set an alarm for each Particle Size Range.

Sensor Alarm Settings

0.3 um Upper Limit 0

0.3 um Lower Limit 0

0.5 um Upper Limit 0

0.5 um Lower Limi 0

Wi-Fi Settings

AP IP (1) 192

AP IP (2) 168

AP IP (3) 000

AP IP (4) 002

Settings required for Wi-Fi communication.Click the ENTER button to enter

Wi-Fi Settings.

※ When using Wi-Fi mode, RS485 communication is not available.

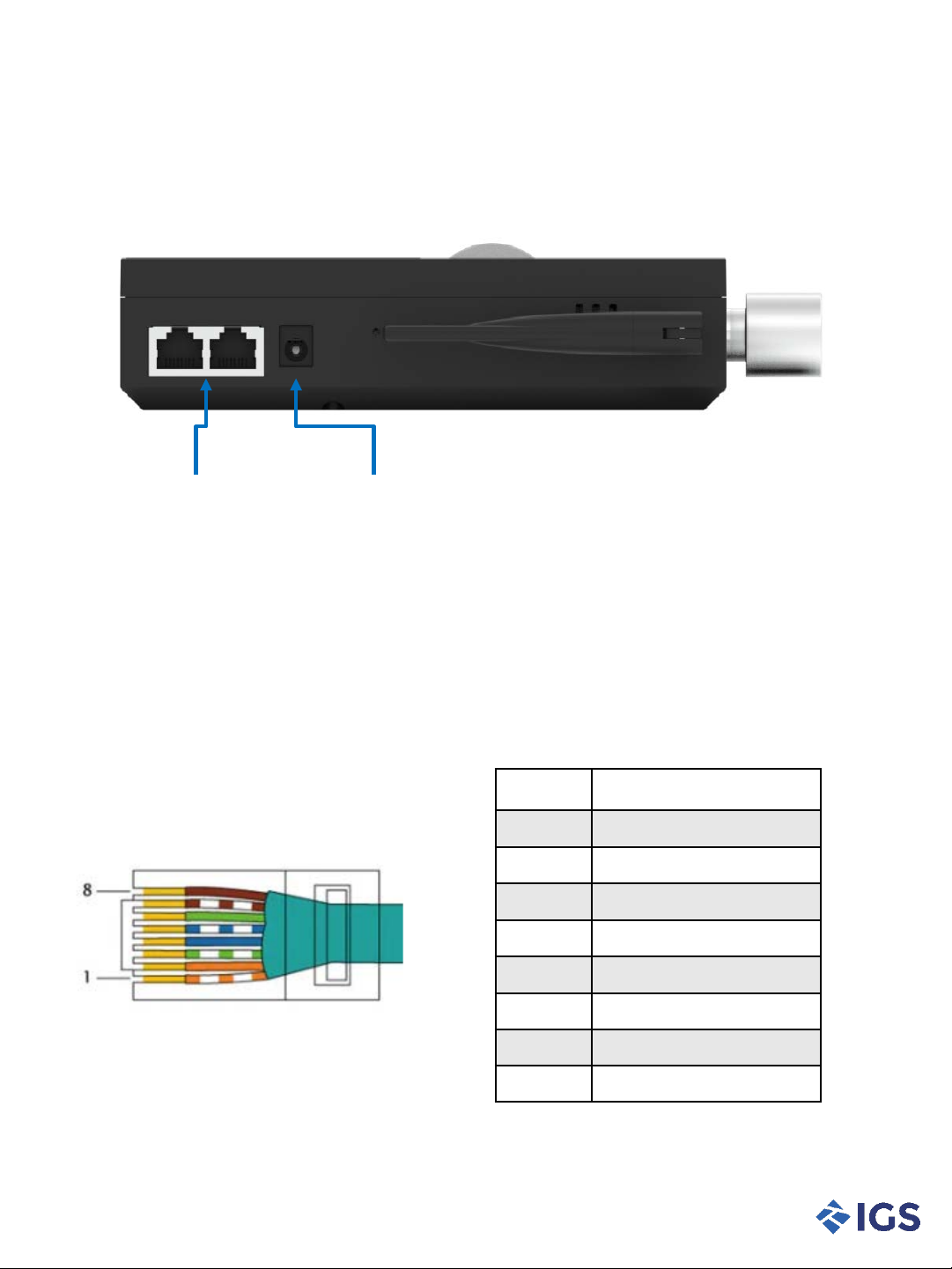

Product Connector Specifications

No Pin Assigned

1RS485-

2RS485+

3GND

4GND

5NC

6NC

7NC

8NC

Communication Connector Pin Map Specification

Connector Specifications

Communication Connector

RJ-45 8p8c (Dual)

Power Connector

2.0PIE DC JACK (12V)

<Front>

<Rear>

<DOWN>

<UP>

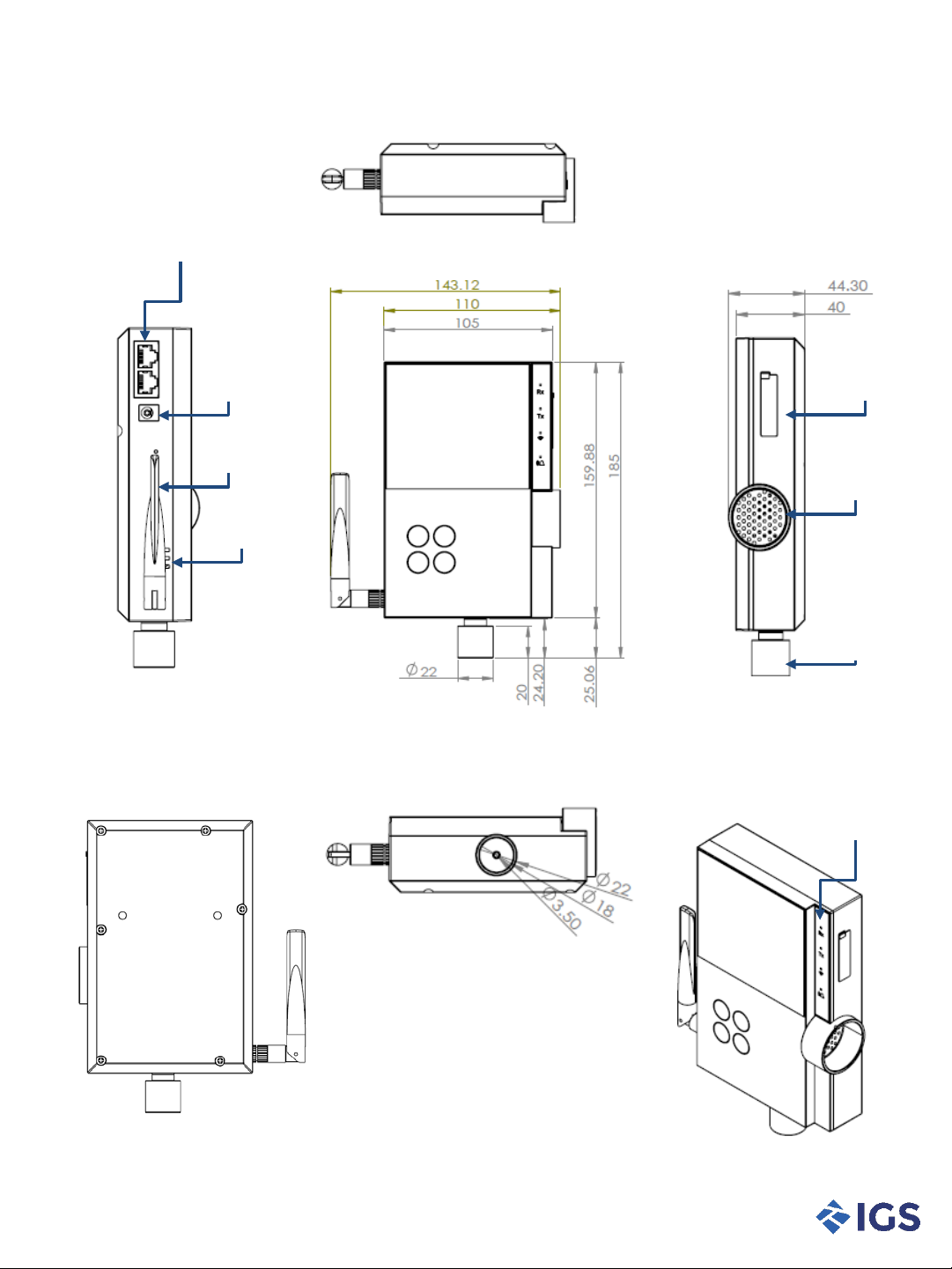

Product Dimensions

Communication Connector

Dust Outlet

Power Connector

Wi-Fi Antenna

D/L Connector

Dust Inlet

Status LED

Vent Hole

Product Appearance

Products handling precaution

There is a risk of electric shock to this product, so do not open the product while power is

applied.

Be sure to install this product on a fixed location such as a rack or panel.

Do not touch the power plug with wet hands. It may cause electric shock or injury.

Supply the power input within the specified rating range.

Be careful not to let water or beverages enter the product.

Clean regularly with a soft cloth or brush. If the dust inlet and outlet are blocked, it may

cause product failure.

To prevent inductive noise, separate wiring from high-voltage lines and power lines.

Avoid installation in places subject to strong magnetism, noise, vibration and impact.

When extending the sensor wire, use a shield wire and do not make it unnecessarily long.

Sensor wire and signal wire should be wired independently away from power, power and

load wires.

Avoid using near devices that generate strong high-frequency noise (high-frequency welding

machine, high-frequency sewing machine, high-frequency radio, large-capacity SCR

controller).

Some measurement errors may occur depending on the usage environment and usage

method.

Do not disassemble the product arbitrarily. (Warranty does not apply to products that have

been disassembled.)

We are not responsible for product damage outside of the warranty conditions specified by

the manufacturer.

It is recommended to calibrate once a year because it can be affected by factors such as

temperature, humidity, and shock during the long-term use period.

※ Be sure to observe the contents specified in the handling precautions above as they may

cause product failure.

※ The specifications and dimensions described in this user manual are subject to change

without notice for improvement.

FCC Instructions

FCC Compliance Statement

This device complies with part 15ofthe FCC rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for aClass Adigital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in acommercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in aresidential area is likely to cause harmful interference in which

case the user will be required tocorrect the interference at his own expense.

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment. This transmitter must not be co-located

or operating in conjunction with any other antenna or transmitter.

FCC Radiation Exposure Statement

This equipment should be installed and operated with a minimum distance of 20cm between the

radiator and your body.

This document contains information of products and processes in development. All information provided here is subject to change without notice.

Information in this document supersedes and replaces information previously supplied in any prior versions of this document.

We do not guarantee the performance of this device in case of disassembling, operating without complying with instructions in this document.

Contact your IGS representative to obtain the latest forecast, schedule and specifications. Or It may be obtained by calling +82-2-6299-7536~7 or

by visiting http://www.igstech.kr
