Welcome!
This guide will get you up and running with your IoT Deadbolt.
In the meantime, you should follow us on Facebook and Youtube!
Visit ourYoutubeLike us on Facebook
Table of Contents
What’s Included 4
Specifications 5
Installation Guide
Requirements 6
Prepare Door for Installation 7
Prepare Lock for Installation 9
Installation Instructions 10
Test Lock 18
Prepare the Door Frame 19
User Guide
Lock Anatomy 20
Features 22
Unlocking and Locking 23
Lock Pairing & Provisioning 24
Lock Behaviour 25
9V Jumpstart 26
Physical Keys 27
Audio and LED Indications 28
Troubleshooting 29
4
What’s Included
Front Assembly
& Rubber Gasket
Back Assembly
Rubber Gasket
Back Assembly
AA Alkaline Batteries x8
Bolt Assembly
Construction Keys x4
Owner Keys x4
Screw Holder
Back Plate
Strike Plate Housing &
Strike Plate
Door Sensor & Magnet
Drill Sheet
Edge of the door Face of the door
Fold this line
60mm (2-3/8”) backset
70mm (2-3/4”) backset
Centerline
10mm (Optional)
54mm
Door Thickness
Drill for:
Drill for:
35mm (1-3/8”)
Drill for:
45mm (1-3/4”)
Drill for:
60mm (2-3/8”)
Drill for:
70mm (2-3/4”) backset60mm (2-3/8”) backset
Drill for: Drill for:
Drill a 25mm (1”) hole at the center
of dooredge based onyour
DoorThickness measurements
25mm
Drill Sheet
Version0.2 03/18
20mm (0.79”) x2
22mm (0.87”) x4
Wood Screw x6
40mm (1.57”)
Bolt Screw x3
6mm (0.24”)
Bolt Screw x1
4mm (0.16”)
Bolt Screw x2
Keyhole
Cover x1
8mm (0.31”)
Bolt Screw x4
5
Specifications
Model IoT Deadbolt
Battery Type 8 x AA* Alkaline
Battery Life Up to 1 Year
Emergency Power 9V Alkaline Battery
Operation Temp -20°C to 55°C
Storage Temp -40°C to 70°C
IP Rating IP65
Material AI, Zinc Alloy, ABS
Weight Net: 1.7kg, Gross: 2.2kg
Unlock Mechanism Bluetooth, PIN code, Physical Keys, Thumbturn

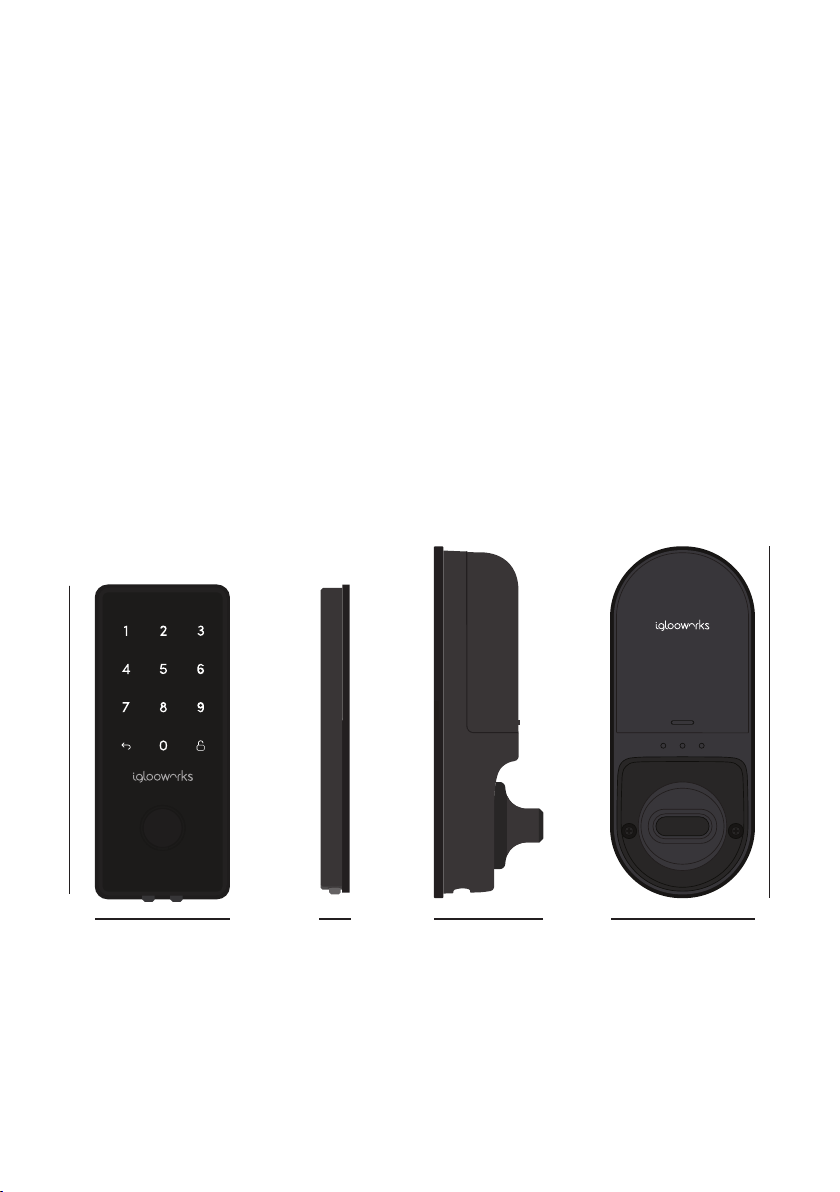

Front BackSide
148mm (5.83”)
63mm (2.48”) 58mm (2.28”) 76mm (2.99”)
185mm (7.28”)
* DO NOT USE: Heavy Duty, Eveready, GP, or rechargeable batteries. Please note that using recommended
battery brands such as Panasonic, Duracell, or Energizer will improve the performance and lifespan of the lock.
17mm (0.67”)
6
Installation Guide
148mm (5.83”)
185mm (7.28”)
Requirements
Measurements
43mm (1.69”) to 60mm (2.36”)
10mm (0.39”)
20mm (0.78”)
>110mm (4.33”) for 60mm (2.38”) / >120mm (4.72”) for 70mm (2.75”) backset
50mm (1.96”)
a
b
c
d
e
a
b
b
b
c
e
d
Clearance
Door Thickness
7
Please ensure that there is an existing handle on your door for push - pull access.
Not for: metal gates, glass doors or sliding doors.
If you are unsure if your door is suitable, send us web links to your door pictures to info@iglooworks.co
Prepare Door for Installation
Items needed:
Recommended
Door and door frame material : Wood
Recommended
Gap between door and door frame: <3mm (0.01”)
DrillDrill Sheet 10mm (0.39”)
Drill Bit
54mm (2.12”)
Hole Saw
25mm (0.98”)
Spade Bit
#2 Phillips Screw Driver 20mm (0.78”)
Chisel
Hammer
8

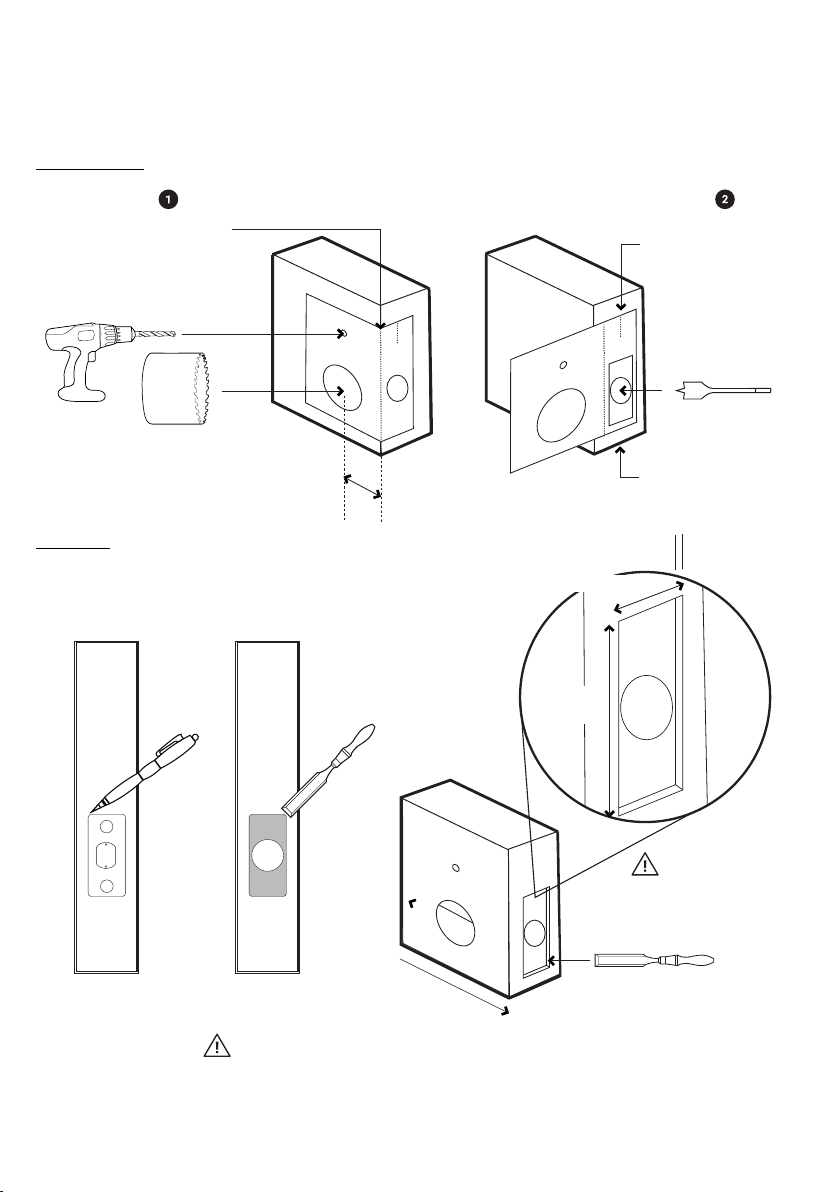

How to use the Drill Sheet
Mark the center of the holes and then drill for accuracy.
Drilling (Door)
Make sure this is
aligned to the centre
of door edge
Please ensure this
chiseled surface
is flattened with a
depth of 2.7mm
Door edge
Fold here
before drilling
holes for side
Chiselling
Put the bolt tongue in &
chisel around the edge
54mm (2.12”)
Hole Saw
10mm (0.39“)
Drill Bit
54mm (2.12”) 2.7mm (0.11”)
Deep
57mm
(2.25”)
25mm (0.98”)
25mm (0.98”)
Spade Bit
20mm
(0.78”)
Chisel
20mm (0.78”)
Chisel
9
Remove Battery Cover from the Back Assembly
Slide Up
Set Back Assembly for Left / Right Hand Installation
Set the toggle to ‘R’ for
right-hand installation
Right Hand Installation
Set the toggle to ‘L’ for
left-hand installation
* Hinge is on your left.
* Hinge is on your right.
Left Hand Installation
Hinge
Outside
Hinge
Prepare Lock For Installation
10
Installation Instructions
Measure
If you are replacing your current deadbolt lock, industry standards are 60mm (2.38”) or 70mm
(2.75”) backset. To determine which backset length you should use, measure the distance (x)
between the center of 54mm (2.12”) hole to door edge.
Prepare bolt assembly based on the distance (x)
Bolt ships with bolt assembly in 60mm (2.38”) position. If required, twist the bolt and pull to extend
(Simultaneously) to 70mm (2.75”) backset position.
Twist upwards
Pull
Twist downwards
to lock backset position
XX
54mm
(2.12”)
Hole
