Igloo TATIANA 1.0 T Manuel utilisateur

TS, TSG, T, TG,

TN, TNSG, TNS, TNG,

TN2, TN2G

REFRIGERATED

DISPLAY CABINET

“TATIANA”

TYPE

www.horepa.nl

Tel: +31 226 354535

211

Dear Customers,

Thank you for buying a device from our production range. We hope that

due to its advantages the product you have bought will serve you well

and for many years. Please read carefully these instructions. This

information will enable you to use the product and ensure its long-term

and reliable operation.

Our products have the safety certificate “B” as well as the approval by

the State Hygiene Inspectorate.

Contents

I. Product characteristics page 3

II. Reloading page 5

III. Assembly page 6

IV. Operation page 9

V. Maintenance page 10

Troubleshooting

In case when any problems occur during start up or normal operation it is

advised to refer to appropriate chapters of this instruction. This is to make

sure that the device is correctly operated. If the problems persist, refer to

directions below.

The cabinet does not work… Make sure if:

- The voltage and frequency are in accordance with those recommended

by the manufacturer, i.e. 230 V, 50 Hz.

- The cabinet is connected to a power source.

- The main switch and the switch at the thermostat are on.

The cabinet works, lighting is off… Make sure if:

- The lighting switch is on.

- The lamp is not burnt out.

The cabinet does not reach the required temperature, lighting is on…

Make sure if:

- The cabinet's switch is on.

- The thermostat temperature is correctly set.

- The condenser is not dirty and clean it, if necessary.

- The ambient temperature is not higher than +25 C. If this is the case,

the manufacturer cannot guarantee proper temperatures.

If the problems still persist please contact the local IGLOO service

giving information that can be found on the rating plate

(serial number and type etc.).

www.horepa.nl

Tel: +31 226 354535

Type Length Max Area of Functional Rated Rated

load cooled capacity output lighting

(mm) (kg) shelves (m ) (dm ) (W) output (W)

Tatiana

1.0 T 990 30 0,5 90 160 18

1.3 T 1300 40 0,6 120 320 30

1.5 T 1500 50 0,7 140 320 36

1.7 T 1700 60 0,8 160 320 58

1.0 TN 990 30 0,5 90 160 18

1.3 TN 1300 40 0,6 120 320 30

1.5 TN 1500 50 0,7 140 320 36

1.7 TN 1700 60 0,8 160 320 58

1.0 TN2 1200 30 0,5 90 160 18

1.3 TN2 1500 40 0,6 120 320 30

1.5 TN2 1700 50 0,7 140 320 36

1.7 TN2 1900 60 0,8 160 320 58

1.3 TZ 1300 40 0,6 220 320 30

1.5 TZ 1500 50 0,7 280 400 36

1.7 TZ 1700 60 0,8 340 400 58

1200 1 500 1700 1900or or or

740

710 710

740

TN2 TN2G

I. Product characteristics

Technical data

T Tatiana type cabinet, S chamfered trough, G curved window,

N to be placed on tables, 2 compressor located at the side,

Z cabinet with the additional storage chamber

The refrigerated display cabinet is a typical and universal refrigerated

unit, which is used for display and short-term storage of various food

products. The unit operates at ambient temperatures from +10 C up

to +25 C and air humidity of 60% +/- 5%.

V. Maintenance

All maintenance works can be carried out only after disconnecting the

cabinet from the mains.

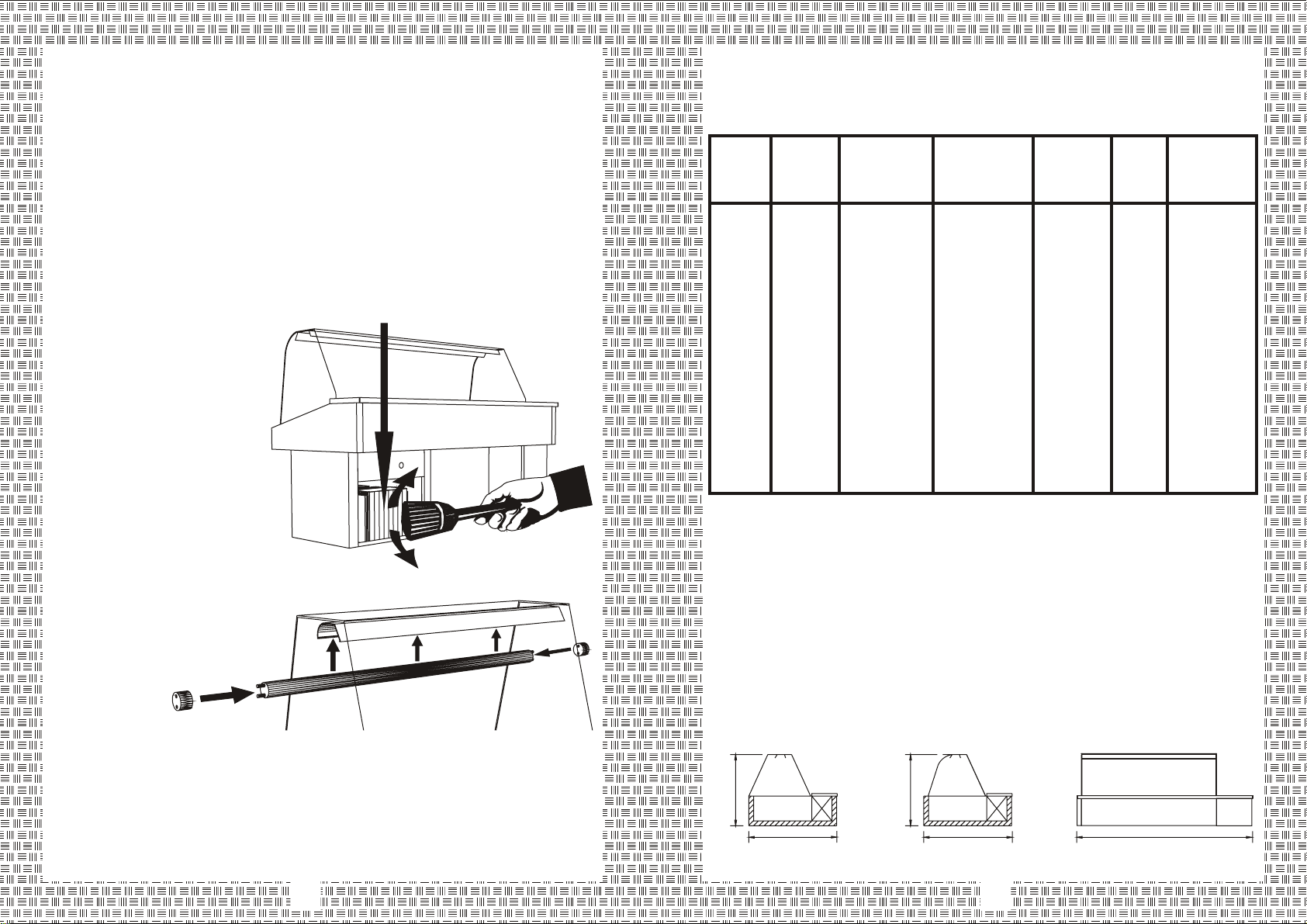

1.Cleaning the condenser

Unscrew the bolts and pull out the masking frame from the catches.

Use the vacuum cleaner, brush or compressed air to clean out the

condenser.

2. Replacing the

fluorescent lamp

- Cut off the power supply

- Take off the sockets

- Push the lamp out

of the holders

CAUTION:

It is normal that the water steam condenses on the glass windows when

air humidity is higher than 60%. Do not call the service.

condenser

www.horepa.nl

Tel: +31 226 354535

990 1300 1500 1700or or or

R33

1180

1180 1180

780

760 760

760

230

400

545

TS TSG T TG

1180

760

780

TGZ TSGZ TSZ TZ

990 1300 1500 1700or or or

945 945 945

710 710 710

545

430

270

710

945

TN TNSG TNS TNG

1223

230

400

1300 1500 1700or or

815

IV. OPERATION

Start up:

1. Put the connection plug into the plug-in socket.

2. Turn on the refrigerating unit using the temperature controller

(see drawing).

3. Set a required temperature using the temperature controller

(see drawing).

4. Turn on the lighting using the light switch located near the temperature

controller.

The following principles should be observed in order to ensure effective

and correct operation:

1.Do not fill up the cabinet with products before it is properly cooled

down (approx. for 12 h after start up)

2.Do not store any warm products in the cabinet.

3.Products cannot block out the ventilation gates.

4.Ensure that shelves are uniformly loaded.

5.Clean the condenser on the monthly basis or while dirty.

6.Wash the cabinet using warm water with addition of detergents. The

detergents cannot scratch or damage the surface and the cabinet must

be disconnected from the mains

The cabinet is controlled by the temperature gauge that is equipped with

the refrigerating unit switch that enables to turn off the unit without

cutting off the power supply.

www.horepa.nl

Tel: +31 226 354535

General information

Our products have been manufactured in accordance with modern

technologies that ensure high performance and a long service life.

The operational temperature range - from 3 C to +7 C, at the ambient

temperature of +25 C is guaranteed.

Equipment

When buying our product you also receive:

- Operational instructions

- Guarantee certificate

- Container for condensate

II.Reloading

The unit should be reloaded either manually or by an appropriate truck

lift and always in the position of normal operation. The maximum angle

of vertical tilt should not exceed 15 . While reloading by a truck lift the

machine should be positioned on a proper platform. The usage of

platforms is not necessary when the cabinet has been packed in to a case.

Platform for transporting

Transportation of a cabinet that has not been packed into a packing case

3.Put the drip container under the unit (drawing 6).

drawing 6 drawing 5

4. CAUTION: the cabinet should be connected to a separate, correctly

performed electric circuit 230 +10%V, 50 Hz with the socket

equipped in the protective pin (accordingly to PBUE).

5. The socket should be protected by the 6A time delay cut-out.

6. Put the container for condensate under the draining pipe.

WARNING: it is forbidden to connect the cabinets through the extension

or distributing wires.

WARNING: ventilation gates in the housing or built-in construction

should be uncovered.

WARNING: do not use any mechanical means in order to speed-up

defrosting.

WARNING: protect the refrigerating circuit against damages.

WARNING: do not use any electric devices inside the chamber for food

products storage.

IN CASE WHEN ALL REQUIREMENTS CONTAINED IN THIS

INSTRUCTION AND CONCERNING CONNECTIONS AND

OPERATION OF THE CABINET ARE NOT MET, THE

MANUFACTURER MAY DEPARTURE FROM GUARANTEE

OBLIGATIONS.

www.horepa.nl

Tel: +31 226 354535

Transportation of a case that has been packed into a packing case

Platform for transporting

3.After moving the front glass forward put it, along with the guide, into

the bottom hinge (dwg 3).

4.Lay the front glass leaning it against the lamp enclosure.

5.Protect the lamp's cable using a protection cap (dwg 4)

dwg 4 dwg 3

For cabinets with straight windows:

1.Put side windows into the guides (dwg 1), install the lamp housing

and screw in holding down bolts (dwg 2).

2.Install couplers for side windows (dwg 2).

3.Install the front window in the same way like the curved window.

4.Screw in M6 bolts fixing the front window (dwg 2).

5.Protect the lamp's cable using a protection cap (dwg 4).

6.Install the upper shelf and screw in fixing bolts (dwg 2).

III. Assembly

A.Unpack the cabinet and remove protective elements

B. Wash the whole cabinet with water at the water temperature not

exceeding +40 C and with addition of a washing liquid.

C. If a customer receives the cabinet that is partially disassembled then,

to protect it while transporting, the following steps should be taken:

For cabinets with curved front windows:

1. Put side windows into the guides (dwg 1)

2. Install lamps' housings and screw

in clamping screws (dwg 2).

dwg 2 dwg 1

Location

1. The unit should be located in a dry place, not exposed to the sunlight.

Such a place should ensure good change of air (the gap between the

cabinet and wall must be at least 10 cm) and should be away from heat

sources as well as from devices forcing the airflow like ceiling fans

and portable heat blowers.

2. The cabinet should be placed on the even and stable base and then

levelled (by screwing in or unscrewing legs if necessary) (dwg 5).

www.horepa.nl

Tel: +31 226 354535
