Igloo FRW218B Manuel utilisateur

WINE COOLER

Model No: FRW218B

OperationManual

Igloo isaregistered trademarkofIgloo ProductsCorp.Licensed toCurtis

InternationalLTD315 AttwellDrive, Etobicoke, Ontario, M9W5C1, Canada

Index

I.GeneralSafetyPrecautions ...........................2

II.TechnicalData.............................................................3

III. IllustratedStructure ....................4

IV.ElectricPrincipleDiagram .4

V.Operation .. 5

VI.Particular Precautions 6

VII.Maintenance ...6

VIII. Troubleshooting................... 7

I. GENERALSAFETY PRECAUTIONS

●Besure that the wine cooler staysinthe upright position

during transportation.

●Afterremoving thewine cooler fromthepackage,make

sure itisingood condition.Incaseofdoubt,do notuse

it and contactan authorized servicecenter.

●Placethe wine cooler firmlyon flat ground and levelitby

adjustingthe levelling legs.

●Thiswine cooler can onlybe usedinthe useofwhichit

wasdesigned.Damage due toimproper useor repairs

madebyunqualified personnelwill avoidwarranty.

●Maintainaminimum50mm spacebetween the backof

the wine cooler and the wall forproper aircirculation.

●Avoidputting the wine cooler inamoist area.

●Keep thewine cooler fromdirectsunlight.

●Keep the wine coolerfromanyhazardousor

combustibleitems.

Caution

1. Free standing installation only.

2. Before you throwawayyour oldwine cooler:Takeoff

the door.Leavetheshelvesinplacesothatchildren

maynot easilyclimbinside.

II. TECHNICALDATA

Type FRW218B

Volume(liter) 52L

CaseIron

Material Door Glass

Unit Dimension

(W×H×D)(mm) 345X660X495

Packaging Dimension

(W×H×D)(mm) 385X685X525

NetWeight (Kg) 16

GrossWeight(Kg) 17.8

Power Consumption

(KW·h/24h) 1.0

Temperature Range 11℃— 18℃

Rated Voltage AC110V

Rated Frequency60Hz

Input power 70W

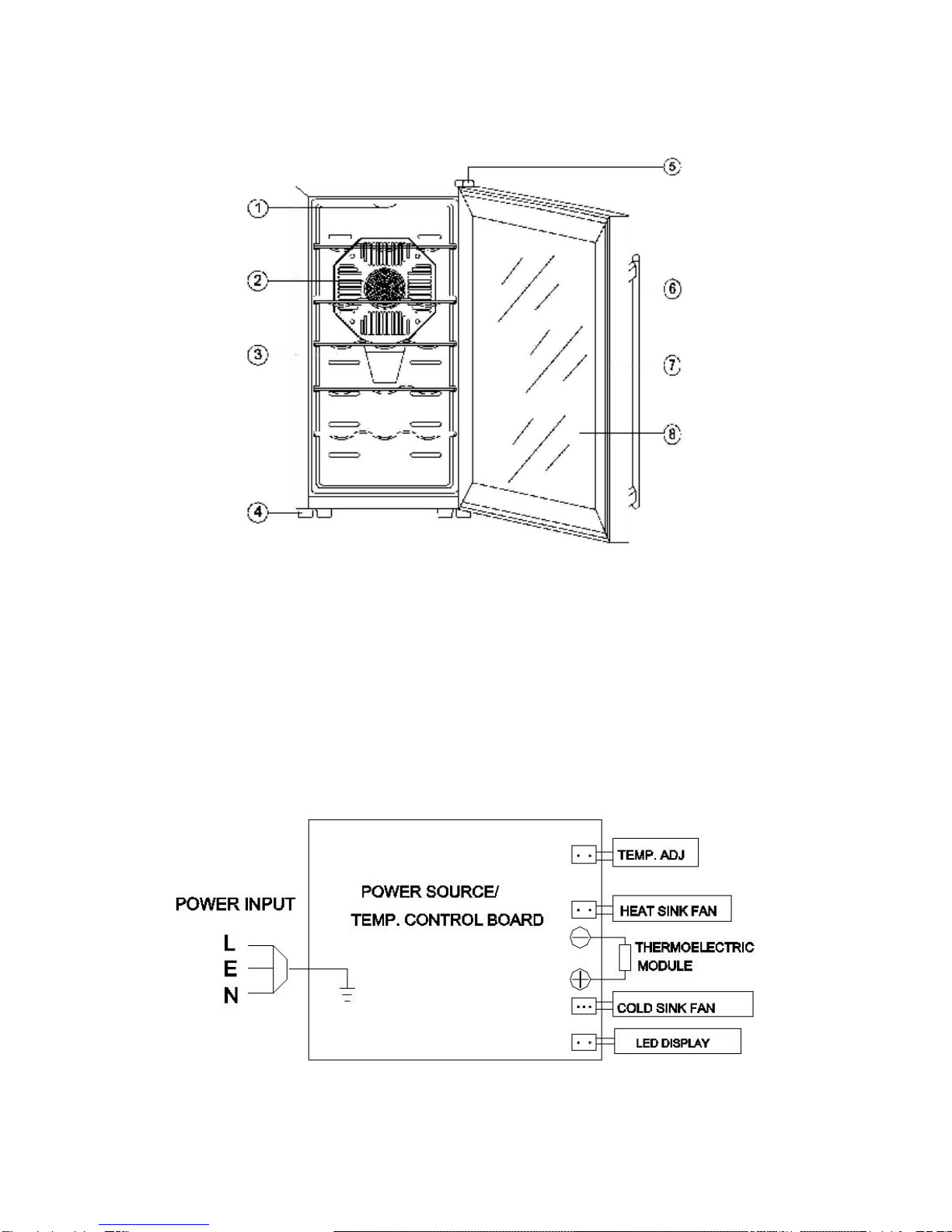

III.ILLUSTRATEDSTRUCTURE

1. Interior Light2. Fan Mask

3. Shelf (5)4. Levelling Foot

5. Hinge Cover 6. StainlessSteelHandle

7. Door Gasket8.DoublePanelGlass

IV.ELECTRICPRINCIPLE DIAGRAM

V.OPERATIONOFWINECOOLER

1. InitialSetup

Locatethewine cooleraccording tothe installation

Instructions.Onceyouhaveplugged the unitintoan

electricaloutlet,lettheunitrun for atleast30 minutes

before making anyadjustments.

2. TemperatureAdjustment

a) Your wine coolerhasan electrictemperaturecontrol

on thefrontoftheunits.You cansetthe temperature

ofyourwine cooleratanysettingyour desire.The

temperature will range from11degree to18 degree.

b) Pressingthebutton onthe displaywill increasethe

temperature and pressing the button will lower the

temperature.

c)Afteryou setyour desired temperature,the set

temperature numeralswill flashfor 5secondsand

then revert totheinternalcabinettemperature.

d) You couldturn the interior lightONor OFF bypushing

the button.

e) Pressing and button and holdthree seconds,

readout changesbetween Fahrenheit and Celsius.

VI. PARTICULARPRECAUTIONS

●Toassure your wine cooler works atthe maximum

efficiencyitwasdesigned for,you shouldinstall itina

locationwhere there isproper aircirculation,plumbing

and electricalconnections.

●The following are recommended clearancesaround the

wine cooler:

nsides3/4＂19mm

ntop 4＂100mm

nback2＂50mm

●For proper internalaircirculation,do notoverfill your

wine cooler.

●Avoiding directsunshinetemperature,orheated

beveragesor frozen food inyour wine cooler.

●Donot placeheavy articlesonthe top ofthecellar.

VII. MAINTENANCE

1. Shut off power supplybefore cleaning cabinet.

2. Takeoutwinesand shelves,andthen washthe inner

compartment withwarmwater and neutraldetergent.

3. Dryall surfacesthoroughly.

Note: a) Donot useabrasivecleaners!

b)Usemildsoapywater toclean the door seal.

c)Toensure efficientoperation the backand bottom

of thechiller shouldbe cleaned thoroughly.

VIII. TROUBLESHOOTING

SymptomsPossiblecauseSolutions

Nocooling

lPlug not putin

lLowvoltage

lFusebroken

lPut inthe plug.

lEnsurenormalvoltage.

lChange fuse.

Notcoldenough

temperature

inside

lWrongsetting.

lThe wine cooleris

placedtoonearheat

source.

lBad ventilation.

lThe doorisnotclosed

tightlyoropened too

frequentlyorfortoo

longtime.

lCheck tobe surethe temperature

controlsetting isatlowposition.

lKeep the wine coolerawayfrom

sunshine orotherheat source.

lPlacethe winecoolerinthearea

withgoodventilationand keep things

awayfromthe back.

lClosethe doortightlyand don’t open

the doortoo frequentlyorfortoo long

time.

The winecooler

seemstomake

too muchnoise

lIt isnotleveledor

positioned properly

bad ventilation.

lIt istouching the wall.

lAdjustthe levelingfoot and makethe

product stand steadily.

lKeep well ventilation.

lKeep somespaceat the back.

Insidelight flash

lSettemperature

higherthaninner

temperature. lAdjust the thermostat
