Original operating instructions
Safety relay with relay outputs
with and without delay
G1502S
UK
80299340 / 00 11 / 2020

2
Contents
1 Preliminary note���������������������������������������������������������������������������������������������������4
1�1 Symbols used ������������������������������������������������������������������������������������������������4
2 Safety instructions �����������������������������������������������������������������������������������������������5
3 Items supplied������������������������������������������������������������������������������������������������������6
4 Functions and features ����������������������������������������������������������������������������������������6
4�1 Requirements for the hardware configuration �����������������������������������������������6
4�1�1 Product-independent requirements ������������������������������������������������������6
4�1�2 Product-dependent requirements���������������������������������������������������������7
5 Structure and operating principle�������������������������������������������������������������������������8
5�1 Indicators and connections����������������������������������������������������������������������������8
5�2 Block diagram������������������������������������������������������������������������������������������������9
6 Installation����������������������������������������������������������������������������������������������������������10
7 Electrical connection������������������������������������������������������������������������������������������10
7�1 Supply voltage ���������������������������������������������������������������������������������������������10
7�2 Feedback contacts / monitored or automatic start��������������������������������������� 11
7�3 Output circuit������������������������������������������������������������������������������������������������12
8 Connection - Function - Fault diagnosis ������������������������������������������������������������13
8�1 Safety relay for fail-safe sensors/switches with 2 PNP outputs�������������������14
8�1�1 Connection �����������������������������������������������������������������������������������������14
8�1�2 Function����������������������������������������������������������������������������������������������15
8�1�3 Fault diagnosis �����������������������������������������������������������������������������������18
8�2 Safety relay for clocked fail-safe sensors ���������������������������������������������������21
8�2�1 Connection �����������������������������������������������������������������������������������������21
8�2�2 Function����������������������������������������������������������������������������������������������24
8�2�3 Fault diagnosis �����������������������������������������������������������������������������������25
8�3 Relay for two-hand control using electronic sensors/switches ��������������������28
8�3�1 Connection �����������������������������������������������������������������������������������������28
8�3�2 Function����������������������������������������������������������������������������������������������29
8�3�3 Fault diagnosis �����������������������������������������������������������������������������������32
8�4 Relay for two-hand control using mechanical switches with simultaneity
monitoring�����������������������������������������������������������������������������������������������������������34
8�4�1 Connection �����������������������������������������������������������������������������������������34
8�4�2 Function����������������������������������������������������������������������������������������������36

3
UK
8�4�3 Fault diagnosis �����������������������������������������������������������������������������������39
8�5 Safety relay for e-stop, for 2-channel fail-safe sensors/switches with contact
output or for mechanical switches ����������������������������������������������������������������������41
8�5�1 Connection �����������������������������������������������������������������������������������������41
8�5�2 Function����������������������������������������������������������������������������������������������42
8�5�3 Fault diagnosis �����������������������������������������������������������������������������������44
9 Programming �����������������������������������������������������������������������������������������������������47
9�1 Programming of the switch-off delay �����������������������������������������������������������47
10 Scale drawing ��������������������������������������������������������������������������������������������������48
11 Technical data ��������������������������������������������������������������������������������������������������48
12 Terms and abbreviations����������������������������������������������������������������������������������50

4
1 Preliminary note
The instructions are part of the unit� They are intended for authorised persons
according to the EMC, Low Voltage Directive and Machinery directives and safety
regulations�
The instructions contain information about the correct handling of the product�
Read the instructions before use to familiarise yourself with operating conditions,
installation and operation�
Adhere to the safety instructions�
1.1 Symbols used
►Instruction
> Reaction, result
→Cross-reference
LED off
LED on
LED flashes
LED flashes quickly
Important note
Non-compliance can result in malfunction or interference�
Information
Supplementary note�

5
UK
2 Safety instructions
• Follow the operating instructions�
• Improper use may result in malfunctions of the unit� This can lead to personal
injury and/or damage to property during operation of the machine� For this
reason note all remarks on installation and handling given in these instructions�
Also adhere to the safety instructions for the operation of the whole installation�
• In case of non-observance of notes or standards, specially when tampering
with and/or modifying the unit, any liability and warranty is excluded�
• The unit must be installed, connected and put into operation by a qualified
electrician trained in safety technology�
• The applicable technical standards for the corresponding application must be
complied with�
• For installation the requirements according to EN 60204 must be observed�
• In case of malfunction of the unit please contact the manufacturer� Tampering
with the unit is not allowed�
• Disconnect the unit externally before handling it� Also disconnect any
independently supplied relay load circuits�
• After setup the system has to be subjected to a complete function check�
• Use the unit only in specified environmental conditions (→ 11 Technical data).
In case of special operating conditions please contact the manufacturer�
• Use only as described below (→ 4).

6
3 Items supplied
• 1 safety relay G1502S
• 1 copy of the operating instructions safety relay
If one of the above-mentioned components is missing or damaged, please contact
one of the ifm branch offices�
4 Functions and features
The safety relay is a redundant system and suited for use as:
• Safety relay for fail-safe sensors/switches with 2 PNP outputs
(e.g. GM701S, → chapter 8.1).
• Safety relay for clocked fail-safe sensors
(e.g. GM504S, → chapter 8.2).
• Relay for two-hand control to EN 574 and EN ISO 13851, type IIIC, with
electronic sensors/switches (→ chapter 8.3).
• Relay for two-hand control to EN 574 and EN ISO 13851, type IIIC with
mechanical switches / safety relay for mechanical switches or 2-channel
fail-safe sensors/switches (e.g. ESPE to EN 61496-1) with contact output with
simultaneity monitoring (→ chapter 8.4).
• Safety relay for e-stop, for two-channel fail-safe sensors/switches (e�g� ESPE
to EN 61496-1) with contact output without simultaneity monitoring (indefinite
simultaneity) or for mechanical switches (→ chapter 8.5).
ifm electronic gmbh assumes no liability for the use of units made by
external manufacturers�
The safe state is when the output contacts 13-14, 23-24, 33-34, 43-44,
67-68 or 77-78 are open and the output contact 51-52 is closed�
The G1502S safety relay was tested and certified by TÜV-Nord�

7
UK
4.1 Requirements for the hardware configuration
The following requirements must be met when using the G1502S safety relay:
4.1.1 Product-independent requirements
It must be ensured that the safety requirements of the respective application
correspond to the requirements stated in these instructions�
The specified technical data indicated in these instructions must be complied with�
The principle of normally closed operation must be applied to all external safety
circuits connected to the system�
The safety relays type G1502S in operation have to be subjected to a self-test
(switching off) within a period of maximum 1 month.
The self-test can be carried out by switching the supply voltage off and on or by a
safety request�
4.1.2 Product-dependent requirements
In case of faults within the safety relay which result in the defined safe state, the
safety relay must be replaced�
Any faulty unit should be returned to the manufacturer�

8
5 Structure and operating principle
5.1 Indicators and connections
C1
C2
C3
A
3
A
2
A
1
C4
C5
C6
K1
E1
T1
Power
K2
E2
Fault T
Fault
S3
3131
4
23 24
33 34
43 44 51 52
67 68
77 78
S34S43 S44
Y4 Y5 Y6 Y7
L- Y1 Y2 L+
A1 Supply voltage (L-, L+), function terminals (Y1, Y2)
A2 Y4, Y5, Y6, Y7: Operating mode selection, auxiliary output
A3 S33, S34, S43, S44: Connection for safety inputs / output
K
1 LED yellow: Triggering the relay outputs channel 1
K
2 LED yellow: Triggering the relay outputs channel 2
E
1LED yellow: Input signal channel 1 or TE (for clocked sensor)
E
2LED yellow: Input signal channel 2 or A (for clocked sensor)
Power LED green: Voltage supply
Fault LED red: Fault/start-up
Fault T LED red: Fault / T1
T1 LED yellow: Triggering the relay output with switch-off delay
C1 13, 14: Connection of relay output without delay, 1 x normally open
(closed when enabled)

9
UK
C2 23, 24: Connection of relay output without delay, 1 x normally open
(closed when enabled)
C3 33, 34: Connection of relay output without delay, 1 x normally open
(closed when enabled)
C4 43, 44: Connection of signal output without delay, 1 x normally open
(closed when enabled)
51, 52: Connection of signal output without delay, 1 x normally closed
(open when enabled)
C5 67, 68: Connection of relay output with switch-off delay, 1 x normally open
(closed when enabled)
C6 77, 78: Connection of relay output with switch-off delay, 1 x normally open
(closed when enabled)

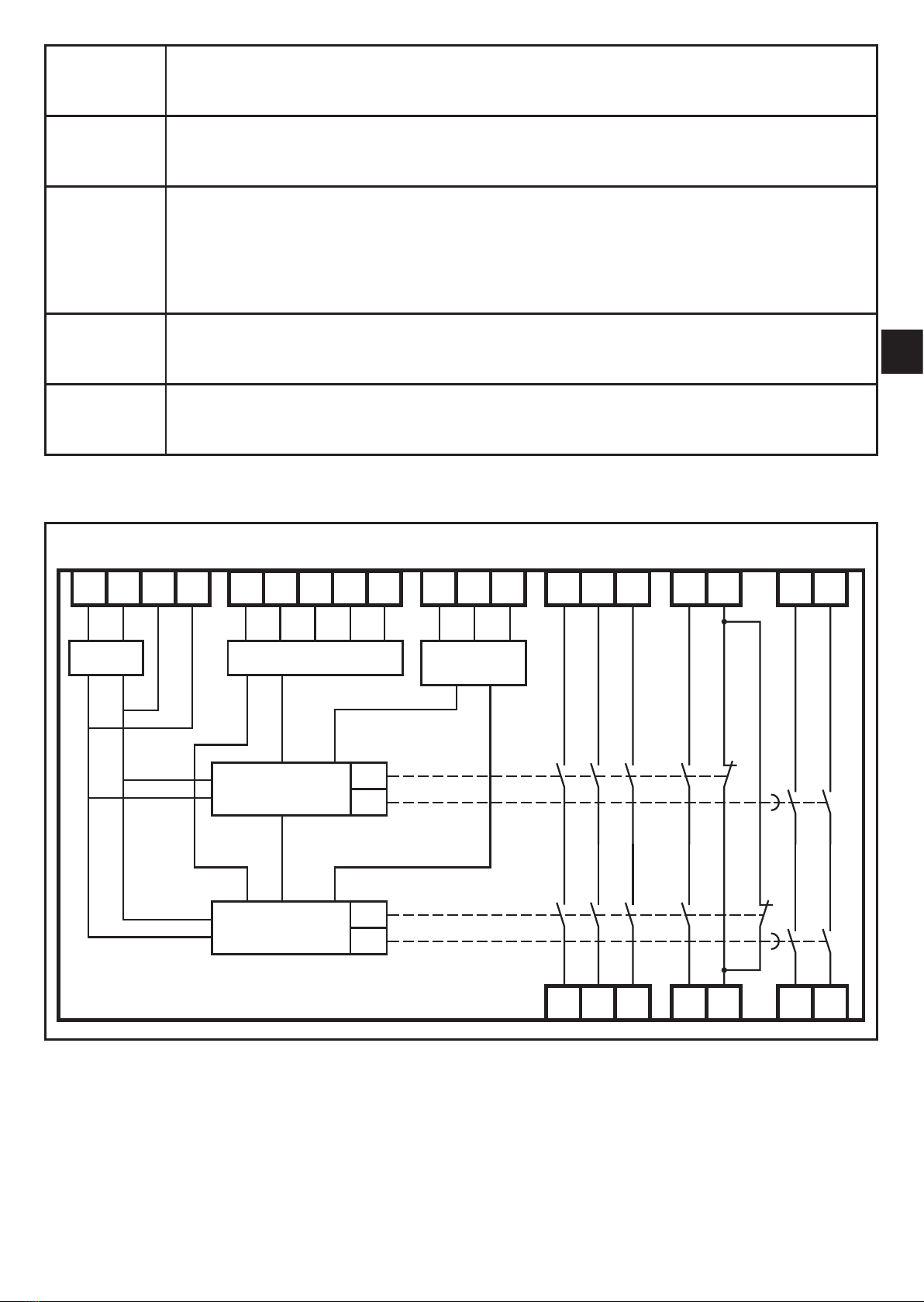

5.2 Block diagram
L+ L- Y4 Y1 S34S43 Y5 Y2 Y6 S33S44 Y7 13
14
23
24
33
34
43
44
51
52
67
68
77
C1 C2 C3 C4 C4 C5 C6
78
POWER OUTPUT
CIRCUIT
INPUT CIRCUIT
MCU 1
(CONTROLLER)
MCU 2
(CONTROLLER)
K1
K3
K2
K4

10
6 Installation
►Mount the unit on a DIN rail in a housing protected against dust and humidity
(min. IP54 - degree of soiling 2).
7 Electrical connection
►Use 60/75°C copper conductors only�
7.1 Supply voltage
The external supply unit must have a safe separation� In case of a fault the
voltage can exceed the value of 60 V DC for a maximum of 200 ms, but
must not exceed the value of 120 V DC�
►Connect supply voltage
L+
Manual reset
L+ RESET
For safety reasons the unit can only be restarted by
separation from the supply voltage in case of a fault�
It is thus recommended to install a RESET switch in
series with the L+ circuit�
After power on or a RESET the unit carries out self diagnostic functions� After this
self diagnosis the unit is ready for operation�
