IEI Technology POCm-W22C-ULT3 Manuel utilisateur

Medical Panel PC with 6th Gen. Intel® Core™ / Celeron® CPU,

4 GB DDR4 RAM, Wi-Fi 802.11a/b/g/n/ac, P-CAP Touchscreen,

Three Battery Bays, 5-Megapixel Camera and Microphone

POCm-W22C-ULT3

POCm-W24C-ULT3

Quick Installation Guide

Version 1.01

Revision

Date

Version

Changes

September 11, 2018 1.01 Minor update

August 28, 2018 1.00 Initial release

Intended Use

The POCm-W22/24C-ULT3 medical panel PC is intended to be used to display

general purpose medical images. The device shall not be used for diagnosis

purpose or life supporting system.

Equipment connected to analog or digital interfaces must comply with the respective

IEC Standards (e.g. IEC 60950 for data processing equipment and IEC 60601-1 for

medical equipment). Furthermore all configurations shall comply with the current

version of the standard for SYSTEMS IEC 60601-1-1. Everybody who connects

additional equipment to the signal input part or signal output part configure a

medical system, and is therefore responsible that the system complies with current

version of the requirements of the system standard IEC 60601-1-1. If in doubt,

consult the technical service department or your local representative.

Manual Conventions

WARNING

Warnings appear where overlooked details may cause damage to the

equipment or result in personal injury. Warnings should be taken

seriously.

CAUTION

Cautionary messages should be heeded to help reduce the chance of

losing data or damaging the product.

NOTE

These messages inform the reader of essential but non-critical

information. These messages should be read carefully as any

directions or instructions contained therein can help avoid making

mistakes.

OPERATING INSTRUCTION

Follow operating instructions or consult instructions for use.

IEC 60417-5009: Stand-by

IEC 60417-5031: Direct current

Overview

The POCm-W22/24C-ULT3 is a 6th generation Intel® Core™ i5-6300U

processor powered medical-grade panel PC with a rich variety of functions

and peripherals. All POCm-W22/24C-ULT3 models are designed for easy

and simplified integration into point-of-care (POC) applications. The system

comes with 4 GB of preinstalled DDR4 memory and supports a maximum

of 32 GB ensuring smooth data throughputs with reduced bottlenecks and

fast system access.

Two RS-232/422/485 serial ports, four USB 3.0 ports and two USB 2.0

ports provide simplified connectivity to a variety of external peripheral

devices. Wi-Fi 802.11a/b/g/n/ac high speed wireless and two RJ-45 GbE

connectors allow for smooth connection of the system to an external LAN.

Three hot-swappable battery bays allow installation of three batteries to

provide continuous power for 8~16 hours.

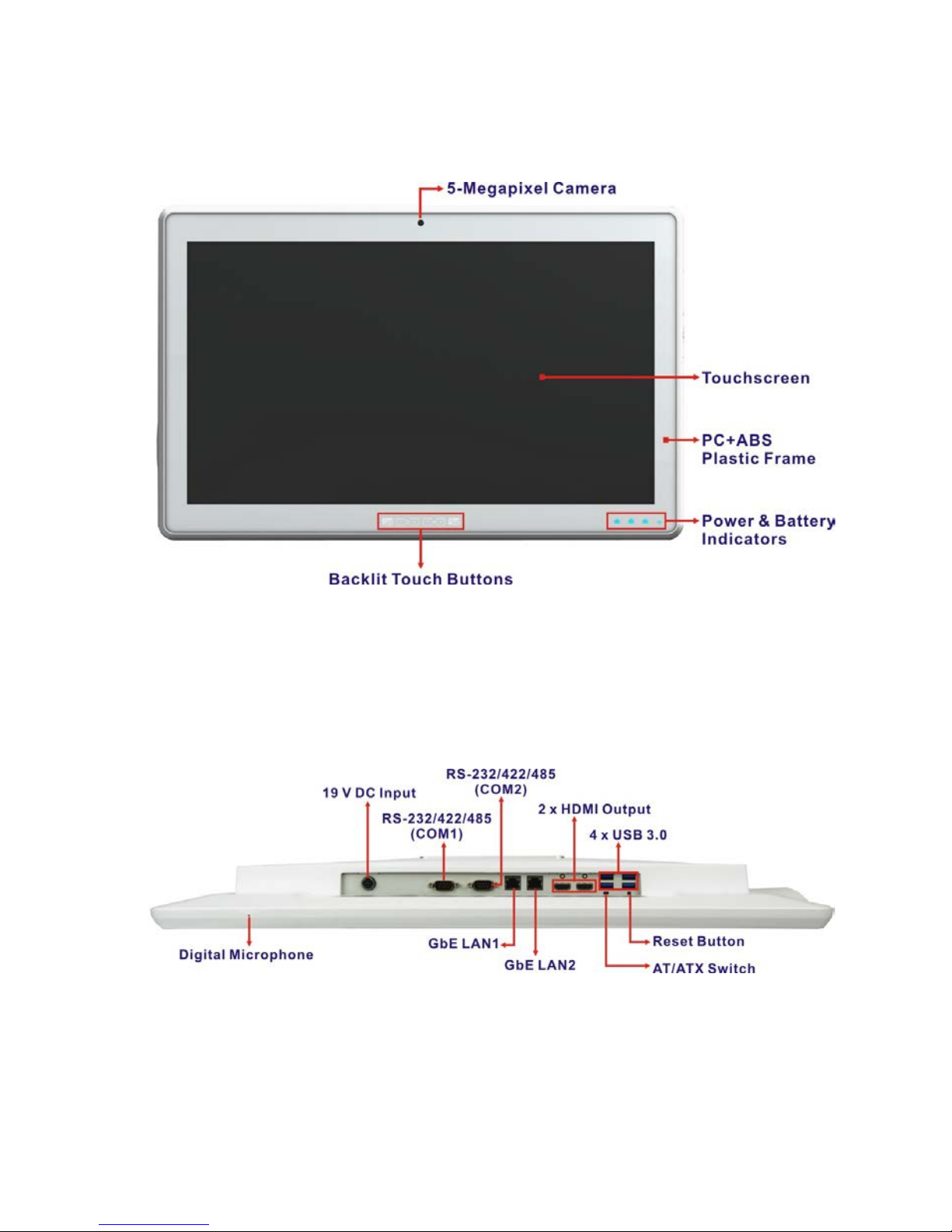

Front Panel

Bottom Panel

Side Panel

Rear Panel

System Specifications

POCm-W22C-ULT3

POCm-W24C-ULT3

LCD and Touchscreen

LCD Size 21.5" (16:9) 23.8" (16:9)

Max. Resolution

1920 (W) x 1080 (H)

Brightness (cd/m2)

250

Contrast Ratio

1000:1

LCD Color

16.7M (RGB 6-bit)

16.7M (RGB 6-bit + Hi-FRC)

Pixel Pitch (mm)

0.24825 (H) x 0. 24825 (V)

0.2745 (H) x 0. 2745 (V)

Viewing Angle (H-V)

170°/160°

178°/178°

Backlight MTBF

30,000 hrs (LED backlight)

Touchscreen

Projected capacitive type with USB interface

Multi-touch

10-point touch

Touch Controller

EETI

Surface Hardness

System

CPU

Intel® Celeron® 3855U / Intel® Core™ i5-6300U /

Intel® Core™ i7-6600U

Memory

Two 260-pin 2133/1866 MHz dual-channel non-ECC

unbuffered DDR4 SO-DIMMs supported (system max.

32 GB)

Preinstalled with 4 GB memory

GbE Controller

LAN1: Intel I211 Ethernet controller

LAN2: Intel® I219 Ethernet controller

I/O Ports

1 x DC input jack

2 x HDMI output connector

2 x GbE LAN (RJ-45 connector)

2 x RS-232/422/485 serial port (DB-9 connector)

4 x USB 3.0 connectors

2 x USB 2.0 connectors (side panel)

1 x Audio out (side panel)

1 x Mic-in (side panel)

1 x Digital microphone

Storage

One 2.5” SATA 6Gb/s HDD bay

Audio

Two 3 W speakers

Webcam & Microphone

5-megapixel CMOS front-facing camera with auto focus and

digital microphone

Expansion Interface

2 x M.2 M-key 2242/2260/2280 slot (PCIe + SATA) with

RAID

1 x M.2 A-/E-key 2242 slot (PCIe + USB)

1 x Full-size/Half-size PCIe Mini (PCIe + USB)

TPM

TPM 2.0 (optional)

Other Features

1 x Power on/off

1 x Brightness up

Function Keys

1 x Brightness down

1 x Volume up

1 x Volume down

1 x Touch lock (clean mode) or LCD on/off

LED Indicators

3 x Battery indicator

1 x Power indicator

Cooling Method

Fanless

Connectivity

Wi-Fi and Bluetooth 802.11a/b/g/n/ac dual band, Bluetooth v4.2

(M.2 2230 module, Intel® 8265)

LAN

Two GbE LAN connectors

Physical

Construction Material

PC+ABS plastic with anti-bacterial material

Mounting Wall and stand mounting

VESA 75 mm x 75 mm or 100 mm x 100 mm

Dimensions (W x H x D)

543 x 350 x 71 (mm)

594.6 x 379.6 x 71 (mm)

Net Weight

7.07 kg

8.18 kg

Environment

Storage/Transportation

Temperature

-20ºC ~ 60ºC

Humidity

10% ~ 90% (non-condensing)

Pressure

700 hPa ~ 1060 hPa

Operating

Temperature

0ºC ~ 40ºC

Humidity

10% ~ 90% (non-condensing)

Pressure

700 hPa ~ 1060 hPa

Vibration

Shock

Operating Shock: 5G peak acceleration (11ms duration)

Non-Operating Shock: 10G peak acceleration (11ms

duration)

IP Level

IP 65 compliant front panel

Power

Power Input

19 V DC

Power Adapter

150 W FSP FSP150M-ABA medical-grade power adapter

(P/N: 63040-010150-400-RS)

Input: 100 V AC ~ 240 V AC, 50 Hz ~ 60 Hz, 2A ~ 0.85A

Output: 19 V 7.89 A

Battery

3 x Hot-swappable battery bay

Installation Precautions

When installing the medical panel PC, please follow the precautions listed

below:

Manufacturer authorization: Do not modify this equipment

without authorization of manufacturer.

Certified Engineers: Only certified engineers should install and

modify the hardware settings.

Power turned off: When installing the medical panel PC, make

sure the power is off. Failing to turn off the power may cause

severe injury to the body and/or damage to the system.

Anti-static Discharge: If a user open the rear panel of the medical

panel PC, to configure the jumpers or plug in added peripheral

devices, ground themselves first and wear an anti-static wristband.

WARNING:

Danger of explosion if battery is incorrectly replaced. Replace only

with the same or equivalent type recommended by the manufacturer.

Disposal of a battery into fire or a hot oven, or mechanically crushing

or cutting of a battery, that can result in an explosion.

Leaving a battery in an extremely high temperature surrounding

environment that can result in an explosion or the leakage of

flammable liquid or gas.

A battery subjected to extremely low air pressure that may result in

an explosion or the leakage of flammable liquid or gas.

Mounting the System

WARNING:

Use suitable mounting apparatus and be sure to secure the screws of

the mounting apparatus tightly to avoid risk of injury.

NOTE:

When mounting the POCm-W22/24C-ULT3 flat panel PC, it is better to

have more than one person to help with the installation to make sure the

POCm-W22/24C-ULT3 does not fall down and get damaged.

The POCm-W22/24C-ULT3 is VESA (Video Electronics Standards

Association) compliant and can be mounted on a mounting device with a 75

mm or 100 mm interface pad. The POCm-W22/24C-ULT3 VESA mount

retention screw holes are shown below. Refer to the installation guide that

came with the mounting device to mount the POCm-W22/24C-ULT3.

Powering On the System

WARNING:

To avoid risk of electric shock, this equipment must only be connected to

supply mains with protective earth.

CAUTION:

The FSP FSP150M-ABA power adapter came with the

POCm-W22/24C-ULT3 is a forming part of the medical device.

Step 1: Connect the power cord to the power adapter. Connect the other

end of the power cord to a power source.

Step 2: Connect the power adapter to the power connector of the

POCm-W22/24C-ULT3.

Step 3: Locate the power button on the right panel.

Step 4: Short press the power button to turn on the POCm-W22/24C-ULT3.

Shutdown Procedure

Turn off the power and disconnect the power cord.

To prevent the risk of electric shock, make sure power cord is

unplugged from wall socket. To fully disengage the power to the unit,

please disconnect the power cord from the AC outlet. Refer servicing to

qualified service personnel. The AC outlet shall be readily available and

accessible.
