IEI Technology NOVA-9152 Manuel utilisateur

5.25” SBC, Intel® Pentium® M/ Celeron® M CPU with VGA,

LVDSx2, Dual PCIe GbE, USB2.0, SATA and audio

NOVA-9152/9102

Quick Installation Guide

Version 1.0

Apr. 22, 2008

Package Contents

NOVA-9152/NOVA-9102 package includes the following items:

 1 x NOVA-9152/NOVA-9102 Single Board Computer

 1 x Mini Jumper Pack

 1 x ATA66 Flat Cable

 2 x SATA Cable

 1 x SATA Power Cable

 1 x VGA Cable

 1 x KB/MS Y Cable

 1 x 4 ports RS-232 Adapter Cable

 1 x USB Cable

 1 x Audio Cable

 1 x Utility CD

 1 x QIG (Quick Installation Guide)

All manuals and user guides at all-guides.com

all-guides.com

Specifications



CPU:

Socket 479 Intel® Pentium® M/ Celeron® M processor with a

533/400 MHz FSB

On board Intel® Celeron® M 1GHz zero cache or 1GHz 512KB

cache processor

 System Chipset:

Intel® 915GME + ICH6-M

Intel® 910GMLE + ICH-6M

 BIOS

AMI Flash BIOS

 System Memory

Two x 200-pin DDRII SDRAM SO-DIMM 400/533 MHz

(NOVA-9152 system max. 2GB)

Two x 200-pin DDRII SDRAM SO-DIMM 400 MHz (NOVA-9102

system max. 2GB)



Ethernet: Dual Realtek RTL8111CP GbE chipsets



I/O Interface

4 x RS-232

2 x RS-232/422/485

6 x USB 2.0

2 x SATA

1 x IDE

1 x LPT

1 x KB/MS (by 6-pin header)



Expansion

1xPCI

1 x PCIe Mini Card Slot

1 x PC/104+ (ISA+PCI Bus)



Digital I/O: 24-bit digital I/O, 12-bit input/12-bit output



IrDA: by super I/O



Super I/O: Winbond W83627EHG



Display Interface:

All manuals and user guides at all-guides.com

VGA output Integrated in Intel® 915GME/910GMLE

1st Dual–channel 18/24-bit LVDS by Intel® 9152GME/910GMLE

(NOVA-9152/9102 series)

2nt Dual-channel 18/24-bit LVDS by Chrontel CH7308 via SDVO

bus (NOVA-9152LVDS2 only)



Optional External Audio kits

5.1 channel audio kit with Realtek ALC655 AC’97 codec



SSD: CF type I/II



WTD: Software programmable 1-255 sec. system reset

 Power Supply: AT/ATX Power



Power Consumption:

5V@5.05A, 12V@1.43A

(Intel® Pentium® M 2.0GHz CPU with 1GB DDR2 400MHz)



Temperature: 0 ~ 60°C (32 ~ 140°F)

 Humidity: Operating 5% ~ 95% non-condensing

 Dimension: 203mm x 146mm



Weight: GW: 1100g / NW:400g

Ordering Information

NOVA-9152-R10

5.25” SBC, Intel® Pentium® M/ Celeron® M CPU with VGA/LVDS, Dual

PCIe GbE, USB2.0, SATA and Audio

NOVA-9152LVDS2-R10

5.25” SBC, Intel® Pentium® M/ Celeron® M CPU with VGA/LVDSx2, Dual

PCIe GbE, USB2.0, SATA and Audio

NOVA-9102-1GZ-R10

5.25” SBC, Intel® Celeron® M 1GHz zero cache CPU with VGA/LVDS, Dual

PCIe GbE, USB2.0, SATA and Audio

NOVA-9102-1G512-R10

5.25” SBC, Intel® Celeron® M 1GHz 512KB cache CPU with VGA/LVDS,

Dual PCIe GbE, USB2.0, SATA and Audio

IO-KIT-4COM-R10: 4 COM Ports Adapter Board

CF-479B-RS: CPU Cooler

3200-000017-RS: LPT cable

32100-052100-RS: ATX Power cable

32200-026500-RS: RS-232/422/485 cable

AC-KIT08R-R10: 5.1 channel audio kit with Realtek ALC655 AC’97 codec

All manuals and user guides at all-guides.com

Jumpers setting and Connectors

J_CMOS1: Clear CMOS Setup

J_CMOS1 DESCRIPTION

1-2

(Default)* Keep CMOS Setup

(Normal Operation)

Short 2-3 Clear CMOS Setup

J_VLVDS1: Set LVDS Voltage

J_VLVDS1 DESCRIPTION

1-2 +3.3V LVDS

2-3 +5V LVDS

J_FREQ1:CPU Frequency Selection

J_FREQ1 DESCRIPTION

1-2 400MHz

2-3 533MHz (socket only)

JP2: configure COM2 Mode

JP1 DESCRIPTION

Short 1-2

(Default) RS - 232

Short 3-4 RS - 422

Short 5-6 RS - 485

JP1: configure COM1 Mode

JP2 DESCRIPTION

Short 1-2

(Default) RS - 232

Short 3-4 RS - 422

Short 5-6 RS - 485

JP4: PC104+ VIO Voltage select

JP4 DESCRIPTION

Short 1-2 +5V

Short 2-3 +3.3V

J_VLVDS2: LVDS Voltage Selection

J_VLVDS2 DESCRIPTION

1-2 +3.3V LVDS

2-3 +5V LVDS

J_COM_F1 and J_COM_F2

1 – 2 Pin8 and pin18 of COM as voltage

2 – 3 Pin8 and pin18 of COM as signal “RING”

J_COM_V1 and J_COM_V2

1 – 2 +5V

2 – 3 +12V

J_COM_F3 and J_COM_F4

1 – 2 Pin8 and pin18 of COM as voltage

2 – 3 Pin8 and pin18 of COM as signal “RING”

JCF1: configure CF Card type

JCF1 DESCRIPTION

OFF

Default Slave

Short 1-2 Master

All manuals and user guides at all-guides.com

J_COM_F5 and J_COM_F6

1 – 2 Pin28 and pin38 of COM as voltage

2 – 3 Pin28 and pin38 of COM as signal “RING”

J_COM_V3 and J_COM_V4

1 – 2 +5V

2 – 3 +12V

J_COM_V5 and J_COM_V6

1 – 2 +5V

2 – 3 +12V

JP5: LVDS1 Panel Resolution Selection

JP5

LVDS1 LVDS2

1-2 3-4 5-6 7-8 DESCRIPTION

OFF OFF OFF OFF LVDS1 & LVDS2 (Default)

1024 X 768 (18bit)

OFF ON OFF OFF LVDS1

1280 X 1024 (36bit)

ON OFF OFF OFF LVDS1

1024 X 768 (24bit)

ON ON OFF OFF LVDS1

1280 X 1024 (48bit)

OFF OFF OFF ON LVDS2

1280 X 1024 (36bit)

OFF OFF ON OFF LVDS2

1024 X 768 (24bit)

OFF OFF ON ON LVDS2

1280 X 1024 (48bit)

OFF ON OFF ON LVDS1 & LVDS2

1280 X 1024 (36bit)

ON OFF ON OFF LVDS1 & LVDS2

1024 X 768 (24bit)

ON ON ON ON LVDS1 & LVDS2

1280 X 1024 (48bit)

All manuals and user guides at all-guides.com

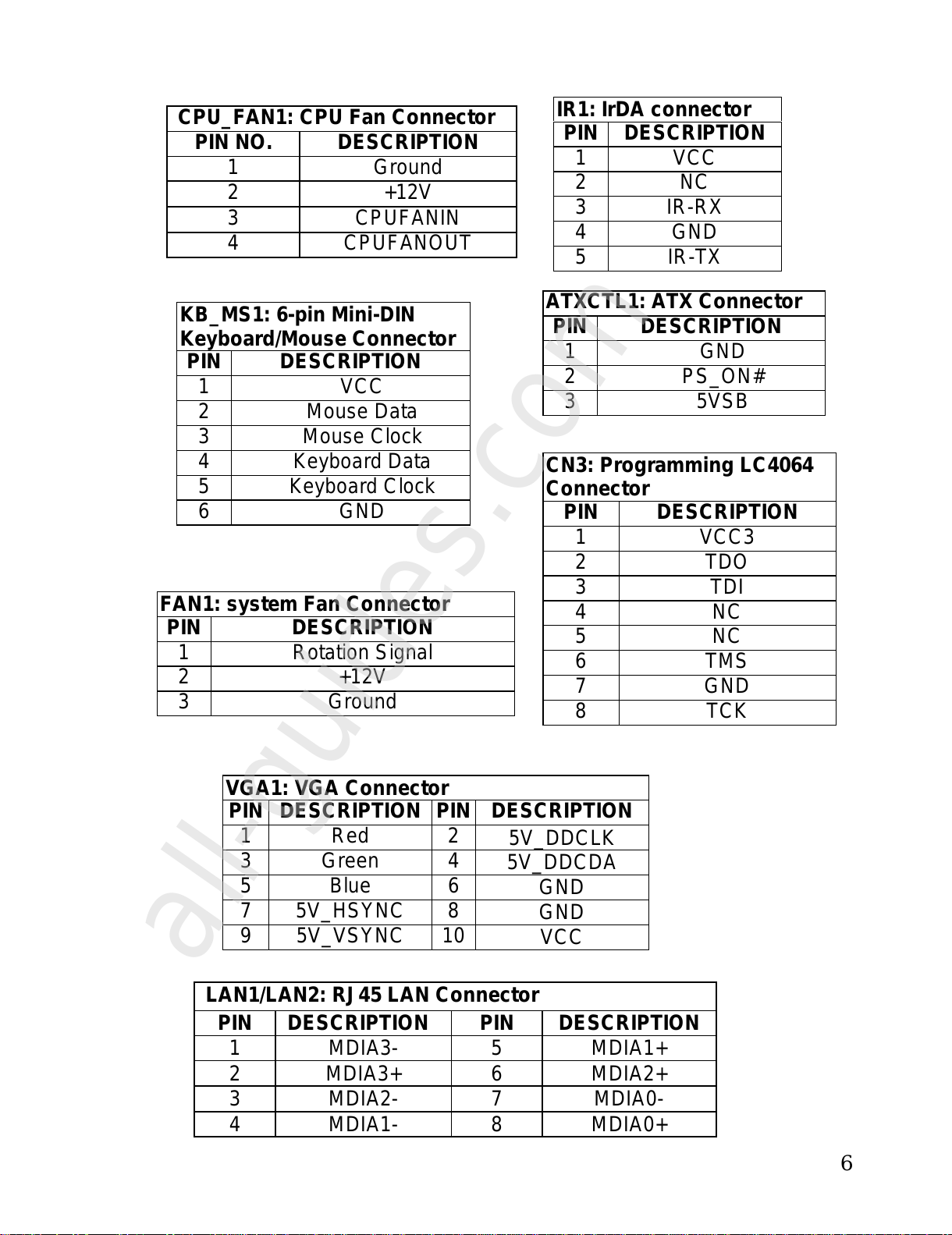

IR1: IrDA connector

PIN DESCRIPTION

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

KB_MS1: 6-pin Mini-DIN

Keyboard/Mouse Connector

PIN DESCRIPTION

1 VCC

2 Mouse Data

3 Mouse Clock

4 Keyboard Data

5 Keyboard Clock

6 GND

LAN1/LAN2: RJ45 LAN Connector

PIN DESCRIPTION PIN DESCRIPTION

1 MDIA3- 5 MDIA1+

2 MDIA3+ 6 MDIA2+

3 MDIA2- 7 MDIA0-

4 MDIA1- 8 MDIA0+

VGA1: VGA Connector

PIN DESCRIPTION PIN DESCRIPTION

1 Red 2 5V_DDCLK

3 Green 4 5V_DDCDA

5 Blue 6 GND

7 5V_HSYNC 8 GND

9 5V_VSYNC 10 VCC

TXCTL1:

TX Connector

PIN DESCRIPTION

1 GND

2 PS_ON#

3 5VSB

FAN1: system Fan Connector

PIN DESCRIPTION

1 Rotation Signal

2 +12V

3 Ground

CN3: Programming LC4064

Connector

PIN DESCRIPTION

1 VCC3

2 TDO

3 TDI

4 NC

5 NC

6 TMS

7 GND

8 TCK

CPU_FAN1: CPU Fan Connector

PIN NO. DESCRIPTION

1 Ground

2 +12V

3 CPUFANIN

4 CPUFANOUT

All manuals and user guides at all-guides.com

all-guides.com

CN1: PCI-E Mini Card Connector (DVI Connector)

PIN DESCRIPTION PIN DESCRIPTION

1 PCIE_WAKE# 2 VCC3

3 N/C 4 GND

5 N/C 6 1.5V

7 CLKREQ# 8 LFRAME#

9 GND 10 LAD3

11 CLK- 12 LAD2

13 CLK+ 14 LAD1

15 GND 16 LAD0

17 PCIRST# 18 GND

19 LPC 20 VCC3

21 GND 22 PCIRST#

23 PERN2 24 3VDual

25 PERP2 26 GND

27 GND 28 1.5V

29 GND 30 SMBCLK

31 PETN2 32 SMBDATA

33 PETP2 34 GND

35 GND 36 USBD-

37 N/C 38 USBD+

39 N/C 40 GND

41 N/C 42 N/C

43 N/C 44 RF_LINK#

45 N/C 46 BLUELED#

47 N/C 48 1.5V

49 N/C 50 GND

51 N/C 52 VCC3

COM1/COM2: Serial Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 -NDCD 2 -NDSR#

3 NSIN 4 -NRTS#

5NSOUT6-NCTS#

7 -NDTR# 8 -XRI#

9GND10GND

11 C# TXD485+ 12 C# TXD485#

13 C# RXD485+ 14 C# RXD485#

All manuals and user guides at all-guides.com

PCI104: PCI104 Connector (120-pin PCI bus)

PIN Description PIN Description PIN Description PIN Description

A1 GND B1 SERIRQ# C1 VCC D1 AD0

A2 PIOVCC B2 AD2 C2 AD1 D2 VCC

A3 AD5 B3 GND C3 AD4 D3 AD3

A4 C_BE#0 B4 AD7 C4 GND D4 AD6

A5 GND B5 AD9 C5 AD8 D5 GND

A6 AD11 B6 PIOVCC C6 AD10 D6 GND

A7 AD14 B7 AD13 C7 GND D7 AD12

A8 VCC3 B8 C_BE#1 C8 AD15 D8 VCC3

A9 SERR# B9 GND C9 SBO- D9 PAR

A10 GND B10 PERR# C10 VCC3 D10 SDONE

A11 STOP# B11 VCC3 C11 PLOCK# D11 GND

A12 VCC3 B12 TRDY# C12 GND D12 DEVSEL#

A13 FRAME# B13 GND C13 IRDY# D13 VCC3

A14 GND B14 AD16 C14 VCC3 D14 C_BE#2

A15 AD18 B15 VCC3 C15 AD17 D15 GND

A16 AD21 B16 AD20 C16 GND D16 AD19

A17 VCC3 B17 AD23 C17 AD22 D17 VCC3

A18 IDSEL0 B18 GND C18 IDSEL1 D18 IDSEL2

A19 AD24 B19 C_BE#3 C19 PIOVCC D19 IDSEL3

A20 GND B20 AD26 C20 AD25 D20 GND

A21 AD29 B21 VCC C21 AD28 D21 AD27

A22 VCC B22 AD30 C22 GND D22 AD31

A23 PCI_REQ#0 B23 GND C23 PCI_REQ#1 D23 PIOVCC

A24 GND B24 PCI_REQ#2 C24 VCC D24 PCI_GNT#0

A25 PCI_GNT#1 B25 VIO3 C25 PCI_GNT#2 D25 GND

A26 VCC B26 PCLK0 C26 GND D26 PCLK1

A27 PCLK2 B27 VCC C27 PCLK3 D27 GND

A28 GND B28 INT_PIRQD# C28 VCC D28 PCI_RST#

A29 +12V B29 INT_PIRQA# C29 INT_PIRQB# D29 INT_PIRQC#

A30 -12V B30 NC C30 NC D30 GND

USB01/USB23/USB45: Internal USB Connector

PIN DESCRIPTION PIN DESCRIPTION

1 VCC 2 GND

3 DATA- 4 DATA+

5 DATA+ 6 DATA-

7 GND 8 VCC

All manuals and user guides at all-guides.com

LPT1: Parallel Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 STROBE# 14 AUTO FORM FEED #

2 DATA0 15 ERROR#

3 DATA1 16 INITIALIZE#

4 DATA2 17 PRINTER SELECT LN#

5 DATA3 18 GND

6 DATA4 19 GND

7 DATA5 20 GND

8 DATA6 21 GND

9 DATA7 22 GND

10 ACKNOWLEDGE# 23 GND

11 BUSY 24 GND

12 PAPER EMPTY 25 GND

13 PRINTER SELECT 26 N/C

DIO1: Digital Input / Output Connector

PIN DESCRIPTION PIN DESCRIPTION

1 Ground 2 VCC

3IN04OUT0

5IN16OUT1

7IN28OUT2

9IN310OUT3

11 8IN0 12 8OUT0

13 8IN1 14 8OUT1

15 8IN2 16 8OUT2

17 8IN3 18 8OUT3

19 8IN4 20 8OUT4

21 8IN5 22 8OUT5

23 8IN6 24 8OUT6

25 8IN7 26 8OUT7

F_PANEL1: PWR & RST Buttons and Indicators panel

PIN DESCRIPTION PIN DESCRIPTION

1 PWRBTSW+ 2 VCC

PWRBTN 3GND 4 GND Power

LED

5 VCC 6 SYSRST#HDD

LED 7-HDLED 8 GND RESET

All manuals and user guides at all-guides.com

COM: COM3~COM6 Internal Serial Port Connector

PIN DESCRIPTION PIN DESCRIPTION

1 DATA CARRIER DETECT

(-NDCD3) 2 DATA SET READY

(-NDSR3)

3 RECEIVE DATA

(NSIN3) 4 REQUEST TO SEND

(-NRTS3)

5 TRANSMIT DATA

(NSOUT3) 6 CLEAR TO SEND

(-NCTS3)

7 DATA TERMINAL READY

(-NDTR3) 8 RING INDICATOR

(-XRI3)

9 GND 10 GND

11 DATA CARRIER DETECT

(-NDCD4) 12 DATA SET READY

(-NDSR4)

13 RECEIVE DATA

(NSIN4) 14 REQUEST TO SEND

(-NRTS4)

15 TRANSMIT DATA

(NSOUT4) 16 CLEAR TO SEND

(-NCTS4)

17 DATA TERMINAL READY

(-NDTR4) 18 RING INDICATOR

(-XRI4)

19 GND 20 GND

21 DATA CARRIER DETECT

(-NDCD5) 22 DATA SET READY

(-NDSR5)

23 RECEIVE DATA

(NSIN5) 24 REQUEST TO SEND

(-NRTS5)

25 TRANSMIT DATA

(NSOUT5) 26 CLEAR TO SEND

(-NCTS5)

27 DATA TERMINAL READY

(-NDTR5) 28 RING INDICATOR

(-XRI5)

29 GND 30 GND

31 DATA CARRIER DETECT

(-NDCD6) 32 DATA SET READY

(-NDSR6)

33 RECEIVE DATA

(NSIN6) 34 REQUEST TO SEND

(-NRTS6)

35 TRANSMIT DATA

(NSOUT6) 36 CLEAR TO SEND

(-NCTS6)

37 DATA TERMINAL READY

(-NDTR6) 38 RING INDICATOR

(-XRI6)

39 GND 40 GND

All manuals and user guides at all-guides.com

Autres manuels pour NOVA-9152

Ce manuel convient aux modèles suivants

Autres manuels IEI Technology Ordinateur monocarte

IEI Technology

IEI Technology KINO-DBT Series Manuel utilisateur

IEI Technology

IEI Technology NANO-945GSE Manuel utilisateur

IEI Technology

IEI Technology KINO-TGL-U Manuel utilisateur

IEI Technology

IEI Technology KINO-QM770 Manuel utilisateur

IEI Technology

IEI Technology NANO-LX-800 Manuel utilisateur

IEI Technology

IEI Technology ROCKY-558EV Manuel utilisateur

IEI Technology

IEI Technology PM-PV-N4551/D5251 Manuel utilisateur

IEI Technology

IEI Technology KINO-PVN-D5251 Manuel utilisateur

IEI Technology

IEI Technology NANO-QM770-R10 Manuel utilisateur

IEI Technology

IEI Technology KINO-EHL-J6412 Manuel utilisateur

IEI Technology

IEI Technology gKINO-V1000 Series Manuel utilisateur

IEI Technology

IEI Technology IMBA-8650 Manuel utilisateur

IEI Technology

IEI Technology ICE-BDE-T7 Manuel utilisateur

IEI Technology

IEI Technology NANO-8522 Manuel utilisateur

IEI Technology

IEI Technology WAFER-EHL-J6412 Manuel utilisateur

IEI Technology

IEI Technology ROCKY-4786 Manuel utilisateur

IEI Technology

IEI Technology IMBA-H420 Manuel utilisateur

IEI Technology

IEI Technology WAFER-PV-D4252 Manuel utilisateur

IEI Technology

IEI Technology PCIE-9450 Manuel utilisateur

IEI Technology

IEI Technology gKINO-R1000 Series Manuel utilisateur

IEI Technology

IEI Technology WSB-9152 Manuel utilisateur

IEI Technology

IEI Technology WAFER-ULT5 Manuel utilisateur

IEI Technology

IEI Technology HYPER-AL Manuel utilisateur

IEI Technology

IEI Technology PSB-810EAV Manuel utilisateur

Manuels Ordinateur monocarte populaires d'autres marques

WIN Enterprises

WIN Enterprises PL-80910 Manuel utilisateur

AXIOMTEK

AXIOMTEK SBC81206 Series Manuel utilisateur

Embest

Embest SOM-PH8800 Manuel utilisateur

SeaLevel

SeaLevel SBC-R9 Manuel utilisateur

SMART Embedded Computing

SMART Embedded Computing ATCA-8310 Manuel utilisateur

WinSystems

WinSystems PPM-LX800-G Manuel utilisateur

GIGAIPC

GIGAIPC QBiX-PPC Series Manuel utilisateur

OLIMEX

OLIMEX A10S-OLinuXino-MICRO Manuel utilisateur

Commell

Commell FS-978 Manuel utilisateur

GIGAIPC

GIGAIPC QBiP-8665A/ Manuel utilisateur

VersaLogic

VersaLogic Python EBX-11 Manuel utilisateur

Micro Computer Specialists

Micro Computer Specialists IRV-3702 Manuel utilisateur

CompuLab

CompuLab SB-A510 Manuel utilisateur

Boser

Boser HS-7321 Manuel utilisateur

Premier Farnell

Premier Farnell Embest SBC8530 Manuel utilisateur

MicroSys Electronics

MicroSys Electronics miriac SBC-LS1043A2 Manuel utilisateur

Aaeon

Aaeon UP Manuel utilisateur

Portwell

Portwell WUX Series Manuel utilisateur
