DM-150/SRM-150/SRM-150A

User Manual

Ver 3.0x

Vision:3.0. Aug, 26 2002.

The information in this document is subject to change without prior notice in order to

improve reliability, design and function and does not represent a commitment on the

part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special, incidental, or

consequential damages arising out of the use or inability to use the product or

documentation, even if advised of the possibility of such damages.

This document contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic, or

other means in any form without prior written permission of the manufacturer.

Trademarks

DM-150,SRM150,SRM-150A is a registered trademark of ICP Electronics Inc. IBM

PC is a registered trademark of International Business Machines Corporation. Intel is

a registered trademark of Intel Corporation. Other product names mentioned herein

are used for identification purposes only and may be trademarks and/or registered

trademarks of their respective companies. If you have any questions or need other

information, please visit to our web site.

http://www.iei.com.tw

TableofContents

Chapter 1 Product Information

1.1 Product Information and Specifications….…………………….P3

1.2 Product Dimensions …………………………………………...P7

Chapter 2 System Setup

2.1 Front Panel Operations………………………………………….P8

2.2 LCD Installation………………………………………………...P9

2.3 Panel Mounting………………………………………………..P11

2.4 Arm Mounting…………………………………………………P12

2.5 Wall Mounting…………………………………………………P13

2.6 Rack Mounting………………………………………………...P14

Chapter 3 User Mode OSD Information

3.1 Features………………………………………………………..P15

3.2 Button Function…………………………………………… …P16

3.3 User Mode OSD Structure…………………………………….P17

3.4 User Mode OSD Item Description……………………………P18

3.5 Brightness Adjustment………………………………………..P19

Appendix Check list………………………………………………P20

Chapter 1 Product Information

1.1 Product Specifications and Information

ICP Electronics Inc. is an expert in Industrial Computer solutions, manufacturer

and system integrator. We specialize in single board computers, chassis, workstations,

panel PC, flash disk, PC/104 products, power supply, and backplane. ICP operates a

worldwide network of distributors and sales representatives to offer customer the best

service.

IEI LCD monitor brings information everywhere. Even under the most severe

environments like steel plant or warehouse, DM/SRM series offer multiple mounting

options and brightness that meet your needs. The DM-150/ SRM-150/SRM-150A is a

15.0" flat panel display specially designed to meet the applications for industrial

environment.

SRM-150A with auto-dimmer function. The LCD brightness base on

enviornment light to auto-adjust the LCD brightness.

 Suitable for panel mounting and 75/100mm interface pads for arm mounting

(conform to the proposed VESA standard)

 Panel Interface: DVI and Analog VGA signal (by AV-0911 DVI and Analog VGA

to Digital LCD Interface Board)

 DVI ( Digital Video Interface ) input

-Sync Detect: for Plug & Display .

-Cable Distance Support: over 3m with twisted-pair .

-Compliant with DVI 1.0: DVI is backwards compatible with VESA®P&D™

andDFP.

 Front OSD control keys to adjust the best display quality.

 Side cabling design to less the LCD monitor’s total thickness

 Front plastic panel or aluminum material (DM-150-AL/ SRM-150-AL)

 Ship with power adapter for 100-240 VAC input

 Display Model (DM-150)

CHII_MEI 15”LCD M150x2-T05 15.0" high brightness TFT LCD

Support digital input by DVI connector and VGA analog connectot

Resolution: 1024X768

MAX. Colors: 16.7 M

Brightness: 200 cd/m2

Hor. Frequency: 15-80KHz

Ver. Frequency: 50-85Hz

Operating Temperature: 0-50 oC

Storage Temperature: -20~60 oC

Viewing Angle (degree): R/L: 120, U/D: 100

LCD MTBF: 50,000 hrs

Backlight MTBF: 25,000 hrs

Display Model (SRM-150/SRM-150A)

LiteMax 15”LCD CP1501 15.0" high brightness TFT LCD

Support digital input by DVI and VGA analog connectot

Resolution: 1024X768

MAX. Colors: 16.7 M

Brightness: 1750cd/m2

Hor. Frequency: 15-80KHz

Ver. Frequency: 50-85Hz

Operating Temperature: 0-40oC

Storage Temperature: -20~60 oC

Viewing Angle (degree): R/L:120 U/D:100

LCD MTBF: 50,000 hrs

Backlight MTBF: 30,000 hrs

 Option Touch Screen: Dynapro 15.0”

Type: Analog Resistive

Resolution: Continuous

Light transmission: Typical value 75%

Surface Hardness: 4H (Test condition: ASTM D3363-92A)

8-wire touch screen

Touch screen interface: RS-232

Support driver: Supports Linux,MS-DOS,Windows 3.1/95/

98/CE,ME/2000/NT,OS/2,MAC,etc.

 Environmental specifications

Operating Temperature : 0 ~ 50℃

Relative Humidity: 10-95% @0~50 ℃, non-condensing

Vibration: 5 to 17 Hz 0.1" double-amplitude displacements

17 to 640 Hz 1.5 G Peak to peak

 Option Touch Screen: Micro touch(Capacitive)

 Type: Capacitive

Light transmission: Typical value 83 ±3%

Surface Hardness: 2H or more

Touch screen interface: RS-232

Operation Voltage: DC 5V±10%

Operating Temperature : 0 ~ 55℃

Storage Temperature : -40 ~ 85℃

Relative Humidity 0 to 95%

Support driver: Supports : Linux,MS-DOS,Windows 3.1/95/

98/2000/NT,OS/2,etc.

 Power supply (DM-150) :

Model no: UP06031120A

Input requirements:

Input Voltage range: 90 to 264 VAC.

Line frequency: 47 to 63 HZ.

In-Rush current: 80 A max.

Input current: 1.4 A max.

Output:

Output Voltage range: +11.4V ~+12.6V (tolerance: ±5%) 3.8A 45 Watt

RippleandNoiseat +12V ±0.5V 3.6A 45Watt

Maximum peak to peak ripple and noise: 120mV

Operating environmental conditions:

Ambient Temperature: 0°C~50°C.

Relative Humidity: 10%~95%.

Altitude: Sea level to 12,000 feet.

Vibration: 1.0mm, 10-25Hz, 15 minutes per cycle for each Axis (X, Y, Z).

EMI emissions:

The power supply meets the radiated and conducted emission requirements for

a (CISPR22 CLASS B) and a (FCC CLASS B).

MTBF:

Whenthepowersupplyisoperated within any of the limits of this power

supply’s specification, the MTBF shall be at lease (50,000) hours at 25°C.

** System Power Consumption: 12V / 1.2A (not include touch screen)

 Power supply (SRM-150/SRM-150A) :

Model no: PSA65U-120

Input requirements:

Input Voltage range: 90 to 264 VAC.

Line frequency: 47 to 63 HZ.

In-Rush current: 30A max@115VAC ,60A max@230VAC at 25℃.

Input current: 1.5 A max@115VAC, 0.8A max@230VAC.

Output:

Output Voltage range at +12V ±0.5V 5A 60 Watt

Ripple and Noise: Voltage 120 mvP

Operating environmental conditions:

Ambient Temperature: 0°C~40°C.

Relative Humidity: 5%~95%.

Altitude: Sea level to 10,000 feet.

Vibration: 10-55Hz, 15 minutes X,Y,Z Axis cycle:20.

EMI emissions:

The power supply meets the radiated and conducted emission requirements for

a (CISPR22 CLASS B) and a (FCC CLASS B).

MTBF:

Whenthepowersupplyisoperated within any of the limits of this power

supply’s specification, the MTBF shall be at lease (50,000) hours at 25°C.

** System Power Consumption: 12V / 4.3A (not include touch screen)

1.2 Product Dimensions

The following diagrams indicate the dimensions of DM-150/ SRM-150/SRM-150A.

Front Panel: 410mm x 309mm x 9mm (WxHxD)

Cabinet: 383.6mm x 282.6mm x 46.7mm (WxHxD) DM-150

Cabinet: 383.6mm x 282.6mm x 56.1mm (WxHxD) SRM-150/SRM-150A

(Unit: mm)

9.0

250.0

8-M3x0.5

291.2

392.2

9.0

282.6

200.0

290.0

410.0

8-M4x0.7

72.6165.0

91.3

131.0

100.0

75.0

100.0

75.0

101.7

21.0

383.6

46.7

309.0

AUTO

/MENU

POWER

ON/OFF

RETURN

383.6

250.0

101.7

DM-150

30.5

9.0

56.1

306.0

230.0

410.0

309.0

306.0

SRM-150/SRM-150A

SRM-150A

ON/OFF

POWER

BRT. /MENU

BRT.

AUTO

RETURN

AUTO

Chapter 2 System Setup

The DM-150/ SRM-150/SRM-150A is very easy to be set up for operation. As you set

up your system, please refer to the following procedures.

2.1 Front panel operation

AUTO

/MENU

RETURN

POWER

ON/OFF

MENU/

POWER

ON/OFF

RETURN

AUTO

SRM-150A with auto-dimmer function. The LCD brightness base on

enviornment light to auto-adjust the LCD brightness.

POWER LED Indicate

LCD ON/OFF Button

RETURN/MENU Button

DOWN Button

RIGHT Button

LEFT Button

UP/AUTO Button

ON/OFF

POWER

AUTO

BRT.

RETURN

BRT. /

AUTO

ON/OFF

POWER

BRT.

AUTO

RETURN

BRT.

AUTO

Brightness Auto

Brightness Down

Brightness Up

2.2 LCD Installation

DM-150/SRM-150/SRM-150A provides two features for your choosing: one is LCD

only; the other is LCD with touch screen. You can use VGA cable connects from LCD

panel to your system VGA interface. If your system provides the DVI interface, you

can choose the DVI cable to used it function. On the rear panel of

DM-150/SRM-150/SRM-150A, there are two ports for signal input VGA and DVI

(DVI cable is option). DM/SRM-150-VI provideo standard composite and S-video

input function.

2.2.1 LCD without Touch Screen and power input

If you want to install LCD without Touch Screen, just connect the VGA cable from

LCD connector to the system VGA Signal Input port. The power connection you can

choose 12V-DC jack (DC 12V power adaptor that ship with it) or terminal block. In

the terminal block connector, we choose 12V or 24C DC input.

24V Gnd 12V (OPTION)

RS-232

12V DC INPUT

VGA

INPUT

DVI

POWER INPUT

Terminal block DC JACK

(

)

CAUTION: FOR INDOOR USE ONLY

Yellow color: to +12V(or 24V)

Black color: to Gnd

POWER INPUT:

(OPTION) (OPTION)

AV-IN SV-IN

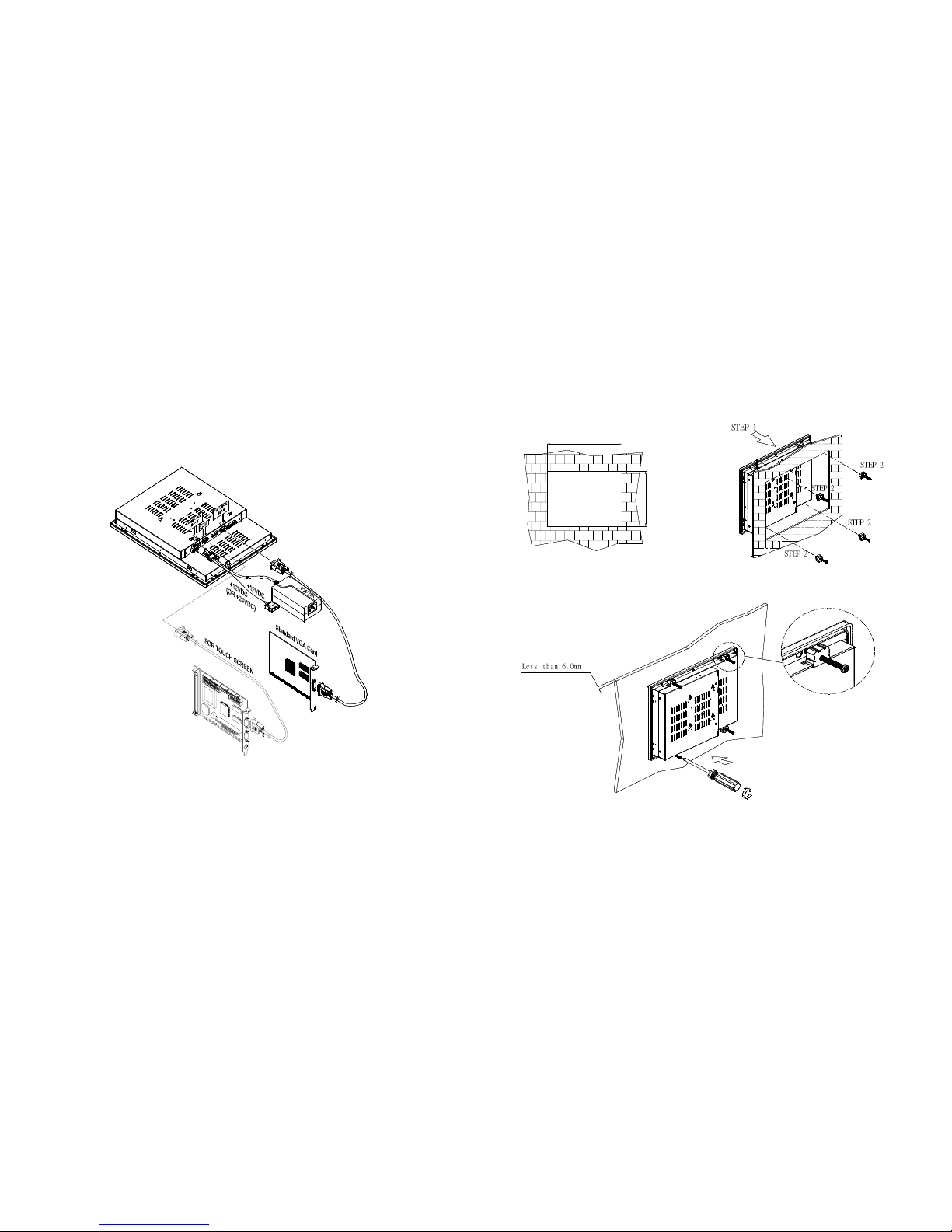

2.2.2 LCD with Touch Screen

If you want to install LCD with Touch Screen, please connect RS232 connector from

LCD to your COM port from CPU card. The driver for touch screen we used the CD

disk with system shipping.

2.3 Panel Mounting

DM-150/ SRM-150/SRM-150A is either suitable for panel mounting. As you mount

this flat panel display, please refer to the diagram below.

386.6

285.6

UNIT:mm

(The flat panel thickness is 6mm or less than 6mm)

THE DIMENSION IS FOR PANEL MOUNTING

2.4 Arm Mounting

DM-150/ SRM-150/SRM-150A are suitable for 75/100mm interface pads or for

arm mounting. arm mounting and the specification conform to the proposed

VESA standard.

100.0

75.0

100.0

2.5 Wall Mounting

DM-150/ SRM-150/SRM-150A is suitable for wall mounting and the specification

conform to the proposed.

194.00

131.00

20.00

22.50

165.00

145.00

20.00

8-D4.5

Wall

STEP 1

STEP 3

Wall

WALL-MOUNT BRACKET

SCREW BOLT

STEP 2

STEP 4

WALL-MOUNT VIBRATION KIT

2.6 Rack Mounting

DM/SRM-150/SRM-150A provide option rackmount kit for industrial Rack. The

following diagram shows how to mount DM/SRM-150/SRM-150A onto the 19"

Rack.

392.20

290.00

386.00

448.00

Rackmount Kit Dimension

2.54

R3.35

279.40

76.20

4-R5.00

8-O3.80

2.54

1.60

355.00

285.00

17.00

461.48

482.00

291.20

200.00

R3.00

STEP 4 STEP 3

STEP 1

STEP 2

Rackmount-Kit

Chapter 3 User Mode OSD Information

3.1 Features(AV-0911)

 VGA Input : RGB VGA input

-Horizontal Sync. : 15K – 80KHz

-Vertical Sync. : 50 – 75Hz

-Maximum pixel rate: 24bit pixel at 100MHz

48bitpixelat135MHz

 Flat Panel resolution up to 1280x1024

 Color TFT LCD Panel support

- 48bit 2-pixel/clock data interface

- 24bit 1-pixel/clock data interface

 Flat Panel function support:

-Amplitude modulation for color TFT LCD panel

-Panel horizontal/vertical expansion

-Panel horizontal/vertical scale up and down

 LCD panel display enhancement:

-Filter & interpolation

-10bit Gamma correction table.

-16-stage of DDC data read/write buffer

 VESA DPMS:

-Automatic flat panel power sequencing

-Delayed power-on control for flat panel protection

 AD converter: Trumpion ZURACIII t0911

3.2 Button Function

There are six buttons on OSD panel: ON/OFF, Auto (Up) Down, Right , Left, and

Menu ( Return ). The functions of these six buttons are as follows:

 Menu ( Return ) Button

Press it to open or close OSD window and enter user mode to do the function

adjustment or selection of the item .It may have many levels in one item. As you

select this kind of item, you will enter the next level and see the sub-items.

 Right Button

Press it to Scroll item right or down to decrease the value or to switch the selected

item to another.

 Left Button

Press it to Scroll item left or up to increase the value or to switch the selected

item to another.

 Auto ( Up ) Button

Press it to Auto adjust LCD.

 ON/OFF Button

Press it to Control power ON / OFF.

 Down Button

Reserved.

 Green LED

Power ON and Active.

 Orange LED

Power ON and Sleep.

 LED No Display

Power OFF.

3.3 User Mode OSD Structure

LEVEL 0 LEVEL 1 VALUE

DISPLAY ADJUST H-Position 0-255

V-Position 0-30

CLOCK 0-1788

PHASE 0-31

AUTO YES , NO

EXIT Press Menu Button

INPUT SELECT ANALOG Press Menu Button

DIGITAL Press Menu Button

VIDEO COMPOSITE Press Menu Button

VIDEO S-VIDEO Press Menu Button

EXIT Press Menu Button

COLOR ADJUST COLOR

TEMPERATURE

6500K , 9300K

RED GAIN 0-255

GREEN GAIN 0-255

BLUE GAIN 0-255

EXIT Press Menu Button

OSD ADJUST H-Position 0-255

V-Position 0-255

OSD-OFF TIME 0-120

LANGUAGE English , Espanol ,

Deutsch , Frangais ,

Italiao

EXIT Press Menu Button

ZURAC ADJUST BRIGHTNESS-Z 0-255

CONTRAST-Z 0-255

DOS-MODE TEXT , GRAPHICS

CONTRAST-ADC 0-255

EXIT Press Menu Button

EXIT EXIT OSD Press Menu Button

3.4 User Mode OSD Item Description

 AUTO ( Auto-Adjustment )

This item will automatically adjust the H/V position, frequency, phase,

And black level.

 PHASE

This item will adjust the sampling Phase.

 BRIGHTNESS-Z

It is used to adjust the brightness of screen. This function will adjust the offset value

of ZURAC. Setting this value too high or too low will destroy the quality of image.

 CONTRAST-Z

 CONTRAST-ADC

It is used to adjust the contrast of screen. This function will adjust the gain value of

ZURAC or ADC. Adjusting this value too high or too low will destroy the quality of

image.

 DOS-MODE

It is used to choose VGA input signal that is text mode or graphic mode. ( It is only

selectable on resolution of 720/640x400 or 720/640x350 . ) 400 and 350 standard

IBM modes have the same H-sync. and V-sync. Value. AV-0911 MPU cannot

differentiate them automatically. And users need to adjust them by manual to match

proper VGA mode.

 H-POSITION

It is used to adjust horizontal display position of image.

 V-POSITI ON

It is used to adjust vertical display position of image.

 LANGUAGE

It is used to select the languages using on OSD display. AV-0911

now can support 5 language on OSD display. English is the default language.

English

Espanol

Deutsch

Frangais

Italiao

 Exit

Press the EXIT key to exit the OSD menu when the OSD menu is on top of the

level.

3.5 Brightness Adjustment

Press Brightness Up Button , will increase LCD backlight ;

Press Brightness Down Button , will decrease LCD backlight.

LCD ON/OFF Button

ON/OFF

POWER

BRT.

AUTO

RETURN

BRT.

AUTO

Brightness Auto

Brightness Down

Sensor

Brightness Up

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IEI Technology Moniteur

IEI Technology

IEI Technology DM-F65A/R Manuel utilisateur

IEI Technology

IEI Technology DM series Manuel utilisateur

IEI Technology

IEI Technology IOVU-430M Manuel utilisateur

IEI Technology

IEI Technology iSignager LCD 26 Manuel utilisateur

IEI Technology

IEI Technology Afolux Monitor Manuel utilisateur

IEI Technology

IEI Technology S19M Manuel utilisateur

IEI Technology

IEI Technology DM-F SERIES Manuel utilisateur

IEI Technology

IEI Technology SRM-KIT Series Manuel utilisateur

IEI Technology

IEI Technology DM-F12A/R-R10 Manuel utilisateur

IEI Technology

IEI Technology LCD-KIT-F Series Manuel utilisateur

IEI Technology

IEI Technology DM-150GS/R-R30 Manuel utilisateur

IEI Technology

IEI Technology AFL M Series Manuel utilisateur

IEI Technology

IEI Technology DM-F15A/PC-R40 Manuel utilisateur

IEI Technology

IEI Technology LCD-KIT Series Manuel utilisateur

IEI Technology

IEI Technology AFOLUX M Series Manuel utilisateur

IEI Technology

IEI Technology DM-F65A/R-R10 Manuel utilisateur

IEI Technology

IEI Technology AFL-HM55 Manuel utilisateur

IEI Technology

IEI Technology TDM-121GMS Manuel utilisateur

IEI Technology

IEI Technology iSignager-LCD-S Series Manuel utilisateur

IEI Technology

IEI Technology DM-F17A/PC-R31 Manuel utilisateur

IEI Technology

IEI Technology iSignager-Frame-W07 Manuel utilisateur

IEI Technology

IEI Technology MMD-4300 Manuel utilisateur

IEI Technology

IEI Technology iSignager 10.4 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
