IDTECH ViVOpay VP5200 Manuel utilisateur

ViVOpay ™ VP5200

User Manual

80167501-001 Rev. B

December 20, 2019

ID TECH ViVOpay VP5200 User Manual

Page | 2

ID TECH

10721 Walker Street

Cypress, CA 90630

USA

This document, as well as the hardware and software it describes, is furnished under license and may only be

used in accordance with the terms of such license. The content of this paper is furnished for informational use,

subject to change without notice, and not to be construed as a commitment by ID TECH. ID TECH assumes no

responsibility or liability for any errors or inaccuracies that may appear in this document.

Except as permitted by such license, no part of this publication may be reproduced or transmitted by electronic,

mechanical, recorded, or any other method, or translated into another language or language form without the

express written consent of ID TECH. ID TECH is a registered trademark of International Technologies and

Systems Corporation. ViVOpay and Value through Innovation are trademarks of International Technologies and

Systems Corporation. Other trademarks are the property of the respective owner.

Warranty Disclaimer: The services and hardware are provided "as is" and "as-available," and the use of these

services and hardware are at the user’s own risk. ID TECH does not make, and hereby disclaims, any and all

other express or implied warranties, including, but not limited to warranties of merchantability, title, fitness for

a particular purpose, and any warranties arising from any course of dealing, usage, or trade practice. ID TECH

does not warrant that the services or hardware will be uninterrupted, error-free, or completely secure.

FCC Regulatory Compliance

Notices Class B Equipment

Cautions and Warnings

Warning: Avoid close proximity to radio transmitters which may reduce the capability of

the reader

Caution: Do not drop the device.

Caution: Electrostatic sensitive device. Use caution in handling, in high ESD conditions.

ID TECH ViVOpay VP5200 User Manual

Page | 3

Table of Contents

1. OVERVIEW .......................................................................................................................................................................4

2. FEATURES ........................................................................................................................................................................ 5

2.1. VP5200: Approvals ...............................................................................................................................................................6

2.2. VP5200: Electrical .................................................................................................................................................................6

2.3. VP5200: Firmware................................................................................................................................................................6

2.4. VP5200: Physical/Mechanical Characteristics.............................................................................................................7

2.5. VP5200: Durability and Reliability Specs .......................................................................................................................7

2.6. VP5200 3-View Drawing ....................................................................................................................................................8

2.7. VP5200 Installation..............................................................................................................................................................9

2.8. Parts List ..................................................................................................................................................................................9

2.9. Installation of Reader...........................................................................................................................................................9

2.10. Connecting to the Data Port.........................................................................................................................................10

2.11. LED Management ............................................................................................................................................................11

2.12. Front LED Status..............................................................................................................................................................11

2.13. Installation .........................................................................................................................................................................11

3. FIRMWARE UPGRADE ..................................................................................................................................................12

3.1. Uploading Firmware for RS-232 or USB .....................................................................................................................12

4. TROUBLESHOOTING.....................................................................................................................................................15

ID TECH ViVOpay VP5200 User Manual

Page | 4

1. Overview

ID TECH's ViVOpay VP5200 is a compact, ruggedized, single-slot (“insert” or “dip”) credit card reader

designed to support MSR (magstripe) and contact EMV transactions, incorporating ID TECH’s proven

L2 Common Kernel for EMV.

The VP5200 delivers MSR and EMV payment acceptance in unattended payment scenarios, such as

Parking, ATM, Ticketing, and Payment Kiosks (among others). The VP5200 is certified to the latest

payment standards of EMV (Level 1 and Level 2). It offers easy integration of payments into self-

serve kiosk and unattended environments of all kinds.

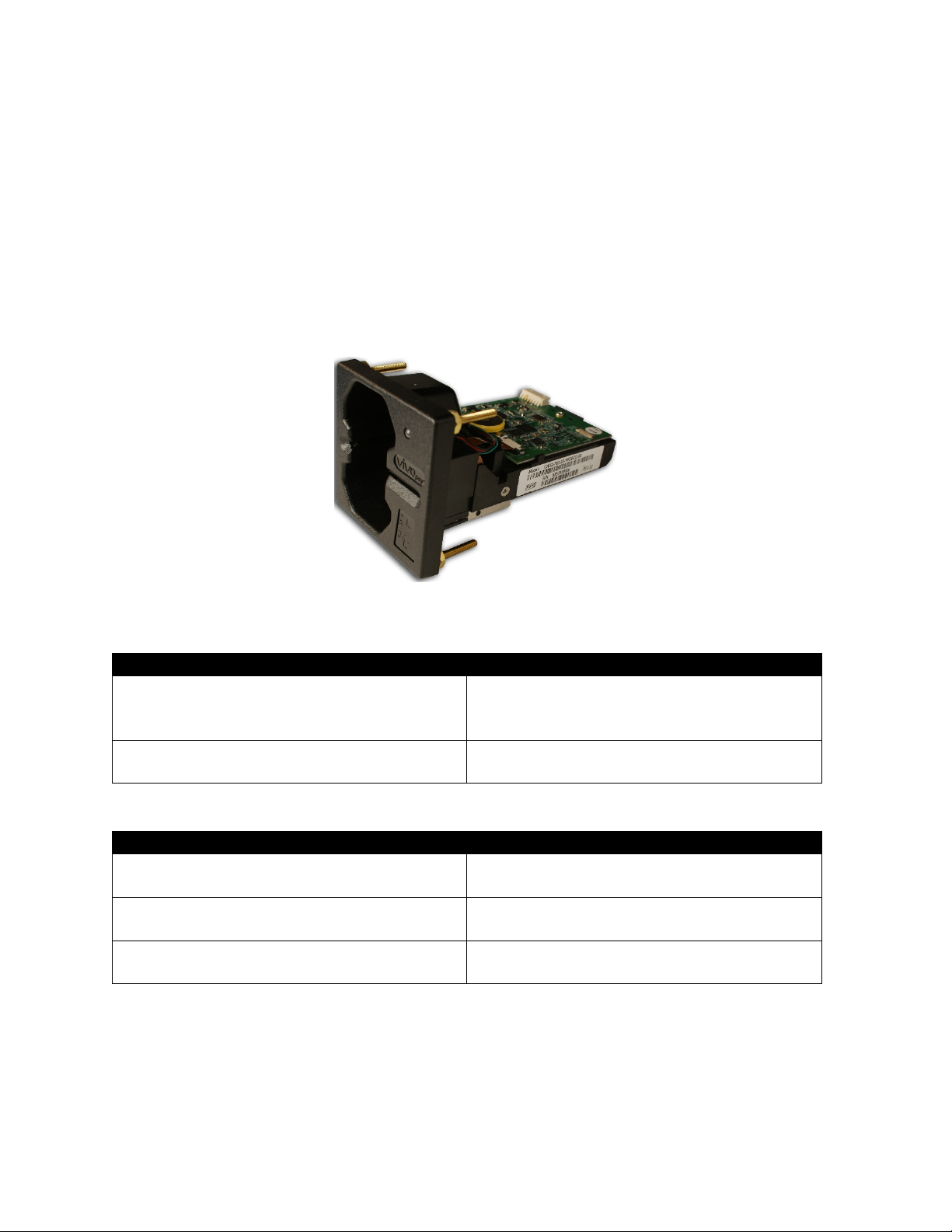

The ViVOpay VP5200

VP5200 PCI/EMV Certified Insert Reader

Model Number

Description

IDV52-783-33-1NG0C-00

Outdoor hybrid insert reader, plastic flush mount

bezel, no SAM, TDES, Card Present switch, Contact

controller module

IDV52-783-33-1NG0CD-00

Same as above but with Demo Key injected for

development and testing.

Optional Accessories

Model Number

Description

80035212-002

USB cable (also supplies power from the USB port

itself)

CAB1041-1

RS-232 cable

AC0005R-3B

Power supply, USA plug, 5VDC, 1.4A; 100-240 VAC

input (for non-USB models)

ID TECH ViVOpay VP5200 User Manual

Page | 5

The VP5200 supports USB and serial (RS-232) host communication using the command protocol

defined in the NEO 2 Interface Developers Guide. This comprehensive guide describes all firmware

commands and other features available in ID TECH's NEO-series devices. It is the authoritative source

for technical information of interest to systems integrators (contact your ID TECH representative to

obtain a copy of this guide). A feature-rich, Windows-based Universal SDK is also available to aid in

rapid development of applications that communicate directly with the VP5200.

Be sure to check the Downloads section on the ID TECH Knowledge Base for the latest VP5200

demos, utilities, SDK updates, white papers, and other downloads, all of which are freely available

without registration.

2. Features

The VP5200 supports the following features:

•ICC reader with landing contact

•Contact EMV Level 1 certified

oContact EMV Level 2 certified, using ID TECH's proven Common Kernel

•Dual head MSR reads up to 3 tracks of data (Bi-Directional), with JIS-1 and JIS-II support

(for single-side magstripe card)

•State-of-the-art encryption support

oTriple DES

oAES

oTransArmor RSA

•Support for DUKPT key management per ANSI X9.24

•TR-34 Remote Key Injection Protocol

•RoHS 2, and REACH compliance

•Battery for maintaining real-time clock

•1-year manufacturer's warranty

This document assumes that users are familiar with their host systems and all related functions.

ID TECH ViVOpay VP5200 User Manual

Page | 6

2.1. Approvals

2.2. Electrical

Voltage requirement: 5VDC ±10%

Battery: The unit contains a small lithium battery to power the Real Time Clock (RTC). This battery

has a shelf life of 5 years. The battery is not user-replaceable. If battery replacement should be

required, return your VP5200 to ID TECH. Contact support@idtechproducts.com for more

information.

In RS-232 versions, the reader can be awakened from sleep mode by sending any command. USB

versions will awaken whenever the USB connection is established.

2.3. Firmware

Feature

Support Function

Magnetic stripe

Meets ISO 7810/ISO 7811 specification

Supports AAMVA format

Supports JIS I/II card format

Supports single, dual and triple tracks

Bi-directional reading

Contact

EMVCo Contact Level 1 & 2 (using ID TECH L2 Common Kernel)

Power Management

Low power modes: Sleep (RS-232), and USB Suspend

Key injection

Compatible with FutureX HSMs for Data Key Injection

Can communicate with HSM via USB (with use of adapter) or RS232 port

Support for RSA keys generation and certificates loading

Support for Asymmetric TR-34 Remote Key Injection

Security

Support choice of encryption formats:

•TDES

•AES

•RSA-based TransArmor

Supports Multiple Key management techniques:

•ANSI X9.24 DUKPT

•Master Session Key

Item Regulation & Class

EN55032/EN55035, Class- B

FCC

Part 15, Class-B

RoHS

Compliant

REACH

Compliance with REACH regulation

EMV

Contact L1 & L2

ID TECH ViVOpay VP5200 User Manual

Page | 7

Remote key injection, and application download using PKI

Secure commands (PKI) for configuring device (RTC, whitelist, reset device, etc.)

Command Set

Reference the NEO II Interface Developers Guide - 800139403-002

Host Interfaces

RS-232, USB-HID

USB Vendor ID: 0x0ACD

USB Product ID: 0x4472

Firmware/Application

Download

Use host interfaces to download firmware/application

2.4. Physical/Mechanical Characteristics

Item

Physical Dimensions:

VP5200 Reader

113 mm from back of mounting surface x 72 mm flange width x 72 mm flange

height (LxWxH)

Structure Material

Plastic, PC+20% GF UL 94V-0

Housing Color

Black

Weight

0.2 kg

Environmental Characteristics

Category

Support

Operating Temperature

-25° C to 70° C (-13° F to 158° F), max change of 10° C per hour

Storage Temperature

-40° C to 80° C (-40° F to 176° F)

Operating Humidity

10% to 95% non-condensing

Storage Humidity

10% to 95% non-condensing, duration 3 months

Transit Humidity

5% to 95% non-condensing, duration 1 week

Operating Environment

Water resistant for indoor and outdoor use, with conformal coating.

ESD

Contact

±6kV

Air discharge

±12kV

Note: Cables/connectors must be fully isolated with insulating material to prevent ESD discharge.

2.5. Durability and Reliability Specs

Item

Specification

Magnetic Head

500,000 insertions minimum

Smartcard connector

500,000 cycles minimum

Impact Rating

IK08

Ingress Resistance

IP54, the gasket and drain design at host end are necessary

ID TECH ViVOpay VP5200 User Manual

Page | 8

2.6. VP5200 3-View Drawing

ID TECH ViVOpay VP5200 User Manual

Page | 9

2.7. VP5200 Installation

This section provides information on how to install the VP5200 in an enclosure.

Note that the unit may be installed edgewise (vertically), or in a horizontal manner. It can also be

bolted to or custom-mounted flush with a surface.

2.8. Parts List

Verify that you have the following hardware for the installation of the VP5200:

•VP5200 P/N IDV52-783-33-1NG0C-00 or -1NG0D-00 (demo).

•USB cable P/N 80035212-002, or RS-232 cable CAB1041-1.

•Power supply P/N AC0005R-3B.

2.9. Installation of Reader

Refer to the VP5200 3-view drawing. Verify that power cords can physically reach the unit. Then

proceed to:

•Locate, mark, and drill holes for the four main mounting points of the unit, spaced 61.5 mm

apart lengthwise (on center), and spaced 61.5 mm apart (on center) along the short axis. Use

a 4.25mm drill.

•Secure the unit to the enclosure with bolts or screws of appropriate depth.

ID TECH ViVOpay VP5200 User Manual

Page | 10

2.9.1. Connecting to Power

The VP5200 can be powered through the RS-232 communications cable or the USB cable.

Connect the +5VDC power supply (P/N AC0005R-3B) to the barrel receptacle on the RS-232 cable or

use USB port power, as appropriate.

Plug the unit in to an AC outlet and verify that the VP5200 lights up.

2.10. Connecting to the Data Port
