IDEAL 4107 Manuel utilisateur

123456789012345678901234567890121234567890

2345678901234567890123456789012123456789

123456789012345678901234567890121234567890

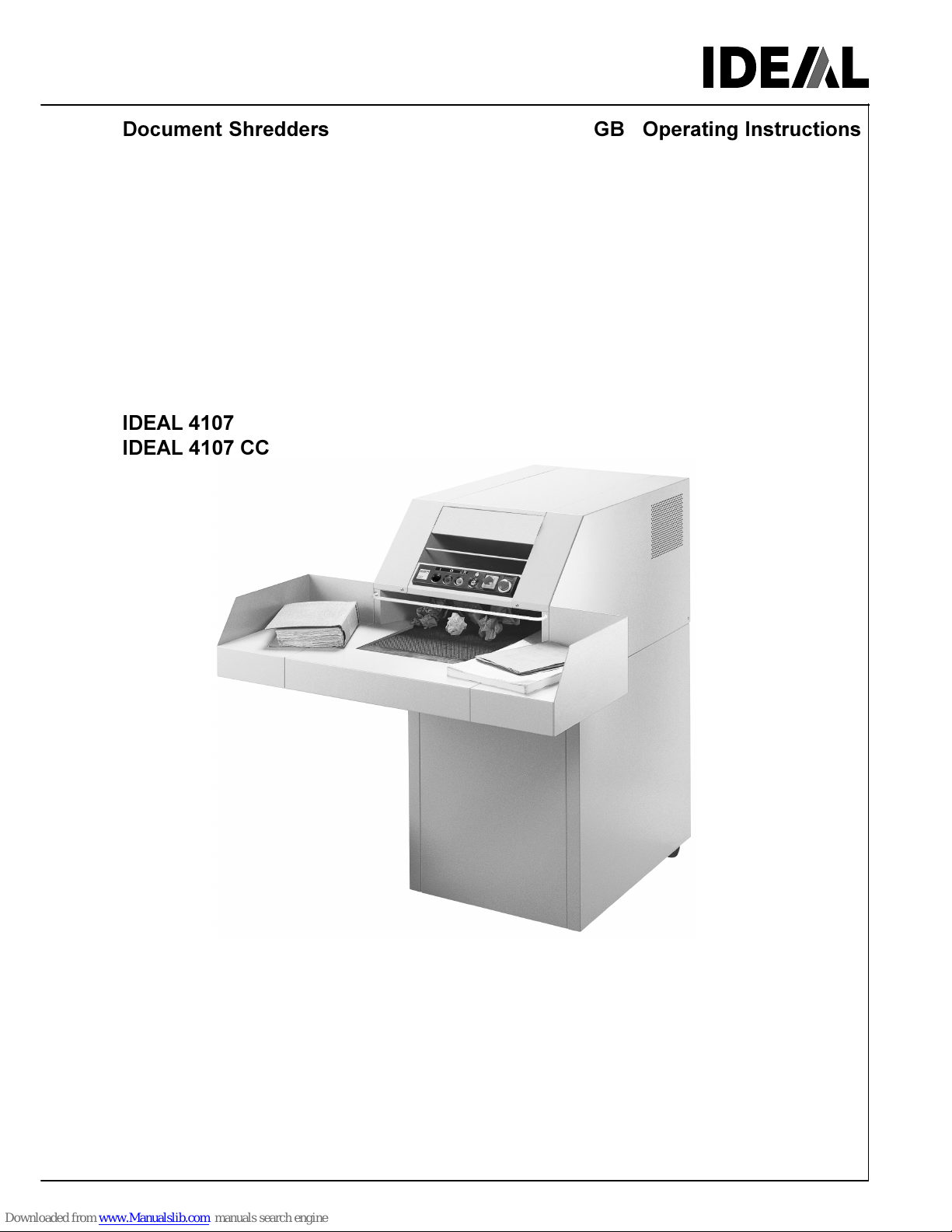

GB Operating InstructionsDocument Shredders

IDEAL 4107

IDEAL 4107 CC

123456789

2345678

123456789

12345678901234567890

234567890123456789

12345678901234567890

IDEAL 4107

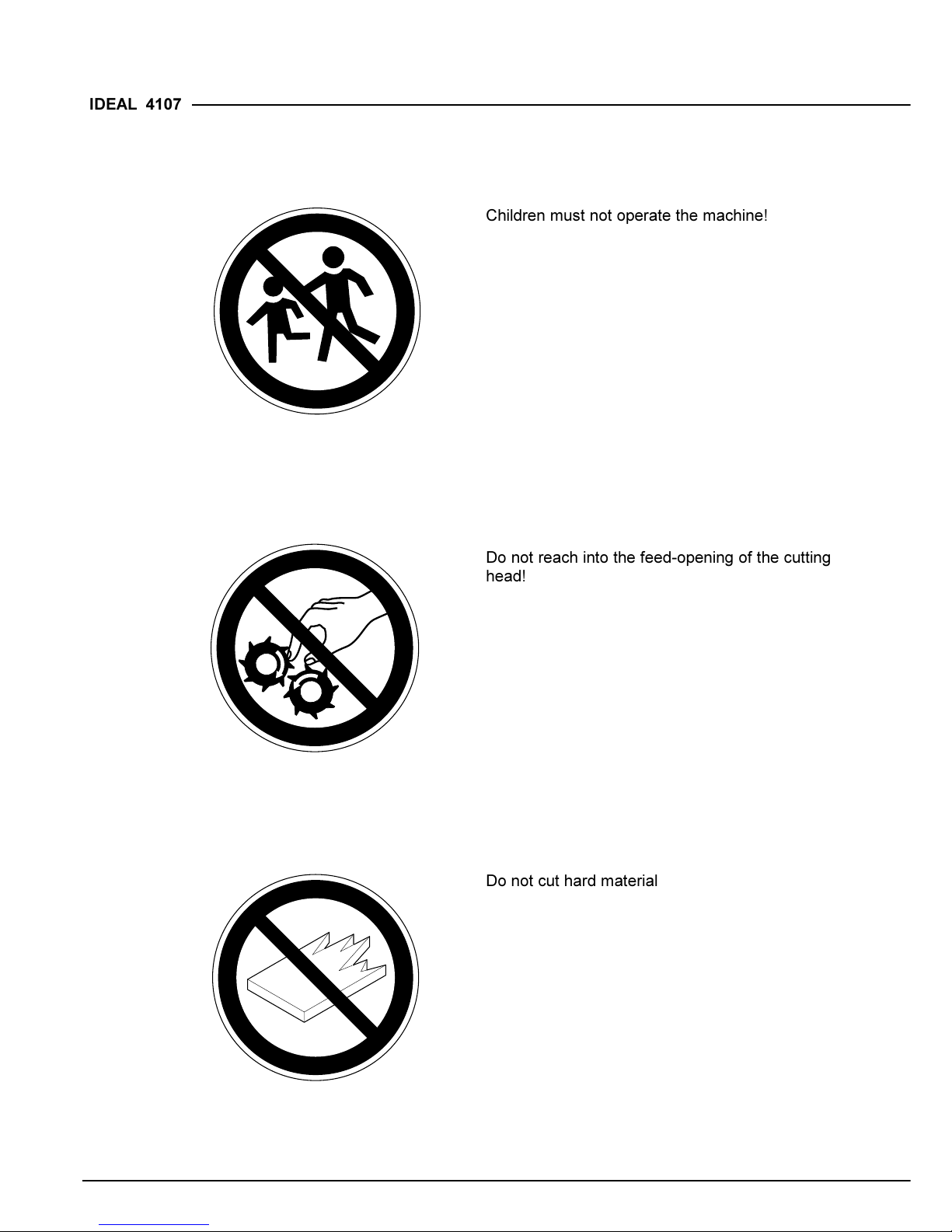

Children must not operate the machine!

Do not reach into the feed-opening of the cutting

head!

Do not cut hard materials or materials which may

splinter!

123456789012345678901234567890121234567890

2345678901234567890123456789012123456789

123456789012345678901234567890121234567890

Table of contents

1. General ....................................................... 4

1.1 Safety Precautions ...................................... 4

1.2 pplication ................................................... 4

2. Installation ................................................... 5

2.1 Pre-assembly .............................................. 5

2.2 Power supply ............................................... 6

2.3 Checking rotating direction ......................... 6

3. Operation .................................................... 7

3.1 Operating elements ..................................... 7

3.3 Starting the machine ................................... 7

Machine stops due to overloading .............. 7

Stopping the machine ................................. 8

3.3 Switching off the machine ........................... 8

For short breaks: ......................................... 8

For longer breaks: ....................................... 8

3.4 Oiling the shredding mechanism ................. 8

3.5 Replacing the plastic bag ............................ 8

4. Trouble-shooting ......................................... 9

5. ccessories ............................................... 10

6. Technical data ........................................... 10

7. EC-declaration of conformity ..................... 11

123456789

2345678

123456789

12345678901234567890

234567890123456789

12345678901234567890

IDEAL 4107

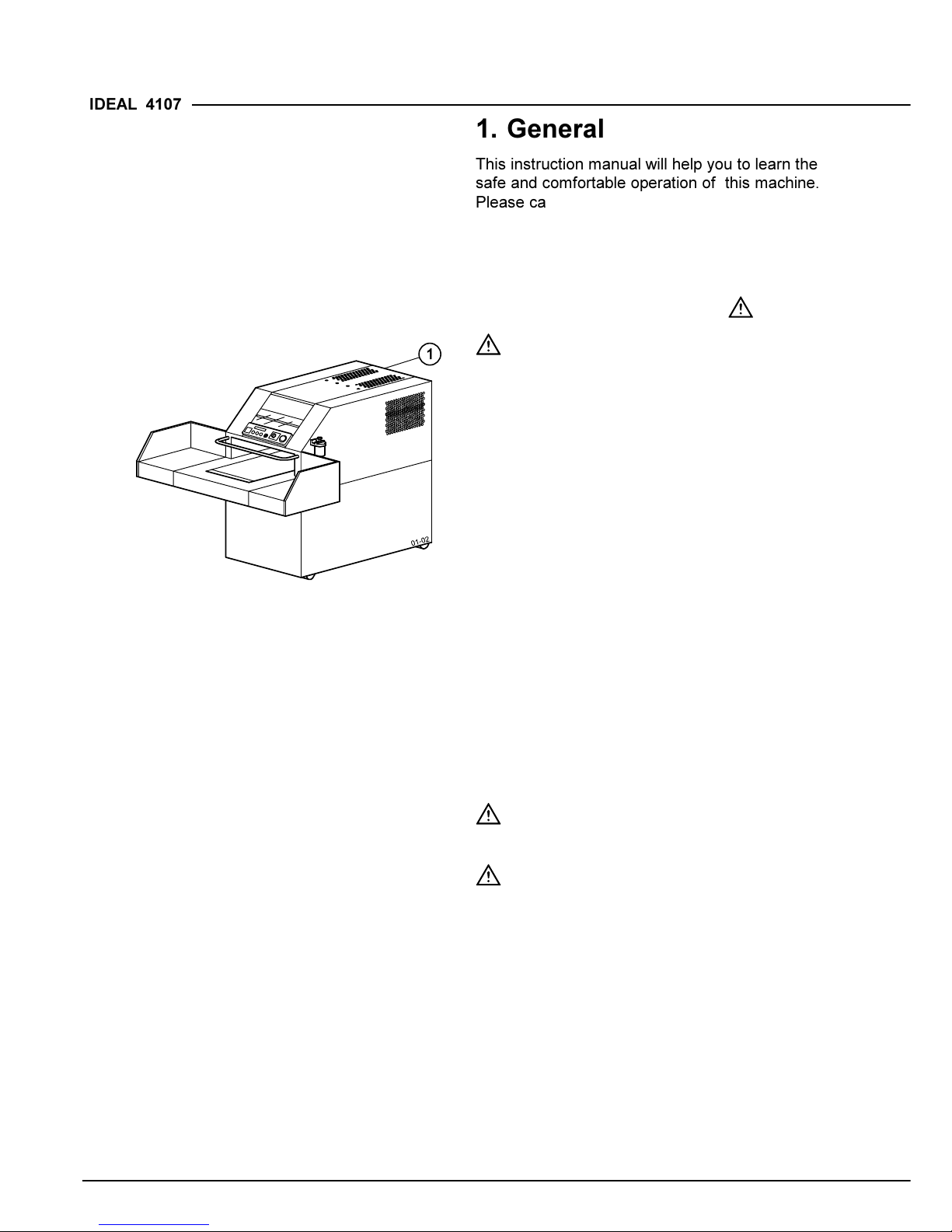

1. General

This instruction manual will help you to learn the

safe and comfortable operation of this machine.

Please carefully read and observe the operating

instructions and safety instructions.

1.1 Safety Precautions 

Danger!

Non-compliance with the instructions may

endanger persons.

Warning!

Non-compliance with the instructions may

cause damage to the machine.

The operating instructions must always be

a ailable for the operator.

ll components which may endanger the operator

are covered by a guard or have a door. ll panels

are screwed onto the machine. utomatic cut-off

when opening the door.

Operation by one person at a time only.

1.2 Application

The machine is constructed for shredding crumpled

paper, stacks of paper and cardboard boxes

(including staples).

Danger!

Children must not operate the machine.

Danger!

Do not shred any strapping materials or fluids

or materials which may explode, chemically

react or splinter.

Warning!

Feeding of big steel components, screws, nails

or hard components will damage the cutting

mechanism.

123456789012345678901234567890121234567890

2345678901234567890123456789012123456789

123456789012345678901234567890121234567890

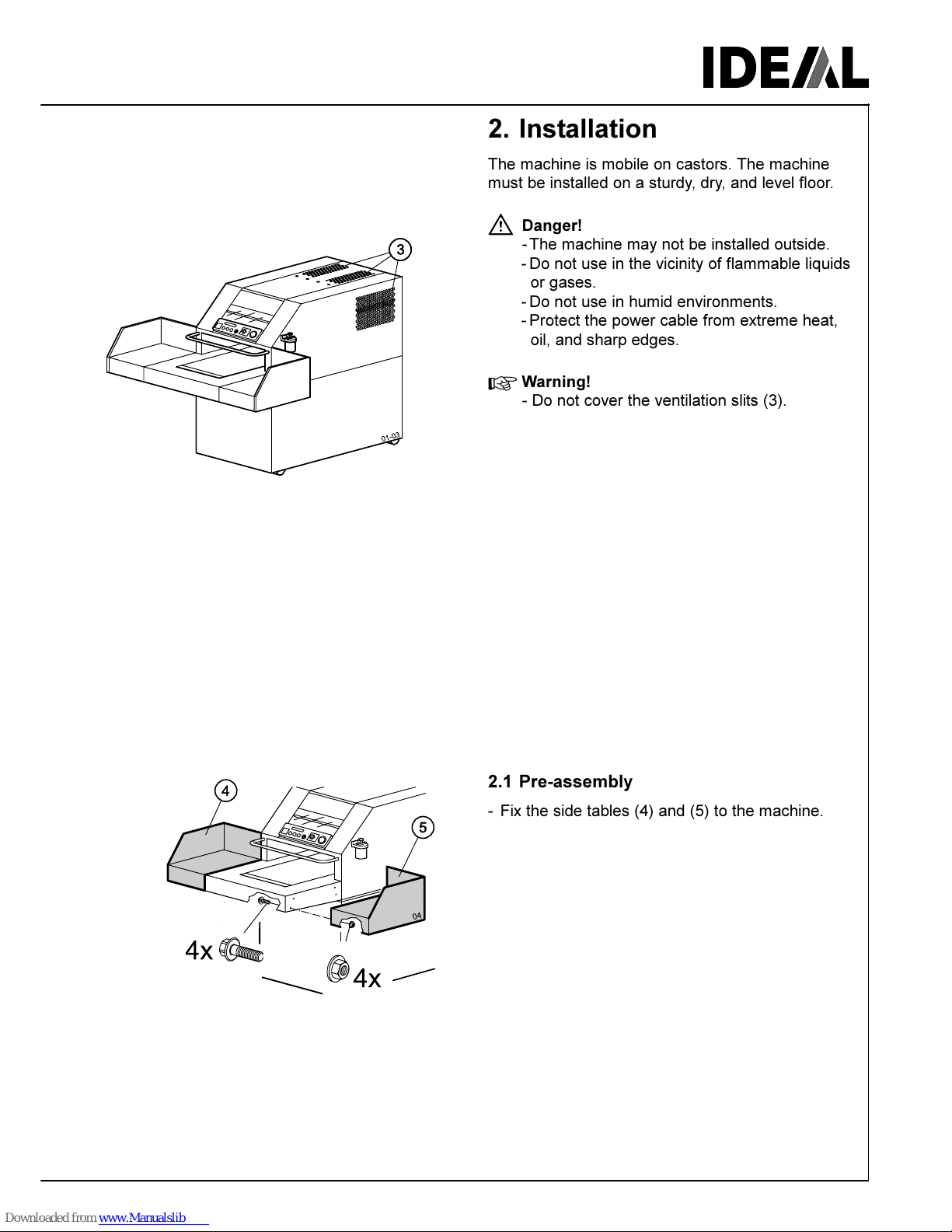

2. Installation

The machine is mobile on castors. The machine

must be installed on a sturdy, dry, and level floor.

Danger!

- The machine may not be installed outside.

- Do not use in the vicinity of flammable liquids

or gases.

- Do not use in humid environments.

- Protect the power cable from extreme heat,

oil, and sharp edges.

Warning!

- Do not cover the ventilation slits (3).

2.1 Pre-assembly

- Fix the side tables (4) and (5) to the machine.

123456789

2345678

123456789

12345678901234567890

234567890123456789

12345678901234567890

IDEAL 4107

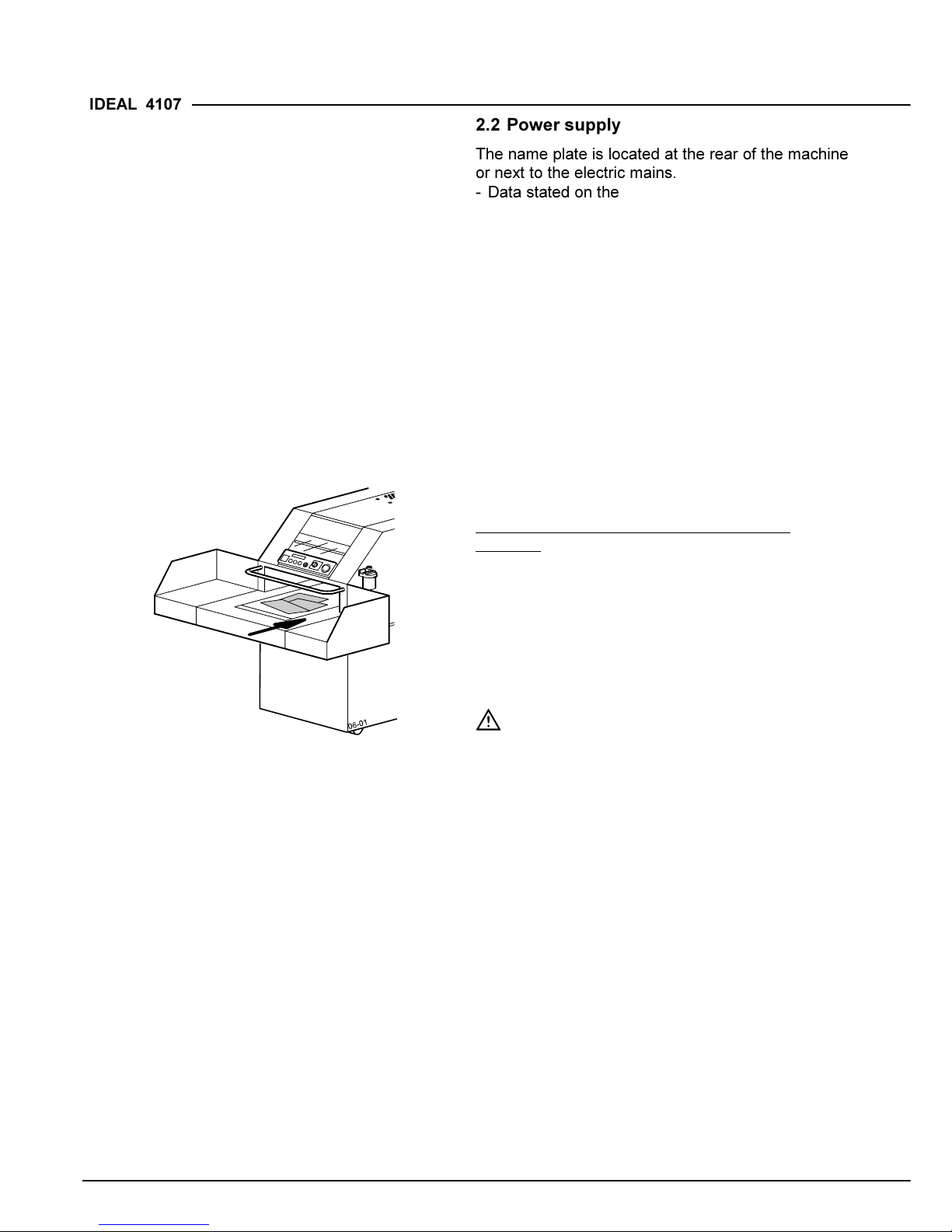

2.2 Power supply

The name plate is located at the rear of the machine

or next to the electric mains.

- Data stated on the name plate

- Voltage "V",

- Frequency "Hz",

- Power consumption " "

must correspond to the values of the power supply

unit.

- Earth wire must be a ailable.

- Connect the machine to the mains.

2.3 Checking rotating direction

Operate the machine for a short time as described

under 3. "Operation".

- The material is transported to the shredding

mechanism by a conveyor belt.

When the conveyor belt runs in the opposite

direction:

The machine is wired according to the IEC

standardized rotary field. When changing the rotary

direction we recommend that this is performed by

an experienced specialist. The rotary direction is

changed by exchanging the "L1" and "L2"

connections in the plug.

Danger!

Incorrect exchanging of connections may

endanger the operator. If in doubt, this work

should be performed by an electrical specialist.

123456789012345678901234567890121234567890

2345678901234567890123456789012123456789

123456789012345678901234567890121234567890

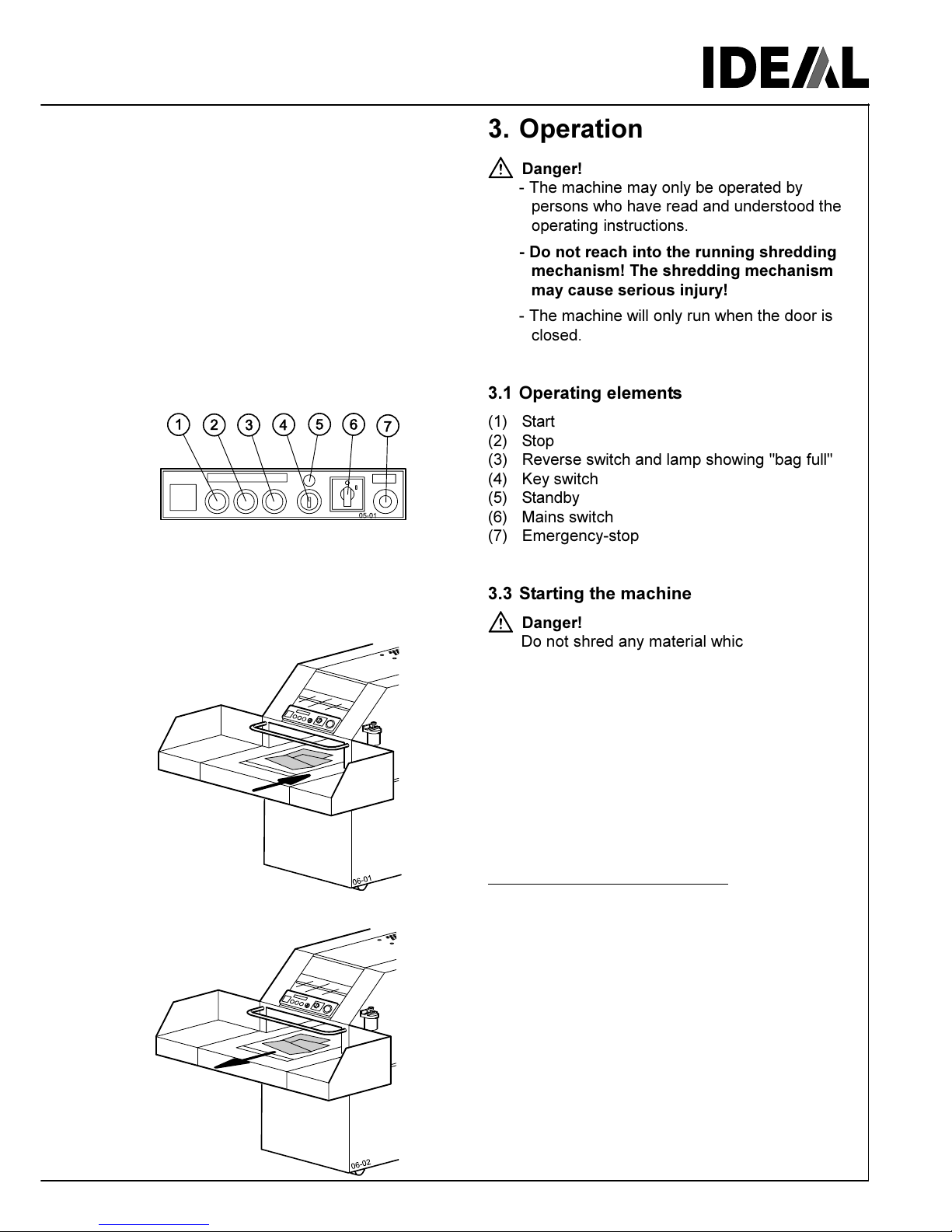

3. Operation

Danger!

- The machine may only be operated by

persons who have read and understood the

operating instructions.

- Do not reach into the running shredding

mechanism! The shredding mechanism

may cause serious injury!

- The machine will only run when the door is

closed.

3.1 perating elements

(1) Start

(2) Stop

(3) Reverse switch and lamp showing "bag full"

(4) Key switch

(5) Standby

(6) Mains switch

(7) Emergency-stop

3.3 Starting the machine

Danger!

Do not shred any material which may loop or

splinter. In case of danger, press emergency-

stop button (7).

- Turn mains switch (6) to position "I"

- Emergency-stop (7) pulled out.

- Turn key switch (4) on.

- Press and release the black button (1).

- Distribute the paper over the total width of the

conveyor belt.

Machine stops due to overloading

- Remove any paper left on the conveyor belt.

Do not reach into behind the flap.

- Press and release the yellow key (3)

- Feed less paper onto the conveyor belt.

- Start afresh.

Warning!

void continuous overloading of the machine.

123456789

2345678

123456789

12345678901234567890

234567890123456789

12345678901234567890

IDEAL 4107

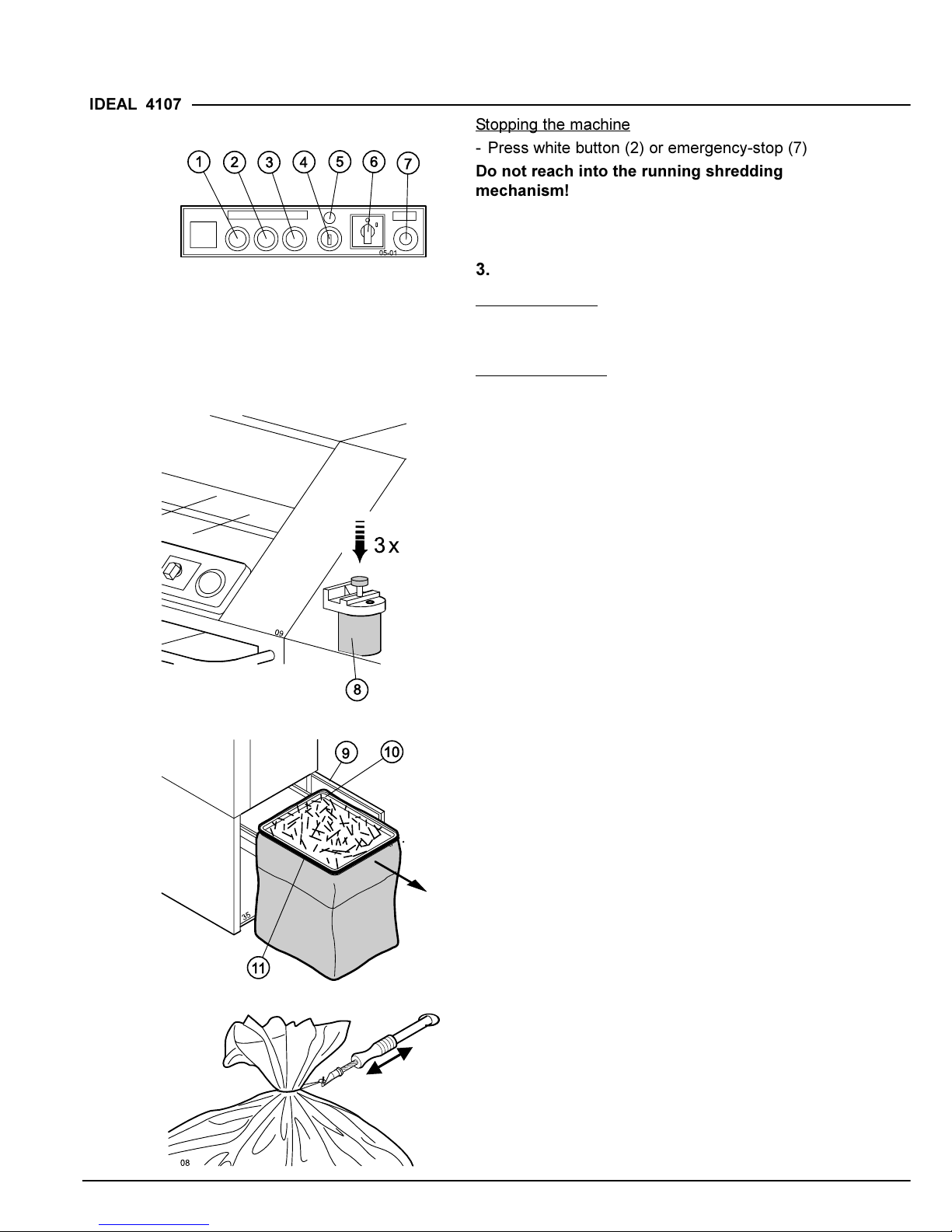

Stopping the machine

- Press white button (2) or emergency-stop (7)

Do not reach into the running shredding

mechanism!

3.3 Switching off the machine

For short breaks:

- Press white button (2) © Conveyor belt stops.

For longer breaks:

- Turn main switch (6) to position "0". © The entire

machine shuts down.

- Turn key switch (4) and remove the key © Now

the machine is secured from unauthorized use.

3.4 iling the shredding mechanism

If the sheet capacity reduces or after the bag is

emptied we recommend that you oil the shredding

mechanism!

- Press the oilpump button 3 x.

- fter lubrication let the machine run several times

backwards and forwards alternately.

- If tank (8) is empty refill with oil.

Type of oil: cutting head oil

3.5 Replacing the plastic bag

Replace bag when "bag full" indicator lights.

- Open the door (9).

- Pull out the plastic bag holding the bottom of the

bag.

- Push down the waste paper.

- Pull out the waste bag with frame (10) until it

stops.

- Remove the round belt (11) from the waste bag

frame.

- Fasten the bag (wire twisting tool and wire ties see

accessories).

- Place a new bag into the bag frame (10) and turn

the edge over the outside of the frame.

- Fasten the bag with the round belt. The round belt

must fit into the channel of the bag frame.

- Push the bag frame into the machine and adjust

the plastic bag with your foot.

- Close the door (9).

123456789012345678901234567890121234567890

2345678901234567890123456789012123456789

123456789012345678901234567890121234567890

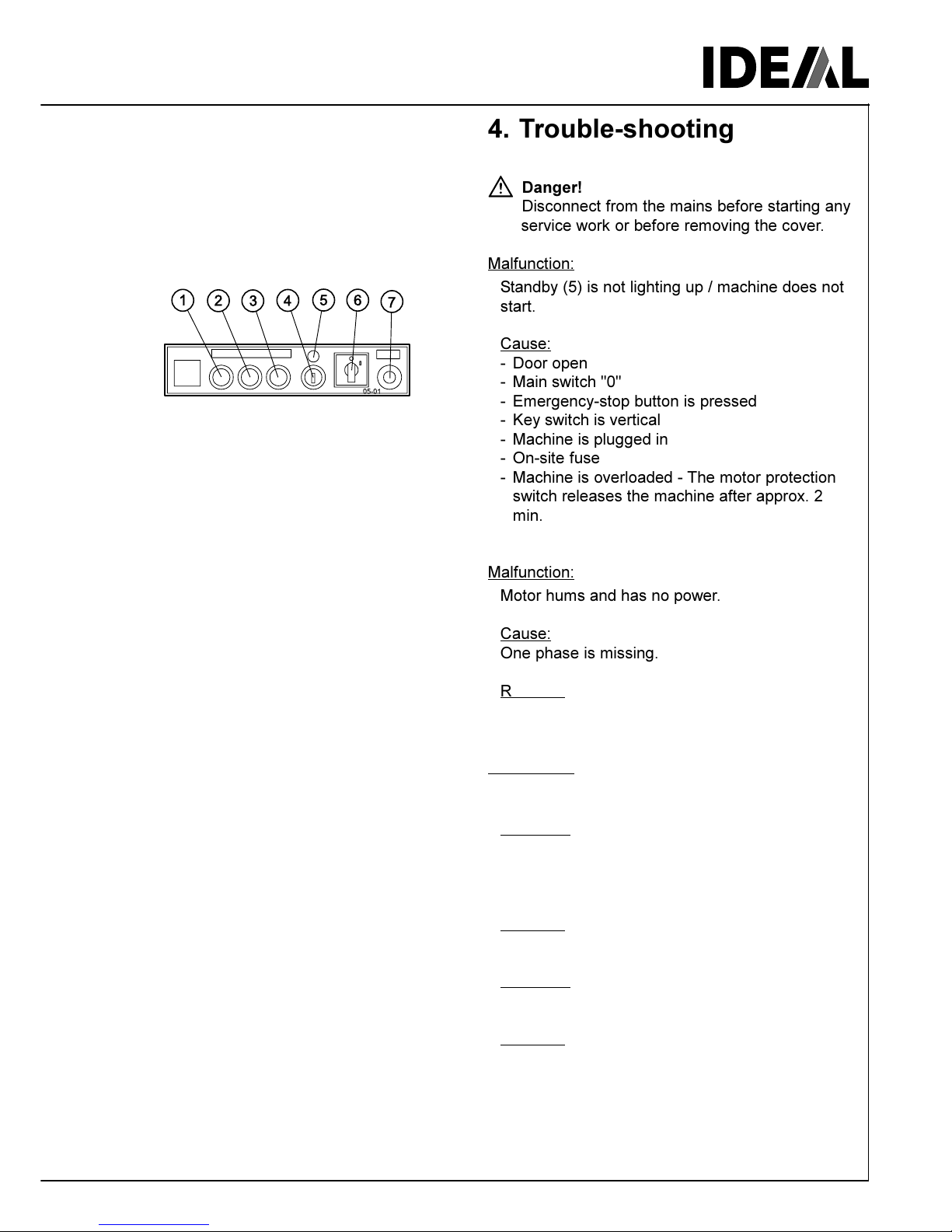

4. Trouble-shooting

Danger!

Disconnect from the mains before starting any

service work or before removing the cover.

Malfunction:

Standby (5) is not lighting up / machine does not

start.

Cause:

- Door open

- Main switch "0"

- Emergency-stop button is pressed

- Key switch is vertical

- Machine is plugged in

- On-site fuse

- Machine is overloaded - The motor protection

switch releases the machine after approx. 2

min.

Malfunction:

Motor hums and has no power.

Cause:

One phase is missing.

Remedy:

Ensure that voltage is on all 3 phases

Malfunction:

Machine switches off during normal operation.

a) Cause:

Indicator for "Bag full" lights

Remedy:

Renew plastic bag.

b) Cause:

Machine is overloaded to frequently.

Remedy:

Check on-site fuse

Motor protection switch releases the machine after

approx. 2 min.

123456789

2345678

123456789

12345678901234567890

234567890123456789

12345678901234567890

IDEAL 4107

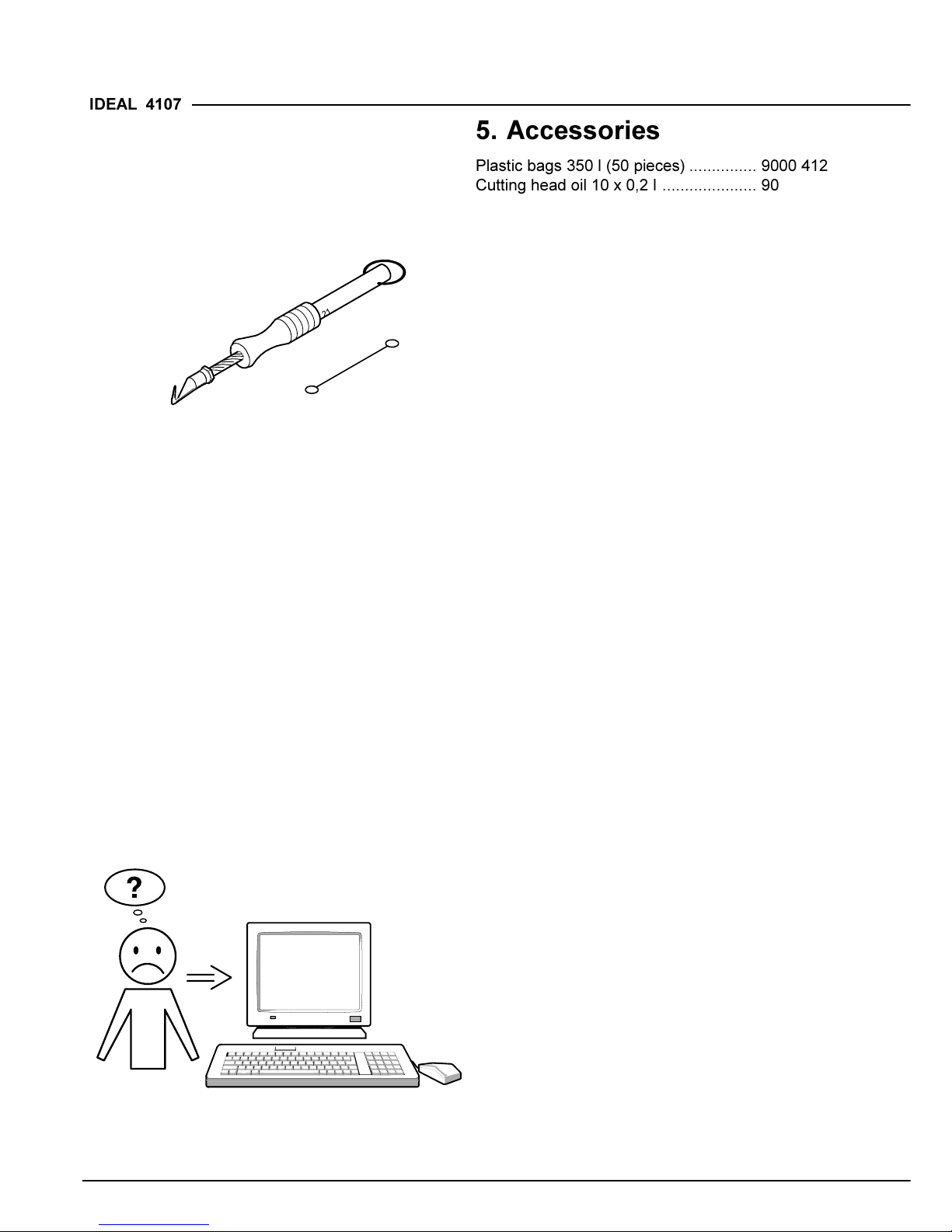

5. Accessories

Plastic bags 350 l (50 pieces) ............... 9000 412

Cutting head oil 10 x 0,2 l ..................... 9000 610

For fastening plastic bags:

Wire twisting tool for one-way

plastic bags ........................................... 9000 591

Wire ties for one-way plastic bags

(1000 pieces) ........................................ 9000 592

Attention!

Only use manufacturer recommended

accessories.

6. Technical data

The exact technical specifications can be found on

the technical specifications sticker on the machine.

Noise level < 70 dB( ).

Fuse protection 400 V with 16 .

Fuse protection 220 V with 20 .

If you have further questions please contact your

dealer or directly on the internet www.ideal.de

Subject to alterations without notice.

IDEAL

"Service"

Autres manuels pour 4107

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IDEAL destructeur de papier

IDEAL

IDEAL 1 Manuel utilisateur

IDEAL

IDEAL 2270 Manuel utilisateur

IDEAL

IDEAL 2604 Manuel utilisateur

IDEAL

IDEAL 4107 Manuel utilisateur

IDEAL

IDEAL 2240 Manuel utilisateur

IDEAL

IDEAL 2404 Manuel utilisateur

IDEAL

IDEAL IDEAL 5009-1 Manuel utilisateur

IDEAL

IDEAL 2360 Manuel utilisateur

IDEAL

IDEAL SHREDCAT 8280 CC Manuel utilisateur

IDEAL

IDEAL 0201 OMD Manuel utilisateur

IDEAL

IDEAL SHREDCAT 8240 Manuel utilisateur

IDEAL

IDEAL 2360 Manuel utilisateur

IDEAL

IDEAL 2603/2 SM/C Manuel utilisateur

IDEAL

IDEAL 5009-2 CC Manuel utilisateur

IDEAL

IDEAL SHREDCAT 8283 CC Manuel utilisateur

IDEAL

IDEAL SHREDCAT 8280 CC Manuel utilisateur

IDEAL

IDEAL 2265 Manuel utilisateur

IDEAL

IDEAL Shredcat 8260 CC Manuel utilisateur

IDEAL

IDEAL Cross/Cut 4002 Manuel utilisateur

IDEAL

IDEAL MBM Destroyit 2404 Level P-4 Manuel utilisateur

IDEAL

IDEAL 2502 Manuel utilisateur

IDEAL

IDEAL 2445 Manuel utilisateur

IDEAL

IDEAL 2445 CC Oil Manuel utilisateur

IDEAL

IDEAL SHREDCAT 8220 CC Manuel utilisateur

Manuels destructeur de papier populaires d'autres marques

Swingline

Swingline STACK-AND-SHRED200X&200XL 60X Mode d’emploi

GBC

GBC ShredMaster CC055 Manuel utilisateur

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

Rexel

Rexel Optimum AutoFeed+ 45X Manuel utilisateur

Martin Yale

Martin Yale 227284S1 Manuel utilisateur

Bonsaii

Bonsaii DocShred C223-A Manuel utilisateur

HSM

HSM Pure 740 max Manuel utilisateur

TRU RED

TRU RED TR-BMC20A Manuel utilisateur

Fellowes

Fellowes 50S Manuel utilisateur

GBC

GBC SHREDMASTER 1236SE Manuel utilisateur

Gude

Gude GH 2600 P Manuel utilisateur

Ativa

Ativa DQ80M Manuel utilisateur

Q-Connect

Q-Connect Q8CC Manuel utilisateur

Fellowes

Fellowes POWERSHRED C-325CI Manuel utilisateur

Olivetti

Olivetti Privacy 5000C Guide de démarrage rapide

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manuel utilisateur

Dahle

Dahle paperSAFE 22022 Manuel utilisateur
