IDEAL Networks FiberTEK IV Manuel utilisateur

Proof of Performance

www.idealnetworks.net 163819

FiberTEK IV

Quick Reference Guide

Proof of Performance

2www.idealnetworks.net 164818

FiberTEK IV

Quick Reference Guide

164818 rev1 01/2020

IDEAL INDUSTRIES Networks Ltd.

Stokenchurch House

Oxford Road

Stokenchurch

High Wycombe

Buckinghamshire

HP14 3SX

United Kingdom

The information contained in this document is the property of IDEAL INDUSTRIES Networks Ltd. and

is supplied without liability for errors and omissions. No part of this document may be reproduced

or used except as authorised by contract or other written permission from IDEAL INDUSTRIES

Networks Ltd. The copyright and all restrictions on reproduction and use apply to all media in which

this information may be placed. IDEAL INDUSTRIES Networks Ltd. pursues a policy of continual

product improvement and reserves the right to alter without notice the speciﬁcation, design, price or

Proof of Performance

2www.idealnetworks.net 164818

CONTENTS

Introduction

Getting Started

1, 2 and 3 Jumper | Normal Mode

1, 2 and 3 Jumper | Loopback

Set References | Results

Fibre Optic Test Limits

Proof of Performance

4www.idealnetworks.net 164818

INTRODUCTION

The LanTEK IV, FiberTEK IV and IDEAL AnyWARE Cloud features industry

leading performance, reliability, durability and time saving functionality.

FiberTEK IV adapters are used with LanTEK IV for fast and simple

certiﬁcation of high bandwidth single-mode and multimode ﬁbre optic

cabling including support for encircled ﬂux testing (optional).

To pinpoint ﬁbre cabling faults every FiberTEK IV adapter includes a built-in

visible light source to help you visually pinpoint faults and locate ﬁbre ports.

FiberTEK IV provides optical loss (dB) measurements meeting Tier 1

certiﬁcation requirements.

FiberTEK IV

Troubleshooting

Red laser light source to

visually pinpoint faults and

locate ﬁbre ports

Encircled Flux

compliance

Enables compliance to the

2016 ﬁbre standards

IEC 14763-3 and

ANSI/TIA- 526-14-C

(optional accessory – see

back page for details)

Certiﬁcation

Tier-1 certiﬁcation of

single-mode and

multimode ﬁbre

optic cabling

Receive LED indicator

Flashes red to warn of light

from other sources, green

when linked to FiberTEK IV

Supports all common

connector types

SC, FC, ST adapters included.

LC adapters optional

Simpliﬁed

bi-directional

measurements

Eliminates process

of manually merging

directional tests into

one record

Field calibration

Allows 1 and 3 jumper ﬁeld

calibration methods to ensure

accuracy and compliance to

ISO/IEC and ANSI/TIA standards

Proof of Performance

4www.idealnetworks.net 164818

GETTING STARTED

Ensure the software version installed on the LanTEK IV is 1.11 or higher. This

can be veriﬁed by pressing the gear icon in the upper-right corner of the

screen, then About and Software Version.

The remote software version is displayed when it is powered on and

connected to the main handset with either a copper or ﬁbre optic cabling

link.

SC/ST/FC adapters are included with the FiberTEK IV modules, An optional

LC kit is available which includes LC adapters for the Rx ports of the

modules and SC-LC test cords for use on the Tx ports.

Optional Encircled Flux (EF) launch cables are available for use when a EF

launch is required/desired for multimode testing. EF cords are not necessary

when testing single-mode ﬁbre.

When a FiberTEK IV module is ﬁrst connected

to the main handset the Set Reference screen

will appear. Set Reference is used to “calibrate”

the launch cords used during testing. Press

CANCEL to bypass and perform the Set

Reference procedure later, or press SET

REFERENCE to perform the procedure now.

Pressing SET REFERENCE will display the set

reference screen with the default settings.

HELP OPTIONS

LanTEK IV and AnyWARE cloud have a comprehensive on-board help which

will guide you through how to use the features. This can be accessed as

follows:

Help on the LanTEK IV

Icon on the Menu Bar

Or click Settings - Usage

Guides:

Help on the AnyWARE Cloud

AnyWARE Cloud assistance can be

accessed by the Walk Me Through tab

located on the bottom right-hand side.

Proof of Performance

6www.idealnetworks.net 164818

GETTING STARTED

Displays current

setup that will be

used when Start

is pressed

Test View: Cycles

between the view

of the calibration

setup and the

view when

connected to the

ﬁbre under test

Start: Initiates

set refence

procedure

Mode: Cycles between

Normal (2 FiberTEK module)

and Loopback (1 FiberTEK

module)

Jumpers:

Cycles through

the number of

jumpers to be

used during

testing

Test cord

number

Proof of Performance

6www.idealnetworks.net 164818

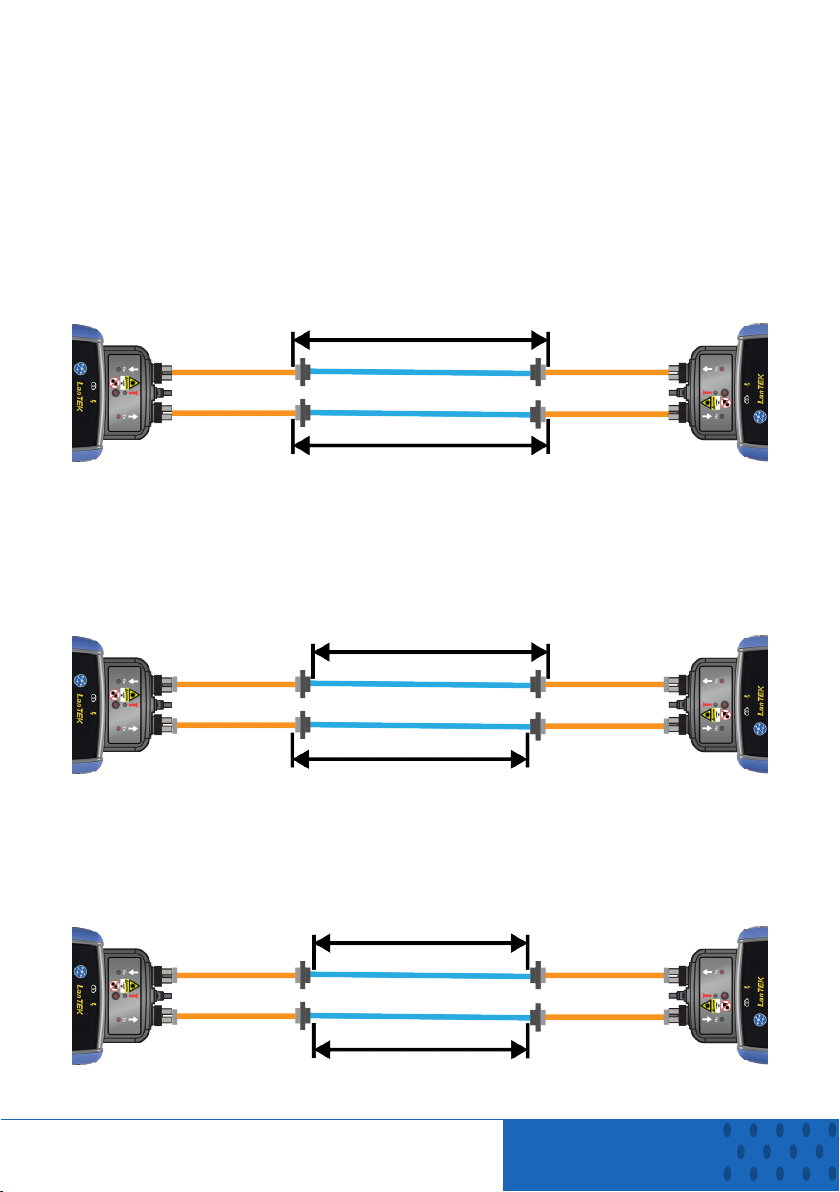

REFERENCE METHODS

Three options are available when setting the reference prior to testing. Each

method determines which components of the installed link are measured

during the certiﬁcation test.

1-Jumper Reference

The 1-Jumper method includes the cable plus the connections on each side

of the cable:

2-Jumper Reference

The 2-Jumper method includes the cable plus the connection closest to the

light source side of the link. The connection on the side of the cable on the

power meter side of the link is not included in the measurement:

3-Jumper Reference

The 3-Jumper method measures only the cable and does not include the

connection on either side of the cable:

Proof of Performance

8www.idealnetworks.net 164818

1 JUMPER | NORMAL MODE

The 1 Jumper method is preferred by most cabling standards because it

most accurately represents the signal loss experienced by the equipment

during operation.

When testing the loss of the 2nd test cord, the cable under test and the two

connections of the cable under test are measured.

TEST CORD CONFIGURATION

VIEW

Connect test cords as shown for 1

Jumper Reference test:

TEST CORD AND FIBRE

UNDER TEST VIEW

Displays the components that

are included in the Autotest

measurement:

Orange test cord connected during

Set Reference

Fibre

connector

Orange line: Test cord that is included in

the autotest measurement

Blue line: Fibre under test

Grey line: Test cord that is not included in

the autotest measurement

Grey dot: Connectors that are not

included in the autotest measurement

Green dot: Connectors that are included

in the autotest measurement

N1/N2: Fibre number when testing two

ﬁbres

Proof of Performance

8www.idealnetworks.net 164818

2 JUMPER | NORMAL MODE

The 2 Jumper method excludes the loss of the 2nd test cord and one of

the connections of the cable under test. The measured loss will be slightly

under-reported compared to the 1 Jumper method.

This method can be used when the connector type of the cable under test

are not available on the test equipment and hybrid test cords are required.

Fibre

connector

Orange test cord connected during

Set Reference

Blue line: Fibre under test

Grey line: Test cord that is not included in

the autotest measurement

Grey dot: Connectors that are not

included in the autotest measurement

Green dot: Connectors that are included

in the autotest measurement

N1/N2: Fibre number when testing two

ﬁbres

Proof of Performance

10 www.idealnetworks.net 164818

3 JUMPER | NORMAL MODE (MODIFIED 2 JUMPER)

The 3 Jumper method is preferred when hybrid test cords are required

to interface with the cable under test. It is essentially the 2 Jumper

method with a 3rd Jumper added after the reference is set to simulate the

measurement loss of the 1 Jumper method.

Fibre

connector

Orange test cord connected during

Set Reference

Blue line: Fibre under test

Grey line: Test cord that is not included in

the autotest measurement

Grey dot: Connectors that are not

included in the autotest measurement

Green dot: Connectors that are included

in the autotest measurement

N1/N2: Fibre number when testing two

ﬁbres
