Icron DVI Ranger 500 Manuel utilisateur

DVI Ranger 500

User Guide

Featuring ExtremeDVI™ Technology

DVI Ranger 500

This document applies to Part Numbers: 00-00103, 00-00104 and

00-00105.

FCC Radio Frequency Interference Statement Warning

The DVI Ranger has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. The DVI Ranger generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with this

user guide, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CE Statement

We, Icron Technologies Corporation, declare under our sole responsibility

that the DVI Ranger, to which this declaration relates, is in conformity with

European Standard EN 55022/A1 Class B, and EN 50082-1 (IEC 801-2,

IEC 801-3, IEC 801-4)

IC Statement

This Class B digital apparatus complies with Canadian ICES-003.

Technologies Corporation, the Icron Technologies Corporation logo, and the

Icron Technologies Corporation products referred to herein are either the

trademarks or the registered trademarks of Icron Technologies Corporation.

All other trademarks are property of their respective owners. Icron

Technologies Corporation assumes no responsibility for errors that may

appear in this manual. Information contained herein is subject to change

without notice.

User Guide

Contents

Introduction................................................................................................ 1

DVI Ranger Product Contents ................................................................... 1

About the DVI Ranger ............................................................................... 2

Before You Begin ...................................................................................... 6

Installing the TX unit ................................................................................. 6

Installing the RX unit................................................................................. 6

Connecting the TX unit to the RX unit ...................................................... 7

Completing the Installation ........................................................................ 8

Troubleshooting ......................................................................................... 9

Specifications........................................................................................... 11

Limited Hardware Warranty .................................................................... 12

Hardware Remedies ................................................................................. 12

Limitation of Liability.............................................................................. 12

Obtaining Warranty Service..................................................................... 13

Contacting Technical Support.................................................................. 13

DVI Ranger 500

Notes

User Guide

Introduction

This manual will help you install the DVI Ranger model 500. The

instructions in this guide assume a general knowledge of computer

installation procedures, familiarity with cabling requirements, and some

understanding of DVI devices.

NOTE:Notes give additional information that could make installation

easier.

DVI Ranger Product Contents

When you open your DVI Ranger for the first time you should find the

following items:

• DVI Ranger User Guide (1)

• TX unit (1)

• RX unit (1)

• AC power adapter (1)

• DVI M-M cable (2)

To complete the installation, you will also require the following items that

are not included with the product:

• DVI compatible computer or other video source

• DVI display

• Four strands of multimode fiber-optic cable terminated at each end

with duplex LC connectors (if using surface cabling)

OR,

Four strands of multimode fiber-optic cabling terminated at each

end in duplex LC information outlets and four multimode fiber-

optic patch cables with duplex LC connectors (if using premise

cabling)

• Category 5 Unshielded Twisted Pair (UTP) cable with RJ45

connectors (if using surface cabling),

OR,

Category 5 UTP cabling with two information outlets and two

Category 5 UTP patch cords with RJ45 connectors (if using

premise cabling)

NOTE: The maximum length of the Category 5 UTP cable, including patch

cords, must not exceed 100m.

NOTE: The maximum length of the fiber-optic cable, including patch

cords, must not exceed 500m.

DVI Ranger 500

About the DVI Ranger

The DVI Ranger brings the benefits of digital transmission to extended range

video applications. With the DVI Ranger, any DVI-capable source of video

information can be connected to a DVI display up to 100 metres away. (In

special circumstances, this can even be extended to 500 metres.)

The DVI Ranger is composed of two individual units, the TX unit) and the

RX unit. Video signals in DVI format are transmitted from the TX unit to the

RX unit over four strands of multimode fiber cable. Information regarding

the capabilities of the display (such as its native resolution and refresh rate)

are conveyed from the RX unit to the TX unit over a Category 5 UTP cable

in EDID/DDC format.

The TX unit

The TX unit connects to the video source (usually a computer) using a

conventional DVI cable. Depending on your needs, it also connects to a

power outlet through an AC power adapter.

Front View

2 3 4 51

User Guide

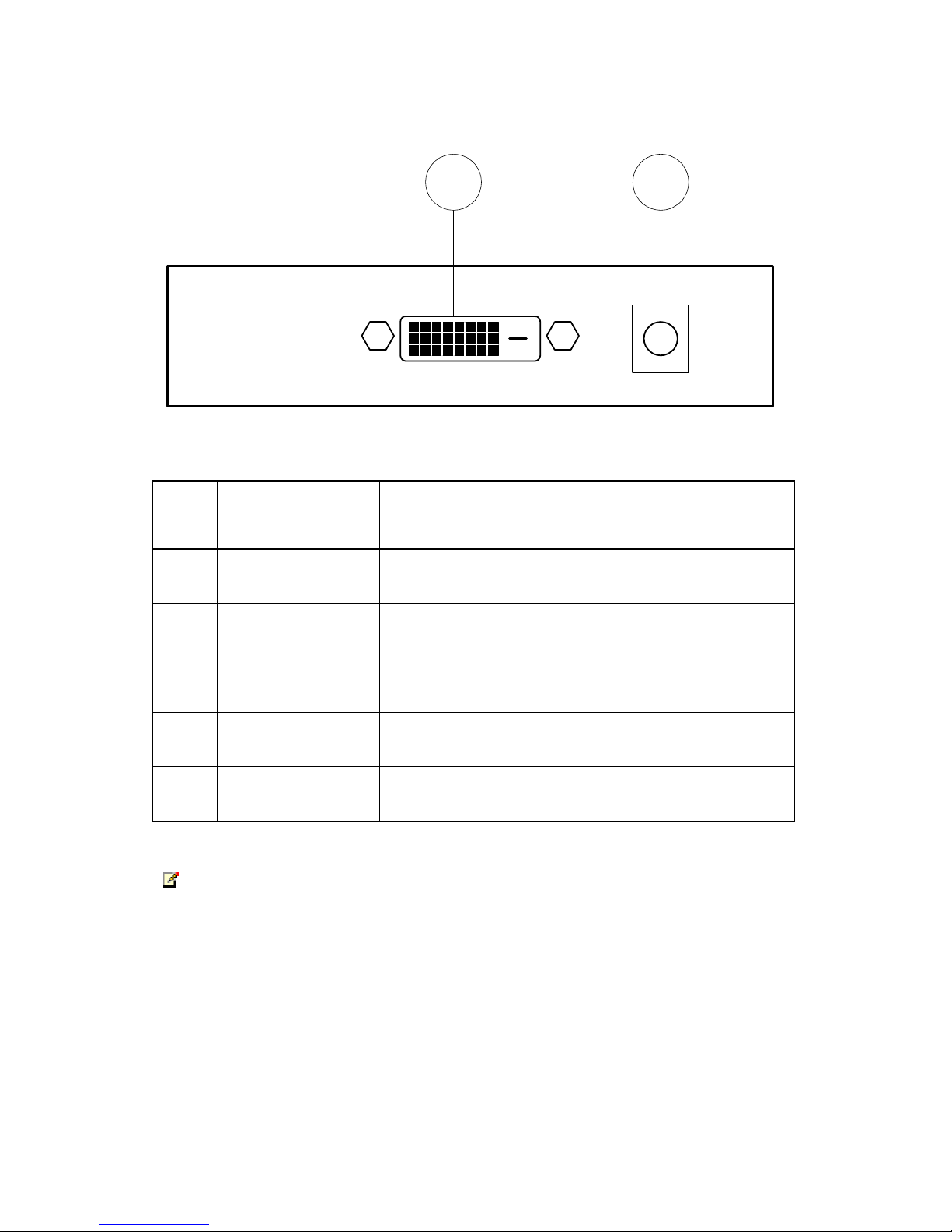

Rear View

6 7

The features of the TX unit are as follows:

1 Status LED Lit (green) when power is applied to the unit

2 Power LED Lit (red) when power is applied to the unit

3 Link 1 port Duplex LC receptacle for connection to fiber

network cable

4 Link 2 port Duplex LC receptacle for connection to fiber

network cable

5 DDC port RJ45 receptacle for connection to copper

network cable

6 DVI connector DVI-D receptacle for connection to computer or

other video source

7 Power connector Receptacle for connection of 12V DC power

adapter

NOTE:The power adapter for the DVI Ranger 500 can be connected to

either the TX unit or to the RX unit, as convenient.

DVI Ranger 500

The RX unit

The RX unit connects to the video display using a conventional DVI cable.

Depending on your needs, it also connects to a power outlet through an AC

power adapter.

The physical structure of the RX unit is identical to that of the TX unit

shown previously. The features of the RX unit are as follows

1 Status LED Lit (green) when DVI information is detected by

the unit

2 Power LED Lit (red) when power is applied to the unit

3 Link 1 port Duplex LC receptacle for connection to fiber

network cable

4 Link 2 port Duplex LC receptacle for connection to fiber

network cable

5 DDC port RJ45 receptacle for connection to copper

network cable

6 DVI connector DVI-D receptacle for connection to digital

display

7 Power connector Receptacle for connection of 12V DC power

adapter

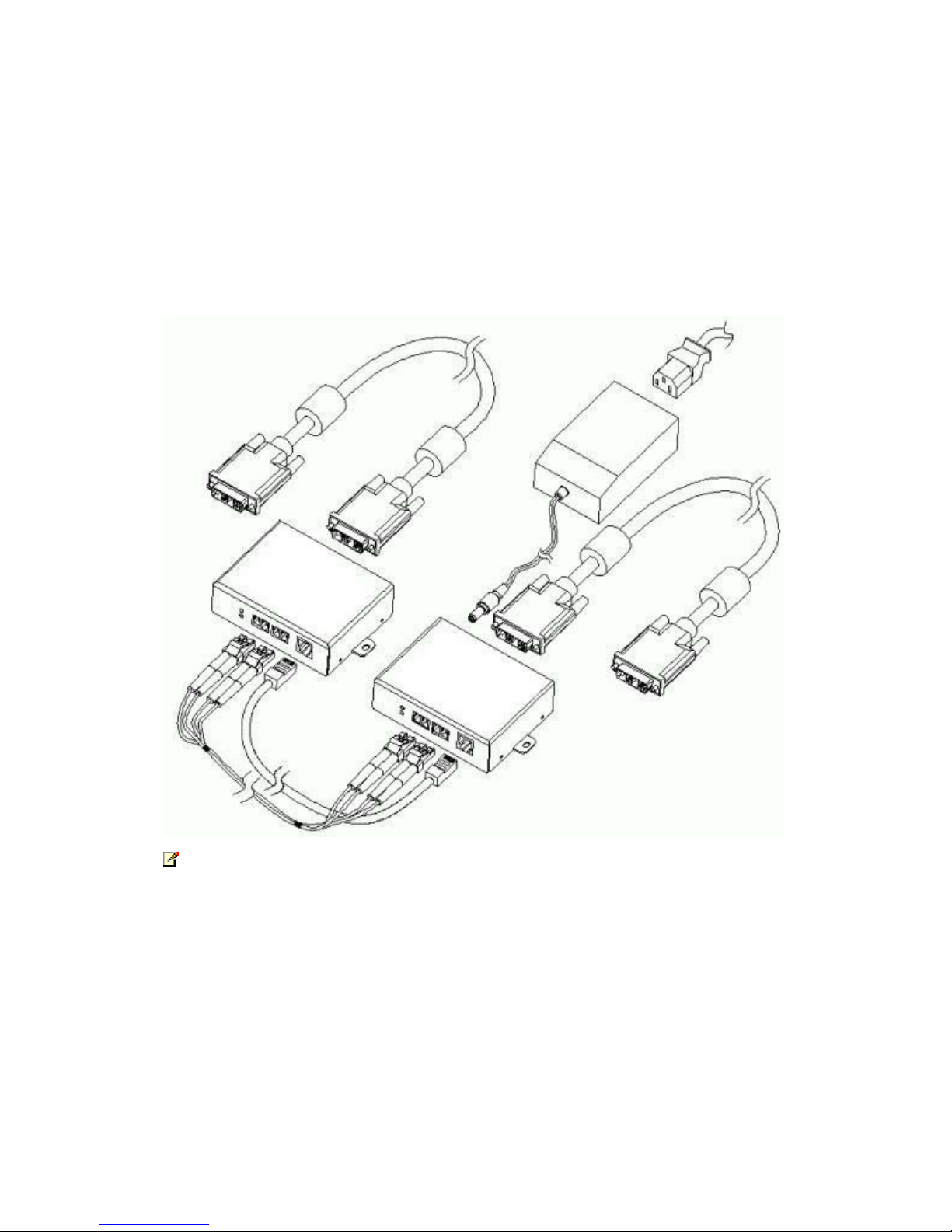

Network Cabling

The TX unit and RX unit are interconnected by two sets of cables that

perform separate functions:

• Digital video signals are transmitted from the TX unit to the RX

unit over four strands of multimode fiber cable. The Digital Visual

Interface (DVI) is composed of four separate video channels,

namely Red, Green, Blue and Clock. Each channel is transmitted

over a separate strand of fiber.

• In many applications, the source of video information (computer)

needs to know the capabilities of the display device to which it is

connected. The most significant of these parameters are the

maximum resolution and maximum refresh rate of the screen.

Exceeding these values can result in a blank screen or even physical

damage. This information is stored in the display in a format known

as EDID and is provided to the computer using a protocol called

User Guide

DDC. This EDID/DDC information is obtained from the display by

the RX unit and transmitted to the TX unit over a Category 5 UTP

cable. The information is then relayed to the computer over the DVI

cable.

• In certain applications, the EDID/DDC function is not required. In

this situation, the DDC cable can be omitted from the configuration

and the system can be operated at the maximum range of the fiber

connection – 500 meters.

NOTE:Category 5 UTP cabling is the standard data communications cable

installed in most commercial and some residential buildings.

DVI Ranger 500

Before You Begin

Before you can install the DVI Ranger, you need to prepare your site.

1. Determine where the computer is to be located and set up the

computer.

2. Determine where you want to locate the display

3. Decide whether the power adapter is to be connected to the TX unit

or the RX unit.

4. If you are using surface cabling, ensure you have enough

multimode fiber and Category 5 UTP cabling to connect the two

locations.

If you are using premise cabling, ensure multimode fiber and

Category 5 UTP cabling is installed between the two locations, with

duplex LC and RJ45 information outlets located near both the

computer and the display.

Installing the TX unit

1. Place the TX unit near the computer.

2. Switch off the computer.

3. Connect the DVI output of the computer to the DVI port of the TX

unit using the DVI M-M cable provided.

Installing the RX unit

1. Place the RX unit near the DVI display.

2. Switch off the display.

3. Connect the DVI port of the RX unit to the DVI input of the display

using the DVI M-M cable provided.
