DVR Installation Manual

11/13/2013

V1.0

DVR-Flex4/8/16E

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 2

Table of Contents

WORKFLOW ...................................................................................................................................................................... 3

INSTALLATION WORKSHEET ...................................................................................................................................... 4

Default DVR Login .............................................................................................................................................................................4

NETWORK SETUP ............................................................................................................................................................ 5

SMTP SETTINGS ............................................................................................................................................................... 7

Network Port Setup...........................................................................................................................................................................8

Router Settings..................................................................................................................................................................................8

USER SETTINGS ................................................................................................................................................................ 9

Changing Admin Password ................................................................................................................................................................9

RECORDING SETUP .......................................................................................................................................................10

Encoding Settings ............................................................................................................................................................................10

Motion Recording Setup (optional) .................................................................................................................................................11

ALARM INPUT SETUP...................................................................................................................................................12

CONFIGURE I-VIEW NOW ENTRY DELAYS.............................................................................................................13

TEST SETTINGS ..............................................................................................................................................................13

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 3

Workflow

1. Network Setup: Setting a Static IP, enabling external access via port forwarding

a. LAN Setup: static IP address assigned by site IT staff

b. Port Setup: forward ports to allow Device commands to be sent from I-View Now

2. Configure SMTP email: This will be used to communicate alerts and alarms to I-View Now. The SMTP server and

SMTP ID provided on the “Installer Data” Worksheet will be used here

3. User Setup: Change the default administrator password. I-View Now will be using this password to log into the

device. I-View Now suggests using the suggested password on the “Installer Data” worksheet.

4. Recording Setup: The DVR will be set to record by schedule or by events. Event recording will only record when

either a motion or alarm event is detected. Scheduled recordings occur during the scheduled time.

5. Alarm Input Setup: Here the technician will be setting up the alarm inputs on the back of the DVR to perform

two actions: 1) Trigger recording on all connected cameras. And most importantly, 2) Send SMTP (email) alert to

I-View Now upon the event of an alarm.

6. Motion Detection Setup: activate video motion recording for desired cameras.

7. Configure I-View Now Entry Delay: Entry delay is configured through the I-View Now portal.

8. Test: Here you will test the individual inputs on the DVR as they are connected to your alarm panel relays or

other input devices. It is recommended that you test all inputs for functionality and to ensure the proper

configuration has been setup in the I-ViewNow portal.

9. Trouble Shooting: This section is provided to help the technician troubleshoot common problems encountered

while installing S series DVR’s.

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 4

Installation Worksheet

The I-View Now Portal will provide an Installation Worksheet after entering the DVR make and model into the system.

This sheet will contain configuration information for the DVR’s notifications area, and provides a form to fill in details

about the site setup (alarms, zone names). An example worksheet is printed below.

You will need to retrieve the IP address while on-site. Either ask the customer/IT department for the IP address, or visit

http://whatismyip.org while on-site for the correct address.

Default DVR Login

Plug a monitor into the VGA output on the DVR. Also, plug the mouse provided with the DVR into the front side USB port

of the DVR unit. The default password is admin. Be aware that the Menu’s presented in this manual can vary slightly

depending on the exact model and firmware version.

User Name: admin

Password: admin

USB Mouse

VGA Cable

VGA Port

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 5

Network Setup

After logging into the device for the first time, the first setting that should be changed is the IP address. The DVR

requires a static internal IP address because one or more communication ports will have to be forwarded to it from the

firewall/router on site.

Right Click anywhere

Login with User: admin Pass: admin

Click Main Menu

From the Main Menu click Settings

From the Settings Menu click Network

Continued Next Page…

This is the Main Menu

This is the Settings Menu from which

most device programming will be

initiated

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 6

Get an available Internal Static IP

Address from the Site’s IT staff

Also ask for the default gateway(router

address) and subnet mask.

Uncheck DHCP

Enter the IP Address

Enter the Gateway Address

For the DNS server either ask the Site’s

IT staff for a preferred DNS server or

just use the Google public DNS server

at 8.8.8.8 and 8.8.4.4

If the default TCP port 37777 is already

in use it can be changed here as well

Set Max Connections to 10(this

determines the number of concurrent

connections that the device allows,

and 10 is the maximum)

Click save to ensure no settings are lost before proceeding

This is the general network settings interface. All

network settings programming is initiated from this

interface.

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 7

SMTP Settings

This section describes how to set up SMTP (email) on the DVR to allow Alarm notifications to be sent to I-View Now.

Navigate back to the general network settings interface

Under the advanced settings submenu use the scroll bar

to scroll down to EMAIL.

Double click EMAIL to enter EMAIL setup

Enter ivnview.com for the SMTP server

Enter 3480 for the Port

For Sender, Enter the SMTP ID from the Installer’s

Worksheet.

For Receiver, Enter the SMTP ID from the Installer’s

Worksheet.

Yes, Sender and Receiver are the same

Ensure Enable SSL is NOT Checked

Set Event interval to 5

Click Test

Click OK

Test Failure can occur if the SMTP Server, SMTP Port,

SSL/TLS, DNS, or Firewall settings are incorrect. This

Test will not verify that the Sender and Receiver are

correct. It just verifies connectivity to the I-View Now

SMTP Server.

Network settings can be reached

from the settings menu

Email Setup Interface. Reachable through

Network Settings interface

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 8

Network Port Setup

I-View Now utilizes one of the device’s network ports. The TCP port, which has a default of 37777, must be forwarded

from the Router/firewalls external interface to the DVR’s static internal address. Ideally, this port can be left as the

default value, but on a network where this external port is already in use. It may be necessary to change them. In the I-

View Now Portal, the TCP Port should be set as the Video port.

If the ports must be changed

Navigate back to the Network Setup

Enter the new TCP Port number

Click OK to save settings

Router Settings

Router settings must be examined on a case by case basis. I-View Now requires one port to be forwarded to the Device.

This can be done Either through port forwarding or NAT (Network Address Translation) depending on what the

installation site’s router supports. With either of these router features, any unused/unfiltered External Port can be

forwarded to the TCP Port(also referred to as the video port). For example External Port 9000 could be forwarded to the

DVR on port 37777 internally. In this case, the default TCP port on the DVR itself could be left alone.

The other approach would be to forward external ports to the DVR using the same External Port and Internal Port. In

this case, the ports must be set on the DVR through Network Settings. Common ports used for forwarding the HTTP port

are 1024, 1025, 1026, 1027 or 8080. Common ports used for forwarding the Video/TCP port are 8010, 8011, 9000, and

9010.

For any of these situations it is the External IP Address and External Port numbers that must be entered into the I-View

Now “Installer’s Portal.”

Note: Any ports used must be unblocked in any firewall devices (typically just the router).

The TCP Port Setting Can be found in

the Network Settings interface

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 9

User Settings

This section instructs the tech on how to setup a user account for customer usage. The reason for setting up a separate

account is not to lock them out of the DVR, it is to prevent them from making changes to the DVR that would inhibit the

DVR’s use with I-ViewNow.

Navigate to the

Advanced Menu

Click the account icon

Click Add User

Enter the desired user

name

Enter the desired

password

Enter the password

again to confirm

Select Group User

This process can be

repeated for more

additional users if

necessary

Changing Admin Password

Groups are denoted by a dash next to their name. Users have no dash.

Click on the ‘admin’ user(login local)

Change the password to the password provided by the dealer’s web portal

Confirm change

Click OK

Click Save

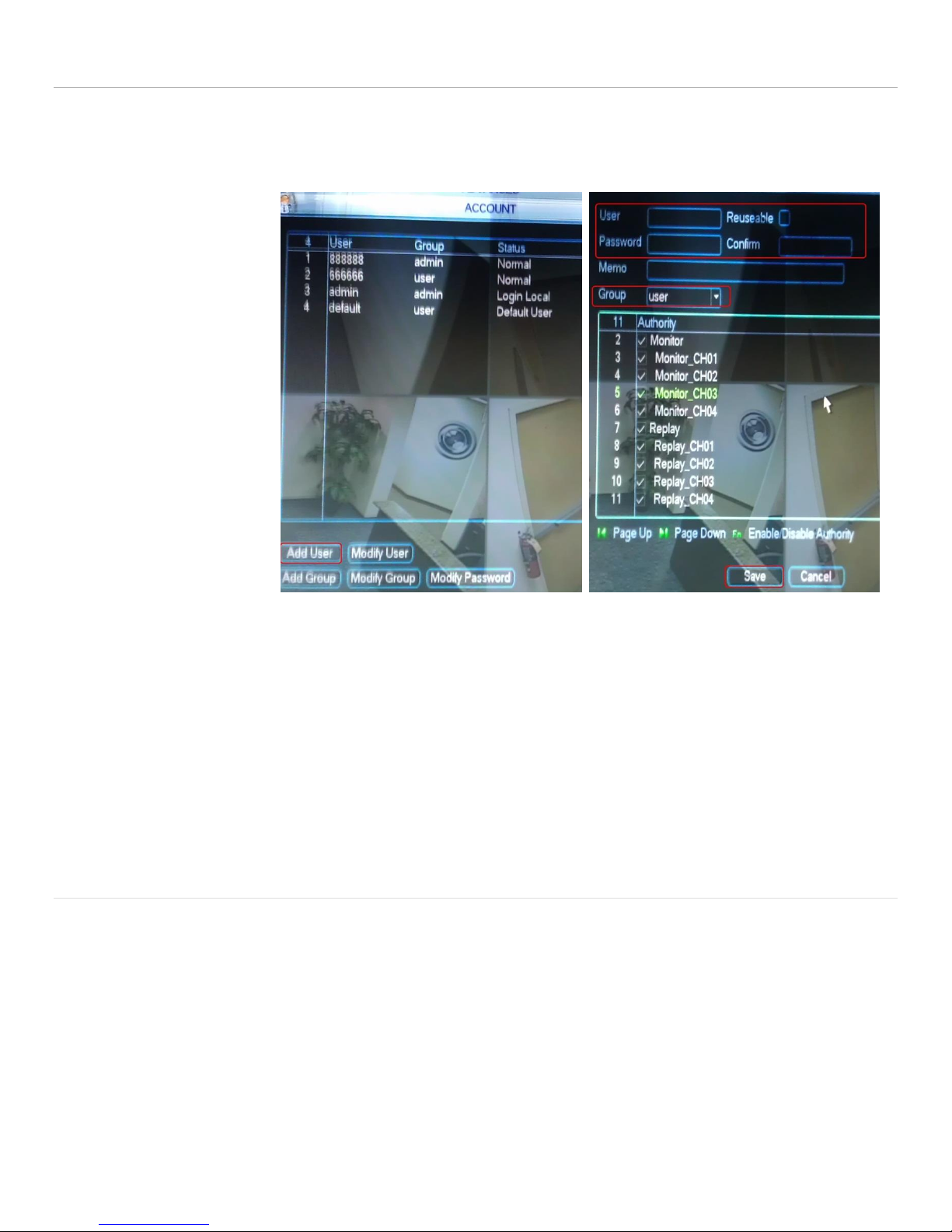

Clicking Add user will bring you to the

interface on the right

User Setup interface

ICRealtime Flex4/8/16E Installation Guide rev 1.0 Page 10

Recording Setup

The FlexE DVR records video VIA 2 different stream types. I-ViewNow utilizes Extra Stream1 to stream live video from

the DVR. I-ViewNow can uses the main recording stream to retrieve Pre-Event Video Clips.

Encoding Settings

The Encoding setup determines format of the video record onto the DVR. For clips to be decoded properly the frame

rate must be set to 15 FPS on the recording channel being utilized. I-View Now suggests setting up all recording channels

in this manner to avoid any potential issues when upgrading or adding cameras to the system.

Navigate to the Settings Menu

Select Encode

Select Channel All

Set Compression H.264

Set Resolution CIF

Set Extra Stream Resolution CIF

Set FPS 15

Set Extra Stream FPS 7

Set both Bit Rate Type to CBR

Set Regular Stream Bit Rate to 512

Set Extra Stream Bit rate to 128

Click OK
