ICP Electronics LCD-Kit03 Manuel utilisateur
LCD-Kit03
640x480 – 18bits
LTM10C209A LCD Display
©Copyright 1999 by ICP Electronics Inc. All Rights Reserved.
Manual first edition May01, 1999.
The information in this document is subject to change without prior
notice in order to improve reliability, design and function and does not
represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or
inability to use the product or documentation, even if advised of the
possibility of such damages.
This document contains proprietary information protected by
copyright. All rights are reserved. No part of this manual may be
reproduced by any mechanical, electronic, or other means in any
form without prior written permission of the manufacturer.
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 1
Contents
1. Introduction.................................................................................2
1.1 Specifications...........................................................................................3
1.2 What You Have.........................................................................................4
2. Installation..................................................................................5
2.1 LCD-03 Connection Board Layout.......................................................5
2.2 LCD-Kit03 Connection Layout...............................................................6
2.3 Unpacking Precautions………………………………………………..7
2.4 Backlight Inverter Control.......................................................................8
3. LCD-Kit03 Connectors.............................................................9
3.1 LCD Connector........................................................................................9
3.2 Backlight Connector..............................................................................10
3.3 Touch Panel Power Connector...........................................................11
3.4 Brightness Setting Connector… .........................................................11
4. Voltage and BIOS Setting......................................................12
4.1 BIOS Setting for SBCs with C&T 65555 Chipset.............................13
4.2 BIOS Setting for SBCs with HM86508 Chipset................................14
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 2
1
Introduction
Welcome to the LCD-Kit03 – LTM10C209A. The LCD-Kit03 is high
brightness and long life TFT LCD panel with 640 x 480 resolution
and 18-bits display colors. It is made for the system
manufacturers, integrators, or VARs that want to provide all the
performance, reliability, and quality at a reasonable price.
The LCD-Kit03 is designed with High Luminance, clear 256k-colors
and Low Reflection to present a High Image Quality. With its thin
and light weight plus compact size (10.4”), LCD-Kit03 is also the
most suitable solution for FA/OA Equipment, Display Terminals,
Measuring Instrument and Industrial portable Workstation .
The LCD-Kit03 comes with specifically designed mounting kit for
fast installation. It is also Plug and Play, can be directly and easily
connected to JUKI, NOVA, POS,… series main boards and also
PLC-655, PLC-508 LCD control card without any additional parts
needed.
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 3
1.1 Specifications :
Supply Voltage : +5V
Panel Size : 10.4” Diagonal
Display Active Area Size: 211.2mm x 158.4mm
Viewing Area : 215.2mm x 162.4mm
Display Colors : 256k Colors by the combinations of 18 bits data
Number of Pixels : 640 (W) x 480 (H)
Brightness : 250 cd/m2
Pixel Format : 1 pixel = R + G + B dots
Pixel Arrangement : R, G, B Vertical Strip
Pixel Pitch : 0.33mm (H) x 0.33mm (V)
Viewing Direction : 6 o’clock (in direction of max. contrast)
Viewing Angle : +/- 50o(H), -10o~ +30o(V)
Contrast Ratio : > 100 : 1
Outline Dimensions : 265.0mm (W) x 188.8mm (H) x 12.0mm (D)
Surface Treatment : Anti-glare and Hard Coat 3H
Backlight: Twin cold-cathode fluorescent lamps for sidelighting
Operating Temperature : 0~50oC
LCD MTBF : 50,000 hours
Backlight MTBF : 20,000 hours (min)
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 4
1.2 What You Have
In addition to this User's Manual, the LCD-Kit03 package includes
the following items:
•one LTM10C209A 10.4” LCD Panel with its mounting kit
•one 70cm 44-pin LCD connection cable
•one BIOS Utility Diskette
If any of these items is missing or damaged, contact the dealer from
whom you purchased the product. Save the shipping materials and
carton in case you want to ship or store the product in the future.
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 5
2
Installation
This chapter describes how to install the LCD-Kit03. The layout of
LCD-03 Connection Board is shown on the next pages and the
Unpacking Precautions that you should be careful with are
described on the following page. Also included is the jumpers and
connectors description for this LCD-Kit03.

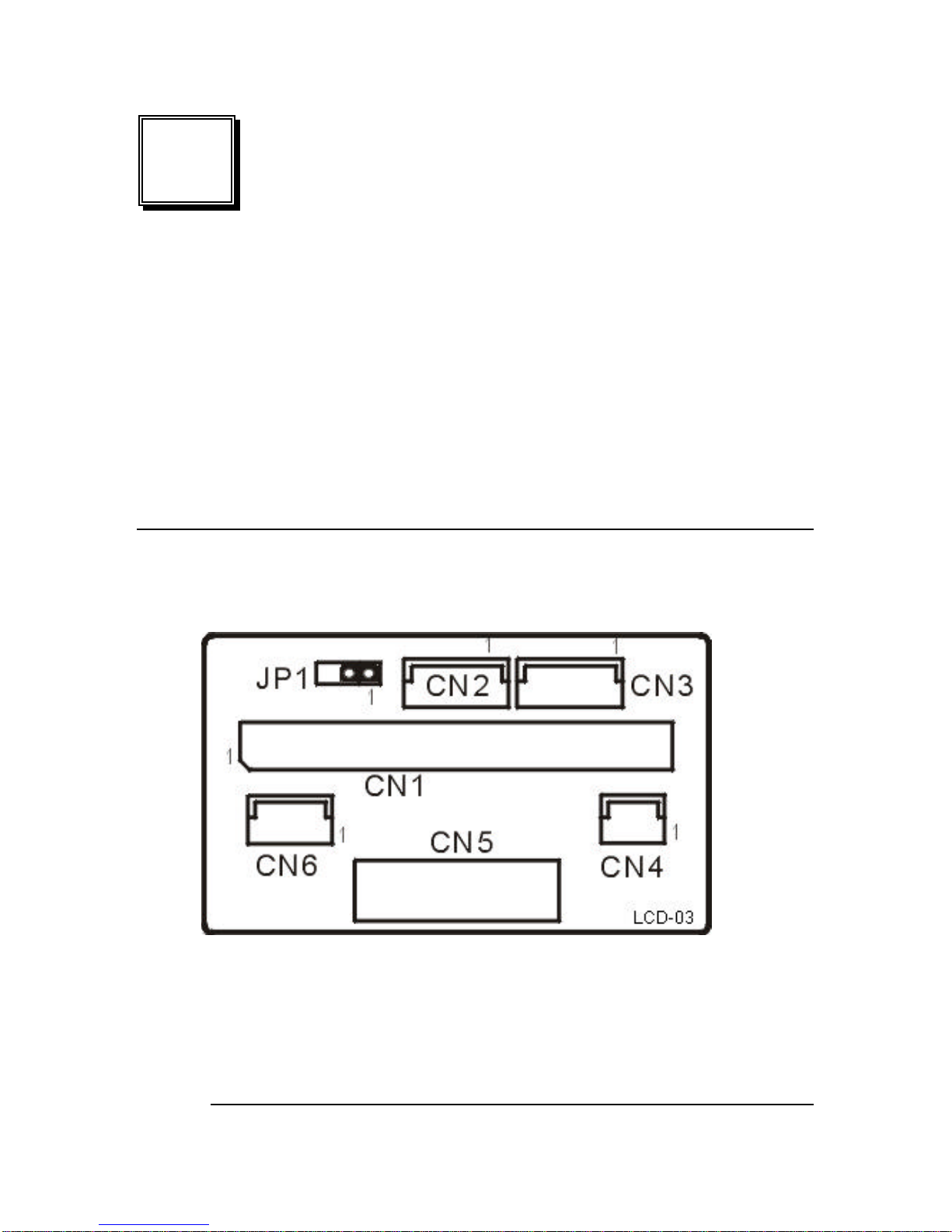

2.1 LCD-03 Connection Board Layout
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 6
2.2 LCD-Kit03 Connection Layout
Note :
¬LCD-03 Connection Board
-31-pin connection cable, connecting CN5 and LCD Display
®Brightness VR, connected to CN6
¯Backlight Inverter cable, connecting CN2 and Backlight Inv.
°70cm 44-pin LCD connection cable
±Backlight Inverter
²Backlight Inverter ON/OFF Switch, connected to CN4
To CPU Display Card
<Display Signal>
To LCD Panel Backlight
To LCD Display
LCD-03 1
2
3
5
6
4
LCD-03
7
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 7
2.3 Unpacking Precautions
üSome components on LCD-Kit03 are very sensitive to static electric
charges and can be damaged by a sudden rush of power. Ground
yourself to remove any static charge before touching your LCD-
Kit03 . You can do it by using a grounded wrist strap at all times or
by frequently touching any conducting materials that is connected
to the ground.
üDo not touch the inner side of LCD panel and the connector/cable of
fluorescent lamp/backlight when the power is on. The inverter
supplies HIGH VOLTAGE to these parts (~ 550Vrms).
üDisconnect power supply before handling and doing connection on
LCD-Kit03. Do not plug any connector or jumper while the power is
on. It will cause fatal damage to your LCD panel.
üMake sure that every connector is connected in correct direction.
Any incorrect connection may cause smoke or burn of electrical
parts or fatal damage of your LCD panel.
üBe careful with the liquid crystal material. Do not swallow, inhale or
have skin contact with this material in case that the LCD panel is
broken and the liquid flow out. If you inhale the liquid material, rinse
your mouth immediately with water then go to see a doctor. If you
have skin contact with the liquid, wash it immediately with alcohol.
Be careful, too, with the chips of glass if the panel is broken.
üFor outdoor usage, an ultra-violet ray protect-lens is recommended
to apply onto LCD display. It will prevent your LCD from strong sun-
light, scratches, dust and water invasion etc. which can cause
damage to the LCD display.
LCD-Kit03 640 x 480 / 18 bits
LTM10C209A 8
2.4 Backlight Inverter Control
•JP1: Backlight Inverter ON/OFF control - jumper
PIN NO. FUNCTION
1-2 USE FPVEE
2-3 USE ENBKL
