Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 1

TPM-4100/TP-4100/TP-2070/

TP-3080/TP-5120/TP-6150/

TP-7170 Touch Panel

Monitor User Manual

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 2

Warranty

All products manufactured by ICP DAS are under warranty regarding defective

materials for a period of one year, beginning from the date of delivery to the original

purchaser.

Warning

ICP DAS assumes no liability for any damage resulting from the use of this product.

ICP DAS reserves the right to change this manual at any time without notice. The

information furnished by ICP DAS is believed to be accurate and reliable. However,

no responsibility is assumed by ICP DAS for its use, nor for any infringements of

patents or other rights of third parties resulting from its use.

Copyright

Trademarks

Names are used for identification purposes only and may be registered trademarks of

their respective companies.

If you encounter any problems, please feel free to contact us.

You can rely on ICPDAS for a prompt quick response.

Email: [email protected]

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 3

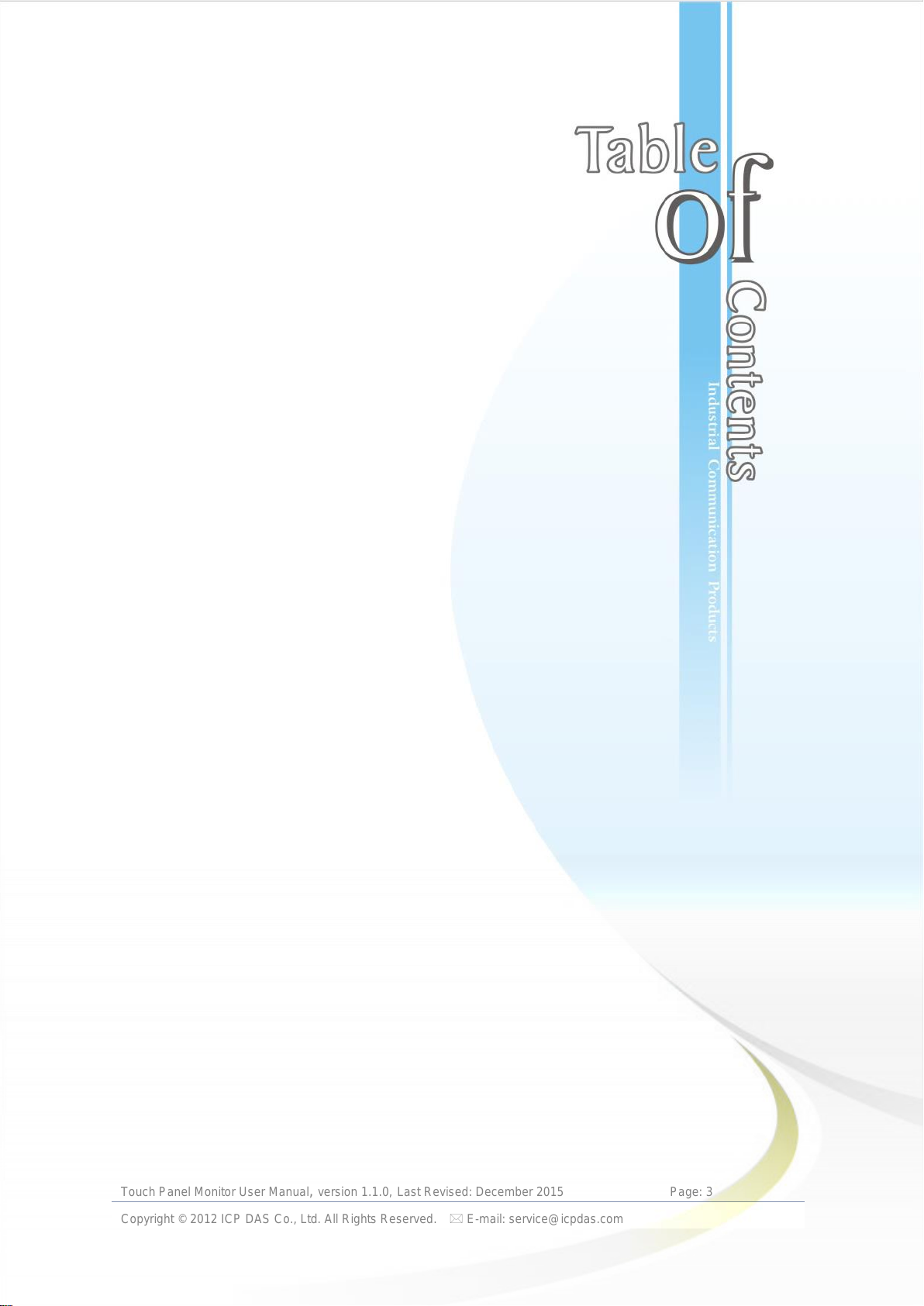

Table of Contents

Table of Contents.............................................3

1. Introduction ..................................................6

1.1. Features.....................................................................8

1.2. Specifications.............................................................9

1.3. Dimension................................................................15

1.4. I/O interfaces............................................................29

1.5. Companion CD ........................................................31

1.6. System Setup...........................................................32

1.6.1. System Configuration .................................32

1.6.2. Panel Mounting........................................... 37

2. Touch Driver Setup....................................39

2.1. Windows CE 5.0 ......................................................40

2.1.1. USB Touch Driver....................................... 41

2.1.1.1. Installation for WinPAC-8000 and WinPAC-5000 42

2.1.1.2. Configuration for WinPAC-8000 and WinPAC-5000 44

2.1.1.3. Uninstalling the WinPAC-8000 and WinPAC-5000 46

2.1.1.4. Other Windows CE5.0 Devices...47

2.1.2. Serial Touch Driver..................................... 48

2.1.2.1. Installation for WinPAC-8000 and WinPAC-5000 49

2.1.2.2. Configuration for WinPAC-8000 and WinPAC-5000 52

2.1.2.3. Uninstalling the WinPAC-8000 and WinPAC-5000 54

2.1.2.4. Other Windows CE5.0 Devices...55

2.2. Windows CE 6.0 ......................................................56

2.2.1. USB Touch Driver....................................... 57

2.2.1.1. Installation for XP-8000-CE6.......58

2.2.1.2. Configuration for XP-8000-CE6...60

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 4

2.2.1.3. Uninstalling the XP-8000-CE6.....61

2.2.1.4. Other Windows CE6.0 Devices...63

2.2.2. Serial Touch Driver..................................... 64

2.2.2.1. Installation for XP-8000-CE6.......65

2.2.2.2. Configuration for XP-8000-CE6...68

2.2.2.3. Uninstalling the XP-8000-CE6.....70

2.2.2.4. Other Windows CE 6.0 Device....72

2.3. Windows CE 7.0 ......................................................73

2.3.1. USB Touch Driver....................................... 74

2.3.1.1. Installation for WinPAC-5000-CE775

2.3.1.2. Configuration for WinPAC-5000-CE7 77

2.3.1.3. Uninstalling the WinPAC-5000-CE779

2.3.1.4. Other Windows CE7.0 Devices...80

2.3.2. Serial Touch Driver..................................... 81

2.3.2.1. Installation for WinPAC-5000-CE782

2.3.2.2. Configuration for WinPAC-5000-CE7 84

2.3.2.3. Uninstalling theWinPAC-5000-CE788

2.3.2.4. Other Windows CE7.0 Devices...89

2.4. Windows XP Embedded ..........................................90

2.4.1. Universal Driver..........................................90

2.4.1.1. Installation for XP-8000...............91

2.4.1.2. Configuration for XP-8000...........98

2.4.1.3. Uninstall for XP-8000 ................102

2.4.1.4. Other Windows XP Embedded Devices 104

2.5. Windows XP/7........................................................105

2.5.1. Universal Driver..........................................105

2.5.1.1. Installation.................................106

2.5.1.2. Configuring................................111

2.5.1.3. Uninstall ....................................113

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 5

Appendix A. Tips..........................................115

A.1. Don’t install USB and serial touch driver simultaneously in a device 115

A.2. Don’t plug USB cable when using serial touch driver116

Appendix B. Revision History.....................117

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 6

1. Introduction

This chapter provides an overview of the

TPM-4100/TP-4100/TP-2070/TP-3080/T

P-5120/TP-6150/TP-7170 and its

components.

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 7

The TPM-4100/TP-4100/TP-2070/TP-3080/TP-5120/TP-6150/TP-7170

Panel Mount Monitor includes a standard TFT LCD screen with a rugged

aluminum front bezel resolution and a wide operating temperature range. The

TPM-4100/TP-4100/TP-2070/TP-3080/TP-5120/TP-6150/TP-7170 is also

guaranteed to integrate with ICP DAS PAC control systems, such as

WP-8000 series, LinPAC-8000 series and the XP-8000 series.

Package List

The shipping package includes the following items:

1 TFT LCD Monitor

1 VGA cable

1 RS-232 cable

1 USB cable

4 Mounting clamps

4 Mounting Screws

1 Power supply

1 Companion CD containing software drivers and digital versions of the

user manuals

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 8

1.1. Features

Support resolution

Mode name

Size

Resolution

TP-2070

7”

800 x 480

TP-3080

8.4”

800 x 600

TPM-4100/TP-4100

10.4”

TP-5120

12.1”

TP-6150

15”

1024 x 768

TP-7170

17”

1280 x1024

Full-function OSD control keys for optimizing the display

Driver Support for Windows 2K/XP/Vista/7/XP-Embedded/WinCE 5.0/6.0/Linux

Wide operating temperature range

Mode name

Operating temperature

TP-2070

-20~+70 °C

TP-3080

TPM-4100/TP-4100

TP-5120

TP-6150

TP-7170

Aluminum front bezel design that is ideal for rugged applications

LED backlight technology

Supports the IP65 standard for protection against dust and water

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 9

1.2. Specifications

The table below is a summary of the specifications of the touch panel, and lists the

accessories that are supported by the touch panel.

Specifications

Model

TP-2070

Display

Size

7”

Resolution

800 x 480

Luminance

400 cd/m2

Touch screen

4-wire, analog resistive; Light Transmission: 80%

Contrast ratio

500:1

Viewing angle (H/V)

140/120

Backlight life (hrs)

20,000

Touchscreen function

Combo RS-232 & USB interface

Input signal

VGA (analog RGB)

MMI (Man Machine Interface)

OSD control

Functions: Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position

and Sharpness

Power switch

Yes

LED indicators

Power, Display signal is detected

Power

Input range

+12 ~ +48 VDC

Power consumption

5 W

Mechanical

Casing

Plastic

Dimensions (W x L x H)

213 mm x 148 mm x 44 mm

Installation

Panel Mounting, VESA (75 x 75) Mounting

Ingress protection

Front panel: IP65

Environmental

Operating temperature

-20 ~ +70℃

Storage temperature

-30 ~ +80℃

Ambient relative humidity

10 ~ 90% RH (non-condensing)

Touch Panel Monitor User Manual, version 1.1.0, Last Revised: December 2015 Page: 10

Model

TP-3080

Display

Size

8.4”

Resolution

800 x 600

Max. Color

16.7 M

Luminance

400 cd/m2

Touch screen

5-wire, analog resistive; Light Transmission: 80%

Contrast ratio

500:1

Viewing angle (H/V)

140/130

Backlight life (hrs)

50,000

Touchscreen function

Combo RS-232 & USB interface

Input signal

VGA (analog RGB)

MMI (Man Machine Interface)

OSD control

Functions: Brightness, Contrast, Clock, Phase, Horizontal Position, Vertical Position

and Sharpness

LED indicators

Power, Display signal is detected

Power

Input range

+12 ~ +48 VDC

Power consumption

7 W

Mechanical

Casing

Plastic

Dimensions (W x L x H)

249 mm x 207 mm x 65 mm

Installation

Panel Mounting, VESA (75 mm x 75 mm; 100 mm x 100 mm) Mounting

Ingress protection

Front panel: IP65

Environmental

Operating temperature

-20 ~ +70℃

Storage temperature

-30 ~ +80℃

Ambient relative humidity

10 ~ 90% RH (non-condensing)
