ICON HELMLINK Manuel utilisateur

ENGLISH

USER’S GUIDE

Version 1.0.0

HELMLINK

BLUETOOTH COMMUNICATION SYSTEM

1. ABOUT THE HELMLINK 7

1.1 Product Features 7

1.2 Product Details 8

1.3 Package Contents 9

2. INSTALLING THE HEADSET

ON YOUR HELMET 10

2.1 Preparing the Helmet for Installation 10

2.2 Preparing the Headset for Installation 11

2.3 Installing the Headset 12

3. GETTING STARTED 17

3.1 Downloadable Sena Software 17

3.1.1 Sena Motorcycles App 17

3.1.2 Sena Device Manager 17

3.2 Charging 17

3.3 Legend 18

3.4 Powering On and Off 18

3.5 Checking the Battery Level 18

3.6 Volume Adjustment 19

4. PAIRING THE HEADSET WITH

OTHER BLUETOOTH DEVICES 20

4.1 Phone Pairing 20

4.1.1 Initially Pairing the HelmLink 20

4.1.2 Pairing When the HelmLink is Turned Off 21

4.1.3 Pairing When the HelmLink is Turned On 22

TABLE OF CONTENTS

TABLE OF CONTENTS CONTINUED

4.2 Second Mobile Phone Pairing - Second

Mobile Phone, GPS, and SR10 22

4.3 Advanced Selective Pairing: Hands-Free or

A2DP Stereo 23

4.3.1 Phone Selective Pairing - Hands-Free Proﬁle 23

4.3.2 Media Selective Pairing - A2DP Proﬁle 23

4.4 GPS Pairing 24

5. MOBILE PHONE USAGE 25

5.1 Making and Answering Calls 25

5.2 Siri and Google Assistant 25

5.3 Speed Dialing 25

5.3.1 Assigning Speed Dial Presets 25

5.3.2 Using Speed Dial Presets 26

6. STEREO MUSIC 27

6.1 Bluetooth Stereo Music 27

6.2 Music Sharing 27

6.2.1 Bluetooth Intercom Music Sharing 28

6.2.2 Mesh Intercom Music Sharing 28

7. MESH INTERCOM 29

7.1 What is Mesh Intercom? 29

7.1.1 Open Mesh 30

7.1.2 Group Mesh 30

7.2 Starting Mesh Intercom 31

7.3 Using the Mesh in Open Mesh 31

7.3.1 Channel Setting (Default: channel 1) 31

TABLE OF CONTENTS CONTINUED

7.4 Using Mesh in Group Mesh 32

7.4.1 Creating a Group Mesh 32

7.4.2 Joining an Existing Group Mesh 33

7.5 Enable/Disable Mic (Default: Enable) 34

7.6 Toggling Open Mesh/Group Mesh 34

7.7 Reset Mesh 34

8. BLUETOOTH INTERCOM 35

8.1 Intercom Pairing 35

8.1.1 Using the Smart Intercom Pairing (SIP) 35

8.1.2 Using the Button 36

8.2 Last-Come, First-Served 37

8.3 Two-Way Intercom 38

8.4 Multi-Way Intercom 39

8.4.1 Starting a Three-Way Intercom Conference 39

8.4.2 Starting a Four-Way Intercom Conference 40

8.4.3 Ending Multi-Way Intercom 40

8.5 Three-Way Conference Phone Call with

Intercom Users 41

8.6 Group Intercom 42

8.7 Mesh Intercom Conference with Bluetooth

Intercom Participant 42

9. UNIVERSAL INTERCOM 44

9.1 Universal Intercom Pairing 44

9.2 Two-Way Universal Intercom 44

TABLE OF CONTENTS CONTINUED

9.3 Multi-Way Universal Intercom 45

9.3.1 Three-Way Universal Intercom 45

9.3.2 Four-Way Universal Intercom 46

9.4 Mesh Intercom Conference with Two-way

Universal Intercom Participant 47

10. USING THE FM RADIO 48

10.1 FM Radio On/Off 48

10.2 Seek and Save Radio Stations 48

10.3 Scan and Save Radio Stations 49

10.4 Temporary Station Preset 49

10.5 Navigating Preset Stations 50

11. LED TAILLIGHT 51

11.1 Using the Button 51

11.2 Using the Sena Motorcycles App 51

12. VOICE COMMAND 52

13. FUNCTION PRIORITY AND FIRMWARE

UPGRADES 54

13.1 Function Priority 54

13.2 Firmware Upgrades 54

14. CONFIGURATION SETTING 55

TABLE OF CONTENTS CONTINUED

14.1 Headset Conﬁguration Menu 55

14.1.1 Delete All Pairings 56

14.1.2 Remote Control Pairing 56

14.2 Software Conﬁguration Setting 56

14.2.1 Headset Language 56

14.2.2 Audio Equalizer (Default: Off) 57

14.2.3 VOX Phone (Default: Enable) 57

14.2.4 VOX Intercom (Default: Disable) 57

14.2.5 VOX Sensitivity (Default: 3) 58

14.2.6 HD Intercom (Default: Enable) 58

14.2.7 HD Voice (Default: Enable) 58

14.2.8 Bluetooth Intercom Audio Multitasking

(Default: Disabled) 59

14.2.9 Intercom-Audio Overlay Sensitivity (Default: 3) 59

14.2.10 Audio Overlay Volume Management

(Default: Disable) 59

14.2.11 Smart Volume Control (Default: Disable) 60

14.2.12 Sidetone (Default: Disable) 60

14.2.13 Voice Prompt (Default: Enable) 60

14.2.14 RDS AF Setting (Default: Disable) 60

14.2.15 FM Station Guide (Default: Enable) 60

14.2.16 Advanced Noise Control™ (Default: Enable) 60

14.2.17 Region Selection 61

15. TROUBLESHOOTING 62

15.1 Fault Reset 62

15.2 Factory Reset 62

HelmLink Bluetooth Communication System | 7

1. ABOUT THE HELMLINK

1.1 Product Features

Bluetooth®5.0

Mesh Intercom™ up to 2 km (1.2 mi)*

Intercom up to 2 km (1.2 mi)*

Audio Multitasking™

• Multi-Language Voice Command

• Support Siri and Google Assistant

* in open terrain

CHAPTER

HelmLink Bluetooth Communication System | 8

1 ABOUT THE HELMLINK

1.2 Product Details

(-) Button

Center Button

(+) Button

Button Module (R)

Button Module (L)

Mesh

Button

Bluetooth Module

DC Power Charging &

Firmware Upgrade Port

LED Taillight

Pinhole Fault

Reset Button

Taillight Button

Status &

Charging LED

Button

Module (L)

Connector

Button Module (R) Connector

Antenna (R)

Antenna

(L)

Microphone

Connector

Speaker (L) Connector

Speaker (R) Connector

HelmLink Bluetooth Communication System | 9

1 ABOUT THE HELMLINK

1.3 Package Contents

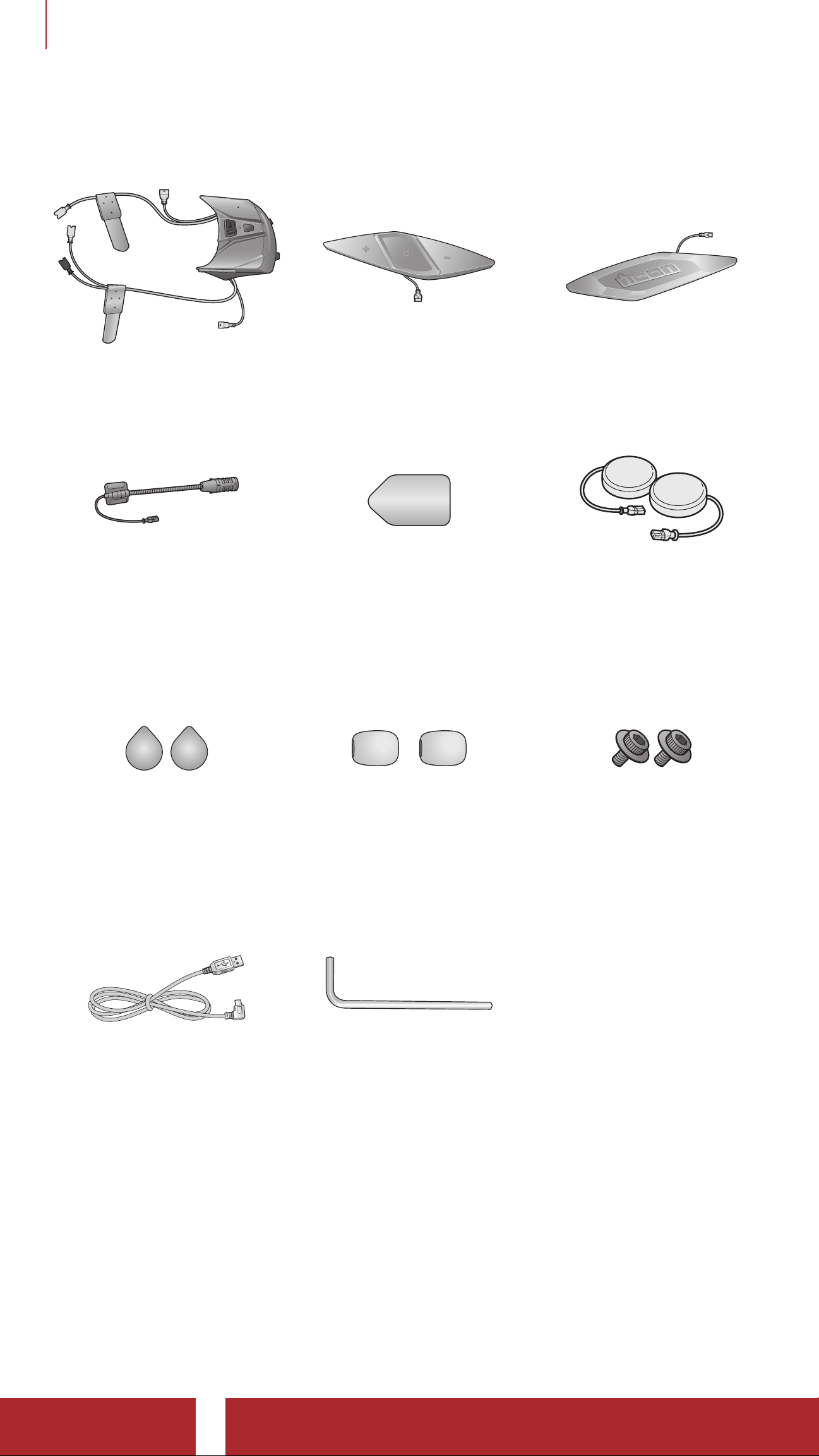

HelmLink Button Module (R) Button Module (L)

Boom Microphone

Hook and

Loop Fastener for

Boom Microphone

Speakers

Hook and

Loop Fasteners for

Speakers

Microphone Sponges for

Boom Microphone Screws

USB Power & Data Cable

(USB-C) Allen Wrench

HelmLink Bluetooth Communication System | 10

2. INSTALLING THE HEADSET

ON YOUR HELMET

2.1 Preparing the Helmet for Installation

1. Detach the snap fasteners located on the center pad and cheek

pads. Then, remove the pads from the helmet.

2. Loosen the screw inside helmet using the included Allen wrench.

3. Insert the Allen wrench into the screw hole and push the left cover to

remove it.

4. Repeat the process on the other side to remove the right cover.

CHAPTER
