iComfort ic1105 Manuel utilisateur
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
ic1105
MASSAGE CHAIR
FAUTEUIL DE MASSAGE
USER MANUAL
MANUEL DE
L’UTILISATEUR
TOLL FREE CUSTOMER SERVICE /
SERVICE À LA CLIENTÈLE SANS FRAIS
1 866 967.7333 ext. 227
PLEASE DO NOT RETURN
THIS PRODUCT TO THE STORE
FOR QUESTIONS OR ASSISTANCE ON ASSEMBLY, PARTS OR OPERATION,
CONTACT OUR CUSTOMER SERVICE!
S’IL VOU PLAIT, NE RENVOYEZ PAS
CE PRODUIT EN MAGASIN
POUR TOUTE QUESTION OU AIDE CONCERNANT LE MONTAGE,
LES PIÈCES OU LE FONCTIONNEMENT,
CONTACTEZ NOTRE SERVICE À LA CLIENTÈLE!
1
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
Thank you for purchasing this product. Please read this instruction manual carefully
before operating this massage chair.
Please pay attention to the important safety warnings and keep this manual
for future use.
Note: EBI reserves the right to revise the design and description of this product
without notice.
CONTENTS
1. Safety warnings............................................................................................... 2
2. Environment .................................................................................................... 2
3. Restrictions ..................................................................................................... 3
4. Maintenance ................................................................................................... 3
5. Troubleshooting ............................................................................................... 3
6. Features and benefits...................................................................................... 4
7. Components ................................................................................................... 4
8. Operation ........................................................................................................ 5
9. Installation ...................................................................................................... 7
10. Floor protection ............................................................................................... 9
11. Product specifications ..................................................................................... 9
12. Warranty ....................................................................................................... 10
FRANÇAIS ................................................................................................11
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
2
1. SAFETY WARNINGS
• This product is not recommended for children.
• Disconnect the chair before cleaning.
• Please pull out the plug after use or before cleaning to avoid injury or damage
to the product.
• Please operate this product according to the instructions in this manual.
• Use only accessories recommended by iComfort.
• This product is designed for indoor use only.
• Recommended use time is 15 minutes or less.
• Please avoid use if the chair is damaged and call your iComfort technician or dealer.
• Make sure the chair radiator in the lower back behind the chair is well ventilated
and not obstructed.
• Please make sure small objects are not dropped into the chair mechanism.
• Use of this chair under the influence of drugs or alcohol is not recommended.
• Do not use wet hands to pull the AC cord.
• Do not spill liquids onto this product to avoid electric shock or cause damage
to this product.
• Maintain your chair and avoid damaging the wires.
• Do not use a wet cloth to clean the electric parts.
• In the event of a power failure disconnect the chair.
• If the chair works abnormally, stop using it, disconnect the chair and call your
iComfort service technician or customer service representative.
2. ENVIRONMENT
This chair should be used only in a well ventilated, normally dry
and dust free environment.
3
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
3. RESTRICTIONS
People with osteoporosis, heart disease and heart pacemakers, pregnancies, injuries
or any other health related issues should consult their doctor before using
this massage chair.
Stop immediately the use of this massage chair if you feel unwell
and consult your doctor.
4. MAINTENANCE
• This product should only be maintained by iComfort certified technicians. Otherwise,
EBI reserves the right to void the warranty.
• Disconnect the power cord after use.
• Make sure the wall outlet is in good working order before use.
• If this chair will not be used for an extended period of time, store in a dry and
dustless environment.
• Avoid chair exposure to high temperatures and direct sunlight.
• Clean this product with a dry cloth. Do not use thinner, benzene or alcohol.
• Do not move the chair using the wheels on wood floor, rough ground or in a narrow
space. Two people should lift the chair together to prevent damage.
• We recommend to use the massage chair intermittently and not
for long time periods.
5. TROUBLESHOOTING
• It is normal for the motor to make noise while in use.
• If the controller doesn’t work normally, please check that the plug and socket are
properly connected and the switch is turned on.
• When the programmed working time is over, the chair will power-off automatically.
After several use, the chair might power-off because of overheat. It can be used
again after half an hour of cooling time.
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
4
6. FEATURES AND BENEFITS
Ease your tension and massage away stress with the iComfort™ IC1105C massage
chair. You will feel as if you had your very own massage therapist. The handy retractable
footrest gives you maximum configuration options. The iComfort™ IC1105C massage
chair reproduces 3 massage therapies with shiatsu kneading, vibration and heat. This
chair will provide you with many years of soothing massage in the comfort of your home.
• Contemporary design with high-quality soft touch leatherette
• Three mode shiatsu kneading program: full back, upper back
and lower back vibration
• Two motor vibration massage function
• Heat massage feature
• 4 head rotating massage mechanism for smooth wrist movement
massage simulation
• Long up and down massage function
• Remote control indicating the type of massages being performed
• Retractable footrest
• Rotating sofa feature
• CSA approved
7. COMPONENTS
5
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
8. OPERATION
This relaxation massage chair can be rotated 360° and the angle of the backrest and
the seat can be set between 105° and 145°.
Note: For a more intense massage, you can remove or flip back the back cushion.
Reclining action
A. To recline the backrest:
• Make sure nothing blocks the sides and the rear of the massage chair before
reclining the backrest,
• Pull the lever located on the side of the armrest, then stretch out your body
against the backrest.
B. To lift up the backrest in its original position:
• Pull the lever toward the front to lift up the massage chair in a sitting position.
To activate the massage chair features, press lightly on the control panel buttons.
POWER
Press the Power button to turn on the massage function. The LED indicator will illuminate
and confirm your selection. To turn off the massage functions simply press the button
again. The LED indicator will blink and the dual massage mechanism will return to its
lowest point and then massage chair it will turn off.
HEAT
Two of the four Shiatsu massage heads have the heating function. The Heat only works
during “Kneading”. Press again to turn off the heat.
FULL BACK
Press this button to activate the kneading massage on your full back. Press again to
deselect.
UPPER BACK
Press this button to activate the kneading massage on your upper back. Press again to
deselect.
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
6
LOWER BACK
Press this button to activate the kneading massage on your lower back. Press again to
deselect.
VIBRATION MODE
Press this button to activate the vibration on the seat and calves. There are three
programs of vibration modes. To change the programs of your vibration massage, simply
press the button again. You will be able to set the following automatic functions:
• Low intensity program
• Vibration program
• Low speed program
INTENSITY
Intensity works on the “vibration mode” status. The default setting is low. To change
the intensity of your vibration massage, simply press the button again. There are three
options of vibration intensity:
• Low
• Medium
• High
SPEED
Speed works on the “vibration mode” status. The default setting is slow. To change the
speed of your vibration massage, simply press the button again. There are three options
of vibration speed:
• Slow
• Medium
• Fast.
7
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
9. INSTALLATION
The ic1105 massage chair comes semi-assembled.
• Assemble this MASSAGE CHAIR according to installation instructions provided
in this guide.
• Check the parts list carefully to make sure nothing is missing.
CAUTION: Never substitute a missing part with one of your own. If a part is missing,
contact customer service at: 1-866-967-7333 ext 227
9. 1. ATTACH THE BACK CUSHION TO THE SEAT CUSHION
• Insert the back cushion to the seat cushion as show below.
• Align and insert the back cushion support eyelets (a) with the seat cushion
hooks (b).
• Align the back cushion (A) support eyelets with the seat cushion (A) eyelets, and
then insert the two bolts(C), one at a time, into the eyelets. Secure the pin through
the bolt (D), making sure the pins are pushed all the way in and snap into place.
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
8

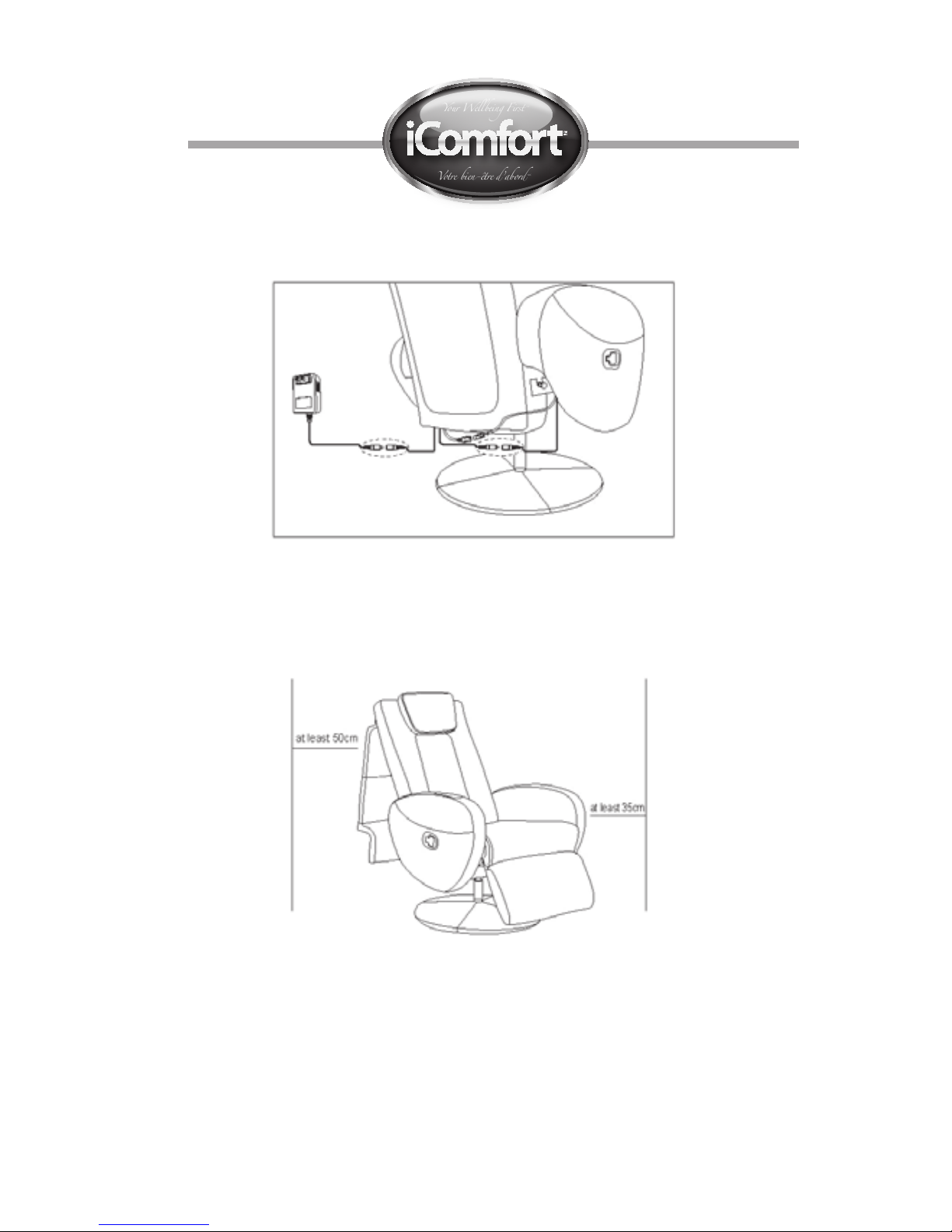

9. 2. CONNECT POWER SOURCE
• To supply power to the back cushion and seat you must connect the two power
supply plugs to each other.
• The last step is to connect the main power supply into the wall outlet.
9. 3. CAUTION
• Make sure no object is blocking the massage chair’s tilt
and straightening up actions.
• When the assembly of the massage chair is completed according to instructions,
position and the unit to allow sufficient space in front and behind.
• Keep a clearance of at least 50cm behind the massage chair
and 35cm in front of it.
• Install the massage chair on a stable and plane surface.
Note: Make sure all wires are connected properly. If not, the unit may malfunction.
