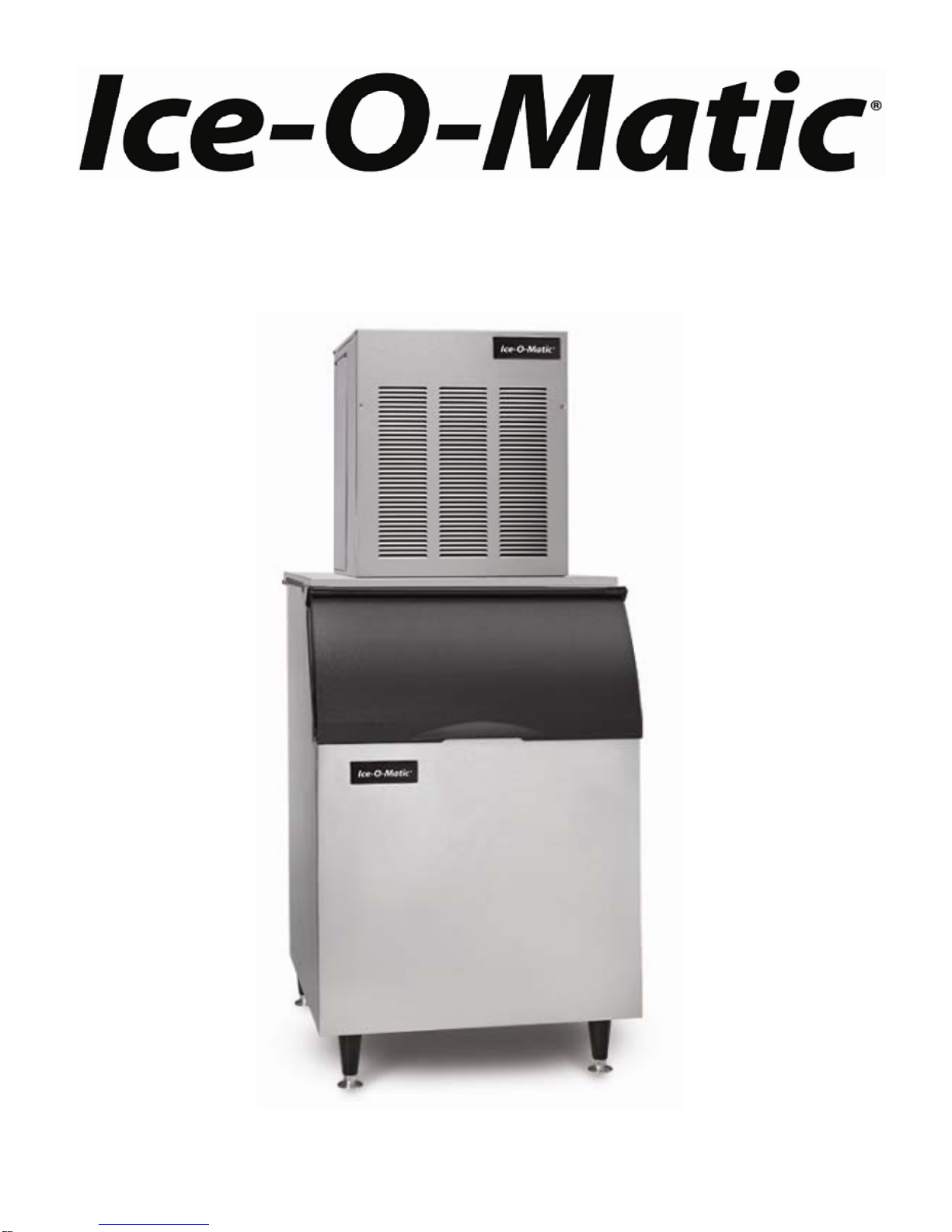

SERVICE PARTS MANUAL
MFI Series
MFI0500 MFI0800 MFI1256 MFI1255
MFI0500
,
MFI0800
,
MFI1256
,
MFI1255
Ice-O-Matic
11100 East 45th Ave
Denver Colorado 80239
Denver
,
Colorado
80239
Part Number 9081362-01 Date 1/09
MFI Series Service Parts Table Of Contents
This parts list contains the service parts available for the MFI Series icemakers listed below:
MFI0500 Air Cooled
MFI0800 Air Cooled
MFI0805 Air Cooled
MFI1256 Air Cooled
MFI1255 Air Cooled
Check the model number on the data plate and refer to the correct listing for the specific component.
Check carefully that the correct part is identified and ordered.
Table of Contents Page 1
Cabinet Assembly Page 2
Air Cooled Page 3
Down Chute/Water System Page 4
Gearmotor Page 5
Evaporator Page 6
Control Box Page 7
Ice-O-Matic
11100 East 45th Ave.
Denver Co. 80239
800-423-3367
Page 1
MFI Series Service Parts Cabinet
Item
No. MFI0500AS MFI0805AS MFI0800AS MFI1255AS MFI1256AS Description
1 1011339-70 1011339-70 1011339-70 1011339-70 1011339-70 Top Panel Screw
2 1011380-192 1011380-192 1011380-192 1011380-192 1011380-192 Top Panel
3 1011380-196 1011380-196 1011380-196 1011380-196 1011380-196 Non-Louvered Side Panel
4 1011380-193 1011380-193 1011380-193 1011380-193 1011380-193 Right Side Frame Panel
5 1011351-34 1011351-34 1011351-34 1011351-34 1011351-34 Screw
6 1011380-191 1011380-191 1011380-191 1011380-191 1011380-191 Front Louvered Panel
7 1011380-09 1011380-09 1011380-09 1011380-09 1011380-09 Air Filter
8 1011380-45 1011380-45 1011380-45 1011380-45 1011380-45 Filter Clip
9 1011380-200 1011380-200 1011380-200 1011380-200 1011380-200 Front Brace
10 1011380-197 1011380-197 1011380-197 1011380-197 1011380-197 Control Box Support
11 1011380-167 1011380-167 1011380-167 1011380-167 1011380-167 Left Side Frame Panel
12 1011380-42 1011380-42 1011380-42 1011380-42 1011380-42 Screw
13 1011380-213 1011380-213 1011380-213 1011380-213 1011380-213 Rear Panel (Water Cooled Only)
14 1011380-211 1011380-211 1011380-211 1011380-211 1011380-211 Base
15 1011380-01 1011380-01 1011380-01 1011380-01 1011380-01 Catch (On Frame Panel)
16 1011380-88 1011380-88 1011380-88 1011380-88 1011380-88 Strike (On Front Panel)
Model Number
1
2
4
3
5
6
7, 8
9
1
0
11
13
14
15
3
1
12
Page 2
MFI Series Service Parts Air Cooled
Item
No. MFI0500AS MFI0805AS MFI0800AS MFI1255AS MFI1256AS Description
1 1011380-136 1011380-136 1011380-136 1011380-121 1011380-121 Fan Blade
2 1011380-134 1011380-135 1011380-134 1011380-58 1011380-58 Fan Motor
3 1011380-228 1011380-228 1011380-228 1011380-04 1011380-04 Fan Bracket
4 1011380-210 1011380-210 1011380-210 1011380-190 1011380-190 Fan Shroud
5 1011380-206 1011380-206 1011380-206 1011380-206 1011380-206 Fan Shroud Cover
6 1011380-133 1011380-133 1011380-133 1011380-126 1011380-126 Air Condenser
7 1011382-07 1011380-129 1011380-128 1011380-140 1011380-137 Compressor
8 1011382-08 1011380-130 1011380-125 1011380-139 Internal Compressor Overload
9 1011380-117 1011380-117 1011380-117 1011380-117 1011380-117 Compressor Grommet
10 1011380-115 1011380-115 1011380-115 1011380-115 1011380-115 Compressor Grommet Sleeve
11 1011380-18 1011380-18 1011380-18 1011380-18 1011380-18 Drier
12 1011380-177 1011380-177 1011380-177 1011380-177 1011380-177 Expansion Valve Insulation Kit
13 1011382-03 1011380-51 1011380-51 1011380-51 1011380-51 Expansion Valve
14 1011380-94 1011380-94 1011380-94 1011380-94 1011380-94 Service Valve Body
15 1011380-95 1011380-95 1011380-95 1011380-95 1011380-95 Service Valve Core
16 1011380-96 1011380-96 1011380-96 1011380-96 1011380-96 Service Valve Cap
17 1011380-52 1011380-52 1011380-52 1011380-52 1011380-52 Hi Pressure Cut Out
18 1011380-53 1011380-53 1011380-53 1011380-53 1011380-53 Low Pressure Cut Out
Model Number
1
2
4
3
5
6
7
,
8
9
1
0
11 14
,
15
,
16
18
17
Evaporator See Page 6
Note: Pictures for reference onl
y
.
12
,
13
Page 3
MFI Series Service Parts Down Chute/Water System
Item
No. MFI0500AS MFI0805AS MFI0800AS MFI1255AS MFI1256AS Description
1 1011380-15 1011380-15 1011380-15 1011380-15 1011380-15 Float Assembly (Does Not Include Sensor)
2 1011380-16 1011380-16 1011380-16 1011380-16 1011380-16 Float Valve Only
3 1011380-78 1011380-78 1011380-78 1011380-78 1011380-78 Water Level Sensor
4 1011380-06 1011380-06 1011380-06 1011380-07 1011380-07 Ice Chute Lower
5 1011380-223 1011380-223 1011380-223 1011380-223 1011380-223 Bin Controls Assembly (Set of 2)
6 1011380-176 1011380-176 1011380-176 1011380-176 1011380-176 Chute Gasket
7 1011380-220 1011380-220 1011380-220 1011380-220 1011380-220 Evaporator Water Inlet Tube
8 1011380-84 1011380-84 1011380-84 1011380-84 1011380-84 Rubber Cap
9 1011380-03 1011380-03 1011380-03 1011380-03 1011380-03 Hose Clamp
10 1011380-25 1011380-25 1011380-25 1011380-25 1011380-25 Overflow Tube
11 1011380-23 1011380-23 1011380-23 1011380-23 1011380-23 Drain Fitting
12 1011351-71 1011351-71 1011351-71 1011351-71 1011351-71 Inlet Tubing (4 feet required)
13 1011351-31 1011351-31 1011351-31 1011351-31 1011351-31 Pal Nut
14 1011351-74 1011351-74 1011351-74 1011351-74 1011351-74 Water Inlet Fitting
15 1011351-75 1011351-75 1011351-75 1011351-75 1011351-75 Male Connector
16 1011382-09 1011382-09 1011382-09 1011380-172 1011380-172 Evaporator
17 1011380-27 1011380-27 1011380-27 1011380-27 1011380-27 Drip Pan
18 1011380-83 1011380-83 1011380-83 1011380-83 1011380-83 Drip Pan Gasket
19 1011380-85 1011380-85 1011380-85 1011380-85 1011380-85 Water Shed
20 1011380-178 1011380-178 1011380-178 1011380-178 1011380-178 Insulation Collar
21 1011380-179 1011380-179 1011380-179 1011380-179 1011380-179 Insulation Collar
Model Number
1
2
4
5
5
6
8
9
1
0
11
7
13
14
,
15
17
16
1
12
18
19
20
21 3
Page 4
MFI Series Service Parts Gear Motor
Item
No. MFI0500AS MFI0805AS MFI0800AS MFI1255AS MFI1256AS Description
1 1011380-85 1011380-85 1011380-85 1011380-85 1011380-85 Water Shed
2 1011380-164 1011380-164 1011380-164 1011380-164 1011380-164 Gearcase Output Shaft Seal
3 N/A N/A N/A N/A N/A End Bell
4 1011380-162 1011380-162 1011380-162 1011380-162 1011380-162 Bolt
5 1011380-159 1011380-159 1011380-159 1011380-159 1011380-159 Gearcase Cover (Cvr, Shft, Ky, Gr and Brng)
6 1011380-161 1011380-161 1011380-161 1011380-161 1011380-161 1st Gear and Bearings
7 1011380-160 1011380-160 1011380-160 1011380-160 1011380-160 2nd Gear and Bearings
8 1011380-158 1011380-158 1011380-158 1011380-158 1011380-158 Gasket
9 1011380-157 1011380-157 1011380-157 1011380-157 1011380-157 Gearcase
10 1011380-72 1011380-77 1011380-72 1011380-72 1011380-72 Start Switch-GE
11 1011380-67 1011380-69 1011380-67 1011380-68 1011380-68 Drive Motor
12 1011380-73 1011380-73 1011380-73 1011380-73 1011380-73 Rotor Bearing-GE
13 1011380-163 1011380-163 1011380-163 1011380-163 1011380-163 Oil
14 1011380-186 1011380-188 1011380-186 1011380-187 1011380-187 Complete Assembly
15 1011380-189 1011380-189 1011380-189 1011380-189 1011380-189 Gear Case Kit, No Motor
Model Number
14
3
2
4
5
6
7
8
1
10
11
ACME
OIL
9
13
15
12
Page 5
MFI Series Service Parts Evaporator
Item
No. MFI0500AS MFI805AS MFI800AS MFI1255AS MFI1256AS Description
1 1011382-01 1011382-01 1011382-01 1011382-01 1011382-01 Breaker
2 1011382-02 1011382-02 1011382-02 1011382-02 1011382-02 Socket Head Screw
3 1011380-81 1011380-81 1011380-81 1011380-81 1011380-81 O-Ring
4 1011380-225 1011380-225 1011380-225 1011380-226 1011380-226 Auger
5 1011380-02 1011380-02 1011380-02 1011380-02 1011380-02 Water Seal
6 1011380-168 1011380-168 1011380-168 1011380-168 1011380-168 Ring, Water Seal
7 1011380-185 1011380-185 1011380-185 1011380-172 1011380-172 Evaporator (Excludes Interior Components)
8 1011380-38 1011380-38 1011380-38 1011380-38 1011380-38 Hex Cap Screw
9 1011380-203 1011380-203 1011380-203 1011380-203 1011380-203 Bail Clamp
10 1011380-08 1011380-08 1011380-08 1011380-08 1011380-08 Ice Chute Cover
11 1011380-28 1011380-28 1011380-28 1011380-28 1011380-28 Ice Chute Body with Insulation
12 1011380-17 1011380-17 1011380-17 1011380-17 1011380-17 Drain Hose Clip
13 1011380-81 1011380-81 1011380-81 1011380-81 1011380-81 O-Ring
14 1011380-12 1011380-12 1011380-12 1011380-12 1011380-12 Ice Sweep
15 1011380-13 1011380-13 1011380-13 1011380-13 1011380-13 Breaker Cover
16 1011380-46 1011380-46 1011380-46 1011380-46 1011380-46 Auger Stud
17 1011380-11 1011380-11 1011380-11 1011380-11 1011380-11 Lip Seal
18 1011380-37 1011380-37 1011380-37 1011380-37 1011380-37 Cap Scrrew
19 1011380-202 1011380-202 1011380-202 1011380-202 1011380-202 Bearing
20 1011380-10 1011380-10 1011380-10 1011380-10 1011380-10 Lip Seal
21 1011380-82 1011380-82 1011380-82 1011380-82 1011380-82 O-Ring
22 1011380-86 1011380-86 1011380-86 1011380-86 1011380-86 Water Shed
23 1011380-87 1011380-87 1011380-87 1011380-87 1011380-87 Insulation Collar
24 1011382-01 1011382-01 1011382-01 1011382-01 1011382-01 Slotted collar
25 1011382-04 1011382-04 1011382-04 1011382-04 1011382-04 O-Ring
Model Number
1
2
3
4
20
5
6
23
10
11 21
13
15
1
8
14
19
22
17
18
9
12
7
25
24
Page 6
MFI Series Service Parts Control Box
Item
No. MFI0500AS MFI0805AS MFI800AS MFI1255AS MFI1256AS Description
1 1011382-05 1011380-104 1011380-102 1011380-105 1011380-106 Start Capacitor
2 N/A 1011380-107 1011380-108 1011380-110 1011380-108 Run Capacitor
3 1011351-83 1011351-83 1011351-83 1011351-83 1011351-83 Start Capacitor Bracket
4 1011382-06 1011380-114 1011380-112 1011380-111 1011380-111 Compressor Relay
5 1011339-73 1011339-73 1011339-73 1011339-73 1011339-73 Screw
6 N/A 1011380-217 1011380-217 1011380-217 1011380-217 Run Capacitor Bracket
7 1011380-75 1011380-74 1011380-75 1011380-74 1011380-74 Compressor Contactor
8 1011380-55 1011380-55 1011380-55 1011380-55 1011380-55 Selector Switch
9 1011380-79 1011380-79 1011380-79 1011380-79 1011380-79 Circuit Board
10 1011380-66 1011380-66 1011380-66 1011380-66 1011380-66 Control Board Standoff
11 N/A N/A N/A N/A N/A Control Box
12 1011380-224 1011380-224 1011380-224 1011380-224 1011380-224 Control Box Cover-Not Shown
Model Number
8
9
10
11
1
2
3
4
5
6
7
Page 7
