SERVICE PARTS MANUAL
HOTEL DISPENSER
MODEL CD40030 and CD40022
Ice-O-Matic
11100 East 45th Av
e
Denver, Colorado 80239
Part Number 9081317-02 Print Date 9/08
*
This is the list of service parts and for all versions
of these two hotel dispensers.
Pay close attention to the voltage and/or cycles to
be sure of ordering the correct part.
CD40022 and CD40030 Service Parts
Page 1
Table of Contents
Front and Top Panels ······································· Page 2
CD40030 & CD40022 Front Panel ································ Page 3
CD40130 and CD40230 Front Panel & Related Parts ······················ Page 4
Side, Back and Interior Panels ·································· Page 5
Dispensing Components ····································· Page 6
Ice Chute Mechanism ······································· Page 7
Ice Catch Pan ··········································· Page 8
Control Box ············································ Page 9
Front and Top Panels
Item Part
Number Number Description
1 1011339-104 Gasket tape, order by ft.
1a 1011339-104 Use 27.5” for CD40030, 19.5” for CD40022
1b 1011339-104 Use 27.88”
1c 1011339-104 Use 27.25” for CD40030, 19.25” for CD40022
2 1011351-24 CD40030 top panel
1011351-25 CD40022 top panel
3 1011351-42 Top panel screw
4 1011351-26 CD40030 panel insulation
1011351-27 CD40022 panel insulation
5 1011351-89 See Page 3
1011351-91 See Page 3
1011351-92 See Page 3
6 1011351-120 Ice deflector-30 inch wide only
7 1011351-110 30 inch wide ice machine mounting bracket
1011351-11 22 inch wide ice machine mounting bracket
8 1011339-143 Legs (Set of 4 ea.)
CD40022 and CD40030 Service Parts
Page 2
1a
1b
1b
1c
2
3
4
5
7
6
CD40030 & CD40022 Front Panel
Item Part
Number Number Description
1 1011351-44 Screw
2 1011351-106 CD40030 stiffener
1011351-107 CD40022 stiffener
3 1011351-36 Retainer
4 1011351-17 CD40030 side flange
1011351-19 CD40022 side flange
5 1011351-91 CD40030 Front panel*
1011351-92 CD40022 Front panel*
6 1011351-50 Snap bushing
7 1011351-32 Screw
8 1011339-70 Screw
9 1011351-82 Foam gasket, 6” per side
10 1011351-16 Grill
Item Part
Number Number Description
11a 1011351-14 CD40022, CD40030,
CD40230 dispense
housing
11b 1011351-15 CD40130 dispense
housing
* includes items 1 thru 4
CD40022 and CD40030 Service Parts
Page 3
12
3
4
6
11
10 9
8
7
5
CD40130 and CD40230 Front Panel & Related Parts
Item Part
Number Number Description
1 1011351-74 Water inlet fitting
2 1011351-75 Straight connector
3 1011351-31 Pal nut
4 1011351-77 Male elbow connector
5 1011351-23 Water faucet
6 1011351-71 Tubing, order per ft
7 1011351-78 Shut off valve
8 1011351-119 Indicator light backing
9 1011339-52 Washer for coin mech
10 1011339-65 Lockwasher
11 1011339-50 Hex nut (8-32)
12 1011351-20 Right side flange for coin
mech model
13 1011351-01 Door shim
14 1011351-60 Door and lock
14a 1011351-64 Lock and key
14b 1011351-65 Key
15 1011339-70 Coin box screw
16 1011351-114 Coin box
17 1011351-62 Coin mechanism
1011351-63 Coin switch
18 1011351-61 Mounting screw
19 1011351-68 Ready light
20 NLA CD40030 left side flange
21 1011351-79 Coin mech label
CD40022 and CD40030 Service Parts
Page 4
4
5
1
3
8
9
10
11
12
13
16
15
14
17
18
19
20
21
2
6
7
14a, 14b

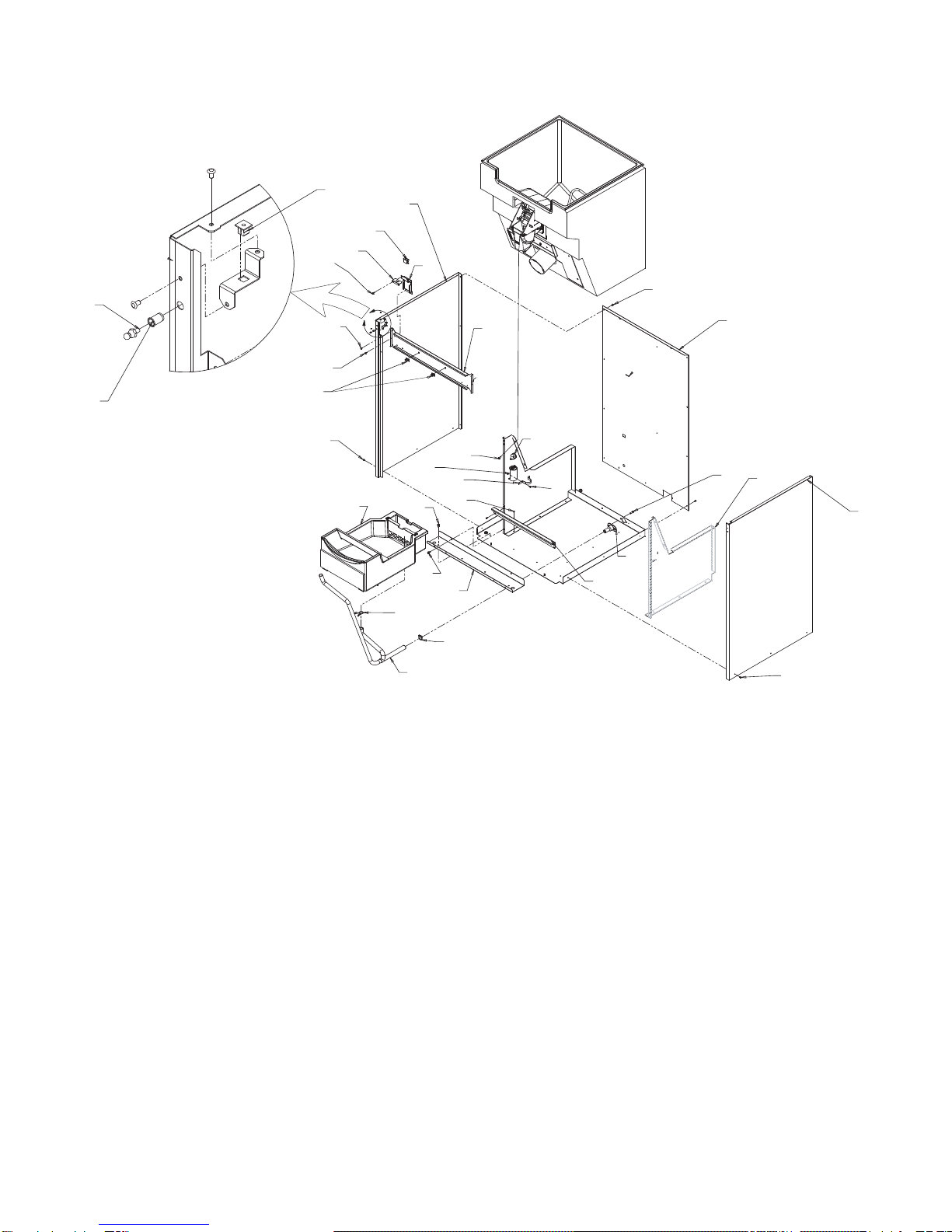

Side, Back and Interior Panels
Item Part
Number Number Description
1 1011339-70 Screw
2 1011351-95 CD40030 back panel
1011351-121 CD40022 back panel
3 1011351-94 Right side panel,
includes hardware
4 1011351-30 Screw
5 1011351-97 Bin support, right
1011351-96 Bin support, left
6 1011351-06 Drain fitting
7 1011351-105 Catch pan support
8 1011351-108 CD40030 base stiffener
1011351-109 CD40022 base stiffener
9 1011339-74 Screw
10 1011351-07 Hose clamp
11 1011351-03 Hose clamp
12 1011351-21 Drain hose
13 1011351-87 Drain pan, assembled
14 1011351-04 Wire clamp (coin mech)
15 1011351-113 Switch plate top
15a 1011351-112 Switch plate
16 1011339-84 Switch, interlock
17 1011351-84 Left side panel, includes
mounting hardware
18 1011351-43 Plastic nut
19 1011351-40 Strike (ball stud)
20 1011351-41 Insert
21 1011351-70 Terminal cover
22 1011351-101 CD40030 support brckt
1011351-102 CD40022 support brckt
23 1011351-80 Motor capacitor
24 1011351-83 Strap
CD40022 and CD40030 Service Parts
Page 5
1
2
45
3
1
6
7
10
11
12
13
98
911
1
1
1
1
14
15
16
17
18
19
20
9
22
23 24
21
15a
Dispensing Components
Item Part
Number Number Description
1 1011351-45 Hitch pin
2 1011351-22 Sweep arm
3 1011339-144 Dispense rotor
4 1011339-235 Hub plate
5 1011351-85 CD40030 bin assembly
1011351-86 CD40022 bin assembly
6 1011351-73 Insulation pad
7 1011351-48 Loop clamp
8 NLA Screw
9 1011351-72 Insulation for hub
10 1011351-66 Dispense gearmotor,
dual voltage
11 NLA Retainer
12 1011351-39 Cupped washer
13 1011351-38 Spring
14 1011351-46 ¼ turn stud
15 1011339-74 Screw
16 1011351-104 Mounting plate
17 1011339-70 Screw
18 1011339-160 Hub
19 1011351-101 Switch guard
20 1011351-12 Spout
21 1011351-29 Gasket
22 1011351-81 Gasket, 4” each end
23 1011351-103 Bin door
CD40022 and CD40030 Service Parts
Page 6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
8
19 20
21
22 23
16
18
Ice Chute Mechanism
Item Part
Number Number Description
1 1011351-118 Clip
2 1011339-70 Screw
3 1011351-11 Bracket
4 1011351-10 Door lock
5 1011351-09 Door
6 1011351-13 Wire
7 1011351-08 Dispense chute
8 1011351-53 Vend switch
CD40022 and CD40030 Service Parts
Page 7
1
2
3
6
7
4
5
3
8
Ice Catch Pan
Item Part
Number Number Description
1 1011351-99 Screen
2 NLA Screw
3 1011351-02 Drain top
4 NLA Complete assembly as
shown
5 1011351-69 O-ring
6 1011351-05 Drain bottom
7 1011351-76 Drain fitting
8 1011351-117 Drain pan bracket
9 1011351-28 Foam pad
10 1011351-116 Drain guard
CD40022 and CD40030 Service Parts
Page 8
12
3
4
5
6
7
2
10
2
9
8
2
