ICartech Aurora GX730E Manuel utilisateur

DVD/CD/VCD/MP3/WMA/SD/MMC/USB PLAYER

BLUETOOTH/TV/GPS WITH FM/MW TUNER

Operation Instructions aurora GX730E

1. Only connect this unit to a 12V DC power

supply with negative grounding.

2. Never install this unit where the operation

for safety driving is restrained.

3. Never use the video display function in the

front when driving to prevent the violation

of laws & regulations and also to reduce

the risk of trafc accident except using the

rear view video camera.

4. Never expose this unit, amplier, speakers

to moisture or water to prevent electronic

sparks or res.

Warnings

5. Please don't change the fuse in the power

cord without professional guidance,

improper fuse may cause damage to this

using unit or even cause re.

6. Please power off this unit at once and send

it back to the after-sales service center or

the dealer / distributor you purchased from

if one of the following symptoms is found:

(a) No audio output;

(b) No image output;

(d) Smoking;

(e) Peculiar smell.

7. To ensure safe driving, please adjust the

volume to a safe and comfort level in case

of emergency situations.

Precautions

1. Never disassemble or adjust the unit

without any professional guide. For

details, please consult any professional car

shop / dealer for inquiry.

2. If the front panel or TFT monitor is squalid,

please use a clean silicone cloth and

neutral detergent to wipe off the spot.

Using a rough cloth and non-neutral

detergent such as alcohol for cleaning may

result in scratching or decoloration to the

applicant.

3. If any abnormal behavior of the unit is

found, please refer to trouble shooting

guide of this manual. If no relevant

information is found,please press the

[RESET] key on the front panel to resume

factory default.

4. If you have parked the car in hot or cold

weather for a long time, please wait until

the temperature in the car becomes normal

before operating the unit.

5. Using in-car heater in low temperature

environment may result in beads coagulate

inside the unit, DO NOT use the unit in

this situation, eject the disc and wipe off

the bead on the disc. If the unit still doesn't

work after a few hours, please contact with

after-sales service center.

6. No erce impact to the LCD monitor when

it is in open position for preventing the

damage to any mechanisms inside.

7. To prevent the damage to the screen,

avoid touching it with sharp objects.

8. The monitor employs auto motorizing

mechanism, please don't push, pull, or

swivel the monitor manually to prevent

damage to the core mechanism.

9. To provide a clear demonstration and an

alternative for easy understanding to the

operation of this unit, graphic illustrations

areused.However, these illustrations are

some different from the actual images

displayed on the screen.

10.During operating the unit, “ ” will

display if the current operation is not

available or illegal.

11.Operate the unit correctly according to this

manual to prevent unnecessary problem.

The guarantee won't be valid if the problem

is caused by inappropriate operation.

Declaration

This product incorporates copyright

protection technology that is protected

by U.S patents and other intellectual

property rights. Use of this copyright

protection technology must be authorized

by Macrovision, and is intended for home

and other limited viewing uses only unless

otherwise authorized by Macrovision.

Reverse engineering or disassembly is

prohibited.

Contents

Before using

Front panel ............................................. 1

Remote Control ...................................... 2

Basic operations

Power on / off......................................... 4

Mute ....................................................... 4

Volume adjustment................................. 4

Open SOURCE MENU .......................... 4

Playing source selection ........................ 4

Using the TFT Monitor ........................... 4

Reset the unit......................................... 4

RDS operations

PTY function........................................... 5

Program Service (PS) ........................... 5

CT (Clock Time) ..................................... 5

RT (Radio Text) ...................................... 5

Radio mode

Select radio as playing source ............... 5

Select one radio band ............................ 5

Auto tuning ............................................. 5

Manual tuning......................................... 5

Auto save ............................................... 5

Manual save........................................... 6

Preview scan ......................................... 6

Recall the stored stations....................... 6

Local seeking ......................................... 6

Disc mode

Insert a disc............................................ 6

Eject the disc.......................................... 6

Touch screen controls ............................ 6

Onscreen control buttons....................... 7

Suspend playback.................................. 8

Stop playback ..................................... 8

Display le list ........................................ 8

Fast playback ......................................... 8

Previous / next ....................................... 8

Change folder......................................... 8

Repeat playback .................................... 8

Repeat A-B............................................. 8

Random playback .................................. 8

Intro playback......................................... 8

Direct search ......................................... 9

GOTO search......................................... 9

MENU and TITLE................................... 9

Select subtitle language......................... 9

Select multi-angle views ........................ 9

Select audio channel ............................. 9

PBC function ......................................... 9

Zoom in/out ......................................... 10

Rotate picture....................................... 10

Playback information............................ 10

SD/USB mode

Select SD/USB as playing source.........11

Using the touch screen controls............11

Onscreen control buttons......................11

Stop playback temporarily.....................11

Stop playback entirely...........................11

Display le list .......................................11

Fast forward/Fast reverse .....................11

Play the next or previous le ................11

Repeat playback ...................................11

Random playback .................................11

Intro playback........................................11

Search for a particular le .....................11

GOTO search........................................11

Zoom in/out ..........................................11

Rotate picture........................................11

Select picture slide mode .....................11

Playback information display.................11

Bluetooth mode ........................................ 12

TV mode .................................................... 13

Other modes

AUX...................................................... 14

Camera ................................................ 14

Navigation ............................................ 14

SWC..................................................... 14

Setup

Setup procedures................................. 15

General ................................................ 15

Language ............................................. 15

Audio.................................................... 15

Bluetooth.............................................. 15

Rating .................................................. 16

Hardware.............................................. 16

P.VOL ................................................... 16

TS CAL................................................. 16

EQ .............................................................. 17

Troubleshooting ....................................... 18

Device connections

Notes of connection ........................... 20

Control Cables ..................................... 20

Parking Brake Cable Connections ..... 21

Reverse Driving Cable Connections .... 21

Installation and uninstall

Notes of installation.............................. 22

Unit Installation..................................... 22

Trim Ring installation............................ 23

Uninstall .............................................. 23

Specications

Appendix

Region Code ....................................... 25

Cautions of disc using.......................... 25

Wiring Diagram .................................... 25

EN - 1

Before using

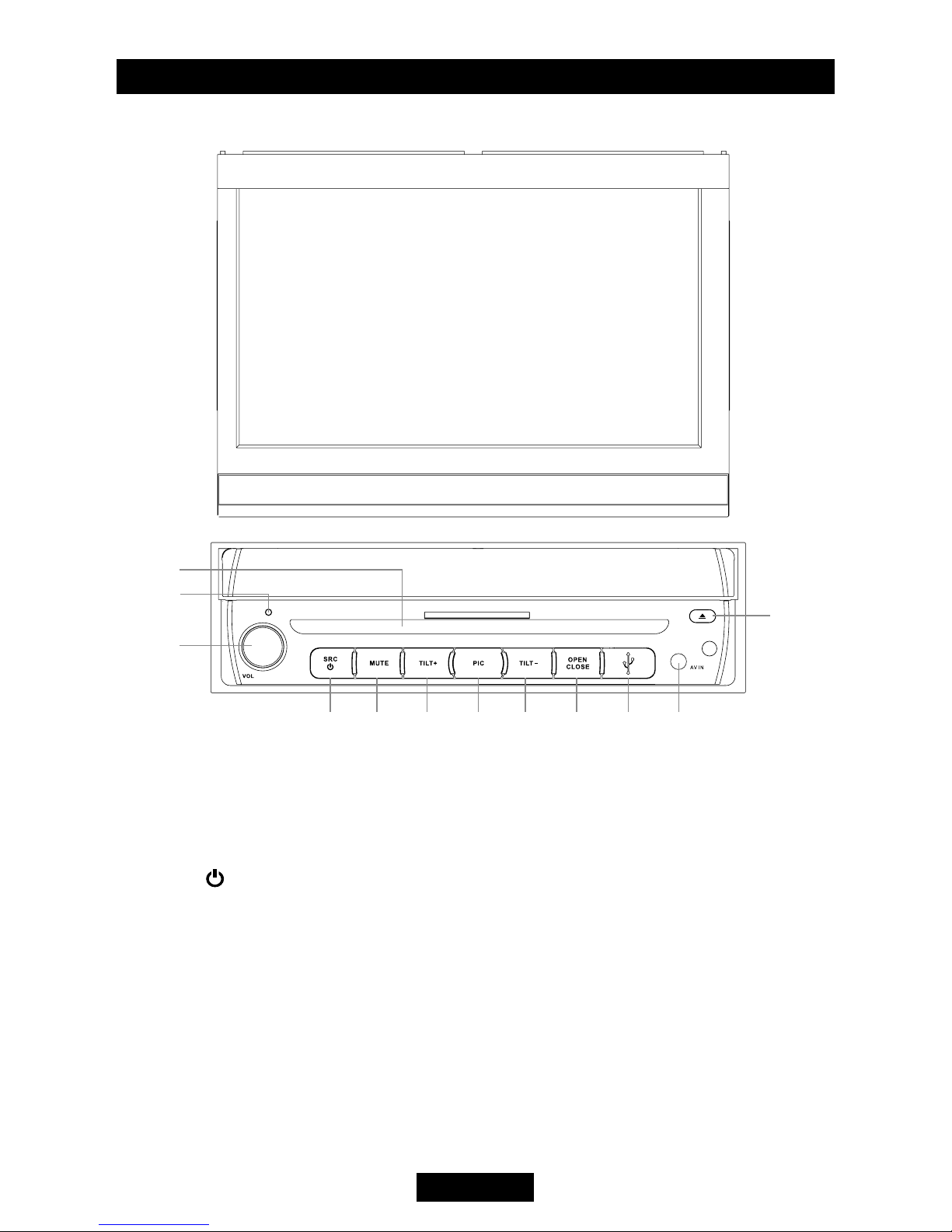

Front panel

1. Eject disc

2. Reset the unit

3. [VOL] Knob: Adjust volume

Play / Pause(short press)

4. [SRC/ ] Key:Switch to the current source and the main menu

5. [ MUTE] Key: Mute audio outputs

6. [TILT+] Knob: Increase the display angle

7. [PIC] Key: Adjust the bright the contrast of the TFT monitor

8. [TILT-] Knob: Decrease the display angle

9. [OPEN/CLOSE] Key: Open / Close the TFT monitor

10.USB Slot

11. AUX IN jack

12.Eject disc

13.Disc slot

཰

ཱ

ི

ཱི ཱུ ྲྀ ཷ ླྀ ཹ ེ

ཻ

ུ

EN - 2

Before using

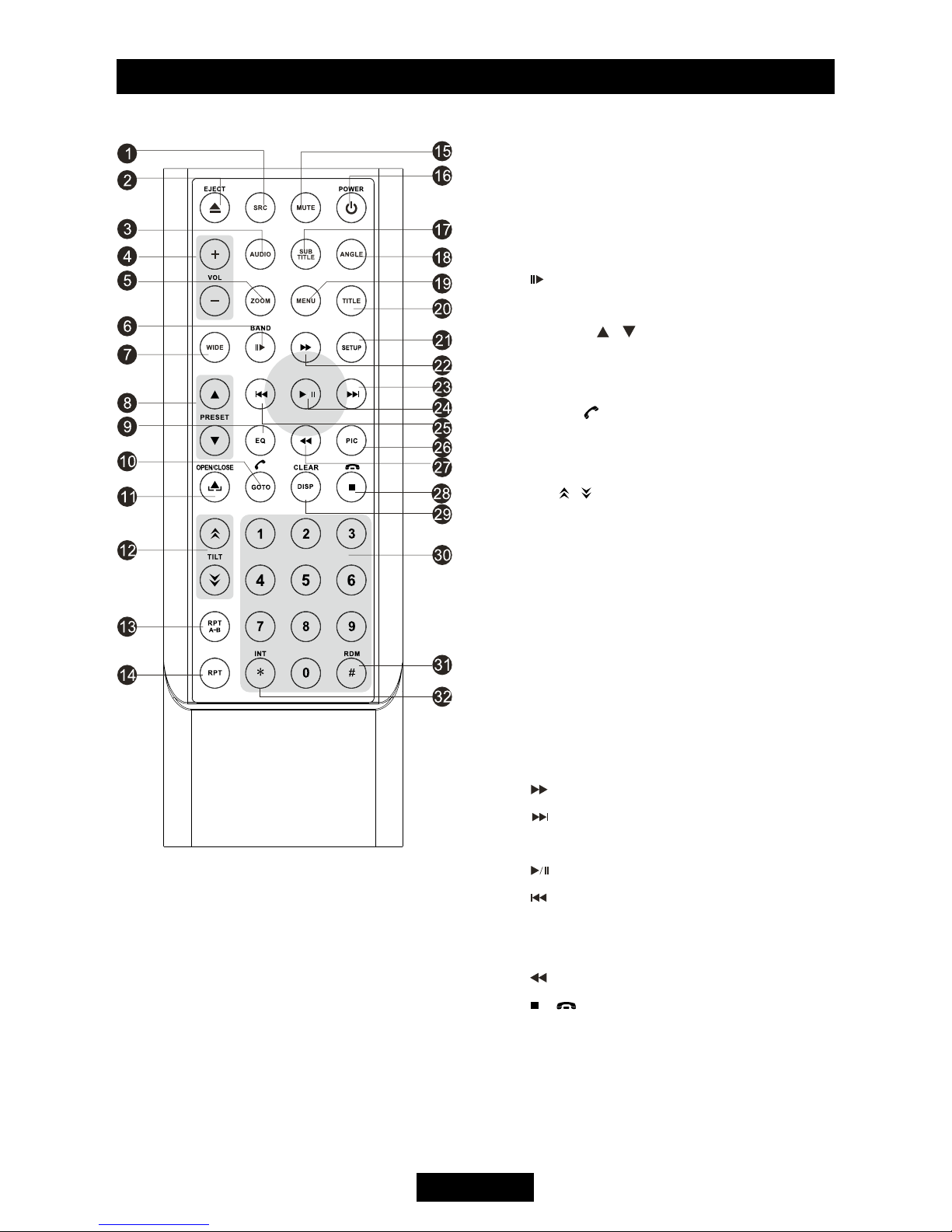

Remote Control

Note:

Your remote control may differ

slightly from the one pictured here.

The above diagram is for illustrative

purpose only.

1. [SRC]Key:select playing source

2. [EJECT]Key: Eject disc

3. [AUDIO] Key: Select DVD dialogue

language

4. [VOL+/-] Key: Adjust volume

5. [ZOOM] Key: Image zoom in/out

6. [ /BAND] Key: Select radio band

7. [WIDE] Key: Change display mode

8. [PRESET / ] Key: Select preset radio

station

9. [EQ] Key: Enter/Exit the EQ setting

10.[GOTO/ ] Key: GOTO search/Call

11.[OPEN/CLOSE] Key: Open / Close the

TFT monitor

12.

[TILT / ] Key: Adjusting display tilting angle

13.[REPT A-B] Key: A-B repeat

14.[REPT] Key: Repeat playback

15.[MUTE] Key: Mute audio outputs

16.[POWER] Key: Unit power

17.[SUBTITLE] Key: Select DVD subtitle

language

18.[ANGLE] Key: Select view angle

19.[MENU] Key: DVD MENU / PBC

20.[TILT ] Key: DVD TITLE

21.[SETUP] Key: Setup menu

22.[ ] Key: Fast Forward / Move cursor up

23.[ ] Key: Auto search / Previous / Move

cursor to the left

24.[ ] Key: Play / Pause / Enter

25.[ ] Key:Auto search / Next / Move cursor

to the right

26.[PIC] Key: Image setting

27.

[ ] Key: Fast Reverse/ Move cursor down

28.[ / ] Key: Stop Playback/Hangup

29.[DISP] Key: Display information

30.[0~9] Key: Numeric keys

31.[RDM] Key: Random playback

32.[CLEAR] Key: Clear information

EN - 3

Before using

Notes of remote control using

1) Aim the remote control at the remote

sensor on the unit.

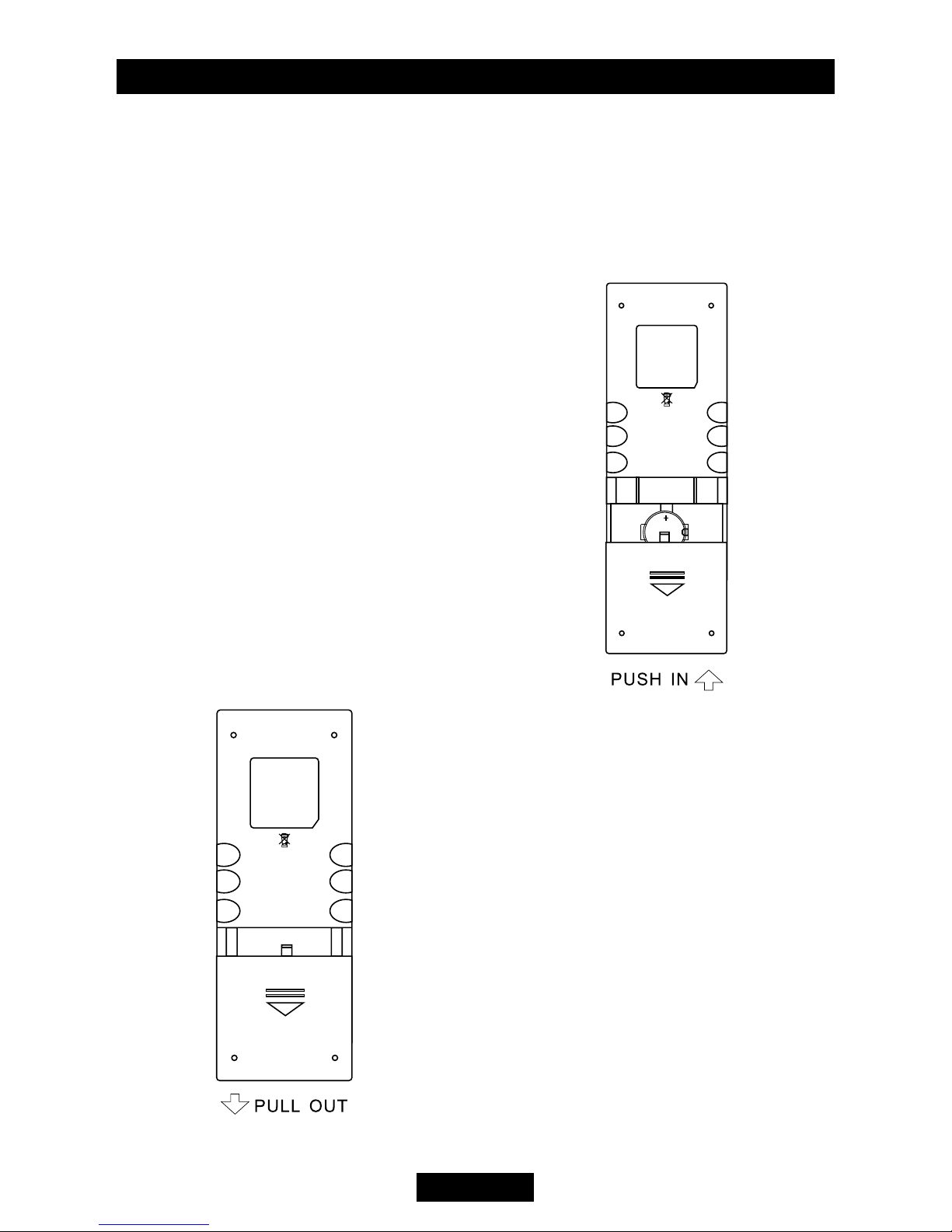

2) Remove the battery from the remote

control or insert a battery insulator if the

battery has not been used for a month or

longer.

3) DO NOT store the remote control under

direct sunlight or in high temperature

enviro nment, or it may n ot fun ction

properly.

4) The battery can work for 6 months under

normal condition. If the remote control can't

work, please change the battery.

5) Use “button shaped” lithium battery

“CR2025” (3V) only.

6) DO NOT recharge, disassemble, heat or

expose the battery in re.

7) Insert the battery in proper direction

according to the (+) and (-) poles.

8) Store the battery in a place where children

cannot reach to avoid the risk of accident.

Uninstall Battery

Slide out the battery compartment

tray at the bottom on the back of the

remote control.

Install Battery

Use button-shaped lithium battery

“CR2025 (3V)” only. Insert the

battery to the battery tray with proper

direction according to the (+) and (-)

poles.

EN - 4

Basic operations

Power on / off

Press any key on the front panel or the

[POWER] key on the remote control to turn

on the power under standby mode. The unit

goes back to the last status after power on.

Press and hold the [SRC] key on the front

panel or press the [POWER] key on the

remote control to turn off the power under

work mode.

Mute

Press the [MUTE] key on the front panel or

remote control to mute the volume from the

unit.

Notes:

Doing the operation above again or

adjusting volume will release muting.

Mute icon winks on the TFT during muting.

Volume adjustment

Turn the volume knob on the front panel or

press the [VOL] key on the remote control.

The adjustable range of volume is 0 to 40.

Open SOURCE MENU

Press the [SRC] key on the front panel or

remote control or touch the top left corner of

the screen to open the SOURCE MENU.

Do the above operation again to return to the

original source.

Playing source selection

Open the SOURCE MENU, and then touch

the source you desired or select one source

by moving the cursor and then conrm.

Notes:

Playing source selection means selecting

work mode, such as DVD mode, Radio

mode, Camera mode, etc.

When some devices are not ready, they

cannot be selected.

Display system time

Press and hold the [DISP] key on the remote

control to switch the display information

between system time and playing source

when the TFT monitor is closed.

Using the TFT Monitor

Open / Close monitor

Press the [OPEN/CLOSE] key on the front

panel or remote control topush the display

panel out or in.

Change the monitor tilt angle

Due to the inherent character of LCD, you

will get different vision impressions when you

watch it from different angles.

The display angle of this unit can be changed;

hence you can select the best angle where

you can get the best vision impression.

Press the [TILT] key on the display panel or

the remote control to adjust the tilt angle one

step at a time.

Press and hold the [TILT] key on the display

panel or the remote control to adjust the tilt

angle continuously.

Change aspect ratio

Press the [WIDE] key on the display panel or

remote control to adjust the aspect ratio.

Image setting

(1) Enter image setting mode

Press the [PIC] key on the front panel.

(2) Select one item to adjust

Press the [ ]/[ ] keys on the remote

control.

(3) Adjust the value

Press the [ ] / [ ] keys on the remote

control.

(4) Exit image setting mode

To exit image setting mode, repeat the rst

step or stop operation for some seconds.

Reset the unit

If the unit can not work correctly, you should

reset the unit by pressingthe [RESET] button

on the front panel.

EN - 5

RDS operations

PTY function

PTY is the abbreviation for Program Type

which is a code dening the type of program

being broadcast (e.g. News or Rock).

Six PTY options will display on the screen. To

view more PTY options, touch the scroll bar

and arrows on the screen.

When one PTY option is touched (e.g.

News), auto search for next available PTY

by increasing tuning frequency until the PTY

of the next station matches the current. If no

matched PTY has been found, the unit will

return to the original radio frequency.

Program Service (PS)

Used for receiver displays of an 8 character

alpha numeric Program Service name which

may use Upper or Lower case characters, e.g.

{BBC_4_FM}, {Classic_}.

CT (Clock Time)

Some stations broadcast the time and date

within the encoded RDS signal. The clock

time is automatically adjusted when 'CT' is set

to 'On'.

RT (Radio Text)

When this function is activated, the unit will

display short message data transmitted from

the provider, such as station information, the

name of the current broadcasting song and

the artist name.

Radio mode

Select radio as playing source

Open the SOURCE MENU and then touch RADIO.

Select one radio band

Press the [BAND] key on the display panel or

remote control or touch the [BAND] icon on

the user interface to select one radio band

among FM1, FM2, FM3, MW1 and MW2.

Auto tuning

Press the [ ] / [ ] key on the display

panel or remote control or touch the [ ]

/ [ ] icon on the user interface to seek a

higher / lower station.

To stop searching, repeat the operation above

or press other keys having radio functions.

Note:

When a station is received, searching stops

and the station is played.

If the unit receives a stereo broadcasting, the

indicator light of stereo ‘ST’ on the TFT or

LCD display will be lighted.

Manual tuning

During manual tuning, the frequency will be

changed in steps.

Press the [ ] / [ ] key on remote control

or touch the [ ] / [ ] icon on the user

interface to tune in a higher / lower station.

Touch the numeric keypad icon( ) and then

touch the numeric buttons to input the radio

station frequency numbers.

Auto save

Only stations with sufficient signal strength

will be detected and stored in the memory.

When the monitor is closed, press and hold

the [AS] key on the display panel.

When the monitor is opened, touch the [AS]

icon on the user interface.

To stop auto save, press other keys having

radio functions.

Notes:

After auto save, the previous saved

stations will be overwritten.

The unit has 5 bands, such as FM1, FM2,

FM3, MW1, MW2, and Each band can

store 6 stations; hence the unit can store

30 stations in all.

Table des matières

Autres manuels iCartech Récepteur de voiture

iCartech

iCartech VX-7 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

iCartech Aurora GX730E Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques
