About this manual

This manual contains service and reference information for

IBM ThinkPad T30 (MT2366, 2367), and ThinkPad Dock

(MT2631) products. Use this manual along with the

advanced diagnostic tests to troubleshoot problems.

The manual is divided into sections as follows:

vThe common sections provide general information,

guidelines, and safety information required in servicing

computers.

vThe product-specific section includes service, reference,

and product-specific parts information.

Important

This manual is intended for trained service

personnel who are familiar with ThinkPad products.

Use this manual along with the advanced diagnostic

tests to troubleshoot problems effectively.

Before servicing an IBM ThinkPad product, be sure

to review the safety information under “Safety

notices: multilingual translations”on page 4, “Safety

information”on page 16, and “Laser compliance

statement”on page 21.

2ThinkPad T30 (MT 2366, 2367)

Introduction

Important service information

Important

BIOS and device driver fixes are

customer-installable. The BIOS and device drivers

are posted on the IBM support site

http://www.ibm.com/pc/support

Advise customers to contact the PC Company

HelpCenter at 800-772-2227 if they need assistance

in obtaining or installing any diskette fixes.

Customers in Canada should call IBM HelpPC at

800-565-3344 for assistance or download

information.

Strategy for replacing FRUs

Before replacing parts

Make sure that all diskette fixes are installed before

replacing any FRUs listed in this manual.

Use the following strategy to prevent unnecessary expense

for replacing and servicing FRUs:

vIf you are instructed to replace a FRU but the

replacement does not correct the problem, reinstall

the original FRU before you continue.

vSome computers have both a processor board and a

system board. If you are instructed to replace either the

processor board or the system board, and replacing one

of them does not correct the problem, reinstall that

board, and then replace the other one.

vIf an adapter or device consists of more than one FRU,

any of the FRUs may be the cause of the error. Before

replacing the adapter or device, remove the FRUs, one

by one, to see if the symptoms change. Replace only

the FRU that changed the symptoms.

Attention: The setup configuration on the computer you

are servicing may have been customized. Running

Automatic Configuration may alter the settings. Note the

current configuration settings (using the View Configuration

option); then, when service has been completed, verify that

those settings remain in effect.

Strategy for replacing a hard-disk drive

Always try to run a low-level format before replacing a

hard-disk drive.

Attention: The drive startup sequence in the computer

you are servicing may have been changed. Be extremely

careful during write operations such as copying, saving, or

formatting. If you select an incorrect drive, data or

programs can be overwritten.

How to use error messages

Use the error codes displayed on the screen to diagnose

failures. If more than one error code is displayed, begin the

diagnosis with the first error code. Whatever causes the

first error code may also cause false error codes. If no

error code is displayed, see if the error symptom is listed

in the Symptom-to-FRU Index for the computer you are

servicing.

Diskette compatibility matrix

The compatibility of each of the drives with the diskettes

for it is as follows:

Diskette

drive Diskette

capacity Compatibility

3.5-inch 1.0 MB Read and write

2.0 MB Read and write

4.0 MB Not compatible

Safety notices: multilingual translations

In this manual, safety notices appear in English with a

page number reference to the appropriate multilingual,

translated safety notice found in this section.

The following safety notices are provided in English,

French, German, Hebrew, Italian, and Spanish.

Important service information

4ThinkPad T30 (MT 2366, 2367)

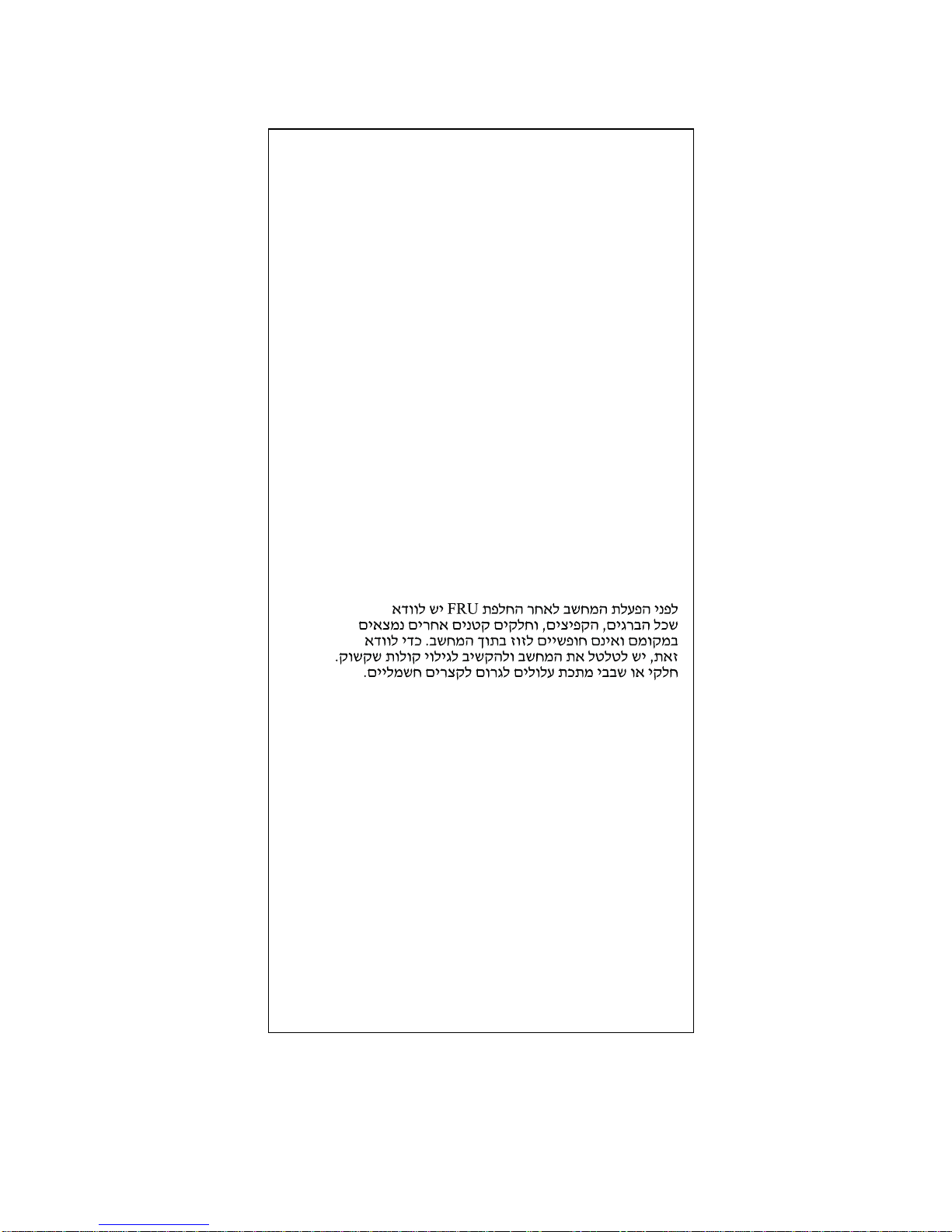

Safety notice 1

Before the computer is powered-on after FRU

replacement, make sure all screws, springs, and other

small parts are in place and are not left loose inside

the computer. Verify this by shaking the computer and

listening for rattling sounds. Metallic parts or metal

flakes can cause electrical shorts.

Avant de remettre l’ordinateur sous tension après

remplacement d’une unitéen clientèle, vérifiez que

tous les ressorts, vis et autres pièces sont bien en

place et bien fixées. Pour ce faire, secouez l’unitéet

assurez-vous qu’aucun bruit suspect ne se produit. Des

pièces métalliques ou des copeaux de métal pourraient

causer un court-circuit.

Bevor nach einem FRU-Austausch der Computer

wieder angeschlossen wird, mußsichergestellt werden,

daßkeine Schrauben, Federn oder andere Kleinteile

fehlen oder im Gehäuse vergessen wurden. Der

Computer mußgeschüttelt und auf Klappergeräusche

geprüft werden. Metallteile oder-splitter können

Kurzschlüsse erzeugen.

Prima di accendere l’elaboratore dopo che éstata

effettuata la sostituzione di una FRU, accertarsi che

tutte le viti, le molle e tutte le altri parti di piccole

dimensioni siano nella corretta posizione e non siano

sparse all’interno dell’elaboratore. Verificare ciò

scuotendo l’elaboratore e prestando attenzione ad

eventuali rumori; eventuali parti o pezzetti metallici

possono provocare cortocircuiti pericolosi.

Antes de encender el sistema despues de sustituir una

FRU, compruebe que todos los tornillos, muelles y

demás piezas pequeñas se encuentran en su sitio y no

se encuentran sueltas dentro del sistema.

Compruébelo agitando el sistema y escuchando los

posibles ruidos que provocarían. Las piezas metálicas

pueden causar cortocircuitos eléctricos.

Safety notices

Introduction 5

Safety notice 2

DANGER

Some standby batteries contain a small amount of

nickel and cadmium. Do not disassemble a standby

battery, recharge it, throw it into fire or water, or

short-circuit it. Dispose of the battery as required

by local ordinances or regulations. Use only the

battery in the appropriate parts listing. Use of an

incorrect battery can result in ignition or explosion

of the battery.

Certaines batteries de secours contiennent du

nickel et du cadmium. Ne les démontez pas, ne les

rechargez pas, ne les exposez ni au feu ni à l’eau.

Ne les mettez pas en court-circuit. Pour les mettre

au rebut, conformez-vous à la réglementation en

vigueur. Lorsque vous remplacez la pile de

sauvegarde ou celle de l’horloge temps réel, veillez

à n’utiliser que les modèles cités dans la liste de

pièces détachées adéquate. Une batterie ou une

pile inappropriée risque de prendre feu ou

d’exploser.

Die Bereitschaftsbatterie, die sich unter dem

Diskettenlaufwerk befindet, kann geringe Mengen

Nickel und Cadmium enthalten. Sie darf nur durch

die Verkaufsstelle oder den IBM Kundendienst

ausgetauscht werden. Sie darf nicht zerlegt,

wiederaufgeladen, kurzgeschlossen, oder Feuer

oder Wasser ausgesetzt werden. Die Batterie kann

schwere Verbrennungen oder Verätzungen

verursachen. Bei der Entsorgung die örtlichen

Bestimmungen für Sondermüll beachten. Beim

Ersetzen der Bereitschafts-oder Systembatterie nur

Batterien des Typs verwenden, der in der

Ersatzteilliste aufgeführt ist. Der Einsatz falscher

Batterien kann zu Entzündung oder Explosion

führen.

(continued)

Safety notices

6ThinkPad T30 (MT 2366, 2367)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IBM Ordinateur portable

IBM

IBM ThinkPad i Series 1400 Manuel utilisateur

IBM

IBM ThinkPad T21 Manuel du propriétaire

IBM

IBM S430 Manuel du propriétaire

IBM

IBM ThinkPad A22e Manuel

IBM

IBM THINKPAD X40 Comment utiliser

IBM

IBM THINKVANTAGE T60 Manuel utilisateur

IBM

IBM THINKPAD X40 Manuel utilisateur

IBM

IBM ThinkPad X32 Series Comment utiliser

IBM

IBM ThinkPad 560Z Manuel utilisateur

IBM

IBM ThinkPad T60 Instructions d'installation et d'entretien

IBM

IBM 365xX Manuel du propriétaire

IBM

IBM ThinkPad R40 Manuel du propriétaire

IBM

IBM ThinkPad 380XD Manuel du propriétaire

IBM

IBM THINKPAD I 1300 - Manuel utilisateur

IBM

IBM ThinkPad X20 Manuel utilisateur

IBM

IBM ThinkPad 240 Manuel utilisateur

IBM

IBM THINKPAD I 1200 - Manuel utilisateur

IBM

IBM ThinkPad 770X Dimensions

IBM

IBM N45SL Manuel du propriétaire

IBM

IBM ThinkPad 365C Manuel du propriétaire

IBM

IBM THINKPAD 365C/CD (2625) Manuel du propriétaire

IBM

IBM ThinkPad 600 Manuel du propriétaire

IBM

IBM ThinkPad 600X? Manuel utilisateur

IBM

IBM ThinkPad R40e Manuel utilisateur

Manuels Ordinateur portable populaires d'autres marques

HP ze2401xt - Pavilion Notebook PC Manuel utilisateur

Velocity

Velocity NoteMagix M10 Manuel utilisateur

Dell

Dell Alienware 17 R2 Manuel utilisateur

Toshiba

Toshiba A105-S2236 Manuel utilisateur

HP ENVY 17 Manuel

Winbook

Winbook LM Manuel utilisateur

Dell

Dell Inspiron 1464 Manuel utilisateur

Dell

Dell Inspiron 15R 5537 Manuel utilisateur

HP PROBOOK 4520S Manuel

Dell

Dell Latitude ATG D620 Manuel utilisateur

Sony

Sony VAIO PCG-FX270 Manuel utilisateur

Dell

Dell Latitude 7310 Manuel utilisateur

Dell

Dell Precision GU806 Manuel utilisateur

Sony

Sony VAIO PCG-R505JLK Manuel utilisateur

Lenovo

Lenovo THINKPAD X32 Manuel utilisateur

HP Compaq tc4200 Guide de démarrage rapide

Toshiba

Toshiba mini NB300 Manuel utilisateur

Lenovo

Lenovo ThinkPad X201 Tablet Manuel
