ServeRAID M5016 SAS/SATA Controller for IBM System x

Quick Installation Guide

Before using this information and the product it supports, read the Important Notices and Warranty

Information document that comes with the ServeRAID M5016 SAS/SATA controller.

This Quick Installation Guide provides information about installing the ServeRAID M5016 SAS/SATA

controller.

Statement 1:

DANGER

Electrical current from power, telephone, and communication cables is hazardous.

To avoid a shock hazard:

vDo not connect or disconnect any cables or perform installation,

maintenance, or reconfiguration of this product during an electrical storm.

vConnect all power cords to a properly wired and grounded electrical outlet.

vConnect to properly wired outlets any equipment that will be attached to this product.

vWhen possible, use one hand only to connect or disconnect signal cables.

vNever turn on any equipment when there is evidence of fire, water, or structural damage.

vDisconnect the attached power cords, telecommunications systems, networks, and modems before

you open the device covers, unless instructed otherwise in the installation and configuration

procedures.

vConnect and disconnect cables as described in the following table when installing, moving, or

opening covers on this product or attached devices.

To Connect: To Disconnect:

1. Turn everything OFF.

2. First, attach all cables to devices.

3. Attach signal cables to connectors.

4. Turn device ON.

1. Turn everything OFF.

2. First, remove power cords from outlet.

3. Remove signal cables from connectors.

4. Remove all cables from devices.

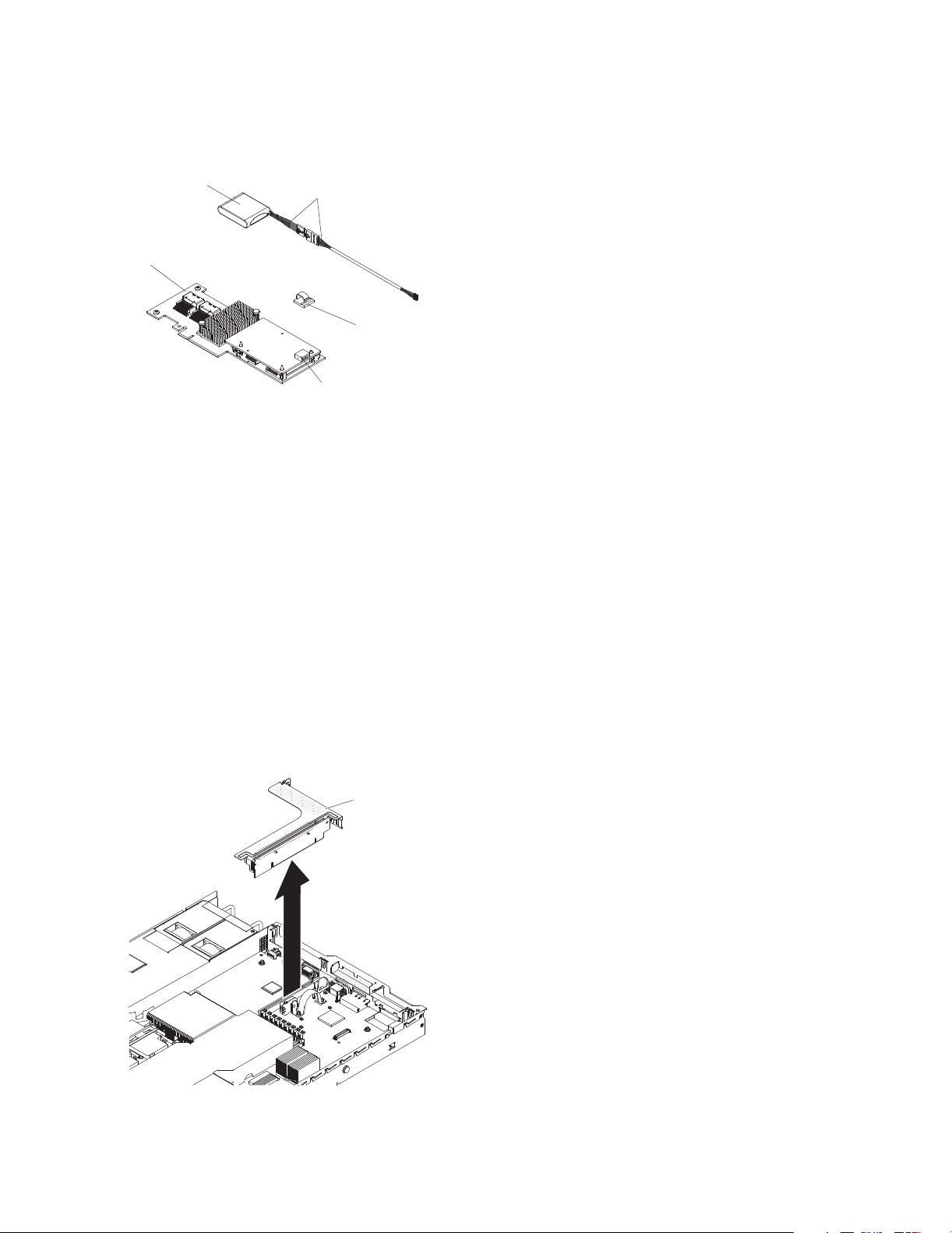

This ServeRAID M5016 SAS/SATA Controller for IBM®System x®option kit contains the following items.

ServeRAID

M5016

SAS/SATA

controller

ServeRAID M5100

series 1GB flash

ServeRAID

M5100 series

flash power

module ServeRAID M5100 series

flash power module cable

Cable clip

vOne IBM ServeRAID M5016 SAS/SATA controller

vOne IBM ServeRAID M5100 series flash power module

vTwo IBM ServeRAID M5100 series flash power module cables

vOne cable clip

vDocumentation CD

vIBM Warranty Information document

vIBM Important Notices document

vThis document

Note: The illustrations in this document might differ slightly from your hardware.

To install the ServeRAID M5016 SAS/SATA controller in a server, complete the following steps.

1. Read the safety information that comes with the ServeRAID M5016 SAS/SATA controller.

2. Turn off the server and peripheral devices and disconnect the power cords.

3. Remove the server cover.

4. Remove PCI riser-card assembly 2.

PCI

riser-card

assembly 2

5. Touch the static-protective package that contains the ServeRAID M5016 SAS/SATA controller to any

unpainted surface on the outside of the server; then, grasp the controller by the top edge or upper

corners and remove it from the package and inspect it for damage. Contact your IBM marketing

representative or authorized reseller if the ServeRAID M5016 SAS/SATA controller appears to be

damaged.

6. Connect the signal cable that is attached to the drive backplane for drive bays 0 through 3 to

controller port 0. Connect the other signal cable that is attached to the drive backplane for drive bays

4 through 7 to controller port 1.

ServeRAID M5100

series 1GB flash

ServeRAID M5016

SAS/SATA controller

Power module connector

Connector for drive bays 0-3

signal cable

Connector for drive bays 4-7

signal cable

7. Connect one end of the power module cable to the power module connector on the flash.

8. Align the edge connector on the adapter with the connector on PCI riser-card assembly 2; then,

insert the adapter into PCI riser-card assembly 2. Press the edge of the connector firmly into the

riser-card assembly. Make sure that the adapter snaps into the riser-card assembly securely.

ServeRAID M5016 SAS/SATA controller

PCI

riser-card

assembly 2

Attention: When you install the ServeRAID M5016 SAS/SATA controller, make sure that the

adapter is correctly seated in the PCI riser-card assembly and that the riser-card assembly is securely

seated in the PCI riser-card connector on the system board before you turn on the server. An

incorrectly seated adapter might cause damage to the system board, the riser-card assembly, or the

adapter.

9. Connect the other end of the power module cable to the power module.

Attention: Disconnect the power module cable to the power module before removing the

ServeRAID M5016 SAS/SATA controller from the PCI riser-card assembly.

10. Attach the cable clip near the power module holder by following the installation instructions that

come with the server and option.

vSystem x3550 M3:

Cable clip

Power module

vSystem x3650 M3:

Cable clip

Power module

11. Install a ServeRAID M5100 series flash power module.

12. Reinstall the PCI riser-card assembly 2 in the server.

13. Perform any configuration tasks that are required for the adapter.

14. Replace the server cover.

15. Slide the server into the rack.

16. Reconnect the power cords and any cables that you removed.

17. Turn on the peripheral devices and the server.

First Edition (December 2011)

IBM, the IBM logo, and System x are trademarks of International Business Machines Corp., registered in many

jurisdictions worldwide.

Other product and service names might be trademarks of IBM or other companies.

Printed in USA

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract

with IBM Corp.

(1P) P/N: 00D3119
