IBASE Technology IB909F Manuel utilisateur

IB909F

Intel®Broadwell-ULT

3.5” Disk Size SBC

USER’S MANUAL

Version 1.0

Acknowledgments

AMI is a registered trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® 5th Generation Mobile CoreTM i MCP Processor

are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

NUVOTON is a registered trademark of NUVOTON Technology

Corporation.

All other product names or trademarks are properties of their

respective owners.

IB909 User’s Manual

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

IB909F Specifications.........................................................2

Board Dimensions...............................................................4

Installations.......................................................5

Installing the Memory.........................................................6

Setting the Jumpers .............................................................7

Connectors on IB909F ......................................................11

BIOS Setup.......................................................23

BIOS Introduction.............................................................24

BIOS Setup........................................................................24

Advanced Settings.............................................................26

Chipset Settings.................................................................37

Security Settings................................................................40

Boot Settings.....................................................................41

Save & Exit Settings .........................................................42

Drivers Installation......................................43

Intel Chipset Software Installation Utility.........................44

VGA Drivers Installation ..................................................47

Realtek HD Audio Driver Installation...............................49

LAN Drivers Installation...................................................51

Intel® Management Engine Interface ...............................55

Appendix...........................................................57

A. I/O Port Address Map...................................................57

B. Interrupt Request Lines (IRQ)......................................58

C. Watchdog Timer Configuration....................................59

IB909F User’s Manual iii

This page is intentionally left blank.

IB909 User’s Manual

INTRODUCTION

Introduction

Product Description

The IB909F is a 3.5-inch single board computer based on the Intel®

Broadwell-ULT MCP processors.

The IB909F platform is well suited for low-power and

high-performance designs in a broad range of markets including

Industrial Control & Automation, Digital Signage, Thin Client,

Electronic Gaming Machines, and SMB storage appliances.

IB909F Features:

•Supports Intel®5th generation mobile CoreTM i MCP processors

•Two DDR3L SO-DIMM, 1333/1600 MHz, Max. 16GB

memory

•Integrated graphics for DVI-I, LVDS displays

•2 x SATA III connector

•2x COM port connector

•2 x Mini-PCIe(x1) slot (w/ USB/MSATA support)

•2x GbE (RJ-45) connector

•1x 9V to 24V DC-IN power connector

IB909 User’s Manual 1

INTRODUCTION

Checklist

Your IB909F package should include the items listed below.

•

The IB909F SBC

•

This User’s Manual

•

1 CD containing chipset drivers and flash memory utility

•

Optional cable kit (containing DC in power cable/PW87, COM

port cable / PK1H, SATA & HDD power cable/SATA-26 and

USB 2.0 cable/USB-29)

•

Other options: Audio-18 audio cable, HSIB908-BGA-1 heatsink

IB909F Specifications

Product Name

IB909F

Form Factor

3.5” SBC

CPU Type

- Intel®5th generation mobile CoreTM i MCP processors (22nm

monolithic)

- TDP = 15W (DC) , FCBGA1168 @ solder side

CPU Speed

Intel®CoreTM i7-5650U processor (2.2GHz) [IB909AF-5650]

Intel®CoreTM i5-5350U processor (1.8GHz) [IB909AF-5350]

Intel

Core

i3-5010U processor (2.1GHz) [IB909F-5010]

Cache

Up to 4MB

Chipset

Integrated in Intel®5th Generation CoreTM i U-series processor

BIOS

AMI BIOS

Memory

Intel®5th Gen. CoreTM i U-series processor integrated memory

controller

- DDR3L (1.35V) @1600 MHz, SO-DIMM [204-pin vertical] x 2

- Max. 16GB, Non-ECC

Display

Intel®5th Gen. CoreTM i U-series processor integrated Gfx,

supports 3 independent displays, Direct X 11.1, OpenGL 4.2,

Open CL 1.2

- DVI-I x 1 (Thru DDI#1 w/ Level shifter [ASM1442K] for DVI +

DP to VGA [NXP PTN3392] )

LVDS

- LVDS(Thru eDP, via NXP PTN3460 bridge IC)

24-bit dual channels LVDS interface w/DF20 socket x2

LAN

Intel® I218LM GbE PHY (IB909AF-5650& IB909AF-5350)

or I218V GbE PHY (IB909F-5010 & IB909F-3765)

Intel

I211AT as 2

GbE

USB

- Intel®5th Gen. CoreTM i U-series processor integrated USB 2.0

host controller, supports 4x USB 2.0: 2-ports onboard pin

header + 2 port thru MiniPCIe

- Intel®5th Gen. CoreTM i U-series processor integrated USB 3.0

host controller, supports 2x USB 3.0 in the rear panel

IB909 User’s Manual

INTRODUCTION

Serial ATA Ports

Intel®5th Gen. CoreTM i U-series processor built-in SATA

controller

2 x SATA 3.0 (6Gbps) and 2 x mSATA via MiniPCIe slots

(w/NXP CBTL02043A switching IC)

Audio

Intel®5th Gen. CoreTM i U-series processor built-in High

Definition Audio controller + Realtek ALC269Q-VC2-GR Codec

[6mm x 6mm @ MQFN48]

w/ class-D speaker amplifier(2W per channel @ 5V power

supply)

LPC I/O

Nuvoton NCT6102D [128-pin LQFP, 14 mm x 14mm x 1.4mm)

COM1 (RS232/422/485) [EXAR SP339EER1 232/422/485

transceiver for jumper-less]; COM2 (RS232 only) [SIPEX

SP3243EBER, QFN32]

[Hardware Monitor]

2 x Thermal inputs

2 x Voltage monitoring

1 x CPU Fan (PWM Fan type, 4-pin connector)

Digital IO

4 in & 4 out

iAMT(10.0)

For IB909AF-5650 / IB909AF-5350

Expansion Slots

1x mSATA/mPCIe(x1) w/ USB signal [Half-sized]

1x mSATA/mPCIe(x1) w/ USB signal [Full-sized]

Edge Connector

DVI-I x 1

RJ45 x2 for LAN#1 & #2

USB 3.0 stack connector x 1 for USB1 / 2 [Blue color]

DB9 x 1 for COM #1

Onboard

Header/Connector

DF20-20 socket connector x 2 for 24-bit dual channel LVDS

2 ports x SATA III [Blue color]

2x4 pins header x 1 for 2 USB 2.0 ports [DF11]

2x6 pins box header x1 for Audio [DF11]

1x4 pins box header x1 for Speaker out

2x5 pins box header x1 for COM2

2x5 pins headers x 1 for LPC (Debug purposes only)

5 pins box header x1 for smart battery

4 pins box header x1 for backlight/brightness control

4 pins power connector x1 for SATA HDD

2 pins power connector x1 for DC-in [180 degree vertical type]

Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

Power Input

+9V ~ +24V DC-in

RoHS

Yes

Board Size

102mm x 147mm

OS supported

Windows 8 / Embedded; Windows 7 / Embedded Linux

Others

Heatsink

i-SMART (Auto-scheduler & Power fail resume function)

EEPROM 24C02(Reserved for designing, M-SO8 package)

IB909 User’s Manual 3

INTRODUCTION

Board Dimensions

IB909 User’s Manual

INSTALLATIONS

Installations

This section provides information on how to use the jumpers and

connectors on the IB909F in order to set up a workable system. The

topics covered are:

Installing the Memory ........................................................................... 6

Setting the Jumpers................................................................................ 7

Connectors on IB909F......................................................................... 11

IB909 User’s Manual 5

INSTALLATIONS

Installing the Memory

The IB909F board supports two DDR3L memory sockets for a

maximum total memory of 16GB DDR3L memory type.

Installing and Removing Memory Modules

To install the DDR3L modules, locate the memory slot on the board and

perform the following steps:

1. Hold the DDR3L module so that the key of the DDR3L module

aligned with that on the memory slot.

2. Gently push the DDR3L module in an upright position until the

clips of the slot close to hold the DDR3L module in place when the

DDR3L module touches the bottom of the slot.

3. To remove the DDR3L module, press the clips with both hands.

IB909 User’s Manual

Table des matières

Autres manuels IBASE Technology Ordinateur monocarte

IBASE Technology

IBASE Technology IB953 Series Manuel utilisateur

IBASE Technology

IBASE Technology IBR210 Manuel utilisateur

IBASE Technology

IBASE Technology IB918F Manuel utilisateur

IBASE Technology

IBASE Technology IB919 Series Manuel utilisateur

IBASE Technology

IBASE Technology IB818F-I50 Manuel utilisateur

IBASE Technology

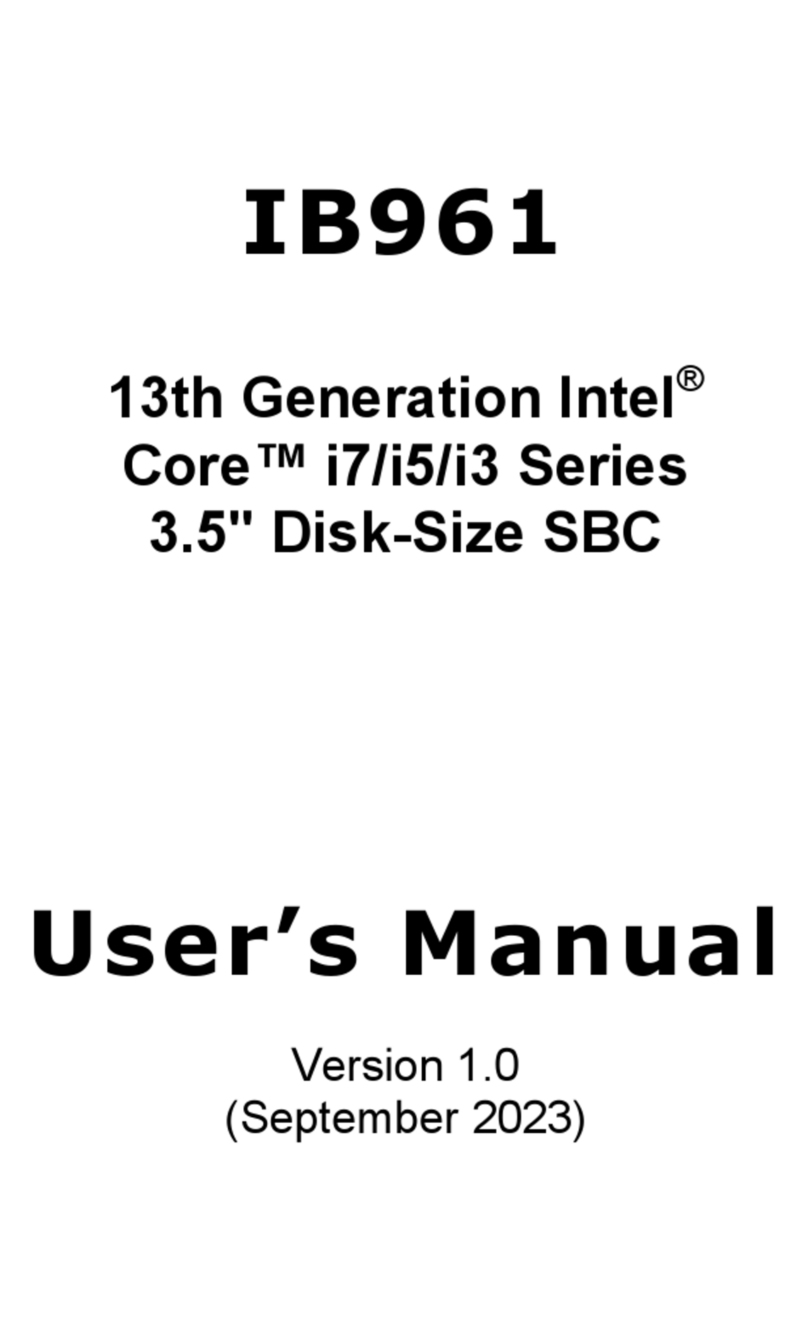

IBASE Technology IB961 Manuel utilisateur
