IAI X-SEL Manuel utilisateur

Operation Manual, Eighth Edition

Table of Contents

1. Overview

The open field network ProfiBus-DP is a multi-bit, multi-vendor network for communication of both control and

data signals of the machine/line control level.

A wire-saving system can be built by connecting IAI’s X-SEL, TT, RCS-C, E-Con, ACON, PCON, SCON, ASEL,

PSEL and SSEL controllers (hereinafter collectively and individually referred to as “Each Controller”) to a

ProfiBus-DP network.

Each controller is treated as a slave station in ProfiBus-DP and can be used to exchange I/O data.

* For details on ProfiBus-DP, refer to the operation manual for the programmable controller (hereinafter referred

to as “PLC”) in which the master unit is installed.

This operation manual should be used in conjunction with the operation manual for each controller.

You should also assume that any usage not specifically permitted in this operation manual is prohibited.

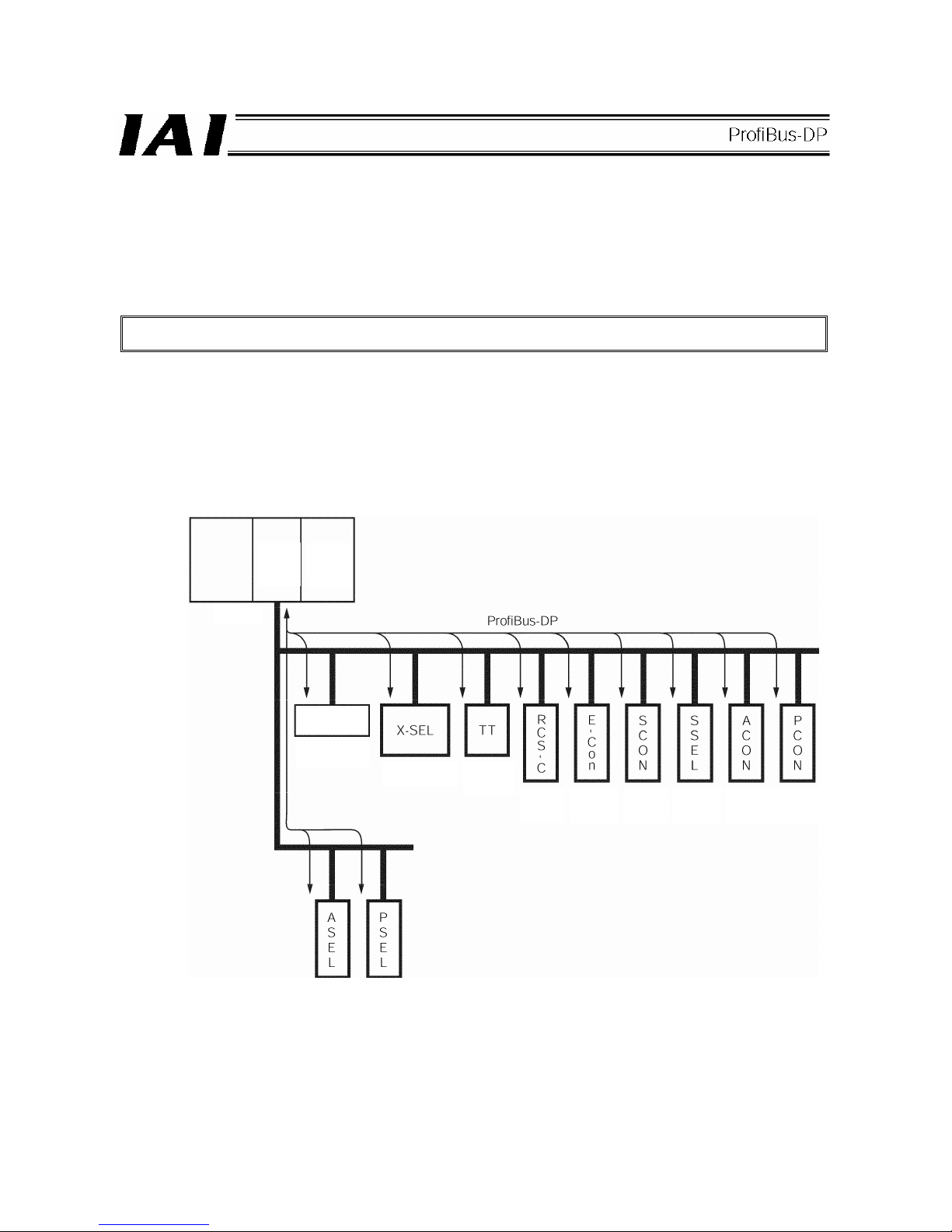

Master station

Master

unit

CPU

unit

(Node)

Slave

station

Slave

station

Slave

station

Slave

station

Slave

station

Slave

station

Slave

station

Slave station

Remote I/O

terminal

Slave

station

Slave

station

2. Specifications

2.1 Interface Specifications

The table below lists the specifications of the ProfiBus-DP interface.

Item Specification Remarks

Communication profile ProfiBus-DP

Communication method Hybrid method Master/slave method with token passing

Number of connectable

stations

32 stations per segment Up to 126 stations can be connected if a

repeater is used.

Communication data length Maximum 244 bytes per frame

Physical profile

RS485

* A general physical profile is RS485.

* Use of a 9-pin D-sub connector is

recommended for IP20 configurations.

Baud rate (kbps) 9.6/19.2/93.75/187.5/500

1500/3000/6000/12000

Maximum distance over the

entire network Baud rate Cable type

100 m 12,000/6,000/3,000 kbps

200 m 1,500 kbps

400 m 500 kbps

1000 m 187.5 kbps

Transmission distance

1200 m 9.6/19.2/93.75 kbps

Type A cable

Topology Bus/tree/star

Cable Single shielded twisted pair

cable

Type A cable

*1 The baud rate of a ProfiBus-DP network can be specified only when the ProfiBus-DP network is set up using

a configurator (*2).

The baud rate of all ProfiBus-DP slave modules is set with this configurator, and therefore a different baud rate

cannot be set for an individual slave station.

*2 For the ProfiBus-DP configurator, use the configurator recommended for the master unit.

3. X-SEL Controller

3.1 ProfiBus-DP Board Types and Installation Positions in the X-SEL

There are six types of X-SEL controllers that support ProfiBus-DP, as listed below. The installation position of the

ProfiBus-DP board is different depending on whether the X-SEL controller is of PR0 type or PR1 type.

* The PR1 board can be installed in any one of expansion I/O slots 1 to 3.

*2 The ProfiBus-DP board is installed in the same position as shown in Fig. 3.4. With a 5-axis or 6-axis

specification, the ProfiBus-DP board is installed in the same position as with a 4-axis specification.

Controller

type

Network I/O

points

(maximum

inputs/outputs)

Board installation position

Standard

slot

(I/O1)

Expansion

slot 1

(I/O2)

Expansion

slot 2 or 3

(I/O3 or 4)

Not available

for 1-axis and

2-axis

specifications.

X-SEL model I/O slot

arrangement

Fig. 3.1

Fig. 3.2

Fig. 3.3

Fig. 3.4

Installation position of

field network board

Installation position of

field network board

(1) Compact type (J type)

1-axis specification*1 2-axis specification*1 3/4-axis specification*2, *3

Fig. 3.1

*1) An I/O board cannot be installed in 1-axis and 2-axis specifications, because the ProfiBus-DP board

occupies the only slot available.

*2) With 3-axis and 4-axis specifications, only the “PR0” ProfiBus-DP board can be installed in the standard slot.

*3) With 3-axis and 4-axis specifications, one expansion I/O board can be installed in the expansion slot.

Expansion I/O board

Model [1] IA-103-X-32 (32 input points, 16 output points)

[2] IA-103-X-16 (16 input points, 32 output points)

ProfiBus-DP board ProfiBus-DP board Expansion slot ProfiBus-DP board

(Installed in the standard slot.)

(2) General-purpose type (K type)

zEither a ProfiBus-DP board or standard I/O board must be always installed in the standard slot (I/O1 --- slot

at the far left).

zThe “PR1” ProfiBus-DP board occupies two expansion slots. If this type of ProfiBus-DP board is selected,

only one expansion slot can be used.

zEither an expansion I/O board*1 or SIO board*2 can be installed in an expansion slot.

Fig. 3.2

*1 Expansion I/O board

Mode [1] IA-103-X-32 (32 input points + 16 output points, NPN specification)

[2] IA-103-X-32-P (32 input points + 16 output points, PNP specification)

[3] IA-103-X-16 (16 input points + 32 output points, NPN specification)

[4] IA-103-X-16-P (16 input points + 32 output points, PNP specification)

[5] IA-IO-3204-NP (48 input points + 48 output points, NPN specification)

[6] IA-IO-3204-PN (48 input points + 48 output points, PNP specification)

[7] IA-IO-3205-NP (48 input points + 48 output points, NPN specification)

[8] IA-IO-3205-PN (48 input points + 48 output points, PNP specification)

(Note) [5] and [6] are used exclusively for the K, P and Q types, while [7] and [8] are used

exclusively for the J type.

For specification details, refer to “Operation Manual for X-SEL Controller.”

*2 SIO board

Mode [1] IA-105-X-MW-A (RS232C)

[2] IA-105-X-MW-B (RS422C)

[3] IA-105-X-MW-C (RS485C)

With all boards, one board can support two channels.

Expansion slots 1 to 3

ProfiBus-DP board

(Installed in the standard slot.)

Fig. 3.3

(3) P/Q types

zThe ProfiBus-DP board is installed in the installation position of field network board.

Fig. 3.4

Expansion slots 2 and 3

ProfiBus-DP board

(Installed in expansion slot 1.)

Standard I/O board

Standard I/O

ProfiBus-DP board ProfiBus-DP board Expansion I/O
