Quick Start Guide
INNOVATIONS AT THE SPEED OF THOUGHT
®
©2011 i³ International Inc.
The contents of this user manual are protected under copyrights and
computer program laws.
48016
2
IMPORTANT SAFETY INSTRUCTIONS
• Read and keep the instructions for future reference
• Do not use near water.
• Clean only with a dry cloth.
• Do not block any of the ventilation openings. Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
any other apparatus which produces heat.
• If the provided plug does not fit into your outlet, consult an electrician.
• Protect the power cord from being walked on or pinched.
• Only use the attachments/accessories specified by the manufacturer.
• Unplug the unit during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the
unit has been damaged in any way.
• This equipment and all communication wiring with the unit is intended for indoor
use only.
• The socket-outlet should be installed near the equipment and should be easily
accessible.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
•Operation Max temperature : 40°
•USB Load condition: USB Ports( 5 Vdc, Max. 500 mA)
3
BEFORE INSTALLATION
• Installation should be carried out only by qualified personnel and in accord-
ance with any electrical regulations enforced at the time.
• The DVR must be placed on a stable surface or mounted in an approved
cabinet.
• Adequate ventilation must be provided, take care not to block any of the air
vents on the DVR.
• Adequate protection against lightning strikes and power surges must be
installed to prevent damage to the DVR.
• If cleaning is necessary, shutdown the DVR and disconnect power first. Use a
soft dry cloth only. Never use any abrasive cleaners.
• Do not attempt to service or repair the DVR as opening or removing covers
may expose dangerous voltages or other hazards. Refer all servicing to qualified
service personnel.
4

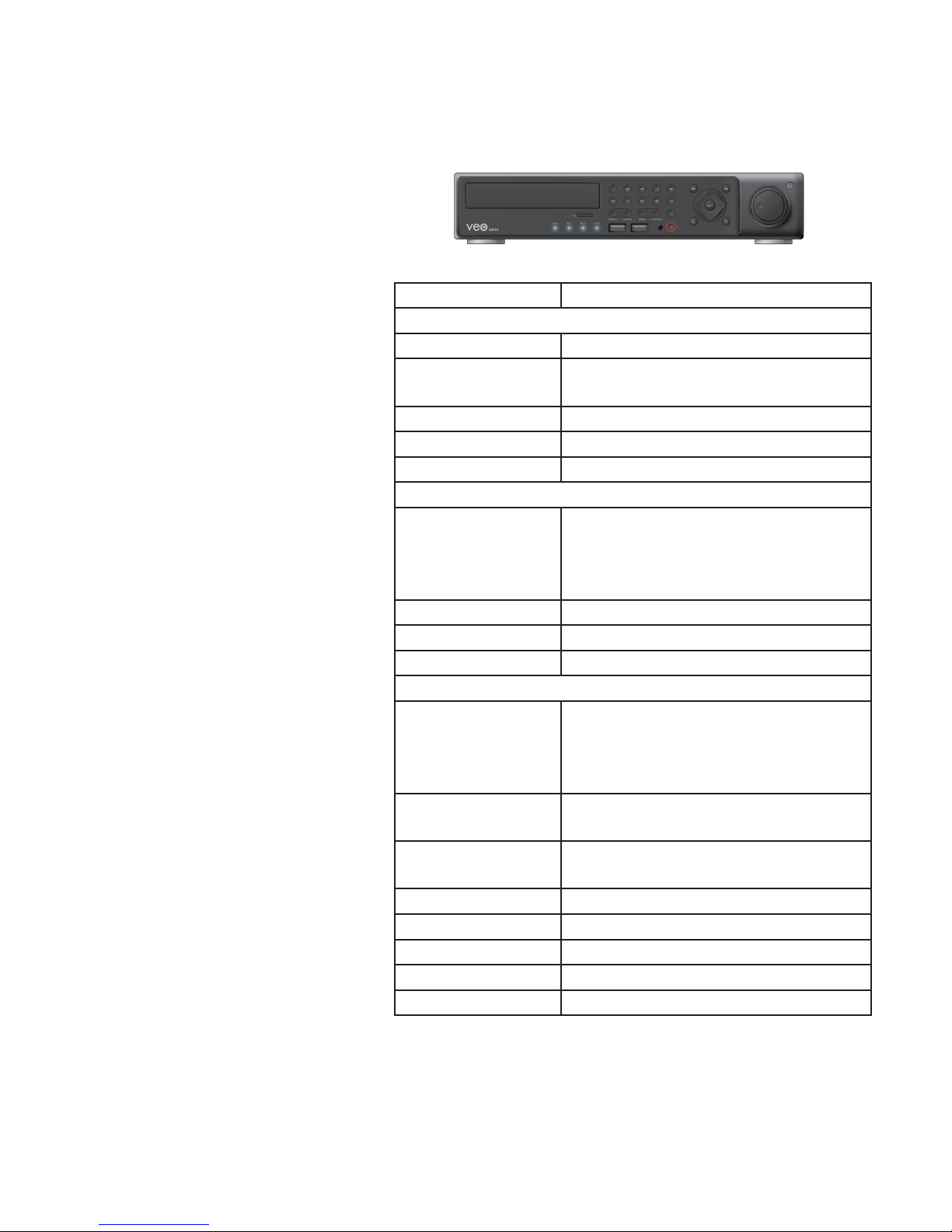

KEY DESCRIPTION
Function Keys
POWER Turn On/Off the system power
DISPLAY Selects various display modes in live display and
playback
PTZ/FOCUS Selects PTZ mode in live display
MENU Displays the setup menus
SEARCH Displays the search menu
Control Keys
CHANNEL SELECTION
BUTTONS
Displays individual channels in live display and
playback
Also used to enter numeric passwords for various
login screens
CURSOR KEYS Navigates menu
ENTER Apply or Select an item
RETURN Cancel or go to Previous menu
Playback Control
Shuttle Wheel Used to quickly adjust playback speed and
direction.
Also used to control camera zoom when in PTZ
mode and digital zoom level in live display
JOG When playback is paused, used to move footage
forwards or backwards, frame by frame
HOLD Locks the current function of the SHUTTLE
WHEEL so it can be released
Fast Reverse Increases reverse playback speed
Reverse Selects reverse playback
Pause Pauses / resumes playback
Play Selects forward playback
Fast Forward Increases forward playback speed
SYSTEM CONFIGURATION
FRONT PANEL DESCRIPTION
5
SYSTEM CONFIGURATION
REAR PANEL DESCRIPTION

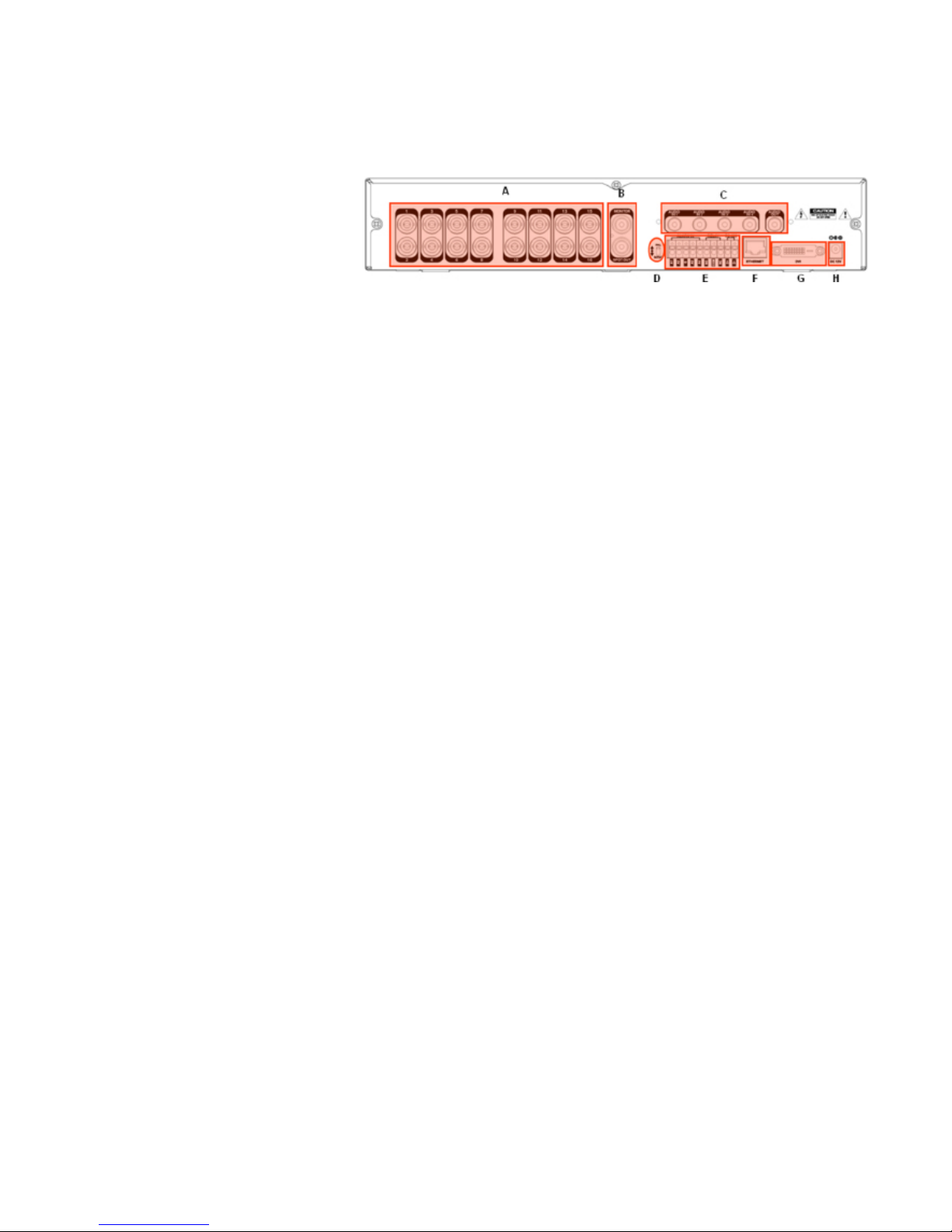

A. CAMERA INPUT : Connect up to 16 camera inputs.
B. MONITOR : Main BNC monitor.
SPOT OUT : BNC Spot monitor.
C. AUDIO INPUTS & OUTPUTS : Up to 4 audio inputs and one audio output can be
connected as necessary.
D. PAL / NTSC : Change Camera input type.
E. ALARM INPUTS : Up to 4 alarm inputs can be connected and configured as high
or low inputs with common ground.
RELAY OUTPUT : 1 alarm output can be connected and configured as high or low
outputs with common ground.
RS485 : Connect PTZ camera.
F. LAN : LAN connection to a router or internal network.
G. DVI : DVI main monitor connection to a PC monitor or plasma screen. If VGA
connection is wanted, use a DVI to VGA converter.
H. POWER : Connect 12V / 5A adaptor.
6
SYSTEM CONFIGURE – Remote Control

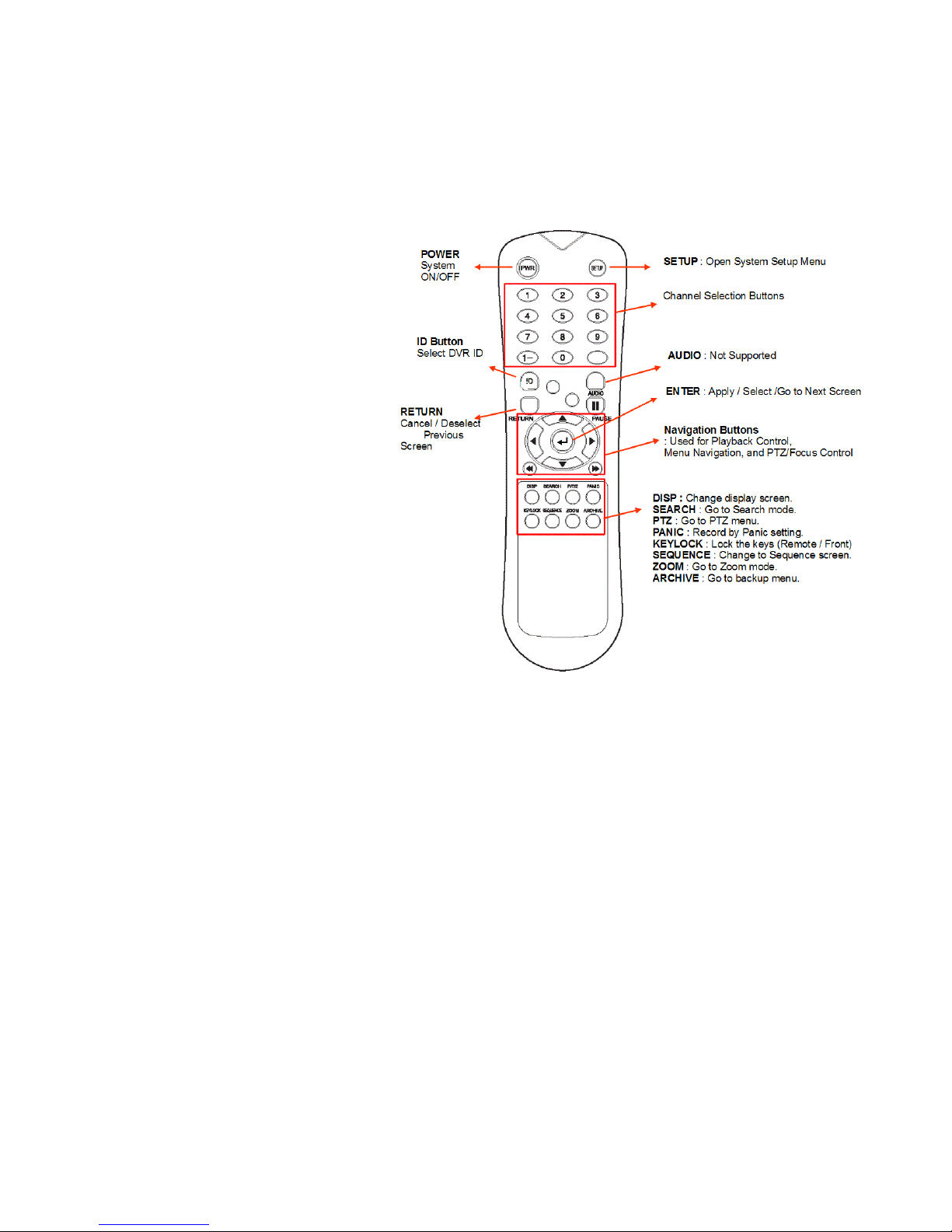

REMOTE CONTROL DESCRIPTION
Setting ID on the remote control: Press the ID button. This displays the INPUT
ID dialog.
Press the set ID and Press the RETURN button (The default ID is 01).
To return to the previous display, press the ID button again.
Input the 255 and press the RETURN button of remote controller.
On multiple DVR set-ups, each DVR must be set with different ID. The remote
control takes one ID per DVR All DVRs can then be controlled with one remote
control.
7
CONNECT & POWER ON
• Connect up to 16 CAMERA INPUTS as necessary.
• Connect monitors to the DVR using the COMPOSITE or DVI connections
• Connect power to the DVR. The DVR checks for proper power connection and
emits two beeps on startup.
• Press the POWER BUTTON on the front panel of the DVR to begin operation.

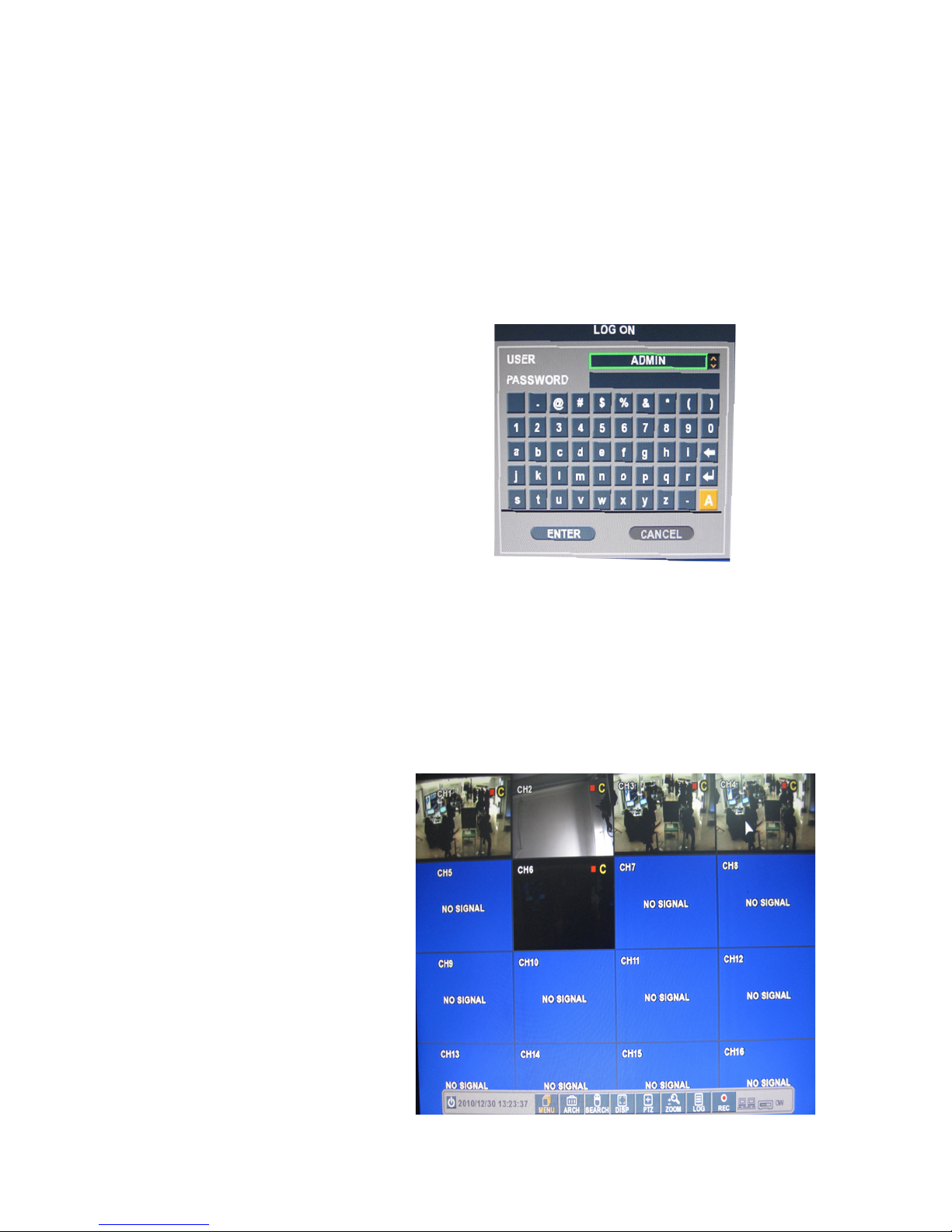

Log on to the system. The default user name is ‘ADMIN’.
Using the CHANNEL SELECTION buttons, key in the default password of ‘1234’ and
press the ENTER button.
The DVR begins normal operation and shows the default display of all 16 channels.
The status bar (including menu control) at the bottom of the screen displays the
menu at first startup. After that, the current time and date will be displayed. A title
for each channel is shown.
The red square and letter in the top right of each channel display indicates the
recording mode of the channel.
