I-Tech FCOP0430 Manuel utilisateur
i-Tech Company LLC
4.3" Digital TFT-LCD Module
MODEL: FCOP0430
FCOP430-TR-v1 2021 03 18 V1.2
P.1
1. General Description
1.1 Features
■4.3” (480x272) Digital TFT LCD
■Aspect Ratio: 16:9
■Input Signal CVBS / VGA
■Maximum Support Resolution 1920x1080
■4 Wires Resistive Touch Panel
■5 Key Buttons Controls
■9 Language OSD Menu
■LED Backlight
■Single Operation Voltage +12V
1.2 Applications
■Industrial
■Medical Environment
■Instrument Display
■Kiosk
■Security
■Signage
■Office Electronics
■Home Application
■Educate Application
FCOP430-TR-v1 2021 03 18 V1.2
P.2
2. Contents
Contents Page
1. General Description…………………………………………………………………………………….……………. 1
1.1 Features 1
1.2 Applications 1
2. Contents……………….…………………………………………………………...…………………………….…. 2-3
3. Specifications………..………………………………………….………………..…………………………………… 4
4. Black Diagram………………………………………………………………….………………………………….…. 4
5. Order Information…..………………...……………………………………………………………………………… 5-6
5.1 Unit
5.2 Customized
5-6
6
5.3 Demo Board (Option) 6
6. Accessories (Option)……………………………………………………………………………….…………….…. 7
7. Operation manual / Connection……………………………………………………………………………………. 8
7.1 Driver Board Manual 8
8. Pin Description……………………………………………………………………………………………………….. 9-11
8.1 J105：Pin Assignment of Analog RGB Input ( D-Sub 15Pin) 9
8.2 J103: Pin Assignment of UART (Pitch 1.25mm 4Pin, Top Entry Type) 9
8.3 DC JACK: Pin Assignment of Power Input (Inside Diameter:2.1ψOutside Diameter:5.5ψSide Entry Type) 10
8.4 RCA: Pin Assignment of Video Input (RCA JACK Yellow, Side Entry Type) 10
8.5 J402：Pin Assignment of Touch USB (USBA-Female, Side Entry Type )(Option) 10
8.6 J404：Pin Assignment of Touch RS232 (D-SUB 9 FEMALE)(Option) 10
8.7 J102：Pin Assignment of Analog RGB Input (Pitch 2.0mm 14Pin, Side Entry Type) 11
8.8 J101：Pin Assignment of Signal Input (Pitch 1.25mm 8Pin, Side Entry Type) 11
8.9 J401：Pin Assignment of Touch (Pitch 2.0mm 4Pin, Side Entry Type) 11
9. Absolute Maximum Ratings………………………………………………………………………………...………... 12
9.1 Absolute Maximum Ratings 12
10. Recommended Operating Conditions……………………………………………………………………...………. 12
10.1 Electrical Characteristics 12
10.2 Support Display Mode Characteristics 12
11. 4W Resistance Touch Panel Characteristics………….………………………….………………………………… 13-16
11.1 Electrical Performance 13
11.2 Mechanical Performance 13
11.3 Durability Performance 13
11.4 Touch Panel Operation System Support 14
11.5 Touch Screen Integration Design Guide 15
11.6 Mechanical Design Notice For Touch Panel 16
12. Key Function by OSD………………………………………………………………………………………………. 17-21
FCOP430-TR-v1 2021 03 18 V1.2
P.3
12.1 Menu Operation 17-21
13. Dimension Information……………………………………………………………………………………………. 22
22
13.1Unit (FCOP430-TR-v1)
14. Appendix………………………………………………………………………………….………………………… 23-29
14.1 TFT-LCD Mechanical Specifications 23
23
24
25
26
27
28
14.2 TFT-LCD Optical Characteristics
14.3 Application Circuit
14.4 Application Circuit
14.5 (Option)
14.6 (Option)
14.7 Cable: 8P-8P 1.25mm L:100mm (Option)
14.8 Cable: 14P-14P 2.0mm L:110mm (Option) 29
FCOP430-TR-v1 2021 03 18 V1.2
P.4
3. Specifications
4. Block Diagram
LCD Input Signal
Panel Size 4.3” CVBS RCA JACK
Resolution (Pixels) 480x272 VGA D-Sub15
Color 16.2M Controls
Luminance without TP 500 cd/m2Key 5 Buttons
Luminance (RTP) 400 cd/m2Serial Remote Control UART / RS232 (Option)
Contrast Ratio 500 Environment
Viewing Angle 70(L) / 70(R) / 50(T) / 70(B) Without TP 4W RTP
LED Life Time (Min.) 20K hours Operating Temp. -20~+70℃-20~+70℃
Power Requirement Storage Temp. -20~+70℃-20~+70℃
Power Input (DC Jack 2.1ψ)+12VDC High Temperature &
High Humidity (Non-condensing) +60℃/ 90% +60℃/ 90%
Power Consumption 2.28
Touch Screen
Resistive Type USB / RS232 Interface
Resistive Type Support OS Windows / Linux / DOS / Mac / QNX
FCOP430-TR-v1 2021 03 18 V1.2
P.5
5. Order Information
5.1 Unit
Item FCOP430-TR-v1 Unit Remark
CVBS ◎
Power Connector
(Dc Jack/CON. 1.25mm 8Pin) Dc Jack
VGA
(D-Sub15/CON. 2.0mm 14Pin) D-Sub15
Touch Panel Type 4W Resistive
Touch Screen Interface USB
Serial Remote Control UART
Dimension 118.5 x 69 x 20.4 mm
Weight 135.5
g ±10%
Condition Standard
Note: 1.The assembling of panel and bracket is aimed for delivery, packaging and experiment. If the demand of shockproof and long-term fix, pls
have it into consideration of mechanism design.
FCOP430-TR-v1 2021 03 18 V1.2
P.6
5.2 Customized
Note: Special order condition will apply to non-standard items and pls. contact salespersons in iTech.
5.3 Demo Board (Option)
Demo Board
Part Number Remark
Cable: 8P-8P 1.25mm L:100mm
Function Item
Serial Remote Control RS232 (DB9)
External Key 5 keys
FCOP430-TR-v1 2021 03 18 V1.2
P.7

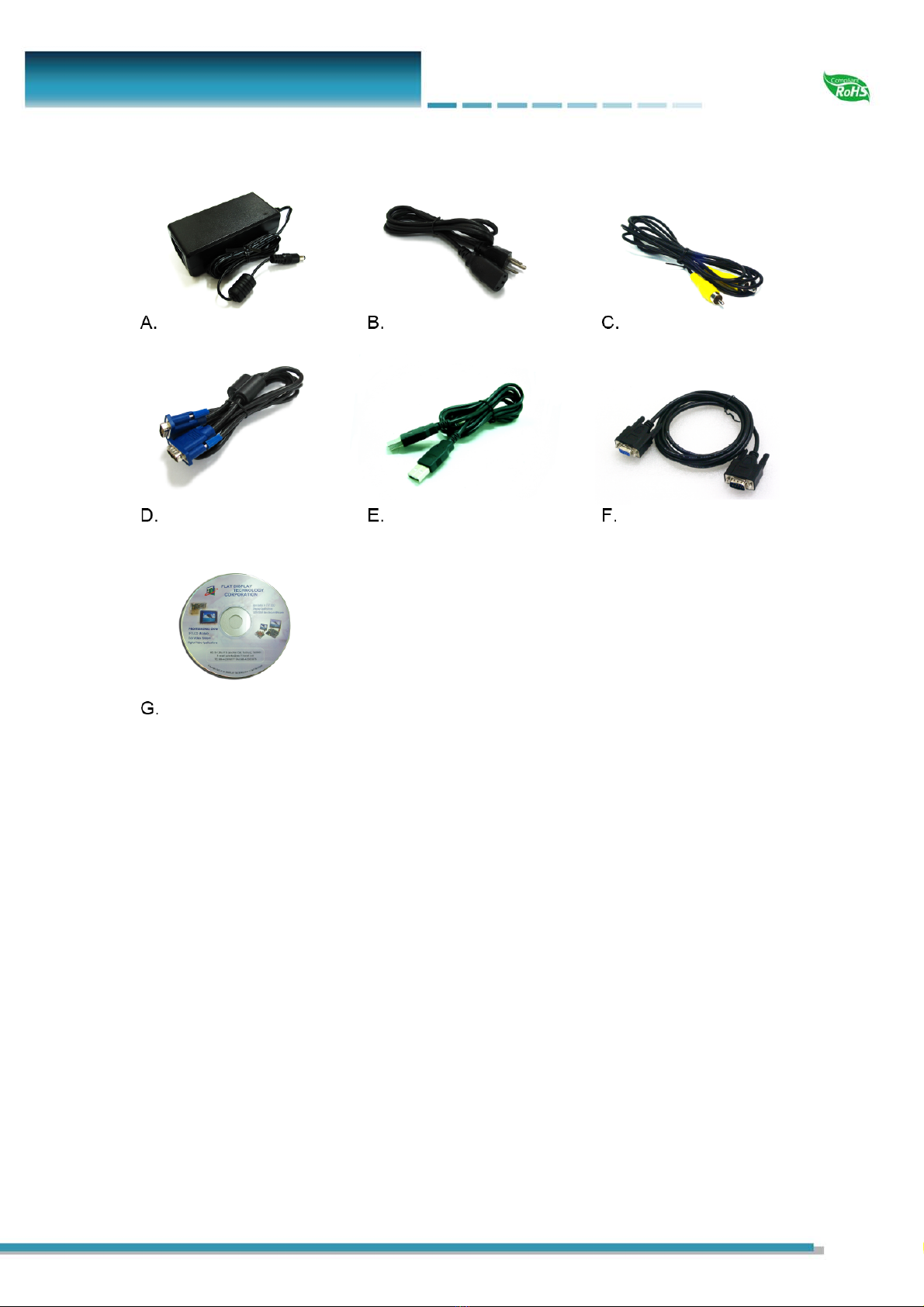

6. Accessories (Option)
Before you begin installing the KIT, please make sure that the following materials have been shipped:
A. AC to DC Adapter (L:1500mm, 100-240VAC 50-60Hz to +12VDC @ 3.3A)
B. Power Cord (L:1800mm, Plug Type B for USA)
C. Video Cable (L:1800mm)
D. VGA Cable (L:1800mm)
E. USB Cable (L:1800mm)
F. RS232 Cable (L:1800mm)
G. Touch Screen Driver CD Disk / User Manual
2021 03 18 V1.2
P.8
FCOP430-TR-v1
7 Operation manual / Connection
7.1 Driver Board Manual
FCOP430-TR-v1 2021 03 18 V1.2
P.9
8. Pin Description
8.1 J105
：
Pin Assignment of Analog RGB Input ( D-Sub 15Pin)
8.2 J103: Pin Assignment of UART (Pitch 1.25mm 4Pin, Top Entry Type)
※Connector Part No.: MS24014 (STM) [Same as 53398-0471 (MOLEX)] ;
※Matching Connector Part No.: P24014 (STM) [Same as 51021-0400 (MOLEX)].
Pin No. Symbol I/O Description Remark
1TX / RS232 TX (Option) O UART / RS232 (Option) Transmission Data
2RX / RS232 RX (Option) I UART / RS232 (Option) Receive Data
3 GND - Ground
4 +3.3Vdc O +3.3Vdc Output Voltage
Note: All Functions can be controlled by UART , About UART command list please contact iTech sales.
Pin No. Symbol I/O Description Remark
1RI+ I Analog Red Signal
2GI+ I Analog Green Signal
3 BI+ I Analog Blue Signal
4 NC - No Connection
5 GND - Ground
6 AGND - Analog Ground
7 AGND - Analog Ground
8 AGND - Analog Ground
9 NC - No Connection
10 NC - No Connection
11 NC - No Connection
12 NC - No Connection
13 HS_IN I TTL Horizontal sync
14 VS_IN I TTL Vertical sync
15 NC - No Connection
