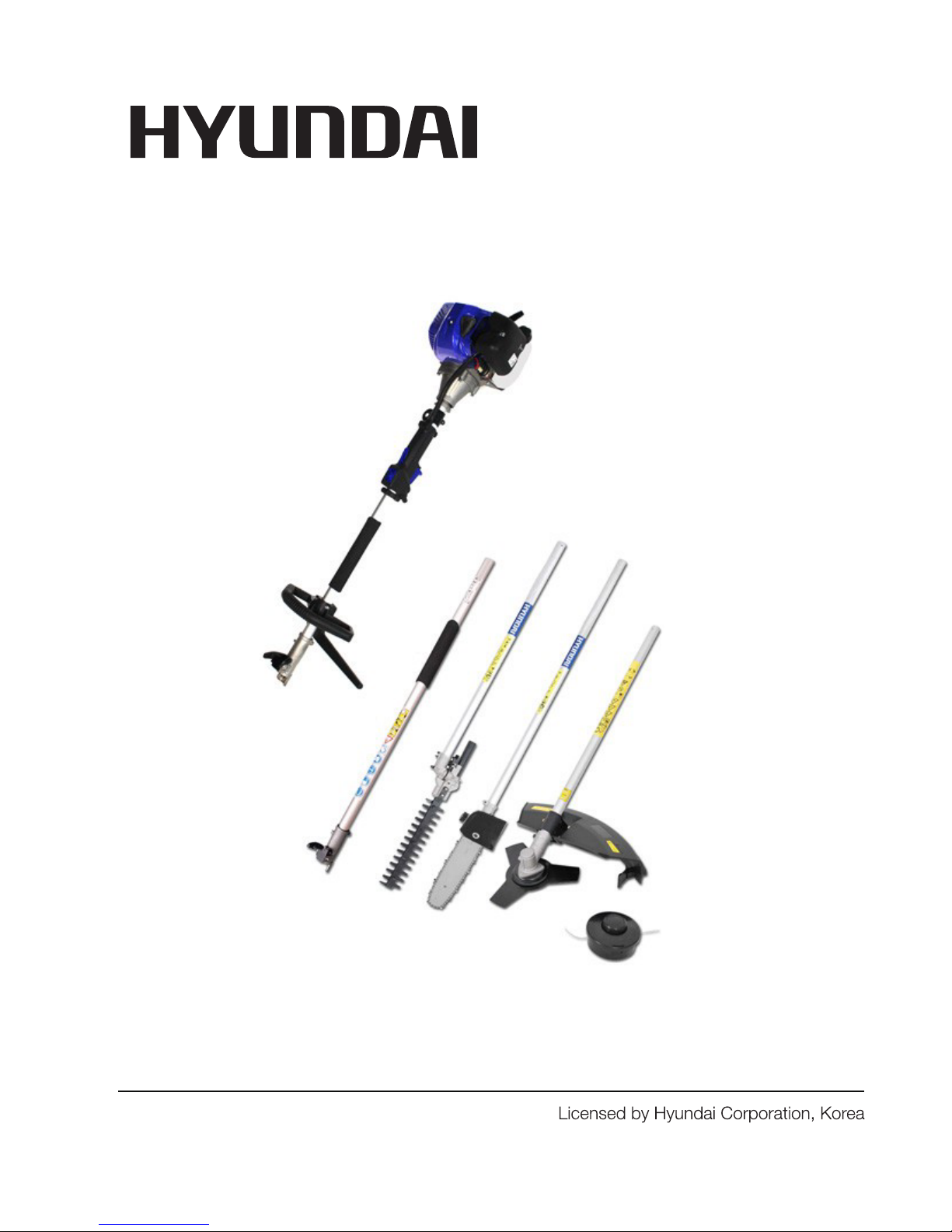

MULTI-TOOL
Model HYMT33
User Manual
CONTENTS
1. SAFETY 3 - 5
2. THE UNIT 5 - 7
3. ASSEMBLY AND INITIAL OPERATION 8 - 10
4. OPERATION 11 - 14
5. INSPECTION & MAINTENANCE 14 - 15
6. TRANSPORTATION & STORAGE 16
7. TECHNICAL DATA 17 - 18
8. TROUBLESHOOTING 19
9. DECLARATION OF CONFORMITY 20
Page 2
Ver 2
1. SAFETY
1.1 The operator of the machine is responsible for and has a duty of care in making sure that
the machine is operated safely and in accordance with the instructions in this user manual.
Please note the following safety points
1.1.2 The machine should never be left it in a condition which would allow
an untrained or unauthorised person/s to operate this machine.
1.1.3 All due care and diligence should be taken by the operator for the safety of and
with regard to those around whilst using the machine
1.2 Some or all of the following PPE, Warning Signs and symbols may appear throughout this
manual and you must adhere to their warning/s. Failure to do so may result in personal
injury.
Warning Signs and Symbols –FOLLOW safety messages to avoid or reduce risk of injury or death.
DANGER - indicates a
hazard which if not
avoided could result in
serious injury or death.
WARNING - indicates a
hazard which if not
avoided could result in
serious injury or death.
CAUTION - indicates a
hazard which if not
avoided might result
in minor or moderate
injury.
NOTE - indicates a
situation that could
easily result in
equipment damage.
READ MANUAL
KEEP BYSTANDERS AWAY
KEEP BYSTANDERS 15 m AWAY
TAKE CARE OF OVERHEAD
POWER LINES
PROTECT FROM DRAIN & DAMP
KEEP NAKED FLAMES AWAY
FROM FUEL
BE AWARE OF THROWN
OBJECTS
TAKE CARE OF THROWN
OBJECTS
ROTATING CUTTING
BLADES
EC STANDARDS
COMPLIANT
Page 3
Ver 2
1.3 Carbon monoxide.
1.3.1 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can
cause death as well as serious long term health problems such as brain damage.
1.3.2 The symptoms of Carbon monoxide poisoning can include but not limited to the following;
1.3.2.1 Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
1.3.2.2 Carbon monoxide symptoms are similar to flu, food poisoning, viral infections and
simply tiredness. It is quite common for people to mistake this very dangerous poisoning
for something else.
1.3.3 To avoid Carbon monoxide poisoning DO NOT Use Petrol/Diesel powered equipment inside
a home, garage, tent, camper van, mobile home, caravan or boat. The list is not exhaustive if
you are in any doubt contact your dealer.
1.3.4 If you think you or someone around you has been affected by carbon monoxide poisoning;
1.3.4.1 Get fresh air immediately, by opening doors and windows, turning off the machine
and leaving the affected area.
1.3.4.2 See your doctor immediately or go to hospital - let them know that you suspect
carbon monoxide poisoning.
1.3.5 DO NOT use in an enclosed area or a moving vehicle.
1.4 General fuel safety.
1.4.1 Fuel Safety additional information can be obtained from the Health and Safety Executive.
1.4.2 All fuels are flammable.
1.4.3 Keep away from all ignition sources i.e. heaters, lamps, sparks from grinding or welding.
1.4.4 Hot work on tanks that have contained fuel is extremely dangerous and should not be
carried out.
1.4.5 Keep work area clean and tidy.
1.4.6 Clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin.
1.4.7 Dispose of waste fuels correctly.
Page 4
Ver 2
1.4.7 Dispose of waste fuels correctly.
1.4.8 Petrol safety.
1.4.8.1 Always fuel and defuel in well-ventilated area.
1.4.8.2 Always wear correct, suitable and fit for purpose Personal Protective
Equipment (PPE), suggested items are as follows, but are not limited too.
1.4.8.3
1.4.8.4
1.4.8.5
Respiratory protective equipment should be used when in an
unventilated area.
1.4.8.6 When defueling always use a propriety fuel retriever.
1.4.8.7 Always carry fuel in the correct and clearly marked container.
1.5 Additional Safety guide-lines
1.5.1 To prevent fire.
1.5.1.1 Never add fuel to the fuel tank whilst the engine is running. Wipe away any
spilt fuel or oil with a clean cloth before operating. Keep explosives and any other
flammable products away from the machine at all times.
1.5.2 To prevent inhaling exhaust fumes.
1.5.2.1 Exhaust gas contains poisonous carbon monoxide which is harmful to health
and can kill.
1.5.2.2 For this reason, never use the machine in anenclosed area or areas with
poor ventilation
.
1.5.3 To prevent burns.
1.5.3.1 The muffler and the engine body becomes very hot whilst the engine is
running or just after running.
1.5.3.2 To prevent any burns, DO NOT touch these parts during these times.
Page 5
Ver 2
2. THE UNIT
2.1 PPower unit.
2.1.1 The unit is a universal combination set enabling perfect care of the garden and
hedges and lop trees.
1. SStarting handle 2. Air filter 33. Throttle lockkout 4. Stop switch 5. Front handle
6. Unit locking screw 7. Throttle lockk 8. Throttle trigger 9. Fuel tankk 10. Choke lever
11.PPrimer bulbb 12. Exhaust 13. Fuel tank cap 14. Sparkk plug
2.2 Extension
1. Extension locking hole 2. Extension 3. Incorporated tool connection
2.3 Pole saw
1. Locking hole 2. Automatic oil pump 3.PPole saw chain
4. Pole saw chain bar
Page 6
Ver 2
2.4 Articulating hedge trimmer
1. Pole saw locking hole 2. Automatic oil pump 3. Adjusting lever lockk
4. Cutting unit adjusting lever 135 degrees35°
2.5 Brush cutter
1. Locking hole 2. Guard 33.Cutting blade
2.6 Grass trimmer
1. Locking hole 2. Guard 3. Cutting cord
Page 7
Ver 2
33.ASSEMBLY AND INITIAL OPERATION
3.1 Ppower unit.
1. Front handle 2. SScrew 5mm x 35mm 3. Nut M55 4. Cover
5. Front handle bar 6. SScrew 4.2mm x 9.5mm
3.1.1 Install the front handle as shown in the diagrams. DO NOT tighten the
screws until you have set the perfect working position with the carrying strap.
The front handle should be aligned as show in 'Power unit' diagram.
Make sure to use the rubber sleeve (7) between the two halves of the
handle/cover. NOTE DO NOT fit handle over the foam grip.
33.2 Brush cutter and grass trimmer.
7.Rubber sleeve
Page 8
Ver 2
3.3 Hedge trimmer.
3.4 Pole saw.
Page 9
Ver 2
3.5 Fuel information.
33.5.1 Refuelling:
3.5.1.1 For air-cooled 2-stroke engines,mix unleaded petrol thoroughly with
synthetic 2-stroke oil at 40:1 ratio or mineral 2-stroke oil at 20:1 ratio.
Tip: Always prepare 1 litre of the mix at a time because the mix turns unusable
after prolonged storage. Take care of fire.
Warning: PPetrol is highly flammable.
33.5.2 Take the following precautions:
3.5.2.1 Store fuel in containers specifically designed for this purpose.
3.5.2.2 Refuel outdoors only and DO NOT smoke while refuelling.
3.5.2.3 Add fuel before starting the engine. Never remove the cap of the
fuel tank or add petrol while the engine is running or when the engine is hot.
3.5.2.4 Avoid spillages: if petrol is spilled, DO NOT attempt to start the
engine but move the machine away from the area of spillage and avoid
creating any source of ignition until petrol vapours have dissipated.
3.5.2.5 On completion of fuelling tighten all fuel tank and fuel container caps
securely.
DO NOT this machine in an enclosed are or moving vehicle
Page 10
