Hyundai L19A00001 Manuel utilisateur
FCC ID : PJIL19A00001
HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD.
SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA
TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr
Report No. : HCT-FO5-0905 1/1
ATTACHMENT E.
- USER’S MANUAL -
NEXT
User’s Guide
Type No. L17A00000 / L19A00000
Model. L17T/L19T
TFT LCD Color Multi Function Monitor
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
WE Hyundai ImageQuest CO., LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / September. 09, 2005
BYUNG SUHN, AHN
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY
Kind of equipment : LCD MONITOR
Type-Designation : L17A00000 / L19A00000
Safety : EN60950-1:2002
EMC : EN 55013:2001+A1:2003
EN 55020 :2002+A1:2003
EN 55022 :1998+A1:2000+A2:2003
EN 55024 :1998+A1:2001+A2:2003
EN 61000-3-2:2000
EN 61000-3-3:1995+A1:2001
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln
L17T/L19T
TFT LCD Color Multi Function Monitor
Contents 1. Introduction ...................................1/35
2. Safety Information ........................1/35
3. Installing the monitor ...................4/35
3-1. Packing List .........................................4/35
3-2. Selecting a suitable location ..............5/35
3-3. Connecting the monitor .....................5/35
3-4. Connecting the TV ..............................5/35
3-5. Setting the refresh rate ......................8/35
Preset Timing Table ............................9/35
3-6. User’s Environment ...........................10/35
4. Adjusting the picture(Monitor) .12/35
4-1. Using the On Screen Display ...........13/35
4-2. Direct access buttons .......................13/35
4-3. OSD Adjustments .............................14/35
5. Adjusting the picture(TV) ...........17/35
5-1. Direct access buttons .......................17/35
5-2. OSD Adjustments .............................18/35
6. TV Functions ................................21/35
7. Display power management ......29/35
Reducing power consumption ..............29/35
8. Troubleshooting ..........................31/35
9. Specifications ..............................34/35
L17T/L19T
TFT LCD Color Multi Function Monitor
1. Introduction
2. Safety Information
1/35
This manual contains instructions for installing and operating
Hyundai ImageQuest L17T/L19T.
Hyundai ImageQuest L17T/L19T is a highly ergonomic color display unit.
• 17"/19” viewable SXGA LCD
• High quality screen re-scaling capability
• 100-240V AC input voltage, DC 12V 3.5A Adapter
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Fast and accurate auto adjustment
• Most advanced image scaling
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind
the following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material or touch them with metallic or
inflammable materials.
L17T/L19T
TFT LCD Color Multi Function Monitor
2/35
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the
power cord into the socket. Make sure that the power
cord and the other cords are securely and rightly
connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken
plugs, which may cause electric shock or fire. Call
your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use any solvent, such as benzene, to clean the
monitor, as it will damage the LCD surface.
L17T/L19T
TFT LCD Color Multi Function Monitor
Cleaning and Maintenance
• To avoid risk from electric shock, do not disassemble the cabinet of the unit.
The unit is not user-serviceable. Remember to unplug the unit from the power
outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with sponge/cloth that could scratch the surface.
• To clean your antistatic screen, use water and special microfiber-screen-
cleaning tissue-used in optical lens cleaning, or a lightly dampened piece of
soft, clean cloth with water or mild detergent.
• If the instructions above do not help in removing stains, contact an authorized
service agent.
3/35
L17T/L19T
TFT LCD Color Multi Function Monitor
4/35

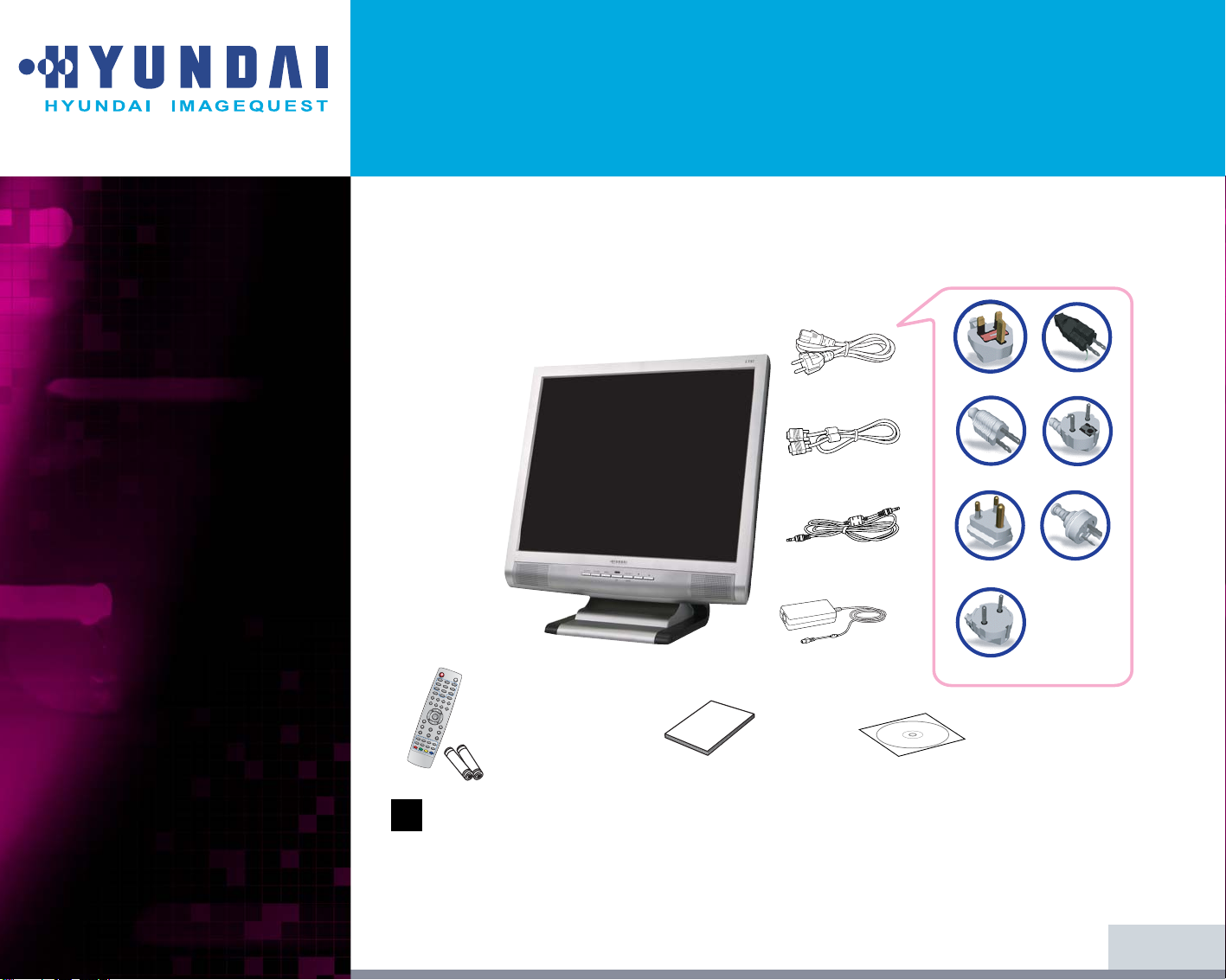

The following items should be found in the package.
The power cord above can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
Other power cord’s except the original packed in the product especially cards
longer than 3m may affect EMC of the product in operating condition.
3. Installing the
monitor
3-1. Packing List
!
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
12
0
3
4
7
5
8
6
9
MUTE
P-CHEDIT PRE,P
–
CH
PCS-VIDEOVIDEOT
V
SOURCEINFOAIR/CABLESEARCH
VOLEXIT P-CHANNEL
AUTOBRIGHTNESSCONTRAST
POWER
TTX/MIX LIST/FLOFSTOREHOLD
SIZEREVEALSUBPAGEINDEX
MENU
Power Cord
Signal Cable
Audio Cable
Compact Disc
Remote Conrtol wuth
Batteries(AAA x 2) Installation
Guide
AC/DC Power
adapter
L17T/L19T
TFT LCD Color Multi Function Monitor
5/35
3-2. Selecting a suitable
location
3-3. Connecting the
monitor
• Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
• Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
• To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
•
Position the monitor so that the top of the screen is no higher than the eye level.
• Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)

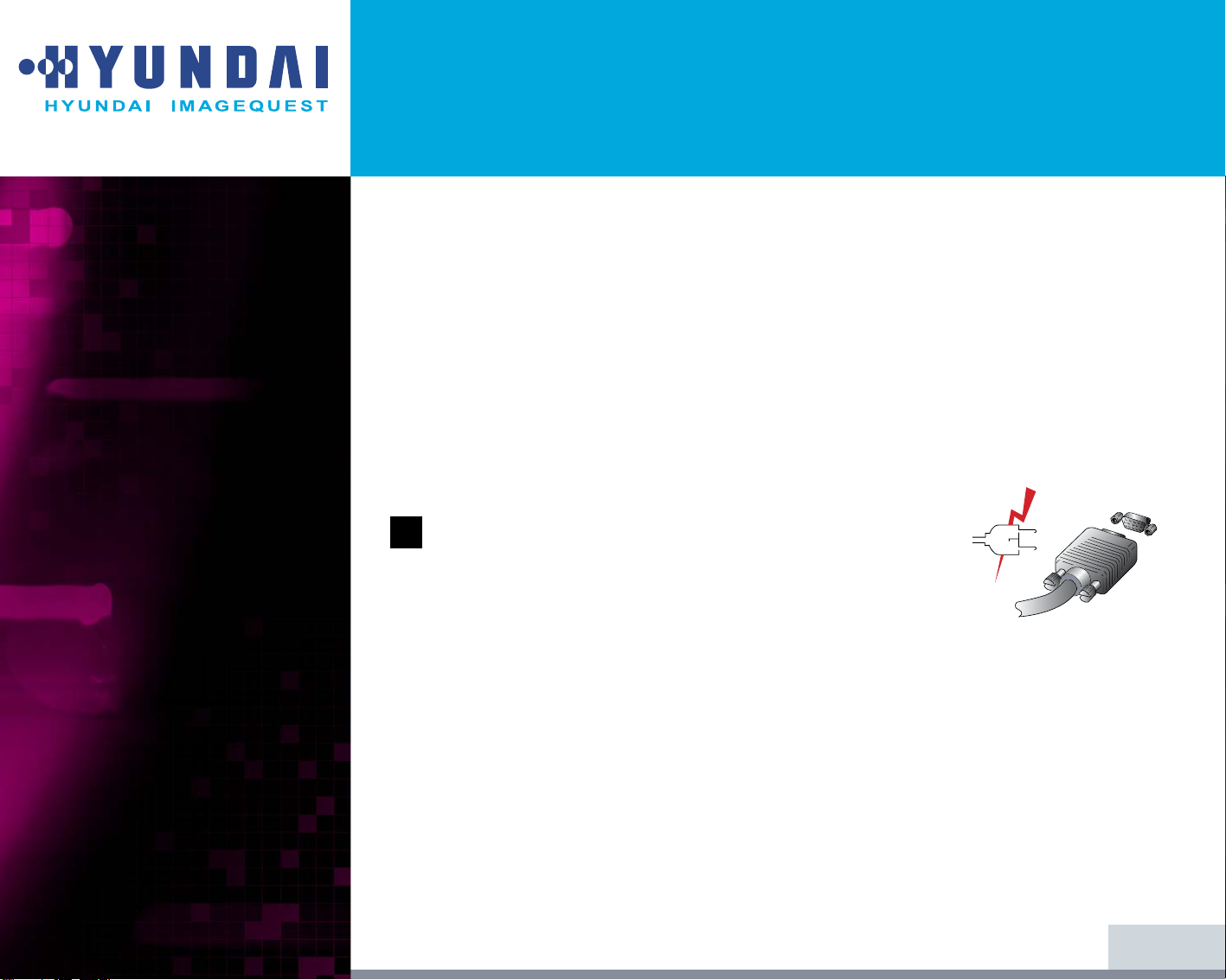

Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.
1. Insert the other 15-pin signal cable connector into the 15-pin VGA connection
on your computer and screw it.
2. Plug the power cord connection to the connection on the monitor.
3. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
4. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
5. Turn on the power of the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.
!!
