Hytronik HIR23/D2 Guide rapide

Installation and Instruction Manual

2. Installation

1. Ceiling (drill hole φ66~68mm)

2. Carefully prise off the cable clamps.

3. Make connections to the pluggable

terminal blocks.

4. Insert plug connectors and secure using

the provided cable clamps, then clip

terminal covers to the base.

5. Fit detection blind (if required) and

desired lens.

6. Clip fascia to body.

7. Bend back springs and insert into ceiling.

Mechanical Structure & Dimensions

HIR23/D2 HIR23/D2/R

HIR23/D2/W HIR23/D2/H HIR23/D2/RH

HIR23/D2-20220106-A0

1. Technical Speciﬁcations

PIR Motion Sensor

DALI

* Install blind as required

A B

75.2

70.5

62.2

Ø 78

Ø 66~68mm

* Install lens as required

1 2 3

EMC standard (EMC)

DALI

Certiﬁcation

EN55015, EN61000, EN61547

CE , REACH, UKCA, RCM, ROHS

compliance

IEC60386-101, 103, 303, 304

RED EN300328, EN301489-1/-17

Operation temperature

Ta: -20

ºC

~ +50

ºC

IP20IP rating

Operating voltage

Red LED ﬂashes 15SIdentify device

5sWarming-up

9.5~22.5VDC

Consumption DALI

BUS current

Max. 10 mA(no LED)

Max. 12 mA(with LED)

< 1000 lux

360º

PIR detectionSensor Model

HIR23/D2/H

Lux reading range

Detection angle

Installation height：15m (forklift)

12m (person)

Detection range (Ø)：24m

HIR23/D2

Installation Height : 6m

Detection Range(Ø) :9m

HIR23/D2/R

Installation Height : 6m

Detection Range(Ø) :10m

HIR23/D2/RH

Installation height：20m (forklift)

12m (person)

Detection range (Ø)：40m

HIR23/D2/W

Installation Height : 6m

Detection Range(Ø) :18m

HIR23/D2-20220106-A0

Subject to change without notice.

Wire Preparation

Pluggable screw terminal. It is recommended to make

connections to the terminal before ﬁtting to the sensor.

0.75 - 2.5mm

7-8mm

Wiring Diagram

DALI Driver

DALIDALI

HIR23/D2

DALI power

supply

DALI Driver

DALI-2 Multi-Master-

Application-Controller

Note: HIR23/D2 has been used as DALI-2 input device to only report DALI instance (light sensor instance and motion sensor instance) to DALI-2 application controller, who is the “main brain” to process the

data communication between input devices and the control gear and assign different function.

Big and small silicon gasket used to make IP65 degree protection when HIR23/D2 series device mounted into HA03 housing for ceiling mount

small silicon water-proof gasket dimension(size:mm) big silicon water-proof gasket dimension(size:mm)

HIR23/D2-20220106-A0

Subject to change without notice.

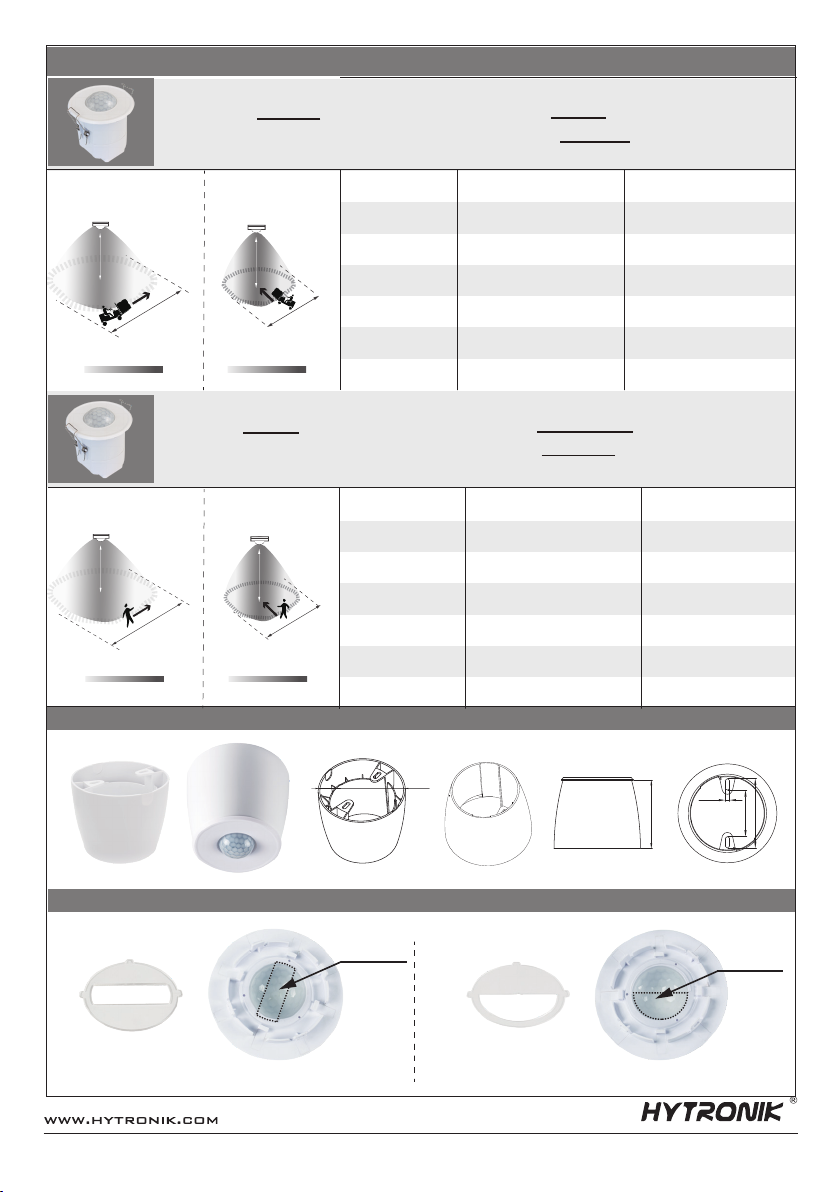

3. Detection Pattern & Optional Accessories

Radial (B)

Tangential (A)

2.5m

Mount height

insensitive sensitive insensitive sensitive

A: Tangential movement

Tangential: max. 9m

h = max.6m

B: Radial movement

Radial: max. 4m

h = max.6m

HIR23/D2: Low-bay ﬂat lens detection pattern for single person @ Ta = 20ºC

(Recommended ceiling mount installation height 2.5m-6m)

max 64m

(Ø = 9m) max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

max 50m

(Ø = 8m)

max 38m

(Ø = 7m)

max 38m

(Ø = 7m)

max 38m

(Ø = 7m)

Optional Accessory --- Ceiling/Surface Mount Box: HA03

1. HIR23/D2 (Low-bay)

Valid Range

Blind Option 1 --- Aisle Detection

Optional Accessory --- Blind Insert for Blocking Certain Detection Angles

Ø 94

Blind Option 2 --- 180º Detection

Valid Range

4.2

HIR23/D2-20220106-A0

Subject to change without notice.

Radial (B)

Tangential (A)

2.5m

Mount height

HIR23/D2/R: Low-bay convex lens detection pattern for single person @ Ta = 20ºC

(Recommended ceiling mount installation height 2.5m-6m)

max 79m

(Ø = 10m)

max 79m

(Ø = 10m)

max 64m

(Ø = 9m)

max 50m

(Ø = 8m)

max 50m

(Ø = 8m)

max 20m

(Ø = 5m)

max 20m

(Ø = 5m)

max 20m

(Ø = 5m)

max 20m

(Ø = 5m)

max 20m

(Ø = 5m)

2. HIR23/D2/R (Reinforced Low-bay)

A: Tangential movement

Tangential: max. 10m

h = max.6m

B: Radial movement

Radial: max. 5m

h = max.6m

Optional Accessory --- Ceiling/Surface Mount Box: HA03

Optional Accessory --- Blind Insert for Blocking Certain Detection Angles

Ø 94

Valid Range

Blind Option 1 --- Aisle Detection Blind Option 2 --- 180º Detection

Valid Range

insensitive sensitive insensitive sensitive

4.2

HIR23/D2-20220106-A0

Subject to change without notice.

Radial (B)

Tangential (A)

2.5m

Mount height

HIR23/D2/W: Low-bay convex lens detection pattern for single person @ Ta = 20ºC

(Recommended ceiling mount installation height 2.5m-6m)

max 254m² (Ø = 18m)

max 154m² (Ø = 14m)

max 113m² (Ø = 12m)

max 79m² (Ø = 10m)

max 28m² (Ø = 6m)

max 13m² (Ø = 4m)

3. HIR23/D2/W (Wide range Low-bay)

A: Tangential movement

Tangential: max. 18m

h = max.6m

B: Radial movement

Radial: max. 6m

h = max.6m

Ceiling/Surface Mount Accessory HA03: Default IP20, IP65 can be request with extra big & small water-proof gaskets

insensitive sensitive insensitive sensitive

HIR23/D2-20220106-A0

Subject to change without notice.

4. HIR23/D2/H (High-bay)

Radial (B)

Tangential (A)

10m

Mount height

14m

15m

13m

12m

11m max 452m

(Ø = 24m)

max 380m

(Ø = 22m)

max 452m

(Ø = 24m)

max 452m

(Ø = 24m)

max 452m

(Ø = 24m)

max 452m

(Ø = 24m)

max 201m

(Ø = 16m)

max 201m

(Ø = 16m)

max 201m

(Ø = 16m)

max 177m

(Ø = 15m)

max 133m

(Ø = 13m)

max 113m

(Ø = 12m)

A: Tangential movement

Tangential: max. 24m

h = max.15m

B: Radial movement

Radial: max. 16m

h = max.15m

HIR23/D2/H: High-bay lens detection pattern for forklift @ Ta = 20ºC

(Recommended ceiling mount installation height 10m-15m)

insensitive sensitive insensitive sensitive

Blind Option 1 --- Aisle Detection Blind Option 2 --- 180º Detection

Tangential: max. 20m

h = max.12m

Radial: max. 3m

h = max.12m

Optional Accessory --- Ceiling/Surface Mount Box: HA03

Optional Accessory --- Blind Insert for Blocking Certain Detection Angles

Valid Range Valid Range

Radial (B)

Tangential (A)

2.5m

Mount height

11m

12m

10m

6m max 104m

(Ø = 11.5m)

max 50m

(Ø = 8m)

max 154m

(Ø = 14m)

max 227m

(Ø = 17m)

max 269m

(Ø = 18.5m)

max 314m

(Ø = 20m)

max 7m

(Ø = 3m)

max 7m

(Ø = 3m)

max 7m

(Ø = 3m)

max 7m

(Ø = 3m)

max 7m² (Ø = 3m)

A: Tangential movement B: Radial movement

HIR23/D2/H: High-bay lens detection pattern for single person @ Ta = 20ºC

(Recommended ceiling mount installation height 2.5m-12m)

insensitive sensitive insensitive sensitive

Ø 94

4.2

HIR23/D2-20220106-A0

Subject to change without notice.

4. Additional Information / Documents

Radial (B)

Tangential (A)

10m

Mount height

14m

15m

13m

12m

11m

max 907m

(Ø = 34m)

max 962m

(Ø = 35m)

max 1075m

(Ø = 37m)

max 660m

(Ø = 29m)

max 346m

(Ø = 21m)

max 1256m

(Ø = 40m)

max 154m

(Ø = 14m)

max 177m

(Ø = 15m)

max 177m

(Ø = 15m)

max 154m

(Ø = 14m)

max 113m

(Ø = 12m)

max 113m

(Ø = 12m)

HIR23/D2/RH: Reinforced high-bay lens detection pattern for forklift @ Ta = 20ºC

(Recommended ceiling mount installation height 10m-15m)

5. HIR23/D2/RH (Reinforced High-bay with 3-Pyro)

A: Tangential movement

Tangential: max. 40m

h = max.20m

insensitive sensitive

B: Radial movement

Radial: max. 15m

h = max.20m

insensitive sensitive

Tangential: max. 30m

h = max.12m

Radial: max. 4m

h = max.12m

Radial (B)

Tangential (A)

2.5m

Mount height

11m

12m

10m

6m max 154m

(Ø = 14m)

max 38m

(Ø = 7m)

max 314m

(Ø = 20m)

max 531m

(Ø = 26m)

max 615m

(Ø = 28m)

max 707m

(Ø = 30m)

max 7m

(Ø = 3m)

max 7m

(Ø = 3m)

max 7m

(Ø = 3m)

max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

max 13m

(Ø = 4m)

A: Tangential movement B: Radial movement

HIR23/D2/RH: Reinforced high-bay lens detection pattern for single person @ Ta = 20OC

(Recommended ceiling mount installation height 2.5m-12m)

insensitive sensitive insensitive sensitive

Optional Accessory --- Ceiling/Surface Mount Box: HA03

Ø 94

4.2

20m max 707m2 (Ø = 30m) max 113m2 (Ø = 12m)

1. Regarding precautions for PIR Sensors installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation

2. Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/Motion Sensors ->Stand-alone Sensors

3. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
