HYT TM-600 Manuel utilisateur

TM-600 Mobile Radio

Contents

Revision History ................................................................................................................2

Introduction........................................................................................................................3

Safety Information .............................................................................................................3

Radio Overview..................................................................................................................5

Software Specification ......................................................................................................7

Circuit Description...........................................................................................................17

Semiconductor Data ........................................................................................................22

Component Description ..................................................................................................27

TM-600 Parts List 1 ..........................................................................................................28

Tuning Description ..........................................................................................................92

Terminal Function ..........................................................................................................104

Troubleshooting Flow Chart .........................................................................................107

Disassembly and Reassembly for Repair.................................................................... 111

Exploded View ...............................................................................................................114

TM-600 Parts List 2 ........................................................................................................ 115

Packing ........................................................................................................................... 116

TM-600 PCB View........................................................................................................... 117

TM-600 Block Diagram ..................................................................................................126

TM-600 Schematic Diagram ..........................................................................................127

Specifications ................................................................................................................141

TM-600 Mobile Radio

Revision History

Version Date Contents Revised

8130M60000000 January, 2007 Initial Release

8130M60000010 March, 2008 The following information is updated/added:

1. New frequency ranges (470-520MHz 350-400MHz

440-470MHz) are added.

2. Tuning Description, Parts List 1, Schematic Diagram and

PCB View are updated.

3. Definition of J503 (further expansion port) is added.

4. Parts List 2 and Exploded View are updated.

5. Function key, tuning item and initial frequency of each

channel are added.

8130M60000020 August, 2009 The following information is updated/added:

1. Parts List 1, Schematic Diagram and PCB View are

updated.

2. Definition of J503 (further expansion port) is updated.

3. Tuning Description is updated.

4. DI and reset circuits are added for U1-U4.

TM-600 Mobile Radio

Introduction

Manual Scope

This manual is intended for use by experienced technicians familiar with similar types of communication

equipment. It contains all service information required for the equipment and is current as of the

publication date.

Safety Information

The following safety precautions shall always be observed during operation, service and repair of this

equipment.

zThis equipment shall be serviced by qualified technicians only.

zDo not modify the radio for any reason.

zUse only HYT supplied or approved antenna.

zGain of antenna must not exceed 3dBi for VHF or 5.5dBi for UHF.

zMobile antenna Installation: Install the mobile antenna at least 82cm (32 inches) away from your

body, in accordance with the requirements of the antenna manufacturer/supplier.

zTransmit only when people inside and outside the vehicle are at least the minimum distance away

from a properly installed, externally mounted antenna.

zMobile antenna substitution: Don’t substitute HYT supplied or approved antenna, or excessive radio

frequency radiation will result. Please contact your dealer or the manufacturer for further

instructions.

zPlease make sure there’s no stress on the antenna joint during transportation or installation.

zTo avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any area

where posted notices instruct you to do so. Hospital or health facilities may be using equipment that

is sensitive to external RF energy.

zFor vehicles with an air bag, do not place a radio in the area over an air bag or in the air bag

deployment area.

zTurn off your radio prior to entering any area with explosive and flammable materials.

zDo not expose the radio to direct sunlight over a long time, nor place it close to heating source.

TM-600 Mobile Radio

▇Operation Guidelines

For vehicles equipped with electronic anti-skid braking systems, electronic ignition systems or electronic

fuel injection systems, interferences may occur during radio transmission. If the foregoing electronic

equipments are installed on your vehicle, please contact your dealer for further assistance to make sure

that radio transmission will not interfere with these equipments.

For radio installation in vehicles fueled by LP gas with LP gas container within interior of the vehicles, the

following precautions are recommended for personal safety.

1. Any space containing radio equipment shall be isolated by a seal from the space in which the LP gas

container and its fittings are located.

2. Remote (outside) fitting connections shall be used.

3. Good ventilation is required for the container space.

▇Installation Guidelines

zVehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid if

the minimum safe distance is observed.

zDo not mount the mobile radio overhead or on a sidewall unless you take special precautions.

zIf the mobile radio is not properly installed, road shock could bump the radio loose, and the falling

radio could, in some circumstances, cause serious injury to the driver or a passenger. In case of

vehicle accidents, even when properly installed, the radio could break loose and become a

dangerous projectile.

TM-600 Mobile Radio

Radio Overview

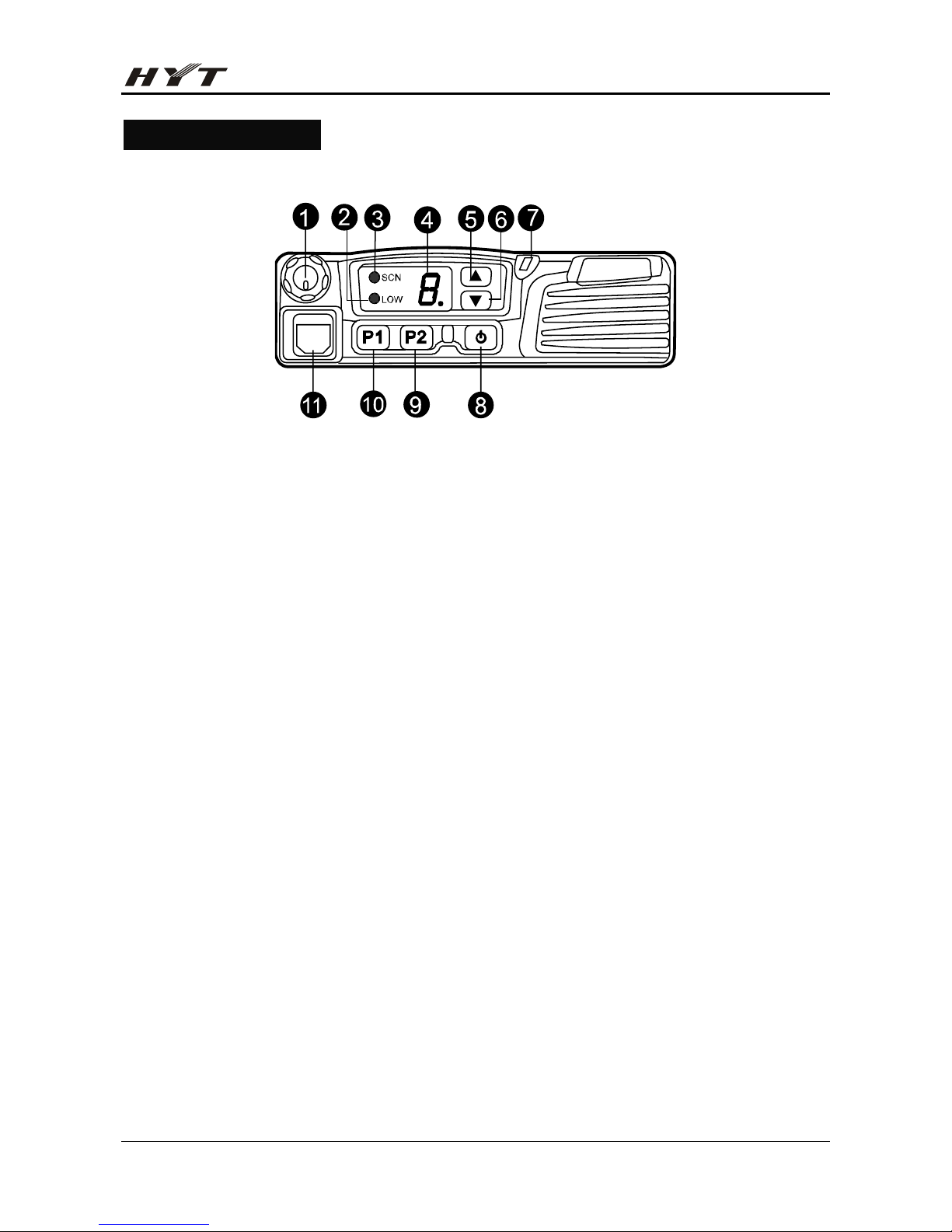

Front Panel View

1) [Volume] Knob

Rotate the knob clockwise to increase the volume, and rotate it counter-clockwise to decrease the

volume.

2) Low Power Indicator

This indicator glows when the radio is at low power.

3) Scan Indicator

This indicator glows when the radio is scanning.

4) 8-segment Numeric LED

Used to display the current channel number, menu, option, etc.

5) [▲]Key

6) [▼]Key

Your dealer can program [▲]/[▼]as shortcuts to various radio features.

7) TX/RX Indicator

This indicator glows red during transmission, and glows green during reception.

8) [Power] Switch

Used to turn the radio on/off.

9) [P2] Key

10) [P1] Key

Your dealer can program [P1]/[P2] as shortcuts to various radio features.

11) Microphone Jack

Used to connect the microphone.

TM-600 Mobile Radio

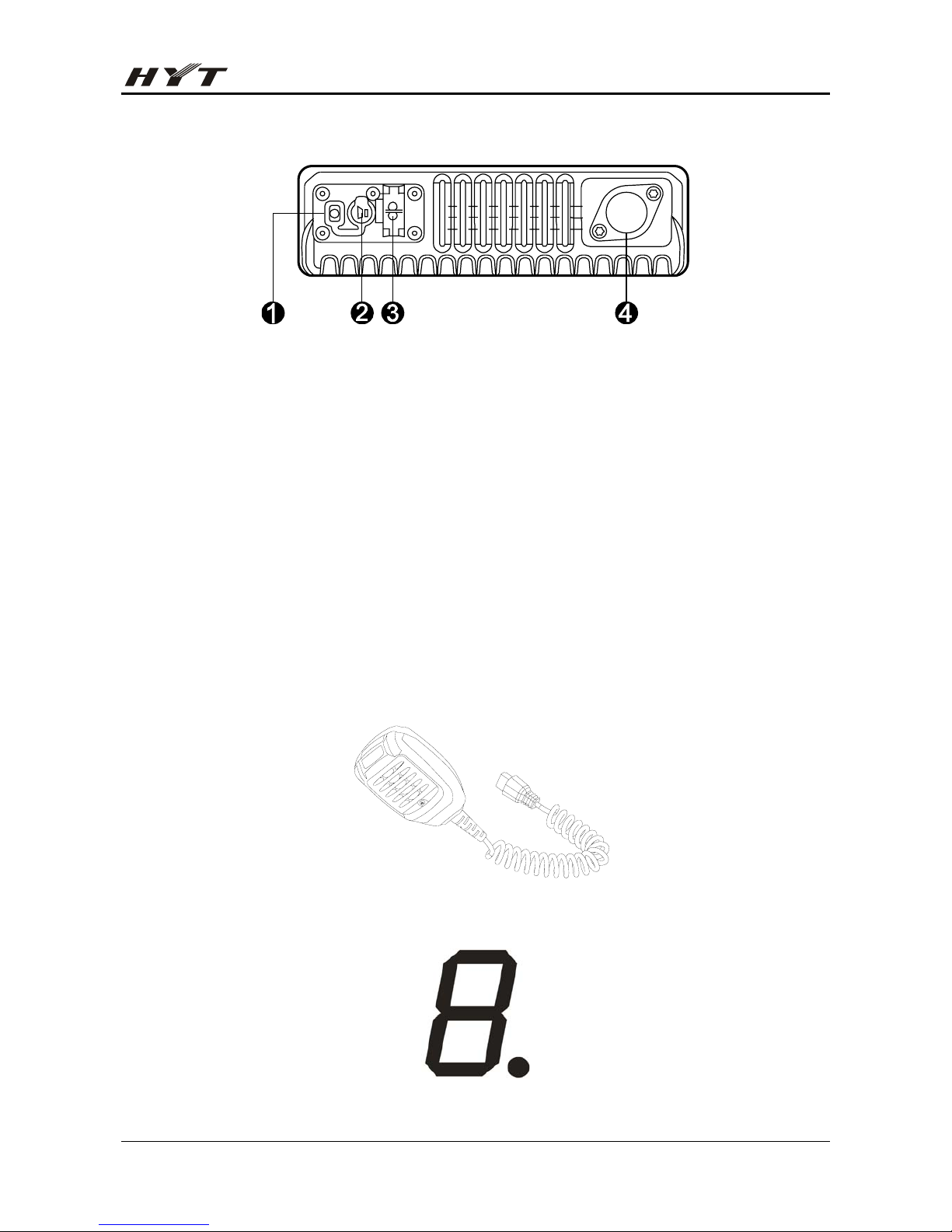

Rear Panel View

1）15-Pin Connector (for external expansion)

2）External Speaker Jack

Used to connect the external speaker (for the 3.5mm plug only).

Note: Please refer to “Test Cable for Speaker Output” in “Tuning Description” for details.

3）Power Inlet

Used to connect the HYT-authorized DC power cable for input of 13.6V DC power.

4）Antenna Connector

Used to connect the external connector.

Microphone

8-segment Numeric LED Display

TM-600 Mobile Radio

Software Specification

Frame of Radio Modes

Keypad Entry for Mode Startup

Mode Display Operation Remarks

User Mode Channel No. The radio enters User Mode upon

power-on.

i.e. Conventional Mode

Tuning Mode 0Power on the radio whiling holding

down [P1].

Model Set Mode 0Power on the radio whiling holding

down [P2].

Clone Mode C Power on the radio whiling holding

down [P1]+[P2].

PC Mode No display Connect the mobile radio to PC via

the programming cable, and then

send commands via PC.

PC Mode

Tuning Mode

Conventional Mode

User Mode

Model Set Mode

Clone Mode

Wired Clone Mode

Wireless Clone Mode

TM-600 Mobile Radio

Key Assignment

Your dealer may assign a function to the programmable key ([P1]/[P2], [▲]/[▼]). See the table below for

more details.

Note: "CH Number” in the table below indicates any value within 1~8.

Key Assignment

No. Function

Key Setting Display Remarks

Off CH Number No function

CH Up CH Number Channel up

CH Down CH Number Channel down

MONI A CH Number

MONI A: Monitor

Unmute-Momentary

MONI B CH Number MONI B: Monitor Unmute-Toggle

MONI C (default) CH Number

MONI C: Carrier

Squelch-Momentary

MONI D CH Number MONI D: Carrier Squelch-Toggle

User Selectable

Tone (UST) UST Number (0.-9.) CTCSS/CDCSS signaling

Sel 2-Tone 2-Tone Number (0.-9.) Select 2-Tone.

Sel Tx Power CH Number Switch Tx power.

Scan ●Scan

Add/Delete ●Temporarily add/delete a nuisance

channel.

Reverse CH Number Reverse frequency

Talk Around CH Number Talk around

SEL SQL SQL Number (0.-9.) Select squelch level.

Home CH Home CH Number(1-8) Home channel

Public Address P Public address

Scrambler CH Number Scrambler

Compander CH Number Compander

Emergency Call EmergencyCH

Number (1- 8) Emergency call

HDC Encode Call List Number HDC call

Lone Worker L. or L Lone worker

Whisper R. or R Whisper

AUX A None AUX A

AUX B None AUX B

1 [P1]

Transparent

Transmission Mode CH Number

Enable/disable Transparent

Transmission Mode.

2 [P2] Off CH Number No function

TM-600 Mobile Radio

CH Up CH Number Channel up

CH Down CH Number Channel down

MONI A CH Number

MONI A: Monitor

Unmute-Momentary

MONI B CH Number MONI B: Monitor Unmute-Toggle

MONI C CH Number

MONI C: Carrier

Squelch-Momentary

MONI D CH Number MONI D: Carrier Squelch-Toggle

User Selectable

Tone (UST) UST Number (0.-9.) CTCSS/CDCSS signaling

Sel 2-Tone 2-Tone Number (0.-9.) Select 2-Tone.

Sel Tx Power CH Number Switch Tx power.

Scan (default) ●Scan

Add/Delete ●Temporarily add/delete a nuisance

channel.

Reverse CH Number Reverse frequency

Talk Around CH Number Talk around

SEL SQL SQL Number (0.-9.) Select squelch level.

Home CH HomeCH Number (1- 8) Home channel

Public Address P Public address

Scrambler CH Number Scrambler

Compander CH Number Compander

Emergency Call EmergencyCH

Number (1-8) Emergency call

HDC Encode List Number (1.-9.) HDC call

Lone Worker L (off) L . (on) Lone worker

Whisper R (off) R. (on) Whisper

AUX A None AUX A

AUX B None AUX B

Transparent

Transmission Mode CH Number

Enable/disable Transparent

Transmission Mode.

Off CH Number No function

CH Up (default) CH Number Channel up

CH Down CH Number Channel down

MONI A CH Number

MONI A: Monitor

Unmute-Momentary

MONI B CH Number MONI B: Monitor Unmute-Toggle

MONI C CH Number

MONI C: Carrier

Squelch-Momentary

MONI D CH Number MONI D: Carrier Squelch-Toggle

User Selectable

Tone (UST) UST Number (0.-9.) CTCSS/CDCSS signaling

Sel 2-Tone 2-Tone Number (0.-9.) Select 2-Tone.

[▲]

Sel Tx Power CH Number Switch Tx power.
