About this Manual

This manual is referred to bCUBE (REF: bCUBE 2.0) and bCUBE3 (REF: H0001). All references to bCUBE will be referred also

to bCUBE3, unless explicitly specified.

For HYRIS bCUBETM connectivity and functionalities, refer to the Hyris bCUBETM –User Manual document.

For HYRIS bPANELTM offline use, refer to the Hyris bPANELTM –User Manual document.

For the online use of the instrument using HYRIS bAPPTM, please read the HYRIS bAPPTM –User Manual guide.

The information contained in this Guide is proprietary. No part of this document can be copied or reproduced in any form

without written permission of Hyris S.r.l.

The information contained in this manual is subject to change/revision without notice.

This Guide has not to be intended as User Manuals substitute.

In the event the Quick Start Guide should be ruined, incomplete or inadequate, please contact Hyris S.r.l. in order to

immediatelyrestore or replace the incompliant Guide.

The official version of the Quick Start Guide, of which Hyris S.r.l. is directly responsible, is theEnglish version. For countries

in which languages other than Englishare spoken, the official Guide is the one in the Englishversion. Hyris S.r.l. does not

undertake any responsibility for any translations in other languages made by distributors or users.

The observance of the operating procedures and of the warnings described in this Guide is a basic requirement for the

correct working of the equipment and to guarantee the operator’s safety.

The Guide must be read in every part in front of the equipment before using it, in order to become familiar with the

operating procedures, the commands, and the precautions for a correct and safe usage.

The Quick StartGuide should be kept, complete and readable in every part, in a safe place, and, at the same time, it should

be rapidly accessible to the user when using the equipment.

HYRIS SystemTM | Quick-Start Guide (ENG)

May 2022

HYRIS bCUBETM

Packing content

The following items will be found in the provided box:

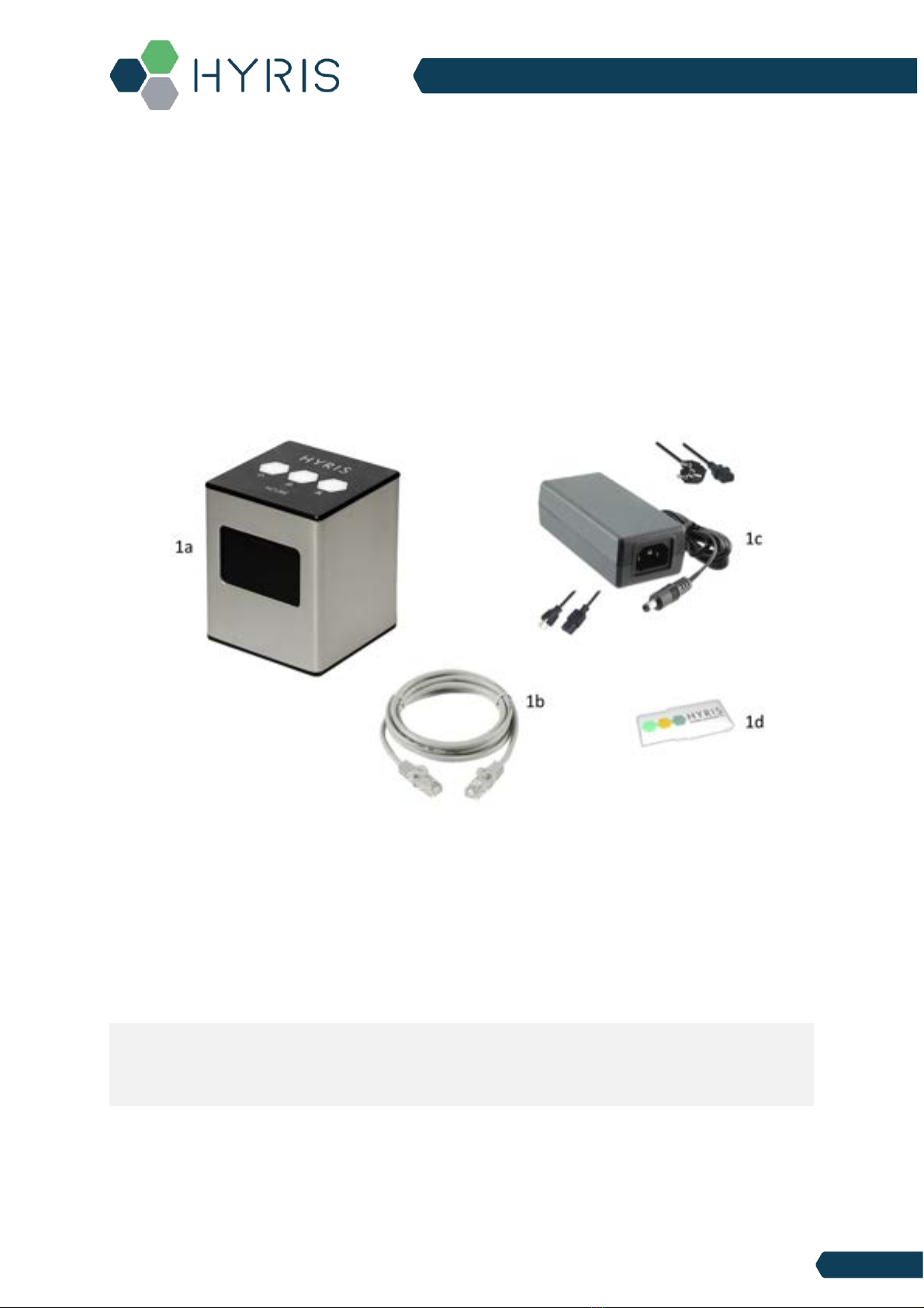

•HYRIS bCUBETM (Figure 1a)

•Ethernet cable (Figure 1b)

•Power Supply including European and North American power cords (Figure 1c).

Characteristics:

oInput: 100 ~ 240 V c.a. 1.4A 50/60Hz

oOutput: 12V DC 5A

oPower: 60W

•USB stick with HYRIS bPANELTM software installer and User Manuals (Figure 1d)

Note: Please check the presence of all these items. Remove the items carefully from the shipping box and inspect

them for any external damage. If any of the parts is missing ordamaged, contact the manufacturer prior to

installation.

HYRIS SystemTM | Quick-Start Guide (ENG)

May 2022

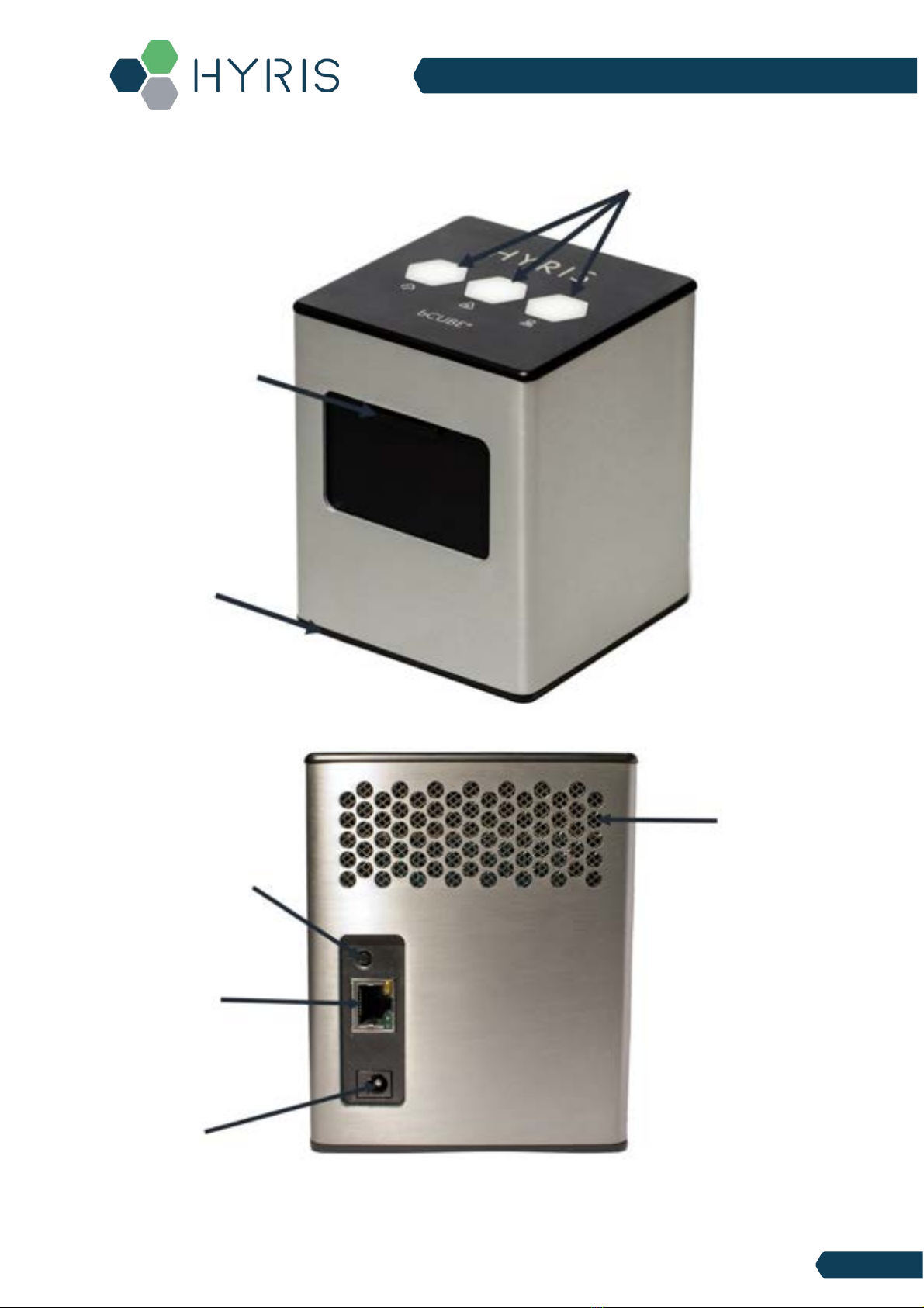

Hyris bCUBETM Instrument overview

Status LEDs

Access Port

Instrument Base

Upper Venting Holes

Power-on/Power-off

Button

Ethernet Plug

Power Supply

Plug

HYRIS SystemTM | Quick-Start Guide (ENG)

May 2022

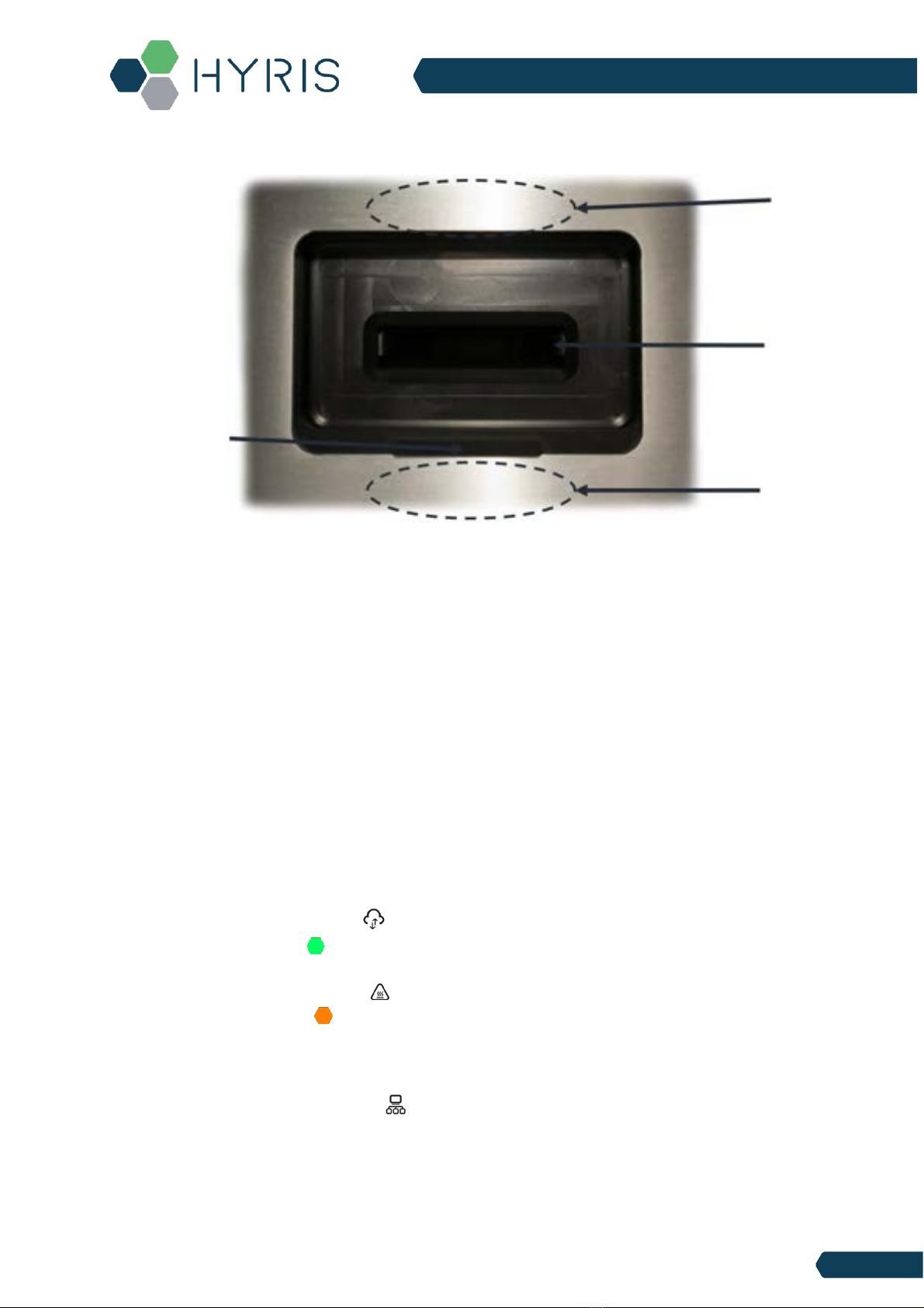

Description of the features highlightedin the pictures above:

•Access Port Slider: opened to insert/remove the cartridge inside Hyris bCUBETM. To be kept closed during

operations.

•Access port: insert the cartridge here. Always push the cartridge up to the end of the port.

•Thermal Block: precisely controls the temperature of the cartridge and contained samples. Heating/Cooling is

obtained with a Peltier element.

•Detection block: features highbrightness LEDs withdichroic filters for fluorophores excitation. Detection is

obtained thanks to a CMOS sensor with dichroic filters matched to fluorophores emissionwavelengths.

•Top venting holes: allows air exchange between the inside of the Instrument and the ambient

•Power supply Plug: insert here the 12 VDC adapter jack

•Power-on/Power-off button: press shortly to wake up the instrument from Stand-By. When the machine is

running, long press (about 5 seconds) to safelypower down the bCUBE

•Ethernet Plug: insert here the Ethernet cable for Windows PC / Network communication

•Status LEDs: Give informationabout the status of the instrument

Status LEDs

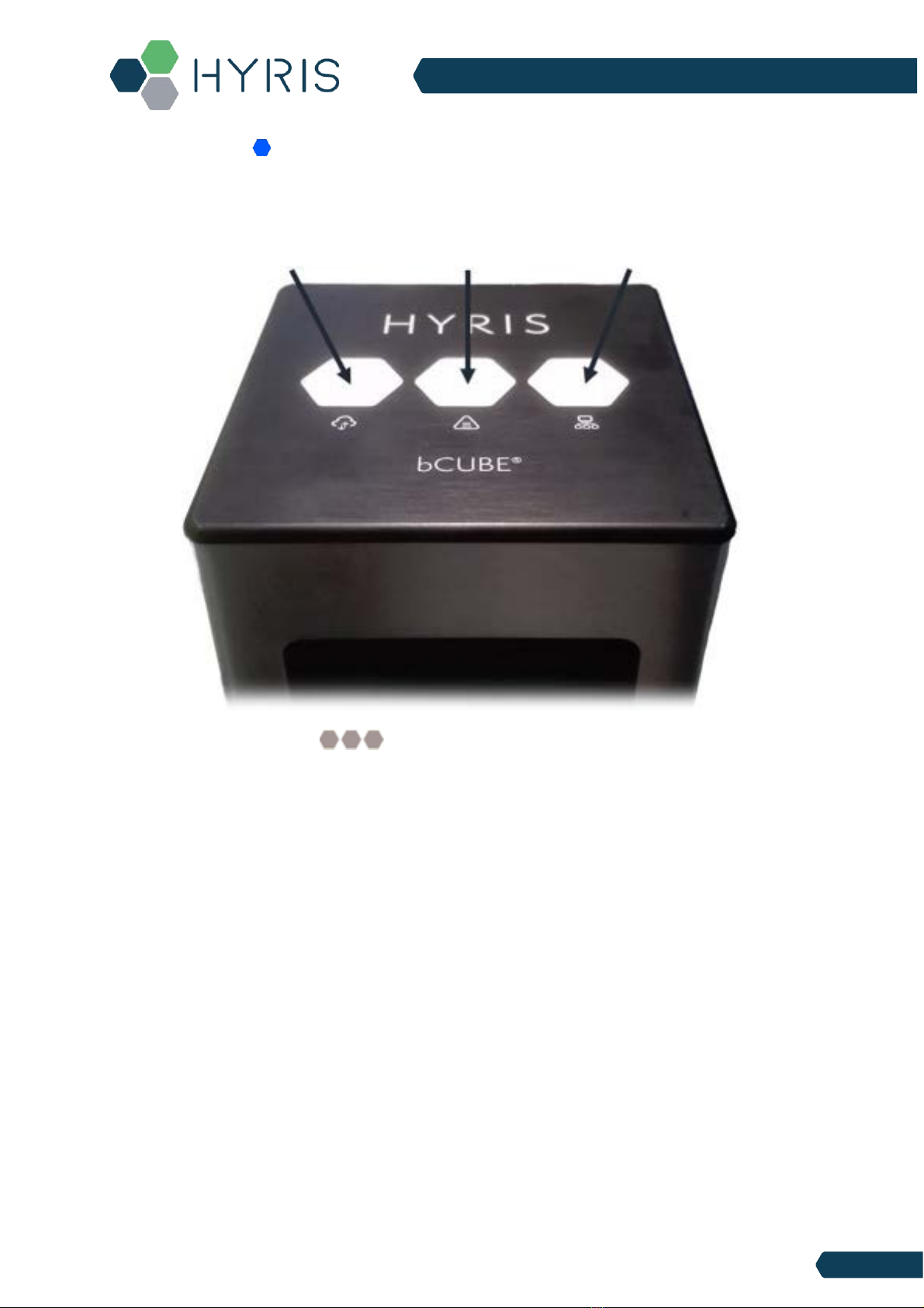

The status of the bCUBE and its functioning are communicated to the user by the different color combinations of the Status

LEDs on the top of the device.

•bDATA LED: corresponding to the symbol, it indicates the connection status to Hyris server.

Ready color: green

When Ready color is on, HYRIS bCUBETM is connected to HYRIS bDATATM

•Thermal LED: corresponding to the symbol, it indicates if the cartridge is hot or not.

Ready color: orange

When Ready color is on, the internal temperature of the HYRIS bCUBETM is not hot. If

cartridge is inserted, it can be safelyhandled.

•Connection LED: corresponding to the symbol, it indicates the internet connection state of the HYRIS

bCUBETM

Thermal Block

Access Port

Detection Block

Access Port

Slider

HYRIS SystemTM | Quick-Start Guide (ENG)

May 2022

Ready color: blue

When ready color is on, Hyris bCUBETM is connected to a network

For a graphical representation, the symbol (from left to right: bDATA, Thermal and Connection LEDs) will be

displayed in this document when color code explanation is required.

Some examples are reported in the following table:

bDATA

LED

Thermal LED

Connection

LED

HYRIS SystemTM | Quick-Start Guide (ENG)

May 2022

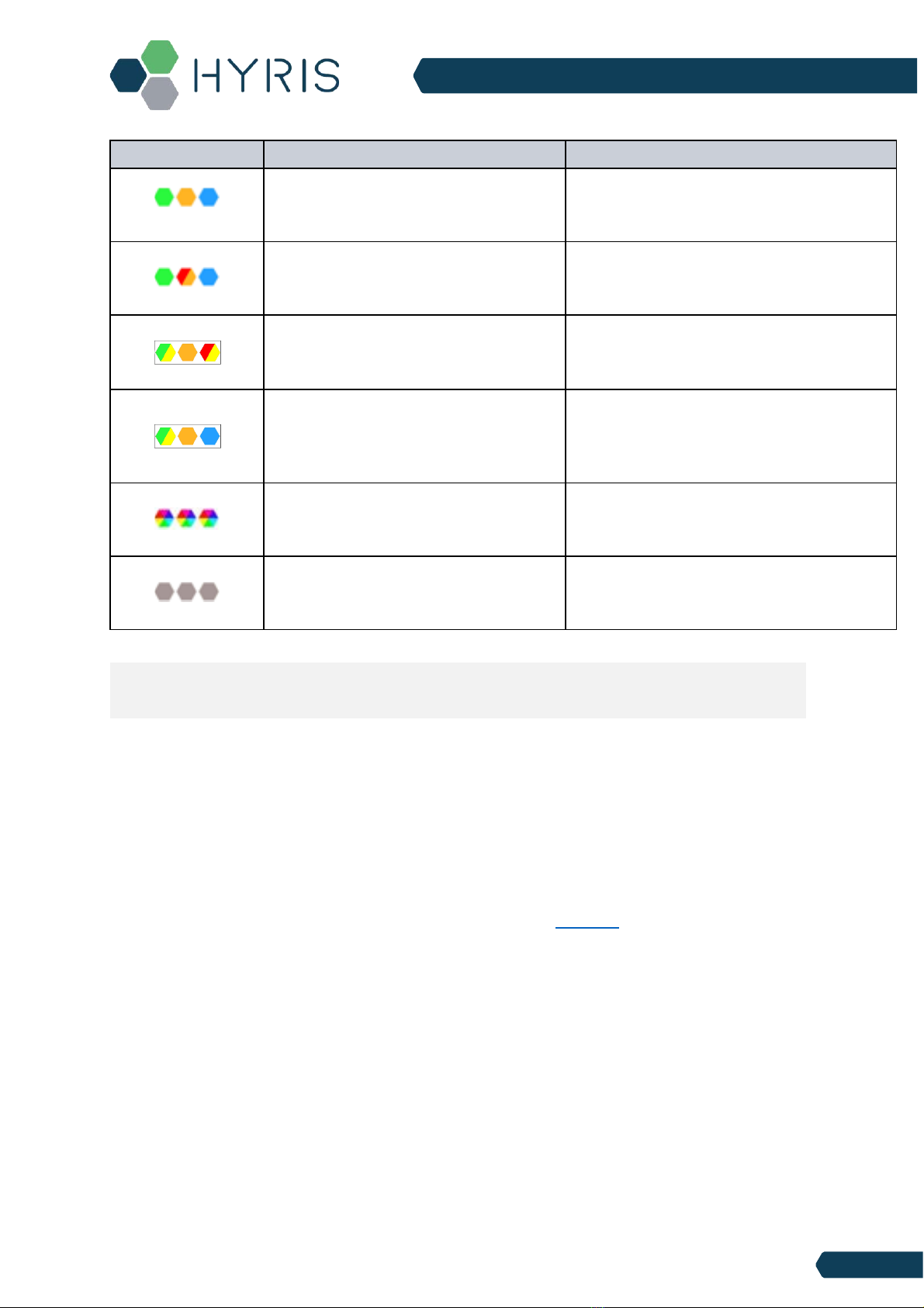

LEDs Colours

DESCRIPTION

INTERPRETATION

•bDATA LED steady green

•Thermal LED steady orange

•Connection LED steady blue

•HYRIS bDATATM connection OK

•Cartridge not hot

•Network connection OK

•bDATA LED steady green

•Thermal LED blinking orange and red

•Connection LED steady blue

•HYRIS bDATATM connection OK

•WARNING: Cartridge hot

•Network connection OK

•bDATA LED blinking green and yellow

•Thermal LED steady orange

•Connection LED blinking red and yellow

•Missing HYRIS bDATATM connection

•Cartridge not hot

•Missing network connection

•bDATA LED blinking green and yellow

•Thermal LED steady orange

•Connection LED steady blue

•Missing HYRIS bDATATM connection

•Cartridge not hot

•Network connection OK. HYRIS bCUBETM

can be used locally

•bDATA LED multicolour

•Thermal LED multicolour

•Connection LED multicolour

•Experiment is running on HYRIS

bCUBETM

•bDATA LED off

•Thermal LED off

•Connection LED off

•HYRIS bCUBETM off

FIRST SETUP

PC settings

PC has to be connected to a stable internet connection.

HYRIS bCUBETM Connection

In order to properly work, the following steps have to be respected:

1. Make sure the Hyris bCUBETM is set on a flat and stable surface

2. Make sure to have correctly provided the condition explained in the PC settings section

3. Connect Hyris bCUBETM and PC to the same LAN according to the following configuration

Note: not all the Status LEDs colour combinations are shown. For further information, please read the

HYRIS bCUBE - User Manual.
