Huvitz HS-5000 Manuel utilisateur

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 1 / 72

SLIT LAMP MICROSCOPE

HS-5000&5500

7000&7500

HIS-5000

5000U

HUVITZ IMAGING SYSTEM

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 2 / 72

1. Information

2. Structure of SLIT LAMP

3. Principle of SLIT LAMP

4. Illumination System

5. Microscope

6. Installation of Slit Lamp

7. Installation of Joystick driver

8. Installation of LED

9. NEW SMPS Installation

10. Trouble Shooting

Contents

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 3 / 72

1. The slit lamp performs stereomicroscopic

examination of the eye under the slit light.

2. The slit lamp performs microscopic examination

of the ocular fundus and posterior vitreous body

(using hruby’s lens).

3. The slit lamp is designed for use

ophthalmologists and optometrists.

Information

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 4 / 72

Illumination

System

Microscope

Module

Mechanical

Body

Structure 1

HS-5000,7000

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 5 / 72

Illumination

System

Microscope

Module

Mechanical

Body

Structure 2

HS-5500,7500

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 6 / 72

⑮

①: Eyepiece

②: Prism (Ver Prism)

③: Prism (Hor Prism)

④: 16x lens

⑤: Magnification lens

⑥: Objective lens

⑦: Mirror

⑧: Lamp lens

⑨: C lens

⑩: Halogen lamp

⑪: C mirror

⑫: OD’S Eyes

⑮: Patient’s Eye

①

⑤

②

③

④

⑦

⑧

⑨

⑩

⑪

⑫

①

③

②

⑥

⑫

⑩→⑪→⑨→⑧→⑦

→⑮→⑥→⑤→④

→③→②→①→⑫

⑮

Principle

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 7 / 72

①Light source Halogen lamp (12V 30W)

or LED

②Slit length 0.3 ~ 12mm

③Slit width 0 ~ 12mm (continuous)

④Slit projection 1x

⑤Aperture diaphragm 0.3 / 1 / 3 / 5 / 9 / 12mm

⑥Filters cobalt blue / ND (gray) /

heat absorption /

red-free (green)

⑦Slit rotation 0 ~ 180˚ (continuous)

•1

•2

•5

•6

Illumination System

HS-5000,7000

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 8 / 72

①Light source Halogen lamp (12V 30W)

or LED

②Slit length 0.3 ~ 12mm

③Slit width 0 ~ 12mm (continuous)

④Filters cobalt blue / ND (gray) /

heat absorption /

red-free (green)

⑤Slit rotation 0 ~ 180˚ (continuous)

⑥Horizontal tilting Slit movement

(left & right)

⑦Vertical tilting Angle change for slit

⑧Diffuser Diffusing the light

1 2

Illumination System

HS-5500,7500

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 9 / 72

•6

Blue filter

Vacancy

Heat absorption filter

(IR)

ND(25%) filter

(Gray)

Green filter

①The cobalt blue filter is used in conjunction with fluorescein dye.

②The green filter (red-free) obscures anything that is red, thus blood

vessels or hemorrhages appear black.

③Neutral Density filter (ND) is to reduces the amount of light.

④Heat absorption (IR) filter is mainly used in lighting systems to absorb

the heat from a light source.

Illumination System –Filter 1

•4

Customer Service Department HUVITZ Co.,Ltd

2013. 08. 16 10 / 72

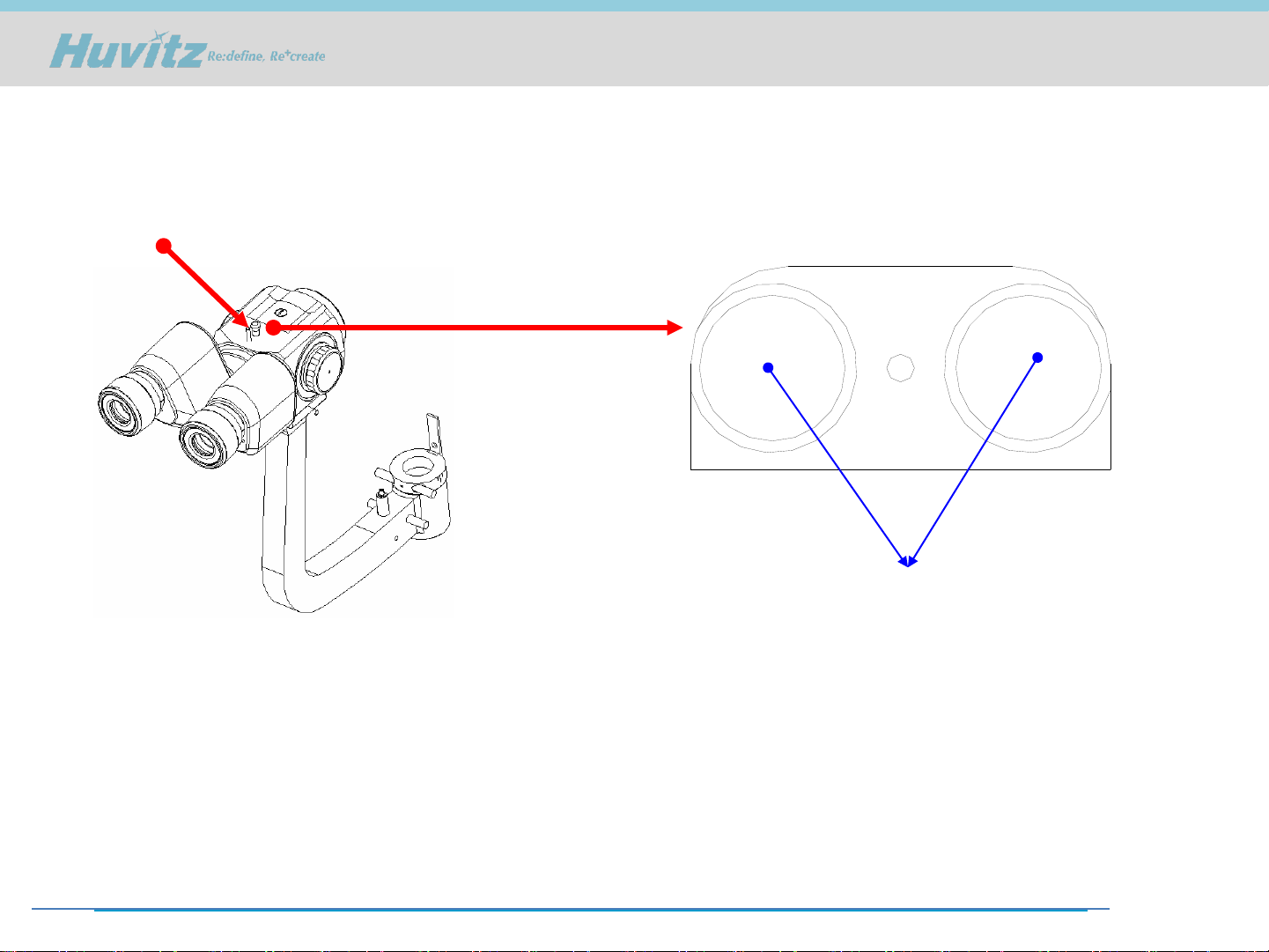

Yellow filter

The Yellow filter fits RGP lenses with fluorescein dye

After installation, check whether Yellow filter is removed or not.

Illumination System –Filter 2

Yellow Filter
