Hussmann IMPACT Excel C2-X Manuel utilisateur
1
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
P/N 0376451A
January 2006
8 ft 12 ft
1. 23 Mirror
2. 23 PVC Tape 1/4x 1/2x 48
3. 46 Lower Mirror Channel
4. 23 Top Retainer Assembly
5. 18 27 Screws 8 x 18 x 1/2
6. 46 Bottom Mirror Clip
Multi-deck, Meat, Produce & Dairy
Mirror Kit
Instruction
Parts List
Item No. Quantity Description
2
P/N 0376451A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Front of Mirror
3
Before beginning installation,
carefully unpack and inspect
the mirrors, making sure there
is no breakage or damage.
NOTE: For factory installation,
proceed to Step 5.
1Add PVC Tape – 2 to the top
back of Mirror – 1.
2Slide Lower Mirror Channel – 3
onto the bottom of mirror.
Back of Mirror
2
1
3
P/N 0376451A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Multi-deck Meat, Produce, & Dairy
Mirror Kit
3Using this illustration as a
guide, drill pilot holes at the
appropriate locations. Fasten
Top Retainer Assembly – 4
to the top interior panel
using
Screws – 5.
11 1/411 1/411 1/411 1/41 1/21 1/2
Internal Top Panel
Side View
Rear of Case
Mirror Hole Locations
26 in. Mirror
20 in. Mirror
16 in. Mirror
12 in. Mirror
8 in. Mirror
Top Retainer Clip Assembly Locations
26 in. Mirror
20 in. Mirror
16 in. Mirror
12 in. Mirror
8 in. Mirror
Rear of Case
Top View
1/8in. Diameter Holes
Internal Top Panel
8 1/2
10 1/2
13
6 1/2
4 1/2
Top
Mirror
Clip
Installin
g
Mirror Retainer Assembly
4
5
4Using the drawing shown as
a guide, drill pilot holes at
the appropriate locations.
Fasten Bottom Mirror Clip – 6
onto the internal upright
using Screws – 5.
4
P/N 0376451A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
pg
6
26 In. Mirror
20 In. Mirror
16 In. Mirror
12 In. Mirror
8 In. Mirror
Side View
Bottom Clip Mirror Locations
Top View
1In.
1/2In. Center Clip as shown
Drill 1/8In. Hole
7/8
21 1/8
16 3/4
9 3/4
6 1/2
13 1/2
Installing Bottom Mirror Clip
Upright
5
6

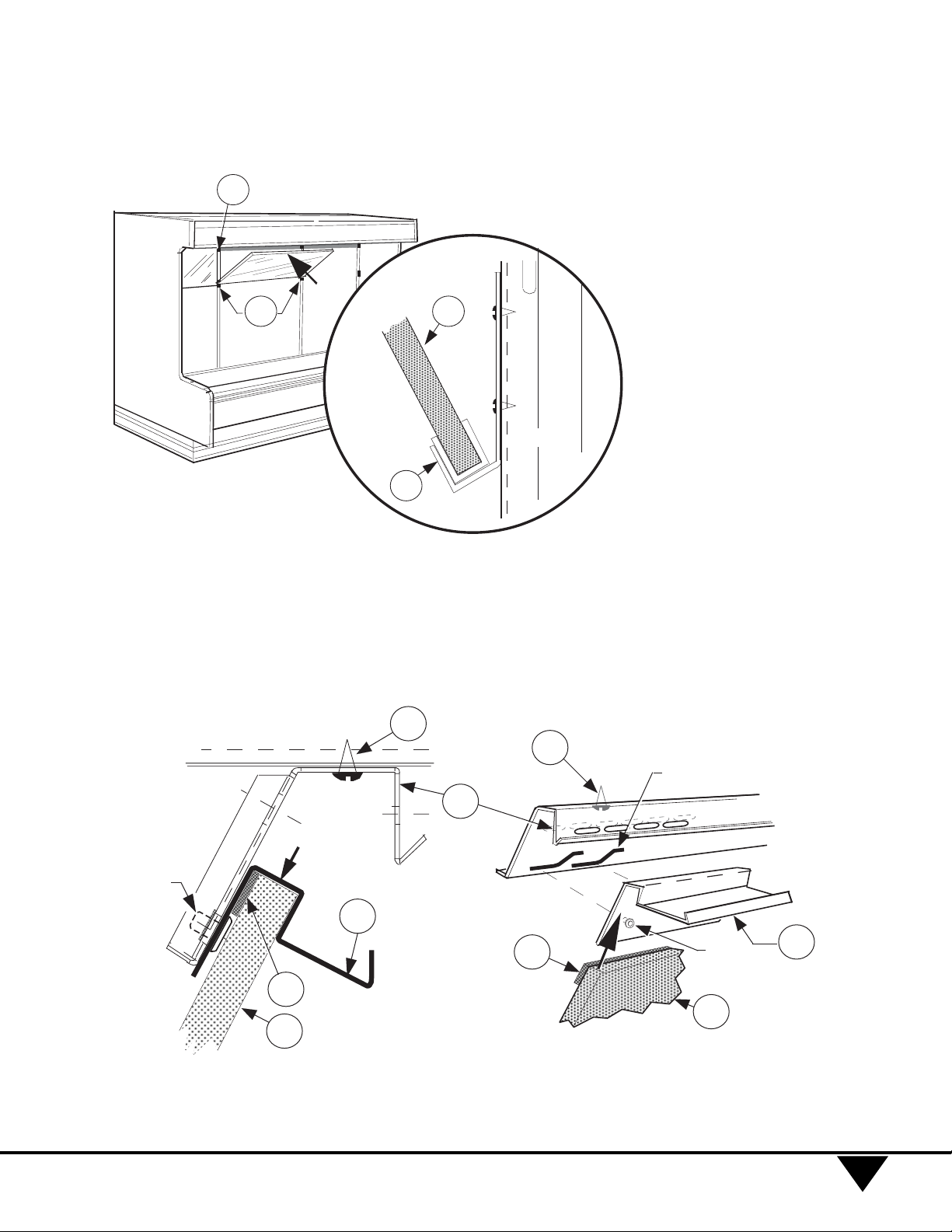

Note: For factory
installation, begin here:
5Insert Mirror – 1 into the
Bottom Mirror Clip – 6 and
gently push toward back of
case until it meets the Top
Retainer Assembly – 4.
IMPORTANT: Check that all
mirror clips are in the upper
position before continuing.
6Install Mirror – 1 into the Top
Mirror Clip – 6 and slide the
Mirror Clip OVER then DOWN
to hold the mirror in place.
Push
Installing Mirrors
1
5
Upright
6
4
Slides over
and down
Installin
g
Mirror into Mirror Retainer Assembly
Snap
Rivet
4
1
Slide Over
and Down
Snap
Rivet
Mirror Retainer Assembly
(with top mirror clip exploded)
1
5
Mirror Clip in
Top Position
2
6
6
5
2
5
P/N 0376451A
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Multi-deck Meat, Produce, & Dairy
Mirror Kit
