Oper

ator’s manual

Please r

ead the operator’s manual carefully and make sure you understand the instructions

before using the machine.

KEY

O SYMBOLS

–

English

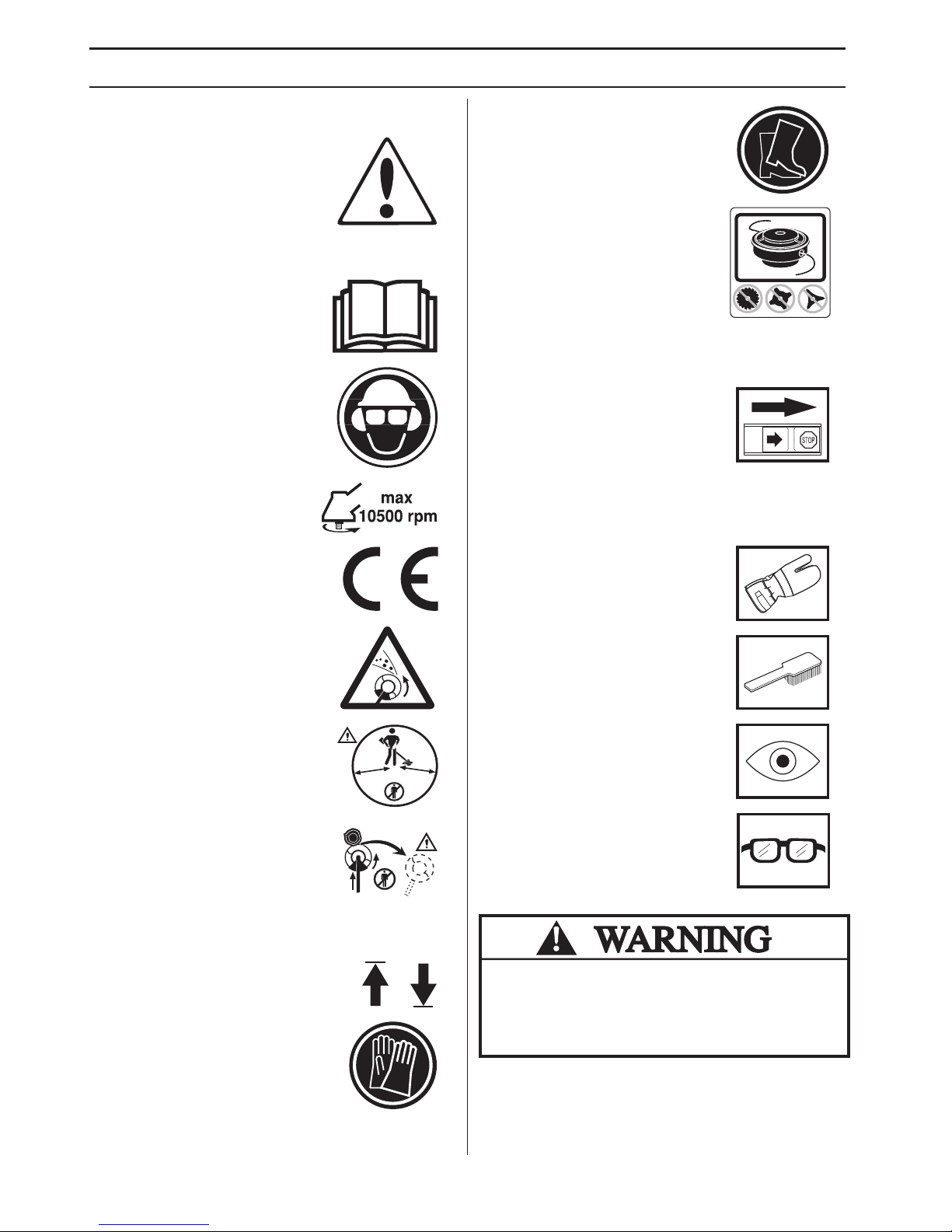

Symbols

ARNING! Clearing saws,

brushcutters and trimmers can be

dangerous! Careless or incorrect

use can result in serious or fatal

injury to the operator or others. It is

extremely important that you read

and understand the contents of the

operator’s manual.

Please read the operator’s manual

carefully and make sure you

understand the instructions before

using the machine.

Always wear:

• A protective helmet where there

is a risk of falling objects

• Approved hearing protection

• Approved eye protection

Max. speed of output shaft, rpm

This product is in accordance with

applicable CE directives.

Watch out for thrown objects and

ricochets.

The operator of the machine must

ensure, while working, that no

persons or animals come closer

than 15 metres.

Machines ﬁtted with saw blades or

grass blades can be thrown violently

to the side when the blade comes

into contact with a ﬁxed object.This is

called blade thrust. The blade is

capable of amputating an arm or leg.

Always keep people and animals at

least 15 metres from the machine.

Arrows which show limits for handle

positioning.

Always wear approved protective

gloves.

Wear sturdy, non-slip boots.

Only use non-metallic, ﬂexible

cutting attachments, i.e. trimmer

heads with trimmer cord.

Other symbols/decals on the

machine refer to special certiﬁcation

requirements for certain markets.

The engine is s

witched off by moving

the stop switch to the stop position.

CAUTION! The stop switch

automatically returns to the start

position. In order to prevent

unintentional starting, the spark plug

cap must be removed from the spark

plug when assembling, checking

and/or performing maintenance.

Always wear approved protective

gloves.

Regular cleaning is required.

Visual check.

Approved eye protection must always

be used.

50FT

15 m

50FT

15m

The engine exhaust from this product

contains chemical known to the State

of California to cause cancer, birth

defects or other reproductive harm.

CONTENTS

English

–

Contents

Note the f

ollowing before

starting:

Please read the oper

ator’s manual carefully.

Maintenance, replacement, or repair of the emission

control devices and system may be performed by any

nonroad engine repair establishment or individual.

The Emissions Compliance Period referred to on the

Emission Compliance label indicates the number of

operating hours for which the engine has been shown to

meet Federal and Californian emissions requirements.

KEY

TO SYMBOLS

Symbols

................................................................ 2

CONTENTS

Contents

............................................................... 3

Note the following before starting: ........................ 3

INTR

ODUCTION

Dear customer!

..................................................... 4

WHA

T IS WHAT?

What is what on the br

ush cutter? ........................ 5

GENERAL SAFETY PRECA

UTIONS

Impor

tant .............................................................. 6

Personal protective equipment ............................. 6

Machine

′

s safety equipment ................................. 7

Cutting equipment ................................................ 10

ASSEMBL

Fitting the handlebar (323RII)

............................... 13

Fitting the handlebar (327Rx, 327RDx) ................ 13

Assembling and dismantling the two-piece shaft

(327RDx) .............................................................. 14

Assembling the cutting equipment ....................... 15

Fitting a blade guard, grass blade and grass cutter 15

Fitting the blade guard and saw blade .................. 15

Fitting other guards and cutting attachments ....... 16

Adjusting the harness and brush cutter ................ 17

Standard harness ................................................. 17

FUEL HANDLING

Fuel saf

ety ............................................................ 18

Fuel ...................................................................... 18

Fueling .................................................................. 19

ARTING AND STOPPING

Chec

k before starting ........................................... 20

Starting and stopping ........................................... 20

ORKING TECHNIQUES

Gener

al working instructions ................................ 22

MAINTENANCE

Carb

uretor ............................................................ 26

Mufﬂer .................................................................. 27

Cooling system ..................................................... 27

Bevel gear ............................................................ 28

Air ﬁlter ................................................................. 28

Two-piece shaft ................................................... 28

Spark plug ............................................................ 29

Maintenance schedule ......................................... 30

TECHNICAL D

ATA

echnical data ...................................................... 31

FEDERAL AND CALIFORNIA EMISSIONS

CONTROL WARRANTY STATEMENT

OUR WARRANTY RIGHTS AND OBLIGATIONS 33

ARNING! Long-term exposure to noise

can result in permanent hearing

impairment. So always use approved

hearing protection.

ARNING! Under no circumstances may

the design of the machine be modiﬁed

without the permission of the

manufacturer. Always use genuine

accessories. Non-authorized

modiﬁcations and/or accessories can

result in serious personal injury or the

death of the operator or others.

Your warranty may not cover damage or

liability caused by the use of non-

authorized accessories or replacement

parts.

ARNING! A clearing saw, brushcutter

or trimmer can be dangerous if used

incorrectly or carelessly, and can cause

serious or fatal injury to the operator or

others. It is extremely important that you

read and understand the contents of this

operator’s manual.

–

English

INTR

ODUCTION

Dear customer!

Cong

ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,

when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production

of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-

powered plant. During over 300 years of continuous operation, the Husqvarna factory has produced a lot of different

products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the ﬁrst

motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working

today.

Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our

highest priority. We develop, manufacture and market high quality motor driven products for forestry and gardening as

well as for building and construction industry.

Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the

retailer who sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.

It is our wish that you will be satisﬁed with your product and that it will be your companion for a long time. Think of this

operator

′

s manual as a valuable document. By following its

′

content (using, service, maintenance etc) the life span and

the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the

borrower or buyer gets the operator

′

s manual, so they will also know how to properly maintain and use it.

Thank you for using a Husqvarna product.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and

appearance of products without prior notice.

For customer assistance, contact us at our website: www.usa.husqvarna.com

English

–

WHA

T IS

WHA

What is what on the brush cutter?

17 31

32 11

Blade

2 Grease ﬁller cap, bevel gear

3 Bevel gear

4 Cutting attachment guard

5 Shaft

6 Handlebar

7 Throttle control

8 Stop switch

9 Throttle lockout

10 Suspension

11 Cylinder cover

12 Starter handle

13 Fuel tank

14 Choke control

15 Air purge

16 Air ﬁlter cover

17 Handle adjustment

18 Locking nut

19 Support ﬂange

20 Support cup

21 Drive disc

22 Trimmer head

23 Socket spanner

24 Operator’s manual

25 Transport guard

26 Allen key

27 Locking pin

28 Harness

29 Shaft coupling (327RDx)

30 Start throttle button

31 Adjusting screw for throttle cable

32 Spark plug cap and spark plug

GENERAL SAFETY PRECA

UTIONS

–

English

Impor

tant

Personal protective equipment

HELMET

A helmet should be w

orn if the trees being cleared are

taller than 2 m.

HEARING PROTECTION

Wear hearing protection that provides adequate noise

reduction.

IMPORTANT!

The machine is only designed for trimming grass, grass

clearing and/or forestry clearing.

The only accessories you can operate with this engine

unit are the cutting attachments we recommend in the

chapter on Technical data.

Never use the machine if you are tired, if you have drunk

alcohol, or if you are taking medication that could affect

your vision, your judgement or your co-ordination.

Wear personal protective equipment. See instructions

under the heading ”Personal protective equipment”.

Never use a machine that has been modiﬁed in any way

from its original speciﬁcation.

Never use a machine that is faulty. Carry out the checks,

maintenance and service instructions described in this

manual. Some maintenance and service measures

must be carried out by trained and qualiﬁed specialists.

See instructions under the heading Maintenance.

All covers, guards and handles must be ﬁtted before

starting. Ensure that the spark plug cap and ignition

lead are undamaged to avoid the risk of electric shock.

The machine operator must ensure that no people or

animals come closer than 15 metres while working.

When several operators are working in the same area

the safety distance should be at least twice the tree

height and no less than 15 metres.

ARNING! This machine produces an

electromagnetic ﬁeld during operation.

This ﬁeld may under some

circumstances interfere with active or

passive medical implants. To reduce the

risk of serious or fatal injury, we

recommend persons with medical

implants to consult their physician and

the medical implant manufacturer before

operating this machine.

ARNING! Running an engine in a

conﬁned or badly ventilated area can

result in death due to asphyxiation or

carbon monoxide poisoning.

ARNING! Never allow children to use or

be in the vicinity of the machine. As the

machine is equipped with a spring-

loaded stop switch and can be started by

low speed and force on the starter

handle, even small children under some

circumstances can produce the force

necessary to start the machine. This can

mean a risk of serious personal injury.

Therefore remove the spark plug cap

when the machine is not under close

supervision.

IMPOR

TANT!

A clearing saw, brushcutter or trimmer can be

dangerous if used incorrectly or carelessly, and can

cause serious or fatal injury to the operator or others. It

is extremely important that you read and understand the

contents of this operator’s manual.

You must use approved personal protective equipment

whenever you use the machine. Personal protective

equipment cannot eliminate the risk of injury but it will

reduce the degree of injury if an accident does happen.

Ask your dealer for help in choosing the right equipment.

ARNING! Listen out for warning signals

or shouts when you are wearing hearing

protection. Always remove your hearing

protection as soon as the engine stops.

GENERAL SAFETY PRECA

UTIONS

English

–

EYE PR

OTECTION

Always wear approved eye protection. If you use a visor

then you must also wear approved protective goggles.

Approved protective goggles must comply with standard

ANSI Z87.1 in the USA or EN 166 in EU countries.

GLOVES

Gloves should be worn when necessary, e.g., when ﬁtting

cutting attachments.

BOOTS

Wear boots with steel toe-caps and non-slip sole.

CLOTHING

Wear clothes made of a strong fabric and avoid loose

clothing that can catch on twigs and branches. Always

wear heavy, long pants. Do not wear jewellery, shorts

sandals or go barefoot. Secure hair so it is above shoulder

level.

FIRST AID KIT

Always have a ﬁrst aid kit nearby.

Mac

hine

′

s safety equipment

This section descr

ibes the machine

′

s safety equipment,

its purpose, and how checks and maintenance should be

carried out to ensure that it operates correctly. See the

”What is what?” section to locate where this equipment is

positioned on your machine.

The life span of the machine can be reduced and the risk

of accidents can increase if machine maintenance is not

carried out correctly and if service and/or repairs are not

carried out professionally. If you need further information

please contact your nearest servicing dealer.

Thr

ottle lockout

The throttle loc

kout is designed to prevent accidental

operation of the throttle control. When you press the lock

(A) (i.e. when you grasp the handle) it releases the throttle

control (B). When you release the handle the throttle

control and the throttle lockout both move back to their

original positions. This movement is controlled by two

independent return springs.This arrangement means that

the throttle control is automatically locked at the idle

setting.

Make sure the throttle control is locked at the idle setting

when the throttle lockout is released.

Press the throttle lockout and make sure it returns to its

original position when you release it.

IMPOR

TANT! All servicing and repair work on the

machine requires special training.This is especially true

of the machine

′

s safety equipment. If your machine fails

any of the checks described below you must contact

your service agent. When you buy any of our products

we guarantee the availability of professional repairs and

service. If the retailer who sells your machine is not a

servicing dealer, ask him for the address of your nearest

service agent.

ARNING! Never use a machine with

faulty safety equipment. The machine’s

safety equipment must be checked and

maintained as described in this section.

If your machine fails any of these checks

contact your service agent to get it

repaired.

GENERAL SAFETY PRECA

UTIONS

–

English

Chec

k that the throttle control and throttle lockout move

freely and that the return springs work properly.

See instructions under the heading Start. Start the

machine and apply full throttle. Release the throttle and

check that the cutting attachment stops and remains at a

standstill. If the cutting attachment rotates with the throttle

in the idle position then the carburettor idle setting must

be checked. See instructions under the heading

Maintenance.

Stop s

witch

Use the stop s

witch to switch off the engine.

Start the engine and make sure the engine stops when

you move the stop switch to the stop setting.

Cutting attachment guard

This guard is intended to prevent loose objects from being

thrown towards the operator. The guard also protects the

operator from accidental contact with the cutting

attachment.

Check that the guard is undamaged and not cracked.

Replace the guard if it has been exposed to impact or is

cracked.

Always use the recommended guard for the cutting

attachment you are using. See chapter on Technical data.

Vibration damping system

Your machine is equipped with a vibration damping

system that is designed to reduce vibration and make

operation easier.

Using incorrectly wound cord or a blunt or incorrect

cutting attachment (wrong type or incorrectly ﬁled, see

instructions under the heading Filing the blade) increases

the level of vibration.

The machine′s vibration damping system reduces the

transfer of vibration between the engine unit/cutting

equipment and the machine′s handle unit.

Regularly check the vibration damping units for cracks or

deformation. Check that the vibration damping element is

undamaged and securely attached.

WARNING! Never use a cutting

attachment without an approved guard.

See the chapter on Technical data. If an

incorrect or faulty guard is ﬁtted this can

cause serious personal injury.

GENERAL SAFETY PRECAUTIONS

English – 9

Quick release

There is an easily accessible, quick release ﬁtted at the

front as a safety precaution in case the engine catches

ﬁre, or in any other situation that requires you to free

yourself from the machine and harness. See instructions

under the heading Adjusting the harness and brush

cutter.

Check that the harness straps are correctly positioned.

Once the harness and machine have been adjusted,

check that the harness quick release works correctly.

Mufﬂer

The mufﬂer is designed to keep noise levels to a minimum

and to direct exhaust fumes away from the user. A mufﬂer

ﬁtted with a catalytic converter is also designed to reduce

harmful exhaust gases.

In countries that have a warm and dry climate there is a

signiﬁcant risk of ﬁre.We therefore ﬁt certain mufﬂers with

a spark arrestor screen. Check whether the mufﬂer on

your machine is ﬁtted with this kind of screen.

For mufﬂers it is very important that you follow the

instructions on checking, maintaining and servicing your

machine.

Never use a machine that has a faulty mufﬂer.

Regularly check that the mufﬂer is securely attached to

the machine.

If the mufﬂer on your machine is ﬁtted with a spark

arrestor screen this must be cleaned regularly. A blocked

screen will cause the engine to overheat and may lead to

serious damage.

WARNING! Overexposure to vibration

can lead to circulatory damage or nerve

damage in people who have impaired

circulation. Contact your doctor if you

experience symptoms of overexposure

to vibration. Such symptoms include

numbness, loss of feeling, tingling,

pricking, pain, loss of strength, changes

in skin colour or condition. These

symptoms normally appear in the

ﬁngers, hands or wrists. The risk

increases at low temperatures.

WARNING! Mufﬂers ﬁtted with catalytic

converters get very hot during use and

remain so for some time after stopping.

This also applies at idle speed. Contact

can result in burns to the skin.

Remember the risk of ﬁre!

WARNING! The inside of the mufﬂer

contain chemicals that may be

carcinogenic. Avoid contact with these

elements in the event of a damaged

mufﬂer.

WARNING! Bear in mind that:

The exhaust fumes from the engine are

hot and may contain sparks which can

start a ﬁre. Never start the machine

indoors or near combustible material!

GENERAL SAFETY PRECAUTIONS

10 – English

Locking nut

A locking nut is used to secure some types of cutting

attachment.

When ﬁtting, tighten the nut in the opposite direction to the

direction of rotation of the cutting attachment. To remove

it, undo the nut in the same direction as the cutting

attachment rotates. (CAUTION! The nut has a left-hand

thread.) Tighten the nut using the socket spanner.

When loosening and tightening the saw blade nut, there

is a risk of injury from the teeth of the saw blade. You

should therefore always ensure that your hand is shielded

by the blade guard when doing this. Always use a socket

spanner with a shaft that is long enough to allow this. The

arrow in the diagram shows the area where you should

operate the socket spanner when loosening or tightening

the nut.

The nylon lining inside the locking nut must not be so worn

that you can turn it by hand. The lining should offer a

resistance of at least 1.5 Nm. The nut should be replaced

after it has been put on approx. 10 times.

Cutting equipment

This section describes how to choose and maintain your

cutting equipment in order to:

• Reduce the risk of blade thrust.

• Obtain maximum cutting performance.

• Extend the life of cutting equipment.

Cutting equipment

Saw blades are intended for cutting ﬁbrous types of wood.

Grass blades and grass cutters are intended for cutting

coarse grass.

A trimmer head is intended for trimming grass.

IMPORTANT!

Only use cutting attachments with the guards we

recommend! See the chapter on Technical data.

Refer to the instructions for the cutting attachment to

check the correct way to load the cord and the correct

cord diameter.

Keep the teeth of the blade correctly sharpened! Follow

our recommendations. Also refer to the instructions on

the blade packaging.

Maintain the correct blade setting! Follow our

instructions and use the recommended ﬁle gauge.

WARNING! Always stop the engine

before doing any work on the cutting

attachment.This continues to rotate even

after the throttle has been released.

Ensure that the cutting attachment has

stopped completely and disconnect the

HT lead from the spark plug before you

start to work on it.

WARNING! Using an incorrect cutting

attachment or an incorrectly sharpened

blade increases the risk of blade thrust.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Husqvarna Tondeuse

Husqvarna

Husqvarna 325HS75 X-series Manuel utilisateur

Husqvarna

Husqvarna 966951101 Manuel utilisateur

Husqvarna

Husqvarna 143R-II Manuel utilisateur

Husqvarna

Husqvarna 143R-II Manuel utilisateur

Husqvarna

Husqvarna 253RJ Manuel utilisateur

Husqvarna

Husqvarna BC2125 Manuel utilisateur

Husqvarna

Husqvarna 325R X-SERIES Manuel utilisateur

Husqvarna

Husqvarna PA 1100 Manuel utilisateur

Husqvarna

Husqvarna 115iHD45 Manuel utilisateur

Husqvarna

Husqvarna 225L Lite Manuel utilisateur

Husqvarna

Husqvarna 122ldx SERIES Manuel utilisateur

Husqvarna

Husqvarna Aspire T28-P4A Manuel utilisateur

Husqvarna

Husqvarna 122c SERIES Manuel utilisateur

Husqvarna

Husqvarna 236R Manuel utilisateur

Husqvarna

Husqvarna 226HD60S Manuel utilisateur

Husqvarna

Husqvarna 136 LiHD50 Manuel utilisateur

Husqvarna

Husqvarna 343R, 345RX, 343F, 345FX, 345F Manuel d'instructions

Husqvarna

Husqvarna 227R, 227RD, 232R, 232RD, 235R Manuel utilisateur

Husqvarna

Husqvarna 535RX Manuel utilisateur

Husqvarna

Husqvarna 525 LX Manuel utilisateur

Husqvarna

Husqvarna 324L X-series Manuel utilisateur

Husqvarna

Husqvarna 970 55 16-02 Manuel utilisateur

Husqvarna

Husqvarna 524LK Manuel utilisateur

Husqvarna

Husqvarna 323RII Manuel utilisateur

Manuels Tondeuse populaires d'autres marques

MTD

MTD HT 51 E Manuel utilisateur

McCulloch

McCulloch T22 LS Manuel utilisateur

COCKRAFT

COCKRAFT PRO HL36-S Manuel utilisateur

Grizzly

Grizzly CT 1800 Li Manuel utilisateur

Peco

Peco Z Trimmer ZT-3000 Manuel utilisateur

Solo

Solo 116 Manuel utilisateur

Stiga

Stiga ST 1200 Manuel utilisateur

Echo

Echo GT-225 - 10-09 Manuel utilisateur

RedMax

RedMax BT17 Manuel utilisateur

GreenWorks

GreenWorks STA806 Manuel utilisateur

Parkside

Parkside PHSL 900 A3 Manuel utilisateur

Gardeo

Gardeo PRO GPTHT2560 Manuel utilisateur

Park

Park DT-810870 Manuel utilisateur

Worx

Worx WG209 Manuel utilisateur

Gardenline

Gardenline 43671/HTKS26 Manuel utilisateur

Makita

Makita 3710 Manuel utilisateur

Champion

Champion 100683 Manuel utilisateur

Stihl

Stihl FS 311 Manuel utilisateur
