ILLUSTRATED PARTS LIST

MFG. ID NO. 96091001706

CATALOG NUMBER TR530

PRODUCT NUMBER 960 91 00-17

586 05 86-01 12.03.13 BY

HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

HANDLE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

1 532 43 18-53 Control, Throttle

2 532 42 76-43 Grip, Handle

6 581 14 47-01 Panel, Control

10 532 12 47-97 Grip, Handle

11 532 12 47-88 Retainer, Spring

12 532 08 13-28 Bolt, Shoulder

13 581 96 06-01 Handle, Shift

14 532 10 93-13 Grommet, Rubber

15 532 13 84-00 Rod, Shift

16 872 11 06-08 Bolt, Carriage, Grade 5, 3/8-16 x 1

17 532 10 92-29 Lock, Handle

18 873 68 06-00 Nut, Crownlock 3/8-16 UNC

19 819 13 16-11 Washer 13/32 x 1 x 11 Gauge

20 532 10 92-28 Lever, Lock, Handle

21 532 44 61-56 Handle Assembly

23 532 08 67-77 Screw, Slotted, Hex Washer Head

#10-24 x 1/2

24 532 44 60-45 Clip

27 873 90 04-00 Nut, Hex, Flanged 1/4-20 UNC

31 532 15 06-96 Bolt, Pivot

42 532 41 63-58 Screw, BOS Thread, #10 x 3/4

43 532 43 94-57 Cable, Handle, Tine Control

45 532 42 17-56 Screw, BOS Thread, #10 x 1/2

44 532 43 87-82 Control Handle, Two Function

46 532 13 82-83 Lock, Handle

12 13

44 43

handle_assy_107pita2

mainframe_left_29pita2

HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

MAINFRAME, LEFT SIDE

KEY PART

NO. NO. DESCRIPTION

25 532 12 49-61 Clip, Hairpin

26 532 44 29-60 Guard, Belt

27 532 13 83-99 Belt, V

28 532 10 46-79 Pulley, Idler

29 812 00 00-32 Ring, Klip

30 584 28 94-01 Bracket, Idler

32 532 13 94-01 Shaft, Idler Arm

37 532 42 96-95 Sheave, Engine

54 532 10 42-14 Nut, Hex 5/16-18

62 874 93 05-72 Bolt, Hex Head 5/16-18 x 4-1/2

63 581 85 03-01 Bracket Assembly, Guard

64 874 77 05-08 Bolt 5/16-24 UNF x 1/2

65 873 51 06-00 Nut, Hex

66 581 98 13-02 Belt Guide

67 819 13 13-16 Washer, Flat, 3/8

KEY PART

NO. NO. DESCRIPTION

2 810 04 06-00 Washer, Lock 3/8

3 873 93 06-00 Nut, Hex 3/8-16

4 581 85 04-01 Shield, Inner Belt Guard, RH

5 532 16 43-29 Pin, Spiral, Flared

6 532 11 01-11 Lever, Shift

7 872 11 04-04 Bolt, Carriage, Grade 5

1/4-20 x 1/2

8 581 84 50-01 Plate, Shift Indicator

12 873 51 04-00 Nut, Hex, Keps 1/4-20 UNC

13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8

14 532 15 61-17 Spacer, Split 0.327 x 0.42 x 1.220

15 819 11 11-16 Washer 11/32 x 11/16 x 16 Gauge

16 532 14 51-02 Sheave, Transmission

17 873 22 05-00 Nut, Hex 5/16-18

18 532 13 16-91 Spacer, Split

19 812 00 00-28 Ring, Retainer

23 581 57 66-02 Wheel & Tire Assembly

24 532 00 49-29 Rivet, Drilled

NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

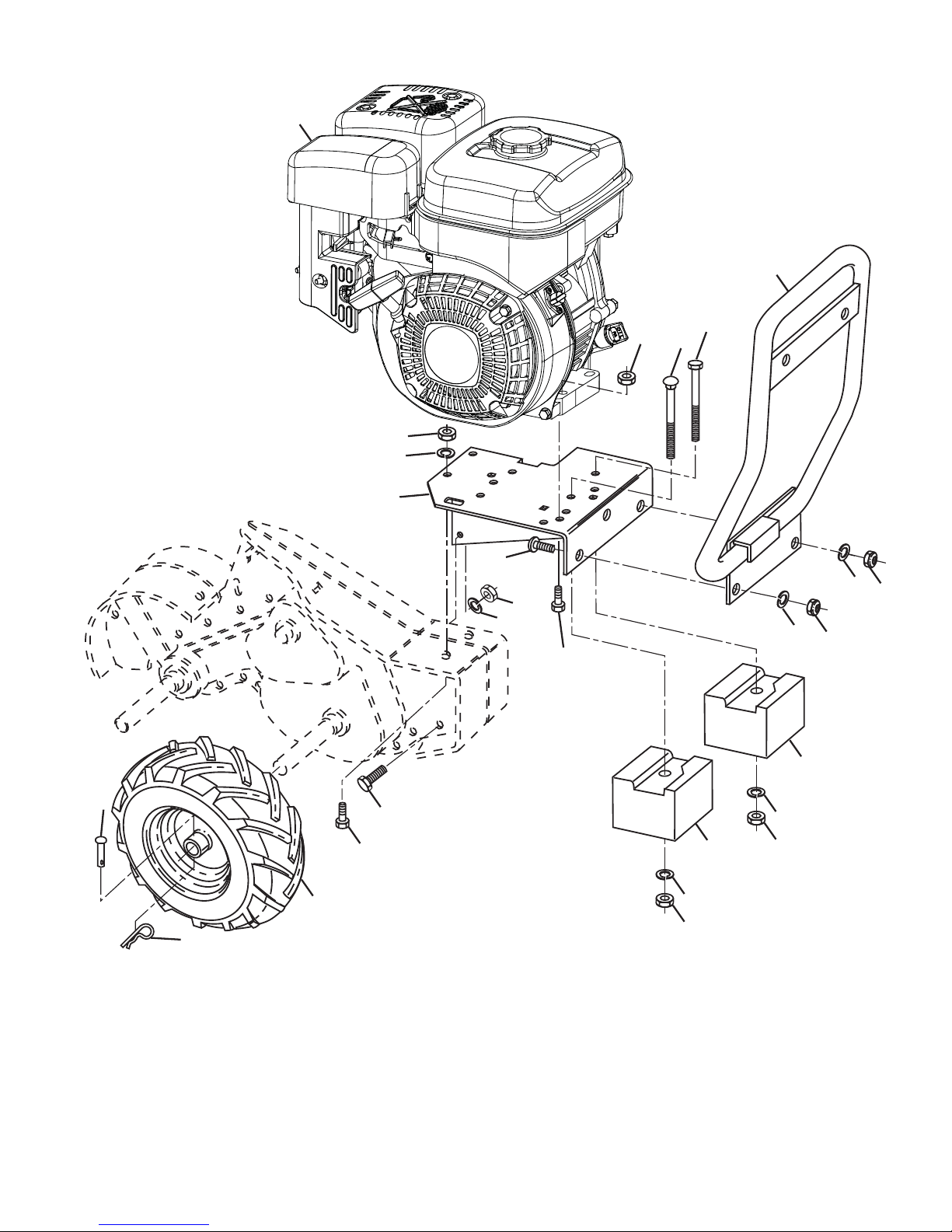

MAINFRAME, RIGHT SIDE

17 872 14 06-08 Bolt, Hex Head 5/16-18 x 1-1/2

18 872 47 06-36 Bolt, Carriage 3/8-16 x 4-1/2

19 874 76 06-72 Bolt, Hex Head 3/8-16 x 4-1/2

20 581 84 49-01 Base, Engine

21 874 76 05-24 Bolt, Hex Head 5/16-18 x 1

22 874 76 05-28 Bolt, Hex Head 5/16-18 x 1-1/2

1 581 84 48-01 Bumper

7 532 18 02-75 Counter Weight, R.H.

8 810 04 06-00 Washer, Lock 3/8

9 873 22 06-00 Nut, Hex 3/8-16

10 873 51 06-00 Nut, Hex, Jam 3/8-16

11 532 12 49-61 Clip, Hairpin

12 532 00 49-29 Rivet, Drilled

13 581 57 66-01 Wheel & Tire Assembly

14 873 97 05-00 Locknut, Hex, Flanged

15 - - - Engine, Subaru,

Model Number EX210DM2162

(Order parts from Subaru)

14 18

mainframe_right_Subaru_6

NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

TRANSMISSION

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

28 532 00 83-57 Gear, Reverse Idler

29 532 14 45-62 Gear Assembly, Reverse Idler

(Includes Key Numbers 28 & 30)

30 532 00 68-03 Bearing, Needle

31 812 00 00-40 Ring, Klip

32 532 00 83-56 Shaft, Reverse Idler

33 532 10 00-16 Shaft, Reduction (2nd)

34 532 10 63-92 Spacer 0.765 I.D. x 1-1/8 x 1-3/8

35 532 10 63-94 Spacer, L.H.

36 532 10 04-36 Shaft Assembly

37 532 14 21-45 Bracket Assembly

38 532 10 63-93 Spacer, R.H.

41 532 15 52-36 Oil Seal Assembly

42 810 04 07-00 Push Nut 7/16

43 873 61 07-00 Nut, Hex 7/16-20

44 532 18 13-23 Gearcase, L.H., with Bearing

(Includes Key Number 24)

45 817 00 05-10 Screw, Thread Cutting

5/16-18 x 5/8

47 873 22 05-00 Nut, Hex 5/16-18

48 532 10 01-07 Screw 5/16-18 x 4

49 532 10 63-91 Spacer 0.765 ID x 1.12 x 3/4

60 532 18 32-26 Fitting, Grease

61 532 43 15-01 Spacer 1.015 x 1.50 x .765

- - 532 16 21-70 Gearcase Halves, with Bearings

- - 532 18 13-37 Transmission Assembly

1 532 18 13-32 Gearcase, R.H., with Bearing

(Includes Key Number 18)

2 532 18 13-62 Spacer, Gearcase

3 532 17 50-35 Gear, Reverse

4 532 10 53-45 Gear, Cluster, Red, 1st & 2nd

5 532 10 04-13 Bearing, Needle

6 532 14 45-64 Sprocket and Tine Assembly

7 532 14 45-63 Sprocket Assembly with Bearing

(Includes Key Number 5)

8 532 00 43-58 Washer

9 532 00 83-58 Shaft, Reduction (1st)

10 532 00 83-71 Chain, Roller

11 532 10 03-71 Spring, Shift, Fork

12 532 12 46-97 Ball, Steel

13 532 00 83-53 Fork, Shift

14 532 17 53-72 Shaft, Reduction

15 812 00 00-39 Ring, Klip

16 532 15 44-67 Washer, Seal

17 532 00 13-70 Washer, Thrust 5/8 I.D.

18 532 12 47-92 Bearing, Needle

19 532 15 06-95 Shaft Input

21 532 43 15-19 Tine Shaft Assembly

22 532 10 61-81 Spacer 1.008 x 1-3/4 x 0.645

23 532 17 50-31 Pinion, Input

24 532 00 50-20 Bearing, Needle

25 532 43 10-23 Gasket, Gearcase

26 532 10 63-89 Spacer 0.765 I.D. x 1.12 x 5/8

27 532 10 04-33 Gear, Cluster

HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

TINE SHIELD

tine_shield_12teen

27 38

40 16

11 11

28 24

21 20

610

KEY PART

NO. NO. DESCRIPTION

23 532 00 44-40 Hinge

24 872 14 04-04 Bolt, Carriage, Grade 5

1/4-20 x 1/2

25 532 12 47-17 Cap, Vinyl

26 532 10 92-27 Pad, Idler

27 532 44 29-90 Shield, Leveling

28 532 13 86-09 Pin, Hinge

29 581 85 09-02 Shield, Side

30 873 97 05-00 Locknut, Hex, Flanged

32 873 22 04-00 Nut, Hex 1/4-20 UNF

33 810 04 04-00 Washer, Lock, Heavy Helical 1/4

34 872 01 05-20 Bolt, Hex Head, Flanged

5/16-18 x 2-1/4

35 872 11 05-05 Bolt, Carriage

38 873 51 05-00 Nut, Keps 5/16-18 UNC

39 532 42 88-67 Bolt, Hex Head

40 532 18 11-56 Nut, Speed

KEY PART

NO. NO. DESCRIPTION

1 532 15 53-77 Locknut, Hex, Flanged 5/16-18

2 532 44 29-66 Shield, Side, Outer, L.H.

3 532 00 83-93 Pin, Stake, Depth

4 812 00 00-35 Ring, Klip

5 532 18 08-47 Bolt 5/16-18 x 3/4

6 532 00 83-94 Spring

7 581 85 08-01 Bracket, Latch

8 532 10 92-30 Spring, Depth Stake

9 532 44 29-61 Shield, Tine

10 872 14 05-08 Bolt, Carriage 5/16-18 x 1

11 873 51 05-00 Nut, Hex 5/16-18

14 581 84 88-01 Bracket, Shield, Tine

15 532 44 29-65 Shield, Side, Outer, R.H.

16 873 90 04-00 Nut, Hex, Flanged 1/4-20 UNC

18 872 04 04-10 Bolt, Carriage, Grade 5

1/4-20 x 1-1/4

19 532 10 27-01 Grip

20 873 22 06-00 Nut, Hex 3/8-16

21 581 85 07-01 Stake, Depth

22 874 93 06-32 Bolt, Hex Head 3/8-16 x 2 NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

TINE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 532 00 65-56 Tine, Outer, L.H.

3 532 10 11-94 Tine, Inner, L.H.

4 532 12 46-60 Retainer Spring, Zinc

5 581 85 06-01 Assembly, Hub and Plate

6 873 54 06-00 Nut, Hex 3/8-24

(12 per side)

7 810 04 06-00 Washer, Lock 3/8

( 16 per side)

KEY PART

NO. NO. DESCRIPTION

8 874 61 06-16 Bolt, Hex Head 3/8-24 x 1

(4 per side)

9 532 00 65-57 Tine, Outer, R.H.

12 874 61 06-24 Bolt Hex Head 3/8-24 x 1-1/2

(8 per side)

13 532 44 60-59 Clevis Pin

15 532 10 11-93 Tine, Inner, R.H.

NOTE: All component dimensions given in U.S.

inches. 1 inch = 25.4 mm

tine_ipb_6

HUSQVARNA TILLER - MODEL NUMBER TR530 (MFG. ID. NO. 96091001706)

DECALS

3 532 14 54-37 Decal, European Standard, C.E.

5 532 15 98-77 Decal, Hand Placement

6 532 13 85-46 Decal, Shift Indicator

7 532 17 65-57 Decal, Warning, 4-Symbol

- - 532 43 87-84 Manual, Operator's, European

- - 532 43 87-85 Manual, Operator's, Scandinavian

- - 532 43 87-87 Manual, Operator's, East Bloc

- - 532 43 87-89 Manual, Operator's, Baltic

KEY PART

NO. NO. DESCRIPTION
