Husqvarna XT722FE Guide de configuration

431161 11.24.09 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER XT722FE

PRODUCT NUMBER 961 43 00-61

MFG. ID. NUMBER 96143006100

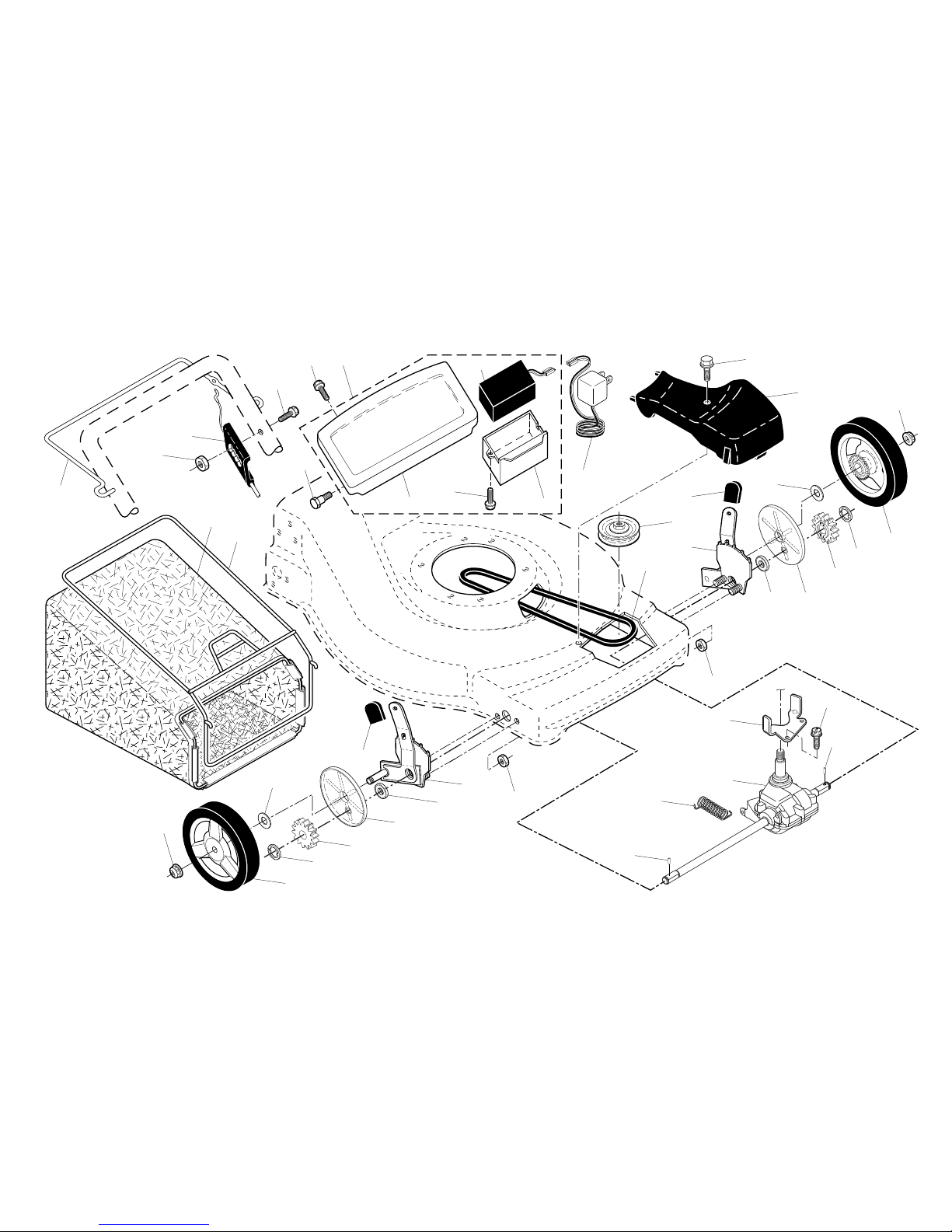

ROTARY LAWN MOWER - - MODEL NUMBER XT722FE (96143006100) PRODUCT NUMBER 961 43 00-61

12 12

28 29 30

40 42

19 2

ROTARY LAWN MOWER - - MODEL NUMBER XT722FE (96143006100) PRODUCT NUMBER 961 43 00-61

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

1 532 42 76-63 Upper Handle (Includes Foam Grip)

2 532 40 19-94 Cable, Operator Presence

3 532 12 51-62 Bracket, Upstop

4 532 16 66-49 Mulcher Plug

5 532 06 64-26 Wire Tie

6 532 19 19-38 Handle Knob

7 532 75 06-34 Screw

8 532 42 79-47 Control Bar

9 532 40 84-92 Rear Door Assembly

10 532 12 84-15 Pop Rivet

11 532 15 00-50 Screw, Self-Tapping #10-24 x 5/8

12 817 06 04-10 Screw, Hex Hex Head, Sems 1/4-20 x 1/2

14 532 19 70-76 Back Plate

15 532 41 13-34 Side Baffle

16 532 17 71-33 Discharge Baffle

17 532 14 89-41 Rear Baffle

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

20 532 41 31-60 Rear Skirt

21 532 40 54-21 Spring, Rear Door, LH

24 532 40 54-23 Spring, Rear Door, RH

25 532 40 91-48 Nut, Hex, Flanged

26 532 18 41-93 Bolt, Rear Door

27 532 41 08-31 Wheel & Tire Assembly, Rear

28 532 17 47-19 Bolt, Shoulder 3/8-16 x 1

29 532 40 16-30 Washer, Belleville

30 532 40 78-71 Axle Arm Assembly

31 532 70 10-37 Selector Knob

32 532 40 64-28 Selector Spring

33 532 19 70-29 Mulcher Door

34 532 40 16-29 Spacer

35 532 41 06-24 Wheel Adjusting Bracket, RH

36 532 17 57-35 Hinge Bracket Assembly

37 532 42 88-67 Screw, Sems, Thread Cutting 5/16-18 x 3/4

38 532 40 38-19 Discharge Deflector

39 532 41 91-93 Handle Bracket Assembly, LH

KEY PART

NO. NO. DESCRIPTION

40 532 41 91-92 Handle Bracket Assembly, RH

41 532 15 04-06 Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8

42 532 19 30-00 Spring, Torsion

43 873 80 04-00 Nut, Hex, Nylock

44 532 41 74-05 Kit, Lawn Mower Housing

(Includes Key Numbers 14, 15 and 51)

45 532 17 56-50 Rod, Hinge

46 532 42 12-48 Blade Adapter / Pulley

47 532 40 67-13 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Helical

50 532 85 10-84 Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8

51 532 17 00-31 Front Baffle

52 532 40 47-63 Danger Decal

53 817 60 04-06 Screw

54 532 08 83-48 Washer, Flat

55 873 93 06-00 Nut, Hex

56 532 08 86-52 Screw, Hinge 1/4-20 x 1-1/4

57 532 05 17-93 Hairpin Cotter

58 532 40 34-33 Lower Handle

59 532 19 15-74 Handle Bolt

64 - - - Engine, Kohler, Model Number XT173-0226

(For engine service and replacement parts,

call Kohler at 1-800-544-2444)

65 532 19 74-80 O-Ring

68 532 41 06-23 Wheel Adjusting Bracket, LH

69 532 19 79-91 Clip, Cable

70 532 18 63-62 Foam Grip

71 532 42 57-11 Belt Keeper

75 532 18 61-59 Screw

76 532 18 03-31 Key

77 532 19 48-48 Nut, Cap

78 532 18 96-86 Key Start Switch

79 532 40 95-67 Wiring Harness

- - 532 40 47-64 Warning Decal (not shown)

- - 532 43 11-60 Operator’s Manual, English / French

ROTARY LAWN MOWER - - MODEL NUMBER XT722FE (96143006100) PRODUCT NUMBER 961 43 00-61

5631

ROTARY LAWN MOWER - - MODEL NUMBER XT722FE (96143006100) PRODUCT NUMBER 961 43 00-61

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 40 78-16 Drive Control Cable

4 532 19 96-87 Screw 1/4-20

6 532 19 90-93 Bar, Drive Control

7 532 19 17-30 Nut, Hex 1/4-20

11 532 41 10-81 Wheel & Tire Assembly

12 812 00 00-58 E-Ring

13 532 40 38-49 Gear, Pinion

14 532 18 94-03 Dust Cover

15 532 40 48-45 Pawl, Drive

16 532 06 77-25 Washer, Flat 3/8

17 532 19 10-39 Ball Bearing

18 532 70 10-37 Selector Knob

25 532 41 16-63 Belt Keeper

26 532 16 34-09 Screw

27 532 17 52-62 Pan Head Tapping Screw #10-24 x 2-3/4

28 532 19 73-70 Drive Cover

29 532 40 91-48 Locknut, Hex

31 532 14 18-41 Screw, Torx Pan Head #20

32 532 19 40-18 Pulley, Drive

33 532 19 68-57 V-Belt

34 532 41 11-90 Trimplate

35 532 42 42-01 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

36 532 40 48-34 Gear Case Assembly, Complete

37 532 18 95-89 Battery

38 873 80 04-00 Locknut, Hex 1/4-20

39 532 18 62-37 Box, Battery

40 532 40 65-58 Spring

41 532 42 42-00 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

42 817 41 13-08 Screw, Hex Head #13 x 1/2

44 532 17 55-51 Screw, Shoulder, Hex Head #10-28 x 5/8

45 532 19 00-97 Charger, Battery

54 532 42 56-69 Grassbag Assembly

56 532 19 12-52 Trimplate / Battery / Battery Box Assembly

57 532 41 19-52 Frame, Grassbag
