Husqvarna LT 151 Mode d’emploi

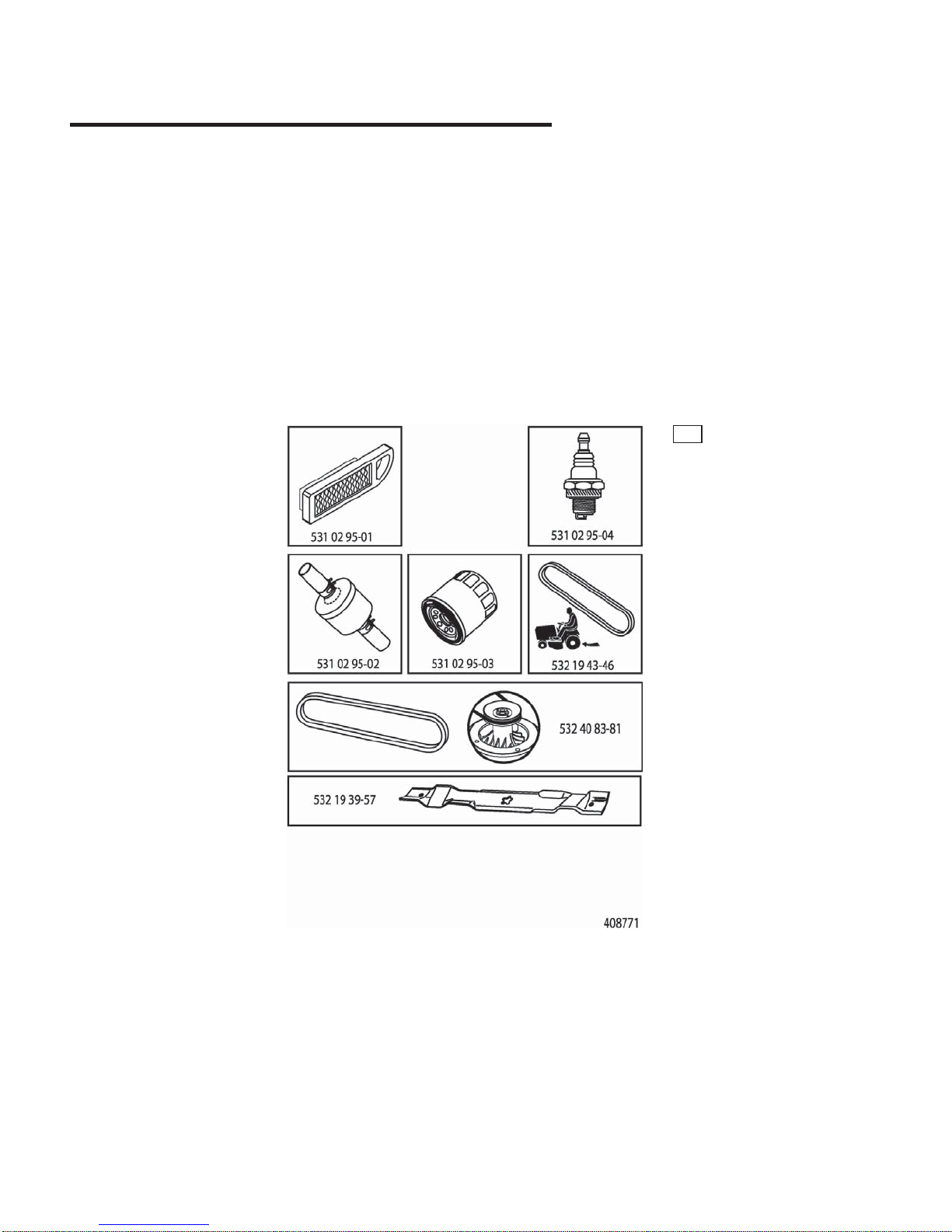

Spare parts

Ersatzteile

Pièces détachées

Reserve onderdelen

Repuestos

Reservdelar

IPL, LT151, 96041001805, 2010-01

LT151

532 43 23-77 Rev 2

ILLUSTRATED PARTS LIST

MODEL NO. 96041001805

CUSTOMER CATALOG NO. LT151

PRODUCT NO. 960 41 00-18

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

410

598

wheel_art_1-tex

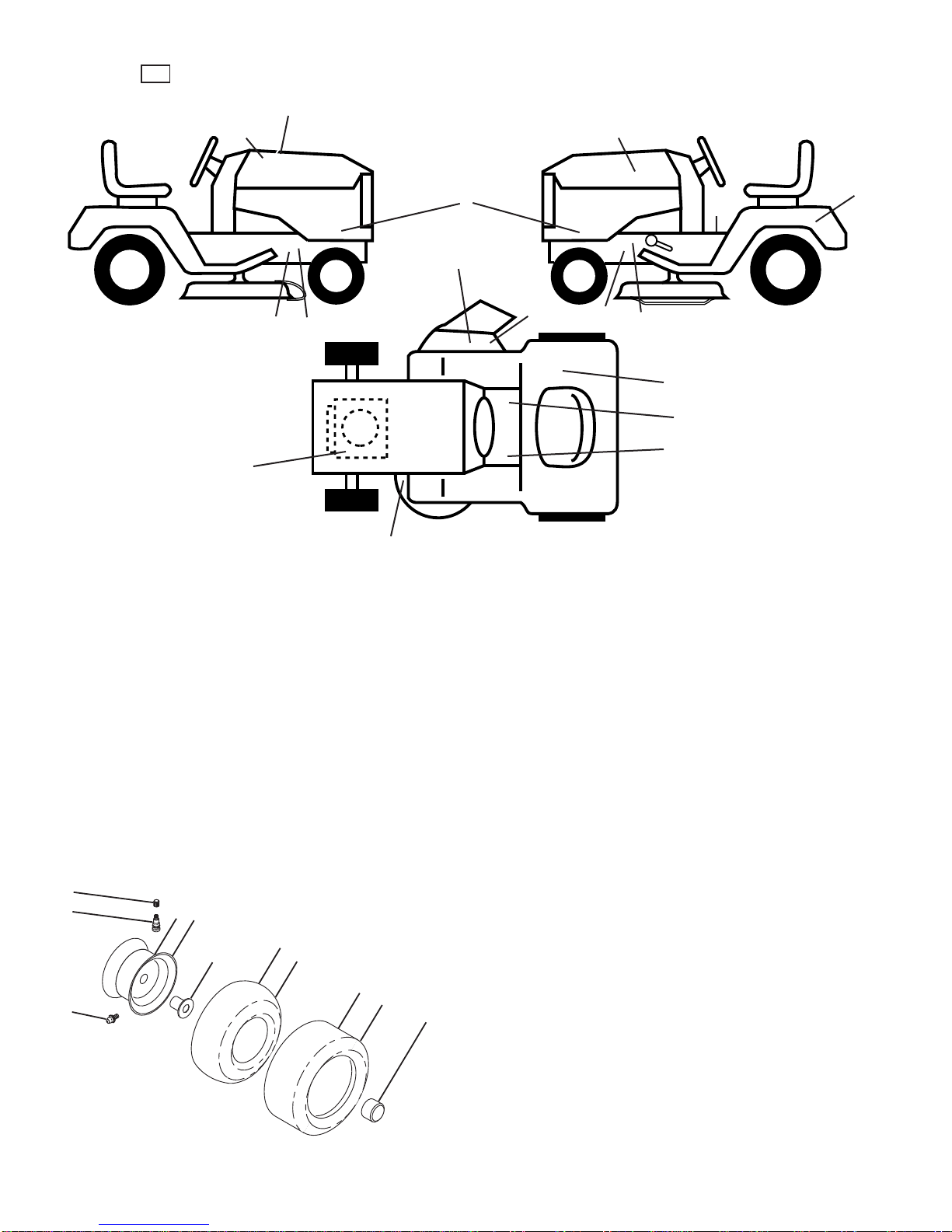

WHEELS AND TIRES

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 532 05 91-92 Cap Valve Tire

2 532 06 51-39 Stem Valve

3 532 13 83-36 Rim Asm 6" Front

4 532 05 99-04 Tube Front (Service Item Only)

5 532 10 62-22 Tire FT 15 x 6 0 - 6

6 532 12 49-57 Fitting Grease (Front Wheel Only)

7 532 12 49-59 BearingFlange(FrontWheelOnly)

8 532 17 50-39 Cap Axle Blk. 1 50 x 1 00

9 532 42 05-31 Tire R 18 x 9.5-8 Turf Saver LT

10 532 12 49-26 Tube Rear (Service Item Only)

11 532 13 83-37 Rim Asm. 8" Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

1 532 40 03-89 Decal, Operators

2 532 42 20-12 Decal, Hood RH/LH

3 532 19 68-41 Decal, Warning Eng. Symbols

4 532 40 85-96 Decal, Hood Panel

5 532 15 97-36 Decal, Chassis Hot Muffler

6 532 18 04-32 Decal, Fender 100 DB/CE

7 532 18 21-66 Decal, Cutfinger CE

9 532 14 50-05 Decal, Battery Dan./Poi.

10 532 14 08-37 Decal, Saddle Brake Parking

11 532 19 63-57 Decal, Warning

12 532 19 43-02 Decal, Mower V-Belt Schematic

13 532 15 97-37 Decal, Brake/Clutch Symbol

14 532 40 11-46 Decal, Warning Service/Fire

15 532 41 30-01 Decal, Repl.

- - 532 41 08-05 Pad, Footrest, LH

- - 532 41 10-56 Pad, Footrest, RH

- - 532 16 25-98 Decal, Drawbar Load Limit

- - 532 43 22-44 Manual Oper. Euro

14 14

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

DECALS

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

LIGHT

SWITCH

HEADLIGHTS

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH10

IGNITION SWITCH

CIRCUITPOSITION

OFF B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

03107

ATTACHMENT CLUTCH

(CLUTCH OFF)

REGULATOR STATOR

28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

CHARGING SYSTEM OUTPUT

9-16 AMP DC @ 3600 RPM

RED

BLACK

BLACK /WHITE

ORANGE

BROWN

BLUE

BLACK

BLACKBLACK

BLACK

DER

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

SCHEMATIC

30 33

79 21

43 27

T02S

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 40 02-52 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

25 532 41 28-94 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ign.

33 532 41 19-35 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd. Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol. 5/16-18 x 3/4 TYTT

71 532 40 04-49 Harness Ign.

79 532 17 52-42 Socket Asm.

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 40 07-25 Cover Terminal

92 532 19 66-15 Harness Pigtail Reverse Switch

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

ELECTRICAL

182

176

175

177

176

chassis-tex_TEX LT HUSQ_18_r1

130

150

202

203 18

130

214

206 204

234

205

191

297

137

238 239

194

162

282

287

282

36 36

285

286 283

199

284

228

183

194

236

180

213

218

189

152 217

235

159

189

159

130

151

304

189

306

303

305

306

195

312

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

CHASSIS AND ENCLOSURES

3 532 40 50-12 Logo

5 532 40 75-92 Dash

14 532 41 10-73 Hood

15 532 41 10-79 Lens LH

18 532 42 69-63 Grille

25 532 41 10-78 Lens RH

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 41 63-07 Fender

52 873 68 05-00 Nut Crown Lock 5/16-18

58 532 41 22-80 Drawbar Upper

68 817 49 05-08 Screw Thdrol. 5/16-18 x 1/2

130 532 41 63-58 Screw #10 x 0.750 BOS Thread

137 532 40 75-90 Bumper Dash

150 532 40 75-37 Air Duct

151 532 40 78-07 Bracket Pivot

152 532 19 95-35 Shield Browning

159 817 00 06-12 Screw 3/8 - 16 x 3/4

162 532 14 24-32 Screw Hex Wsh. Hi-Lo 1/4 x 1/2

175 532 19 94-72 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8

177 532 19 52-28 Bushing Steering

180 532 41 50-63 Chassis

182 532 40 71-76 Dash Lower

183 874 52 05-20 Bolt 5/16-18 unc x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

191 532 41 65-00 Insert Reflective RH

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

195 532 41 11-15 Plug Dash

199 532 41 34-85 Plate Deck Lift NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

202 532 41 10-74 Vent Side Hood RH

203 532 41 10-75 Vent Side Hood LH

204 532 41 11-16 Vent Top Hood

205 532 41 10-76 Skirt Side RH

206 532 41 10-77 Skirt Side LH

213 874 76 05-12 Bolt 5/16-18 unc x 3/4

214 532 19 91-45 Clip Retainer

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop

228 532 19 51-61 Stud Fastener

234 532 40 47-42 Bumper Hood

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Lock 5/16-18 unc

238 532 41 11-19 Trim

239 532 40 48-83 Clip Tinnerman

282 532 41 41-10 Clip Retainer Console

283 532 41 63-16 Console Deck Lift Husq. N/FR. GR

284 532 41 63-14 Console Shft Hyd HUSQ. LT.

285 532 41 63-15 Console Insrt. RH HUSQ.

286 532 41 63-17 Console Insrt. LH HUSQ.

287 817 60 04-06 Screw Hex WASHEAD 1/4-20 x 3/8

297 532 40 66-65 Insert Reflective LH

303 532 42 09-59 Shield Chassis French LH

304 532 42 15-09 Shield Chassis French RH

305 872 11 06-06 Bolt RDHD SHT SQNK 3/8-16 x 3/4

306 873 90 06-00 Nut Lock FLG 3/8-16 unc

312 532 42 09-60 Shield Drawbar French

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

CHASSIS AND ENCLOSURES

56 185

165 166

64 188

172

125

161

203

184 221

167

160

134

192

157

141

140

139 202

232

175

192 176

178

174

22 166

15 159

195125

158

1183 37 205

155

193

186

189

49 187

190

116

drive-tex_peerless_fender_38

233

116

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

DRIVE

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

1 - - - - - - Transaxle, Peerless 206-565

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-97 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 12 12-74 Knob Duckhead 1/2-13

26 532 19 74-55 Spring Brake Return

29 532 19 72-67 Rod, Brake

33 812 00 00-01 Ring E

35 532 40 10-31 Rod, Brake, Park

37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 19 43-46 V-Belt, Drive

61 532 12 36-66 Pulley transaxle

64 53219 62-00 Shaft Asm. Pedal Brake Control

73 874 49 05-44 Bolt Hex Flghd. 5/16-18 Gr. 5

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

134 532 19 78-57 Asm. Shift

139 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/Patch

140 810 04 04-00 Washer Lock Hvy. Helical 1/4

141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

155 812 00 00-28 Ring Retainer

157 532 10 57-01 Washer Plate Shift

158 532 19 43-52 Belt Keeper

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

165 532 19 62-12 Bushing Shaft Brake Hand Control

166 532 42 83-05 Nut Push .625

167 532 40 52-57 Latch Brake Parking

172 532 19 76-57 Strap Torque LH

174 532 19 72-89 Nut Push

175 532 19 78-58 Shaft Asm. Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer Axle

184 532 40 97-47 Knob

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

192 532 15 03-60 Nut Lock Center 1/4-28 Fnthd.

193 817 06 05-12 Screw 5/16-18 x 3/4

195 532 19 73-32 Bracket Brake Rod

202 532 19 78-59 Link Transaxle

203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.

221 532 40 31-87 Retainer Spring Clip Handle

232 874 78 07-16 Bolt Fin. Hex 7/16 - 14 x 1 Gr. 5

233 532 40 52-96 Washer Serrated

TRACTOR - - MODEL NO. LT151 (96041001805), PRODUCT NO. 960 41 00-18

DRIVE

Autres manuels pour LT 151

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Husqvarna Tondeuse à gazon

Husqvarna

Husqvarna 5521P Manuel utilisateur

Husqvarna

Husqvarna MASTER 50 S Manuel utilisateur

Husqvarna

Husqvarna CTH140 TWIN Manuel utilisateur

Husqvarna

Husqvarna LC 142iS Manuel utilisateur

Husqvarna

Husqvarna 87521RES Manuel utilisateur

Husqvarna

Husqvarna YT1942 Manuel utilisateur

Husqvarna

Husqvarna Z 554x Manuel utilisateur

Husqvarna

Husqvarna FR 2216 MA 4x4 Manuel d'instructions

Husqvarna

Husqvarna R152SV Manuel utilisateur

Husqvarna

Husqvarna Rider 316T Manuel utilisateur

Husqvarna

Husqvarna R 53 Manuel utilisateur

Husqvarna

Husqvarna RZ4216/966455801 Manuel utilisateur

Husqvarna

Husqvarna J 55L Manuel utilisateur

Husqvarna

Husqvarna CTH 164T Manuel utilisateur

Husqvarna

Husqvarna RZ4621 CA Manuel utilisateur

Husqvarna

Husqvarna 917.384505 5521CM Manuel utilisateur

Husqvarna

Husqvarna L221AHK Manuel utilisateur

Husqvarna

Husqvarna Automower105 Manuel utilisateur

Husqvarna

Husqvarna PZ5426FX / 966614001 Manuel utilisateur

Husqvarna

Husqvarna Z454X Manuel utilisateur

Husqvarna

Husqvarna YTH18542 Manuel utilisateur

Husqvarna

Husqvarna Z400 COLLECTION SYSTEM Manuel utilisateur

Husqvarna

Husqvarna HU775AWD Guide de configuration

Husqvarna

Husqvarna YT46LS Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
