ILLUSTRATED PARTS LIST

MODEL NUMBER LC56

PRODUCT NUMBER 961 41 02-75

MFG. ID. NUMBER 96141027500

53 53

105

104

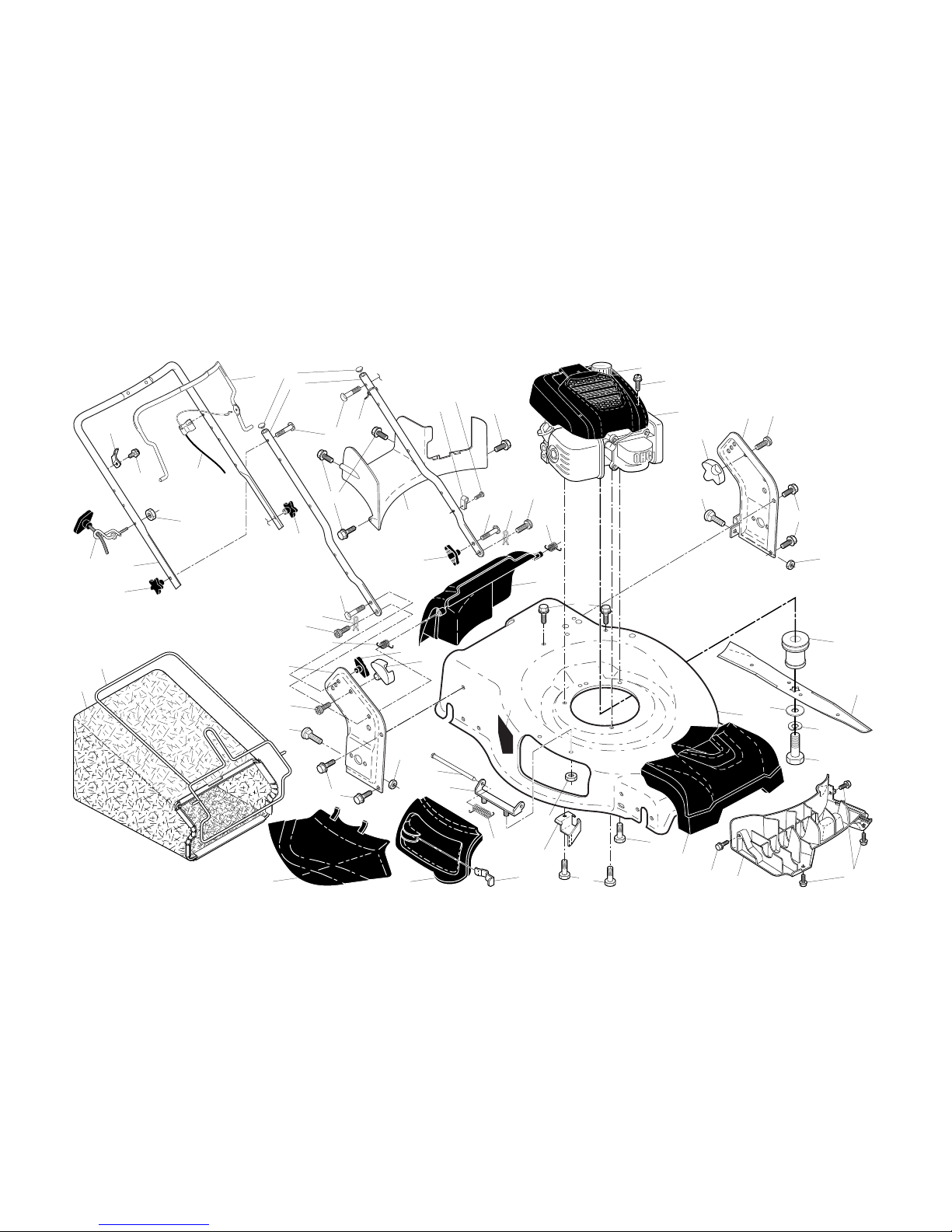

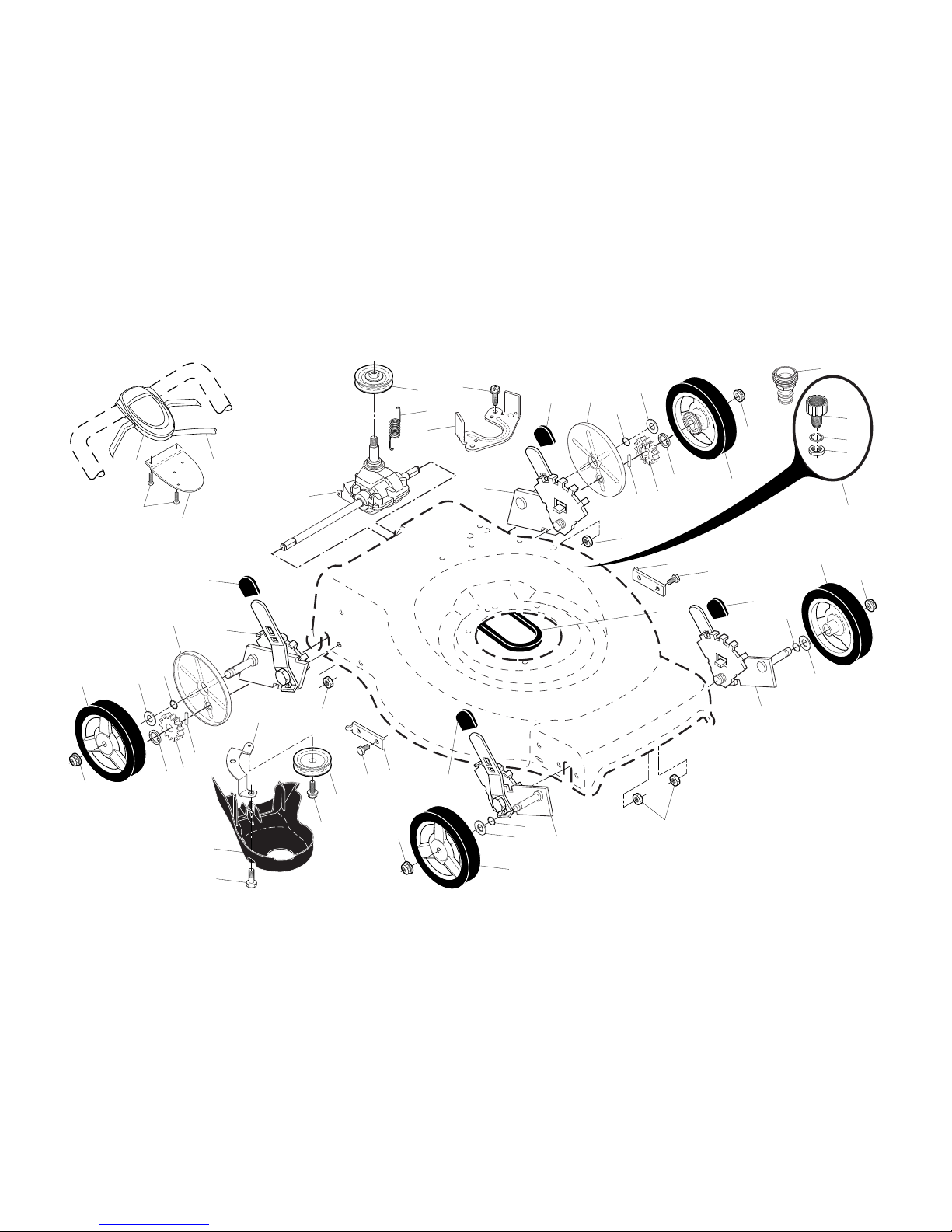

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. LC56 (961 41 02-75) (MFG. ID. NO. 96141027500)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement

parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 580 63 87-06 Upper Handle Assembly

2 532 42 74-97 Cable, Engine Zone Control

3 532 43 00-34 Bracket, Upstop

6 532 18 23-98 Handle Knob, Star

7 532 17 88-48 Screw #10-16 x 5/8

8 580 84 91-02 Control Bar

9 532 43 13-91 Rear Door Assembly

11 532 42 55-75 Hairpin, Door/Handle Pivot

12 532 19 19-38 Handle Knob, Standard

13 532 43 75-16 Plug, Lower Handle Bar

17 532 43 12-38 Rear Bafﬂe

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

21 532 41 99-49 Spring, Rear Door, LH, Black

22 532 14 18-41 Screw, Panhead, Torx #20

24 532 41 99-48 Spring, Rear Door, RH, Grey

26 532 41 99-45 Screw, Rear Door /

Handle Pivot

28 872 25 05-05 Bolt, Carriage 5/16-18 x 5/8

30 580 94 34-05 Grassbag

31 532 41 99-51 Frame, Grass Catcher

32 532 44 11-92 Latch, Mulcher Door

33 532 41 99-27 Mulcher Door

KEY PART

NO. NO. DESCRIPTION

34 532 43 81-34 Pivot Bracket

36 532 17 57-35 Hinge Bracket Assembly

37 817 00 05-10 Screw, Hex Head 1/4-20

38 532 42 61-29 Discharge Deﬂector

39 581 35 37-02 Handle Bracket, LH

40 581 35 36-02 Handle Bracket, RH

41 532 15 04-06 Screw, Dogpoint

3/8-16 x 1-1/8

42 532 19 30-00 Spring, Torsion

43 532 19 17-30 Nut, Hex, Nylock

44 581 70 83-07 Kit, Lawn Mower Housing

45 532 17 56-50 Rod, Hinge

46 581 09 85-01 Blade Adapter / Pulley

47 580 24 40-01 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Helical

50 532 85 10-84 Screw, Machine, Hex Head

3/8-24 x 1-3/8 Grade 8

51 581 23 89-01 Front Bafﬂe

52 532 40 47-63 Decal, Danger

53 532 43 73-45 Screw

56 817 41 13-12 Screw, Hex Washer Head

#13 x 3/4

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

57 532 15 53-77 Nut, Hex

58 532 44 11-97 Lower Handle

59 532 19 15-74 Handle Bolt

64 - - - Engine, Honda, Model

Number GCV160-LAOS3A

(For engine service and

replacement parts, call

Honda at 1-800-426-7701)

84 532 42 81-24 Fastener, Push

96 532 19 79-91 Clip, Cable

97 581 11 53-02 Belt Keeper

99 532 43 73-89 Front Shroud Assembly

104 580 29 00-01 Engine Shroud

105 580 76 87-01 Mounting Screw,

Engine Shroud

- - 115 54 07-20 Operator’s Manual,

European

- - 115 54 07-10 Operator's Manual,

Scandinavian

- - 115 54 07-50 Operator's Manual,

East Bloc

- - 115 54 07-40 Operator's Manual,

Baltic

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. LC56 (961 41 02-75) (MFG. ID. NO. 96141027500)

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement

parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 43 09-95 Drive Control Assembly

(Includes Cable)

5 532 08 83-48 Washer, Flat

6 532 19 74-80 O-Ring

9 532 43 16-50 Cable, Drive

10 532 43 27-90 Mounting Bracket, Drive Control

12 532 40 65-57 Belt, Drive

13 581 68 08-01 Gear Case Assembly, Complete

14 532 19 41-28 Pulley, Drive

15 532 43 78-73 Wheel Adjuster, Rear, RH

16 532 43 78-74 Wheel Adjuster, Rear, LH

18 532 70 10-37 Selector Knob

20 580 80 69-01 Debris Shield

22 817 00 05-10 Bolt, Hex Head 5/16-18

25 581 31 38-02 Mounting Bracket, Debris Shield

26 532 42 60-66 Belt Keeper

27 532 06 77-25 Washer

28 812 00 00-58 E-Ring 7/16

29 581 84 04-01 Cover, Dust, Wheel

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

30 532 19 17-30 Nut, Hex

31 532 40 48-45 Pawl, Drive

32 581 68 51-01 Wheel & Tire Assembly, Rear

33 532 40 91-48 Nut, Flangelock 3/8-16

34 532 40 48-35 Pinion

35 532 43 78-72 Kit, Wheel Adjuster, Front, RH

36 532 43 78-71 Kit, Wheel Adjuster, Front, LH

37 532 16 34-09 Screw, Hi-Lo Thread

40 532 41 08-31 Wheel & Tire Assembly, Front

41 532 43 84-89 Kit, Water Washout Assembly

42 532 43 49-94 Fitting, Water Washout

43 532 41 55-85 Washer, Lock, Internal Tooth

44 532 41 55-86 Locknut, Hex, with O-Ring

55 581 35 13-01 Spring, Return

59 532 44 21-13 Support Bracket, Front Axle

61 532 18 16-98 Screw

84 532 41 64-05 Adapter, Quick-Connect

86 580 36 43-01 Pulley, Idler

87 581 12 76-01 Screw
