Husqvarna HU800H Guide de configuration

581 70 87-27 02.19.13 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER HU800H

PRODUCT NUMBER 961 43 00-99

MFG. ID. NUMBER 96143009900

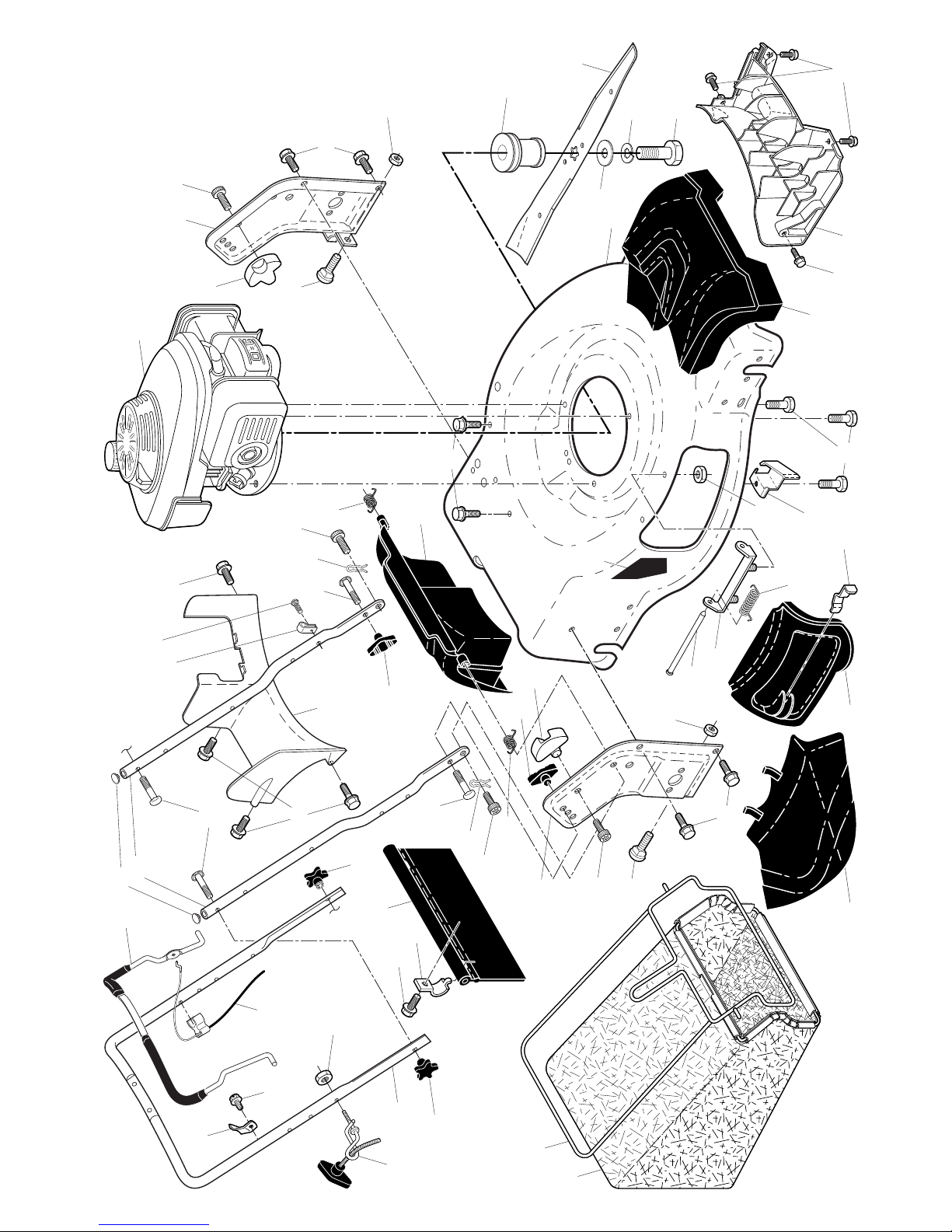

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800H (96143009900) PRODUCT NO. 961 43 00-99

53 53

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800H (96143009900) PRODUCT NO. 961 43 00-99

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 580 63 87-06 Upper Handle Assembly

2 532 42 74-97 Cable, Engine Zone Control

3 532 43 00-34 Bracket, Upstop

6 532 18 23-98 Handle Knob, Star

7 532 17 88-48 Screw, Hex Washer Head

#10-16 x 5/8

8 580 84 91-02 Control Bar, Molded

9 532 43 13-90 Rear Door Assembly

11 532 42 55-75 Hairpin, Door/Handle Pivot

12 532 19 19-38 Handle Knob, Standard

13 532 43 75-16 Plug, Lower Handle Bar

17 581 78 21-01 Rear Bafﬂe

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

20 532 44 45-37 Rear Skirt

21 532 41 99-49 Spring, Rear Door, LH, Black

22 532 14 18-41 Screw, Panhead, Torx #20

24 532 41 99-48 Spring, Rear Door, RH, Grey

26 532 41 99-45 Screw, Rear Door/Handle Pivot

28 872 25 05-05 Bolt, Carriage 5/16-18 x 5/8

30 580 94 73-07 Grassbag

31 532 41 99-51 Frame, Grass Catcher

32 532 44 11-92 Latch, Mulcher Door

33 532 41 99-27 Mulcher Door

34 532 43 81-34 Bracket, Grassbag

36 532 17 57-35 Hinge Bracket Assembly

37 817 00 05-10 Screw, Hex Head 1/4-20

38 532 42 61-29 Discharge Guard

39 581 35 37-02 Handle Bracket, LH

40 581 35 36-02 Handle Bracket, RH

41 532 15 04-06 Screw, Dogpoint 3/8-16 x 1-1/8

42 532 19 30-00 Spring, Torsion

43 532 19 17-30 Nut, Hex

44 532 44 62-61 Kit, Lawn Mower Housing

45 532 17 56-50 Rod, Hinge

46 581 85 15-01 Blade Adapter

47 580 24 40-01 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Helical

50 532 85 10-84 Screw, Machine, Hex Head

3/8-24 x 1-3/8 Grade 8

51 581 23 89-01 Front Bafﬂe

52 532 40 47-63 Decal, Warning

53 532 43 73-45 Screw

56 817 41 13-12 Screw, Hex Washer Head

#13 x 3/4

57 532 15 53-77 Nut, Hex

58 532 44 11-97 Lower Handle

59 532 19 15-74 Handle Bolt

64 - - - Engine, Honda, Model Number

GCV160-LAOS3A (For engine

service and replacement parts, call

Honda Engines at 1-800-426-7701)

83 532 75 00-97 Screw, Hex Washer Head

84 532 42 81-24 Fastener, Push

85 532 43 45-30 Mounting Bracket,

Rear Skirt

96 532 19 79-91 Clip, Cable

97 581 11 53-02 Belt Keeper

99 532 43 73-89 Front Shroud Assembly

- - 581 70 85-49 Operator’s Manual, English / French

- - 581 70 85-31 Operator’s Manual, Spanish

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

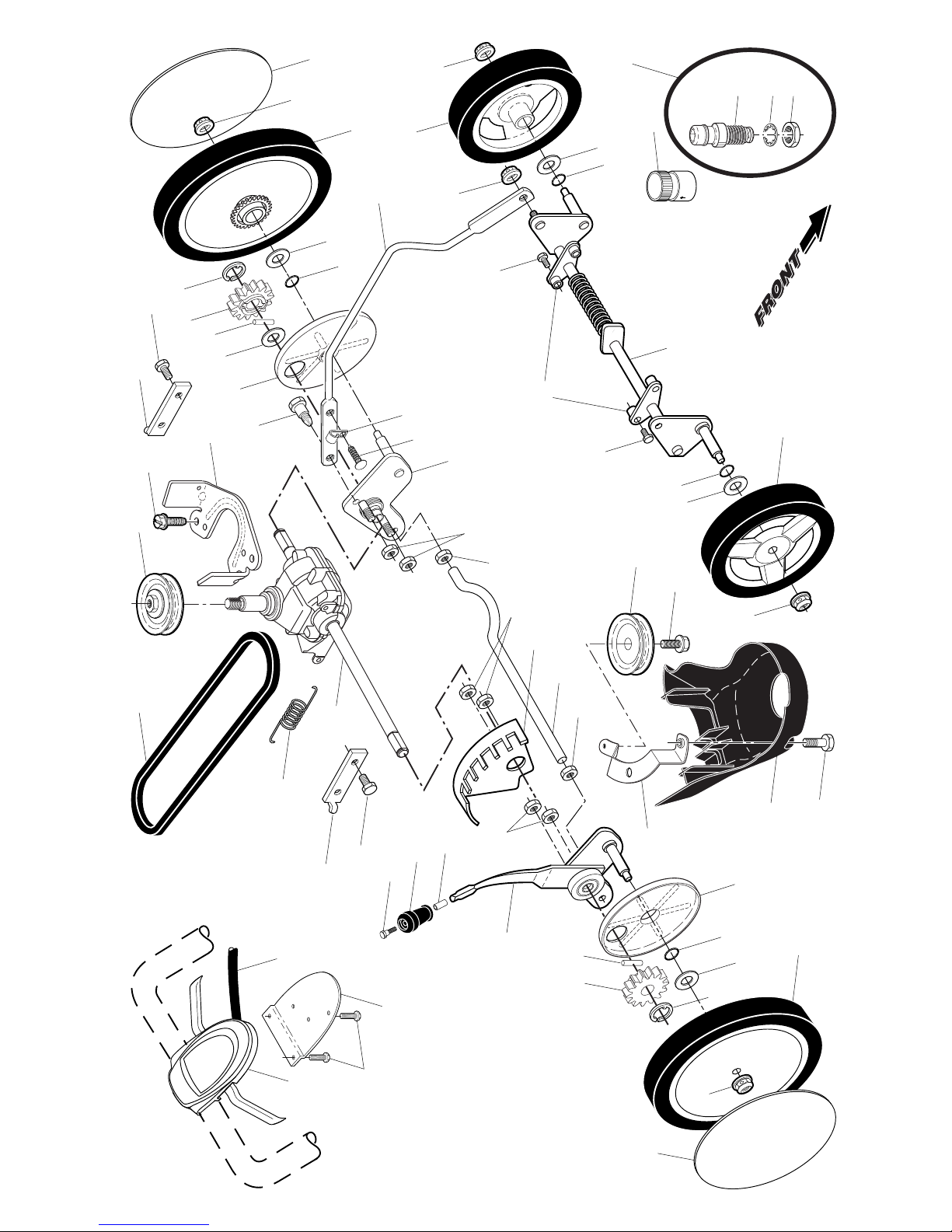

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800H (96143009900) PRODUCT NO. 961 43 00-99

38 38

15 34

34 32

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800H (96143009900) PRODUCT NO. 961 43 00-99

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 583 43 09-95 Drive Control Assembly

(Includes Cable)

9 532 43 16-50 Cable, Drive

10 532 43 27-90 Mounting Bracket, Drive Control

11 817 41 13-12 Screw

12 873 94 08-00 Nut, Hex

13 581 68 08-01 Gearcase Assembly, Complete

14 532 19 41-28 Pulley, Drive

15 532 08 83-48 Washer, Flat

16 532 43 00-30 Rod, Connecting

17 532 75 11-53 Nut, Hex

18 532 43 64-59 Kit, Selector Assembly

19 532 43 39-96 Knob, Wheel Adjuster

20 580 80 69-01 Debris Shield

21 532 43 52-42 Anchor

23 532 42 89-90 Wheel Axle Assembly, LH

24 532 43 35-11 Bracket, Height Adjustment

25 581 31 38-02 Mounting Bracket, Debris Shield

26 532 42 60-66 Belt Keeper

27 819 17 12-16 Washer, Flat

28 812 00 00-58 E-Ring 7/16

29 532 42 87-81 Cover, Dust, Wheel

30 817 00 05-10 Screw, Hex Head

31 532 40 48-45 Pawl, Drive

32 581 33 67-01 Wheel & Tire Assembly, Rear

33 532 40 91-48 Nut, Flangelock 3/8-16

34 532 19 74-80 O-Ring

35 532 43 05-98 Axle, Rear

36 532 44 71-89 Axle, Front

37 532 16 34-09 Screw, Hi-Lo Thread, 12 x 5/8

38 532 19 17-30 Nut, Hex

39 532 40 70-59 Bolt

40 532 41 08-31 Wheel & Tire Assembly, Front

41 532 42 87-83 Pinion

44 532 40 65-57 Belt, Drive

48 532 43 84-89 Kit, Water Washout Assembly

49 532 43 49-94 Fitting, Water Washout

50 532 41 55-85 Washer, Lock, Internal Tooth

51 532 41 55-86 Locknut, Hex, with O-Ring

55 581 35 13-01 Spring, Tension

56 532 44 13-33 Hubcap

57 532 40 91-49 Nut, Flangelock 3/8-16

58 532 43 52-41 Bolt, Shoulder

59 532 44 21-13 Support Bracket

61 532 18 16-98 Screw

62 532 19 79-91 Clip, Cable

63 532 42 81-24 Fastener, Push

84 532 41 64-05 Adapter, Quick-Connect Coupler

85 532 43 90-77 Support Bracket, Front Axle

86 580 36 43-01 Pulley, Idler

87 581 12 76-01 Screw

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION
