Husqvarna HU800AWD Guide de configuration

585 98 76-27 10.24.13 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER HU800AWD

PRODUCT NUMBER 961 45 00-11

MFG. ID. NUMBER 96145001101

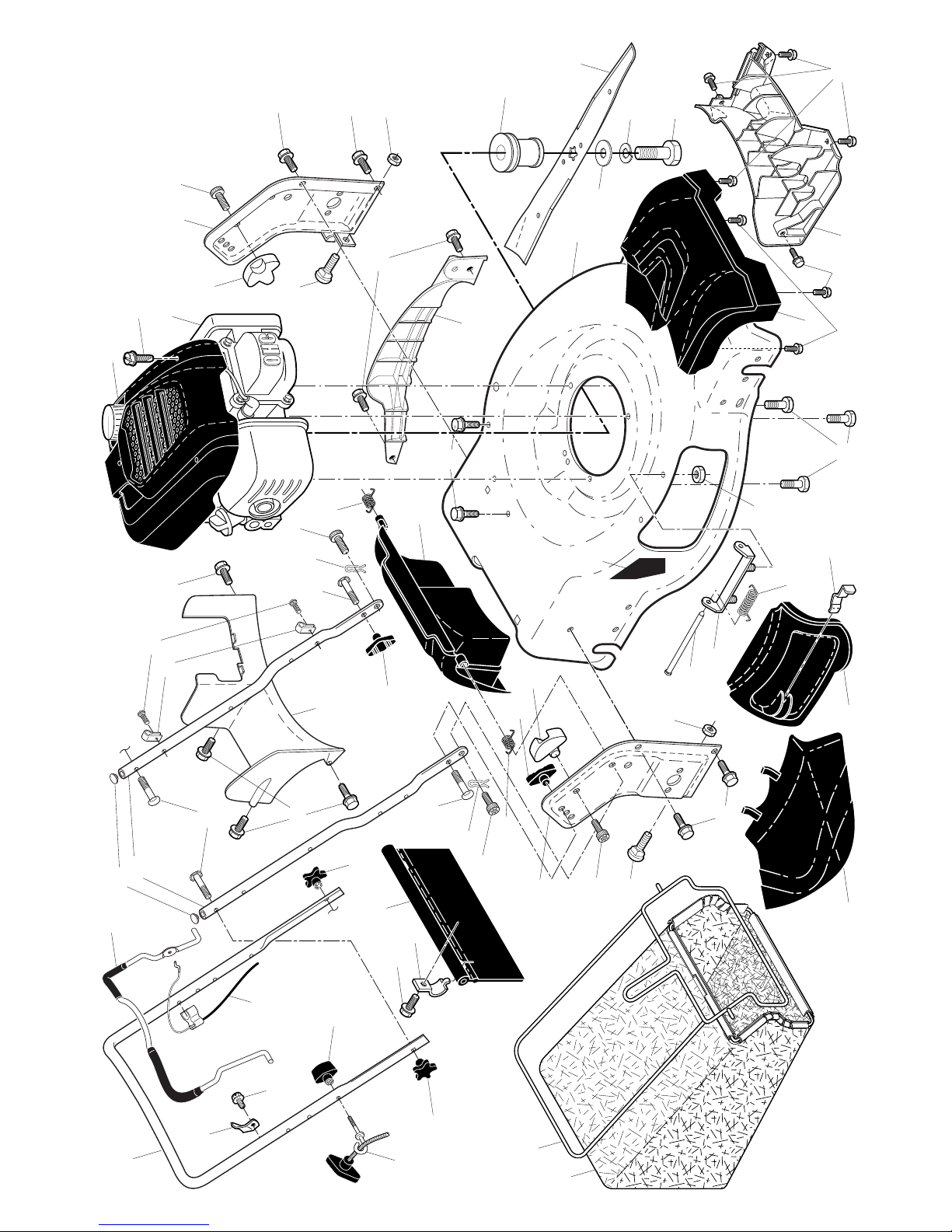

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800AWD (96145001101) PRODUCT NO. 961 45 00-11

117

114

115

105

104

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800AWD (96145001101) PRODUCT NO. 961 45 00-11

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 580 63 87-06 Upper Handle Assembly

2 532 42 74-97 Cable, Engine Zone Control

3 532 43 00-34 Bracket, Upstop

6 532 18 23-98 Handle Knob, Star

7 532 17 88-48 Screw #10-16 x 5/8

8 580 84 91-02 Control Bar, Overmolded

9 532 43 13-90 Rear Door Assembly

11 532 42 55-75 Hairpin, Door/Handle Pivot

12 532 19 19-38 Handle Knob, Standard

13 532 43 75-16 Plug, Lower Handle Bar

17 581 78 21-01 Rear Bafﬂe

18 581 91 26-01 T-Knob

19 581 90 21-01 Rope Guide

20 532 44 45-01 Rear Skirt

21 532 41 99-49 Spring, Rear Door, LH, Black

22 532 14 18-41 Screw, Panhead, Torx #20

24 532 41 99-48 Spring, Rear Door, RH, Grey

26 532 41 99-45 Screw, Rear Door/Handle Pivot

28 872 25 05-05 Bolt, Carriage 5/16-18 x 5/8

30 580 94 34-02 Grassbag

31 532 41 99-51 Frame, Grass Catcher

32 532 44 11-92 Latch, Mulcher Door

33 532 41 99-27 Mulcher Door

34 532 43 81-34 Bracket, Grassbag

36 532 17 57-35 Bracket, Hinge

37 584 29 94-01 Screw

38 532 42 61-29 Discharge Deﬂector

39 585 90 07-03 Handle Bracket, LH

40 585 90 08-03 Handle Bracket, RH

41 532 15 04-06 Screw, Dogpoint 3/8-16 x 1-1/8

42 532 19 30-00 Spring, Hinge

43 532 19 17-30 Nut, Hex

44 581 70 83-01 Kit, Lawn Mower Housing

45 532 17 56-50 Rod, Hinge

46 581 85 15-01 Blade Adapter / Pulley

47 580 24 40-01 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Helical

50 532 85 10-84 Screw, Machine, Hex Head

3/8-24 x 1-3/8 Grade 8

51 581 23 89-01 Front Bafﬂe

53 817 00 05-10 Screw

56 817 41 13-12 Screw, Hex Washer Head #13 x 3/4

57 532 15 53-77 Nut, Hex

58 532 44 11-97 Lower Handle

59 532 19 15-74 Handle Bolt

52 532 40 47-63 Decal, Warning, Cut Finger

64 - - - Engine, Honda, Model Number GCV190-LAS3L

(For engine service and replacement parts,

call Honda Engines at 1-800-426-7701)

83 532 75 00-97 Screw, Hex Washer Head

84 532 42 81-24 Fastener, Push

85 532 43 45-30 Mounting Bracket, Rear Skirt

96 532 19 79-91 Clip, Cable

99 580 99 29-01 Front Shroud Assembly

104 580 29 00-01 Shroud, Engine

105 580 76 87-01 Mounting Screw, Engine Shroud

114 581 25 36-01 Bumper, Side

115 581 33 00-01 Screw

117 532 42 88-67 Bolt

- - 115 63 54-32 Operator’s Manual, English / French

- - 115 63 54-46 Operator’s Manual, Spanish

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800AWD (96145001101) PRODUCT NO. 961 45 00-11

31 27

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HU800AWD (96145001101) PRODUCT NO. 961 45 00-11

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 581 95 05-05 Drive Control Assembly

(Includes Cable)

2 580 36 42-02 Mounting Bracket, Idler Pulleys

4 585 30 57-01 Gearcase Assembly, Front, Complete

8 532 40 48-35 Pinion

9 581 95 21-01 Cable, Drive

10 532 43 27-90 Mounting Bracket, Drive Control

12 580 36 46-02 Belt, Drive

13 581 68 08-01 Gearcase Assembly, Rear, Complete

14 532 19 41-28 Pulley, Drive

15 581 75 88-01 Wheel Adjuster Assembly, RH

16 581 75 88-02 Wheel Adjuster Assembly, LH

17 532 41 38-08 Pushnut

18 532 42 61-88 Knob, Front Wheel Adjuster

19 532 42 61-89 Knob, Rear Wheel Adjuster

20 580 80 69-01 Debris Shield

22 817 00 05-10 Screw, Hex Head 1/4-20

25 532 42 60-65 Mounting Bracket, Debris Shield

26 581 15 25-02 Belt Keeper, Gearcase, Rear

27 532 06 77-25 Washer, Flat

28 812 00 00-58 E-Ring 7/16

29 581 84 04-01 Cover, Dust, Wheel

30 532 43 81-30 Nut, Hex

31 532 40 48-45 Pawl, Drive

32 580 36 53-01 Wheel & Tire Assembly

33 532 40 91-48 Nut, Flangelock 3/8-16

34 532 19 74-80 O-Ring

37 532 16 34-09 Screw, Hi-Lo Thread, #12 x 5/8

41 532 43 84-89 Kit, Water Washout Assembly

42 532 43 49-94 Fitting, Water Washout

43 532 41 55-85 Washer, Lock, Internal Tooth

44 532 41 55-86 Locknut, Hex, with O-Ring

45 581 24 13-01 Belt Keeper, Gearcase, Front

46 532 43 73-45 Screw

48 581 90 40-01 Pulley Assembly, Idler

49 581 33 45-01 Screw, Mounting, Idler Pulley

55 581 35 13-01 Spring, Tension

59 532 44 21-13 Support Bracket

61 532 18 16-98 Screw

84 532 41 64-05 Adapter, Quick-Connect Coupling

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION
