Husqvarna HU725F Guide de configuration

586 38 05-27 12.06.13 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER HU725F

PRODUCT NUMBER 961 45 00-12

MFG. ID. NUMBER 96145001201

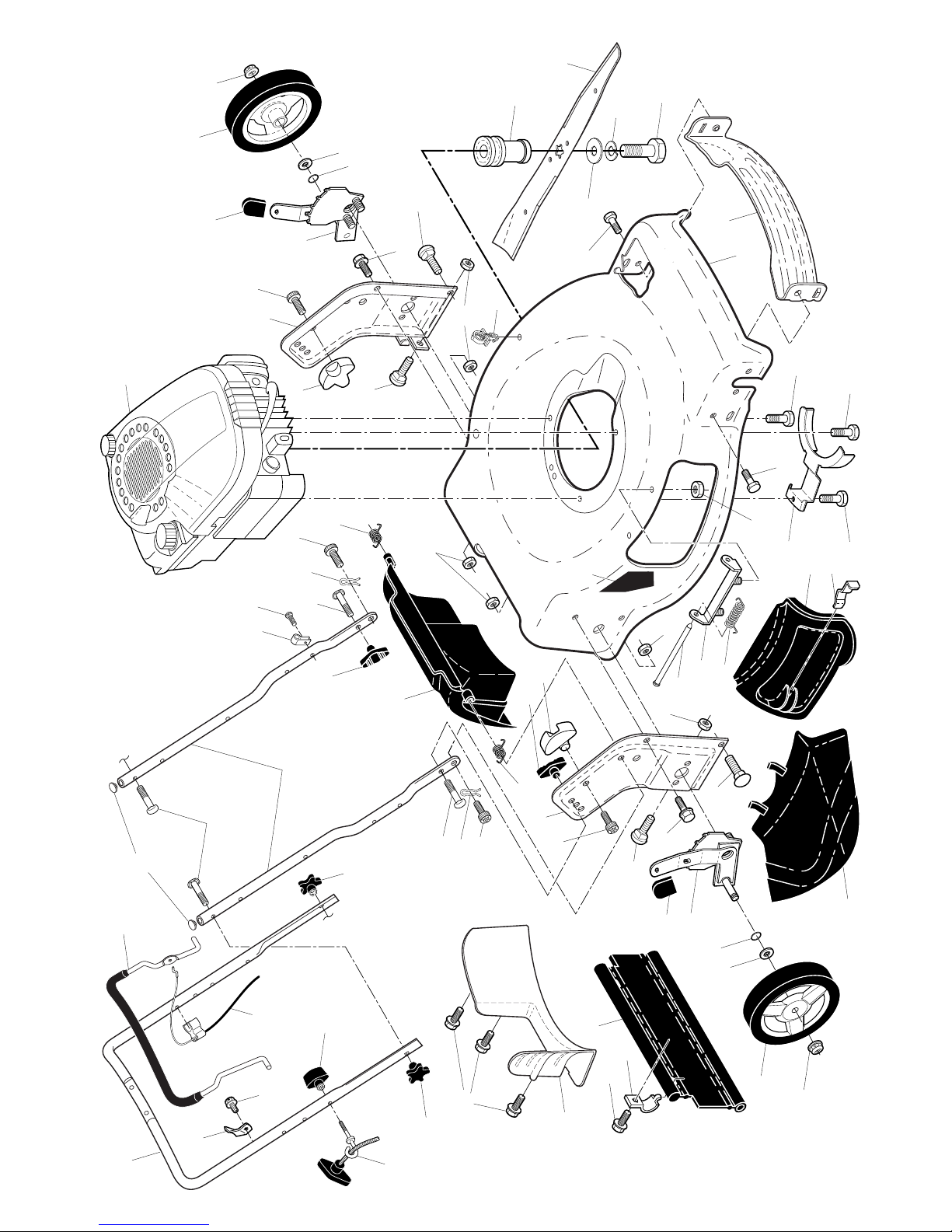

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER HU725F (MFG. ID. NO. 96145001201)

35 36

41 41

43 44

52 53

56 57

6554

KEY PART

NO. NO. DESCRIPTION

1 532 42 79-71 Upper Handle

2 532 42 09-39 Engine Zone Control Cable

3 532 43 00-34 Bracket, Upstop

4 532 14 50-06 Guide, Cable

6 532 18 23-98 Handle Knob, Star

7 532 17 88-48 Screw, Hex Washer Head

#10-16 x 5/8

8 581 49 74-02 Control Bar, Overmolded

9 532 43 13-90 Rear Door Assembly

11 532 42 55-75 Hairpin

12 532 19 19-38 Handle Knob, Standard

13 532 43 75-16 Plug, Lower Handle Bar

17 532 42 73-07 Rear Bafﬂe

18 581 91 26-01 T-Knob

19 581 90 21-01 Rope Guide

20 532 42 91-57 Rear Skirt

21 532 41 99-49 Spring, Rear Door, LH, Black

22 532 14 18-41 Screw, Pan Head, Torx #20

24 532 41 99-48 Spring, Rear Door, RH, Grey

25 532 40 91-48 Nut, Hex, Flanged

26 532 41 99-45 Screw, Rear Door/Handle Pivot

27 532 41 08-31 Wheel & Tire Assembly, Rear

28 872 25 05-05 Bolt, Carriage 5/16-18 x 5/8

31 532 70 10-37 Selector Knob

32 532 44 11-92 Latch, Mulcher Door

33 532 41 99-27 Mulcher Door

34 532 43 81-34 Pivot Bracket

35 532 43 11-39 Wheel Adjuster Assembly, RH

36 532 17 57-35 Hinge Bracket Assembly

38 532 43 61-29 Discharge Deﬂector

39 585 90 07-03 Handle Bracket, LH

40 585 90 08-03 Handle Bracket, RH

41 532 15 04-06 Screw, Dogpoint 3/8-16 x 1-1/8

KEY PART

NO. NO. DESCRIPTION

42 532 19 30-00 Spring, Torsion

43 532 19 17-30 Nut, Hex, Nylock

44 581 69 08-01 Kit, Lawn Mower Housing

45 532 17 56-50 Rod, Hinge

46 581 47 33-01 Blade Adapter / Pulley

47 580 24 40-01 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Helical

50 532 85 10-84 Screw, Machine, Hex Head

3/8-24 x 1-3/8 Grade 8

51 532 43 05-99 Front Bafﬂe

52 532 40 47-63 Decal, Danger

53 817 00 05-10 Screw, Hex Head 5/16

54 532 08 83-48 Washer, Flat

55 532 19 17-30 Nut, Hex, Flanged 1/4-20

56 817 41 13-12 Screw, Hex Washer Head

#13 x 3/4

57 532 15 53-77 Locknut, Hex 5/16-18

58 532 44 11-97 Bar, Lower Handle

59 532 19 15-74 Handle Bolt

62 532 43 50-59 Belt Retainer

64 - - - Engine, Briggs & Stratton, Model

Number 128M02-0120-F1 (For engine

service and replacement parts, call

Briggs & Stratton at 1-800-233-3723)

65 532 19 74-80 O-Ring

68 532 43 11-38 Wheel Adjuster Assembly, LH

83 532 75 00-97 Screw

84 532 42 81-24 Fastener, Push

85 532 43 45-30 Bracket, Skirt Mounting

96 532 19 79-91 Clip, Cable

- - 115 66 61-32 Operator’s Manual, English / French

- - 115 66 61-46 Operator’s Manual, Spanish

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER HU725F (MFG. ID. NO. 96145001201)

18 38

54 57

82 83

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER HU725F (MFG. ID. NO. 96145001201)

1 532 42 05-62 Drive Control Cable

7 532 19 84-53 Bar, Drive Control

11 532 41 10-81 Wheel & Tire Assembly, Front

12 812 00 00-58 E-Ring

13 532 40 38-49 Pinion

14 581 84 04-01 Dust Cover

15 532 40 48-45 Pawl, Drive

16 532 06 77-25 Washer, Flat 3/8

18 532 70 10-37 Selector Knob

25 532 43 17-11 Belt Guide Bracket

26 532 16 34-09 Screw, Hi-Lo Thread #12 x 5/8

27 532 17 52-62 Screw, Pan Head, Self-Tapping

#10-24 x 2-3/4

28 532 42 10-97 Drive Cover

29 532 40 91-48 Locknut, Hex

32 532 44 32-62 Drive Pulley

33 532 19 68-53 V-Belt

35 581 49 79-04 Wheel Adjuster Assembly, LH

(Includes Bearing)

36 532 42 47-41 Gear Case Assembly, Complete

38 532 19 17-30 Locknut 1/4-20

40 532 40 65-58 Spring

41 581 49 79-03 Wheel Adjuster Assembly, RH

(Includes Bearing)

54 580 94 73-15 Grassbag

57 532 41 99-51 Frame, Grassbag

80 532 43 84-89 Water Washout Assembly

81 532 43 49-94 Fitting, Hose, Water Washout

82 532 415 5-85 Washer, Lock, Internal Tooth

83 532 415 5-86 Locknut, Hex, with O-Ring

85 532 41 64-05 Adapter, Quick-Connect

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.

HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER HU725F (MFG. ID. NO. 96145001201)
