Husqvarna HU700L Guide de configuration

438679 Rev. 3 06.30.11 BY

ILLUSTRATED PARTS LIST

MODEL NUMBER HU700L

PRODUCT NUMBER 961 43 00-69

MFG. ID. NUMBER 96143006900

ROTARY LAWN MOWER - - MODEL NUMBER HU700L (96143006900) PRODUCT NUMBER 961 43 00-69

22 24

83 85

53 97 62

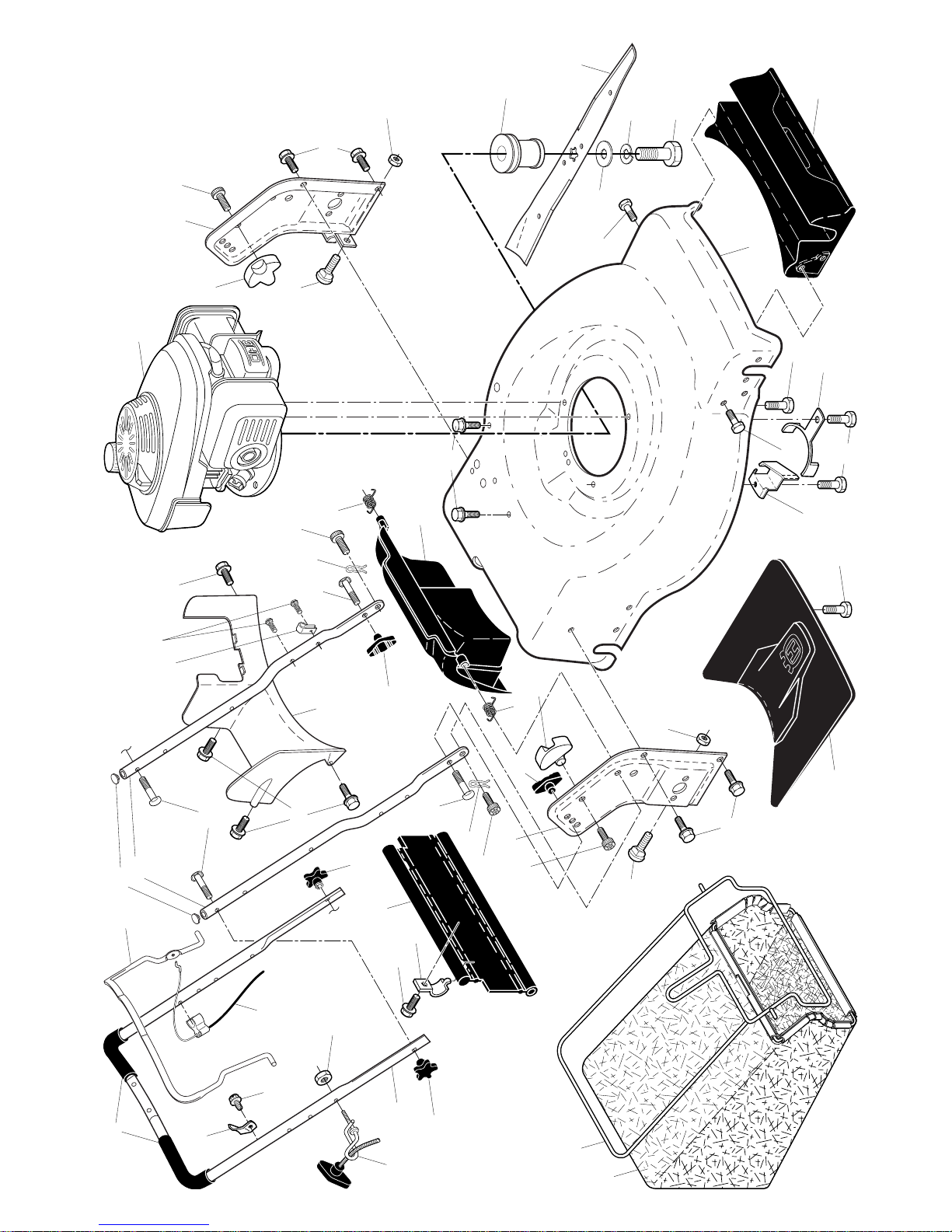

ROTARY LAWN MOWER - - MODEL NUMBER HU700L (96143006900) PRODUCT NUMBER 961 43 00-69

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 18 62-96 Upper Handle Assembly

(Includes Foam Grip)

2 532 44 03-86 Cable, Engine Zone Control

3 532 43 00-34 Bracket, Upstop

6 532 18 23-98 Handle Knob, Star

7 532 75 06-34 Screw #10-24 x 1/2

8 532 42 68-12 Control Bar

9 532 43 13-90 Rear Door Assembly

11 532 42 55-75 Hairpin, Door/Handle Pivot

12 532 19 19-38 Handle Knob, Standard

13 532 43 75-16 Plug, Lower Handle Bar

17 532 43 12-38 Rear Bafﬂe

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

20 532 42 91-57 Rear Skirt

21 532 41 99-49 Spring, Rear Door, LH, Black

22 532 14 18-41 Screw, Panhead, Torx #20

24 532 41 99-48 Spring, Rear Door, RH, Grey

26 532 41 99-45 Screw, Rear Door/Handle Pivot

28 872 25 05-05 Bolt, Carriage 5/16-18 x 5/8

30 532 43 85-84 Grassbag

31 532 41 99-51 Frame, Grass Catcher

34 532 43 81-34 Bracket, Grassbag

37 817 00 05-10 Screw, Hex Head 1/4-20

39 532 44 05-25 Handle Bracket, LH

40 532 44 05-26 Handle Bracket, RH

41 532 15 04-06 Screw, Dogpoint 3/8-16 x 1-1/8

44 532 43 84-84 Kit, Lawn Mower Housing

46 532 42 17-82 Blade Adapter / Pulley

47 532 43 76-01 Blade, 22"

48 532 85 10-74 Washer, Hardened

49 532 85 02-63 Washer, Helical

50 532 85 10-84 Screw, Machine, Hex Head

3/8-24 x 1-3/8 Grade 8

51 532 43 71-31 Front Bafﬂe

53 532 43 73-45 Screw

56 817 41 13-12 Screw, Hex Washer Head

#13 x 3/4

57 532 15 53-77 Nut, Hex

58 532 44 11-97 Lower Handle

59 532 19 15-74 Handle Bolt

62 532 43 50-59 Belt Retainer

64 - - - Engine, Honda,

Model Number GCV160-LAS3A

(For engine service and replacement parts,

call Honda Engines at 1-800-426-7701

70 532 18 27-48 Grip, Foam

83 532 75 00-97 Screw, Hex Washer Head

84 532 42 81-24 Fastener, Push

85 532 43 45-30 Mounting Bracket,

Rear Skirt

96 532 19 79-91 Clip, Cable

97 532 43 48-93 Belt Keeper

99 532 43 73-89 Front Shroud Assembly

- - 532 43 81-57 Operator’s Manual, English / French

- - 532 44 15-77 Clipping Deﬂector

(available accessory, not shown)

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

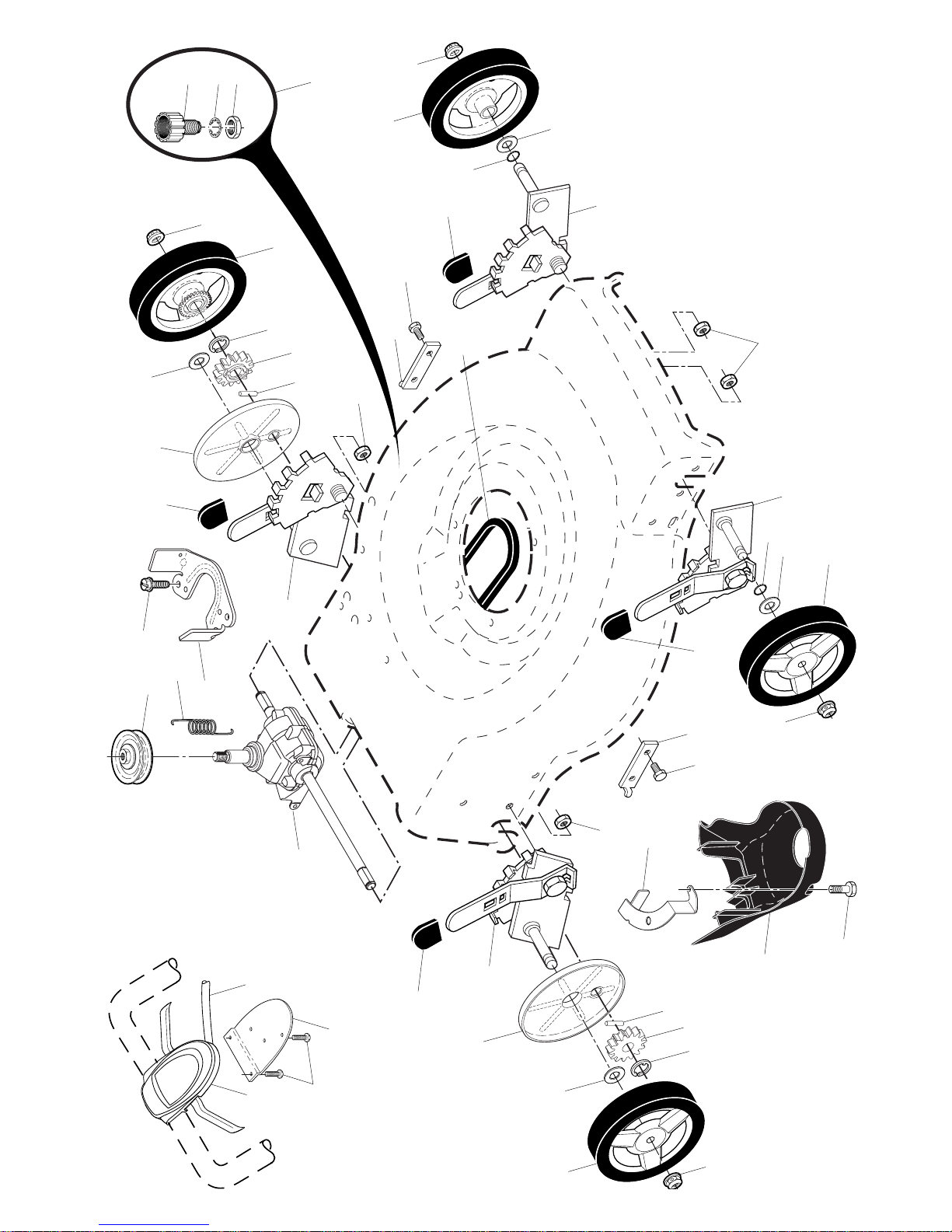

ROTARY LAWN MOWER - - MODEL NUMBER HU700L (96143006900) PRODUCT NUMBER 961 43 00-69

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 43 09-95 Drive Control Assembly

(Includes Cable)

5 532 08 83-48 Washer, Flat

6 532 19 74-80 O-Ring

9 532 43 16-50 Cable, Drive

10 532 43 27-90 Mounting Bracket, Drive Control

12 532 42 15-27 Belt, Drive

13 532 43 45-64 Gearcase Assembly, Complete

14 532 19 41-28 Pulley, Drive

15 532 43 78-73 Wheel Adjuster, Rear, RH

16 532 43 78-74 Wheel Adjuster, Rear, LH

18 532 70 10-37 Knob, Selector

20 532 42 70-23 Debris Shield

22 817 00 05-10 Screw, Hex Head 1/4-20

25 532 42 60-65 Mounting Bracket, Debris Shield

26 532 42 60-66 Belt Keeper

27 532 06 77-25 Washer, Flat

28 812 00 00-58 E-Ring 7/16

29 532 18 94-03 Cover, Dust, Wheel

30 532 19 17-30 Nut, Hex

31 532 40 48-45 Pawl, Drive

32 532 44 14-08 Wheel & Tire Assembly, Rear

33 532 40 91-48 Nut, Flangelock 3/8-16

34 532 40 48-35 Pinion

35 532 43 78-72 Wheel Adjuster, Front, RH

36 532 43 78-71 Wheel Adjuster, Front, LH

37 532 16 34-09 Screw, Hi-Lo Thread, 12 x 5/8

40 532 44 12-98 Wheel & Tire Assembly, Front

41 532 42 11-14 Kit, Water Washout Assembly

42 532 41 97-35 Fitting, Water Washout

43 532 41 55-85 Washer, Lock, Internal Tooth

44 532 41 55-86 Locknut, Hex, with O-Ring

55 532 40 65-58 Spring, Tension

59 532 44 21-13 Support Bracket

61 532 18 16-98 Screw

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION
