Husqvarna HD800BBC Manuel utilisateur

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HD800BBC (96143008900) PRODUCT NO. 961 43 00-89

102

100

101

104

17 21

22 24

99 53

103

39 22

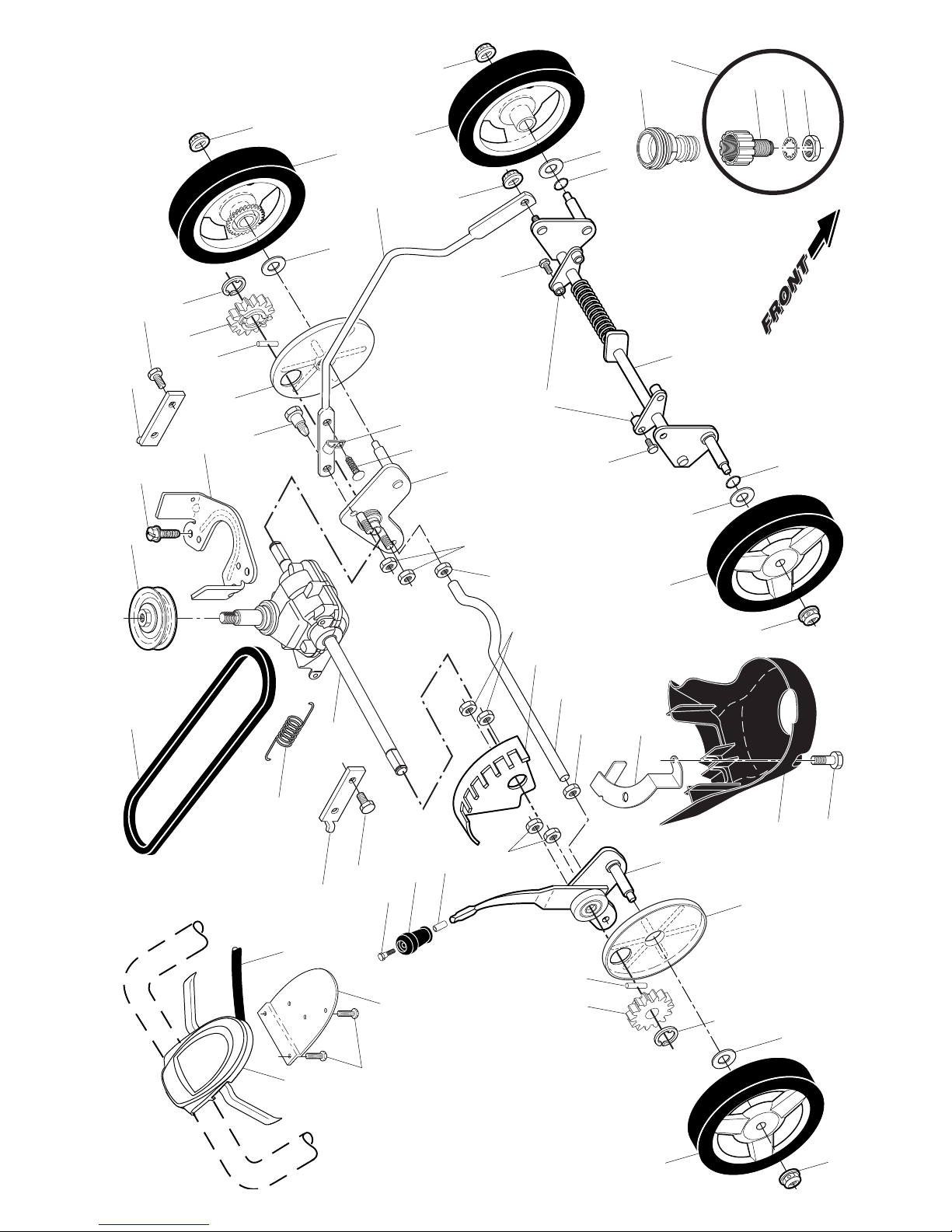

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HD800BBC (96143008900) PRODUCT NO. 961 43 00-89

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 18 62-96 Upper Handle Assembly

(Includes Foam Grip)

6 532 18 23-98 Handle Knob, Star

8 532 42 68-13 Control Bar

9 532 43 13-90 Rear Door Assembly

11 532 42 55-75 Hairpin, Door/Handle Pivot

12 532 19 19-38 Handle Knob, Standard

13 532 43 75-16 Plug, Lower Handle Bar

14 532 43 71-32 Clipping Deﬂector

15 532 43 72-73 Handle, Clipping Deﬂector

17 532 43 12-38 Rear Bafﬂe

18 532 13 20-04 Keps Locknut 1/4-20

19 532 19 47-88 Rope Guide

20 532 44 45-01 Rear Skirt

21 532 41 99-49 Spring, Rear Door, LH, Black

22 532 14 18-41 Screw, Panhead, Torx #20

24 532 41 99-48 Spring, Rear Door, RH, Grey

26 532 41 99-45 Screw, Rear Door/Handle Pivot

28 872 25 05-05 Bolt, Carriage 5/16-18 x 5/8

30 532 43 85-84 Grassbag

31 532 41 99-51 Frame, Grass Catcher

34 532 43 81-34 Bracket, Grassbag

37 817 00 05-10 Screw, Hex Head 1/4-20

39 532 44 25-31 Handle Bracket, LH

40 532 44 05-26 Handle Bracket, RH

41 532 15 04-06 Screw, Dogpoint 3/8-16 x 1-1/8

44 532 43 85-35 Kit, Lawn Mower Housing

46 - - - Blade Brake/Clutch Assemlby

(For BBC service and replacement parts,

call Honda Engines at 1-800-426-7701)

47 532 44 05-68 Blade, 22"

48 532 44 17-68 Washer, Hardened

50 532 18 04-60 Bolt, Hex Head, Grade 8

51 532 43 71-31 Front Bafﬂe

53 532 43 73-45 Screw

56 817 41 13-12 Screw, Hex Washer Head

#13 x 3/4

57 532 15 53-77 Nut, Hex

58 532 44 11-97 Lower Handle

59 532 19 15-74 Handle Bolt

62 532 42 57-11 Belt Retainer

64 - - - Engine, Honda,

Model Number GCV160-LABHH

(For engine service and replacement parts,

call Honda Engines at 1-800-426-7701)

70 532 18 27-48 Grip, Foam

83 532 75 00-97 Screw, Hex Washer Head

84 532 42 81-24 Fastener, Push

85 532 43 45-30 Mounting Bracket,

Rear Skirt

96 532 19 79-91 Clip, Cable

97 532 44 15-89 Mounting Bracket,

Blade Brake/Clutch

99 532 43 73-89 Front Shroud Assembly

100 532 43 94-68 Control, Throttle

101 532 18 83-65 Screw

102 532 43 76-79 Control, Blade Brake/Clutch

(Includes Cable)

103 532 18 03-93 Spring, Blade Brake/Clutch

104 532 18 99-37 Screw, Blade Brake/Clutch Control

- - 532 44 58-99 Operator’s Manual, English / French

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HD800BBC (96143008900) PRODUCT NO. 961 43 00-89

38 38

61 16

HUSQVARNA ROTARY LAWN MOWER - MODEL NO. HD800BBC (96143008900) PRODUCT NO. 961 43 00-89

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm. IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your lawn mower and void your warranty.

1 532 43 09-95 Drive Control Assembly

(Includes Cable)

9 532 43 16-50 Cable, Drive

10 532 43 27-90 Mounting Bracket, Drive Control

11 817 41 13-12 Screw

12 873 94 08-00 Nut, Hex

13 532 43 45-64 Gear Case Assembly, Complete

14 532 19 34-43 Pulley, Drive

15 532 08 83-48 Washer, Flat

16 532 43 00-30 Rod, Connecting

17 532 75 11-53 Nut, Hex

18 532 43 78-69 Kit, Selector Assembly

19 532 43 39-96 Knob, Wheel Adjuster

20 532 43 83-97 Debris Shield

21 532 43 52-42 Anchor

23 532 43 78-70 Wheel Axle Assembly, LH

24 532 43 35-11 Bracket, Height Adjustment

25 532 42 60-65 Mounting Bracket, Debris Shield

26 532 44 21-53 Belt Keeper

28 812 00 00-58 E-Ring 7/16

29 532 18 94-03 Cover, Dust, Wheel

30 817 00 05-10 Screw, Hex Head 1/4-20

31 532 40 48-45 Pawl, Drive

32 532 44 28-23 Wheel & Tire Assembly, Rear, 8"

33 532 40 91-48 Nut, Flangelock 3/8-16

34 532 19 74-80 O-Ring

35 532 43 05-98 Axle, Rear

36 532 44 22-07 Axle, Front

37 532 16 34-09 Screw, Hi-Lo Thread, 12 x 5/8

38 532 19 17-30 Nut, Hex

39 532 40 70-59 Bolt

40 532 44 28-22 Wheel & Tire Assembly, Front, 8"

41 532 40 48-35 Pinion

44 532 43 77-99 Belt, Drive

47 532 06 77-25 Washer, Flat

48 532 43 84-89 Water Washout Assembly

49 532 43 49-94 Fitting, Hose, Water Washout

50 532 41 55-85 Washer, Lock, Internal Tooth

51 532 41 55-86 Locknut, Hex, with O-Ring

55 532 40 65-58 Spring, Tension

58 532 43 52-41 Bolt, Shoulder

59 532 44 21-13 Support Bracket

61 532 18 16-98 Screw

62 532 19 79-91 Clip, Cable

63 532 42 81-24 Fastener, Push

84 532 41 64-05 Adapter, Quick-Connect Coupler

85 532 43 90-77 Support Bracket, Front Axle

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION
