Operator's manual

Husqvarna Automower® 105

Read the operator's manual carefully and make sure that you

understand the instructions before you use the product.

Contents
Introduction
1 Support.......................................................3
2 Product description.....................................3
Safety
1 Safety definitions........................................ 9
2 General safety instructions.........................9
3 Safety instructions for operation...............11
Installation
1 Introduction - Installation.......................... 14
2 Before the installation of the wires........... 14
3 Before the installation of the product........14
4 Installation of the product......................... 18
5 To put the wire into position with stakes...19
6 To bury the boundary wire or the
guide wire....................................................... 19
7 To extend the boundary wire or the
guide wire....................................................... 20
8 After the installation of the product...........20
9 To do the product settings........................20
Operation
1 Main switch...............................................25
2 To start the product.................................. 25
3 Operating modes......................................25
4 To stop the product.................................. 26
5 To switch off the product.......................... 26
6 Timer and Standby................................... 26
7 To charge the battery............................... 27
8 Adjust the cutting height........................... 27
Maintenance
1 Introduction - maintenance.......................28
2 Clean the product..................................... 28
3 Replace the blades...................................29
4 Battery...................................................... 29
5 Winter service...........................................30
Troubleshooting
1 Introduction - troubleshooting...................31
2 Fault messages........................................ 31
3 Information messages.............................. 35
4 Indicator lamp in the charging station.......36
5 Symptoms................................................ 37
6 Find breaks in the loop wire..................... 38
Transportation, storage and disposal
1 Transportation.......................................... 41
2 Storage.....................................................41
3 Disposal....................................................41
Technical data
1 Technical data.......................................... 42
Warranty
1 Warranty terms.........................................44
EC Declaration of Conformity
1 EC Declaration of Conformity.................45
- 002 - 20.08.2019

1 Introduction

Serial number:

PIN code:

The serial number is on the product rating plate and on the product carton.

• Use the serial number to register your product on www.husqvarna.com.

1.1 Support

For support about the Husqvarna® product,

speak to your servicing dealer.

1.2 Product description

Note: Husqvarna® regularly updates the

appearance and function of the products. Refer

Support on page 3

The product is a robotic lawn mower. The product

has a battery power source and cuts the grass

automatically. Collection of grass is not

necessary.

The operator selects the operation settings with

the keys on the keypad. The display shows the

selected and possible operation settings, and the

operating mode of the product.

The boundary wire and the guide wire controls

the movement of the product within the work

area.

1285 - 002 - 20.08.2019 Introduction - 3

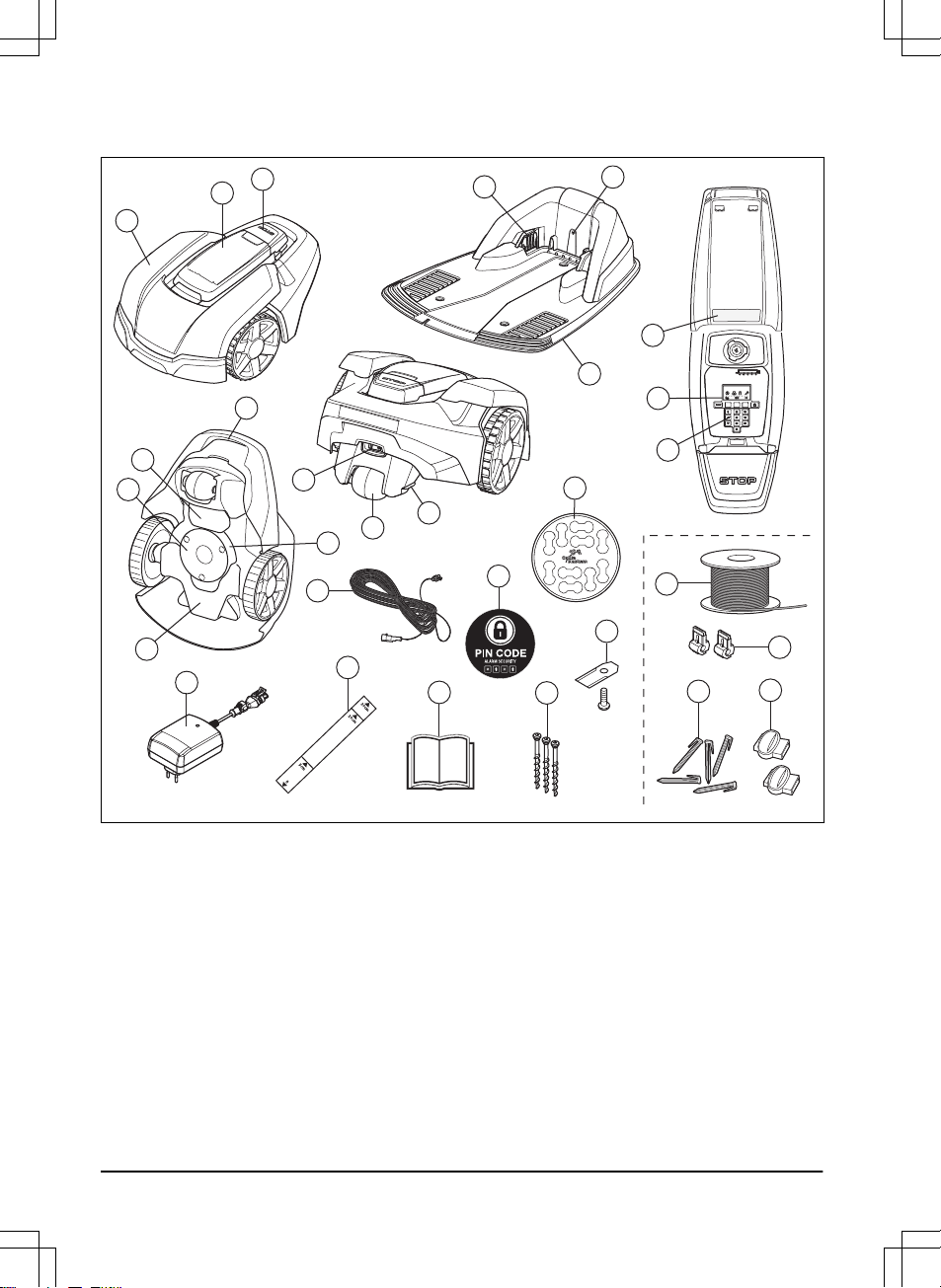

1.2.1 Product overview

25 19

The numbers in the figure represent:

1. Body

2. Hatch to display, keypad and cutting height

adjustment

3. Stop button

4. Contact strips

5. LED for operation check of the charging

station, boundary wire and guide wire

6. Charging station

7. Carry handle

8. Battery cover

9. Blade disc

10. Skid plate

11. Chassis box with electronics, battery and

motors

12. Main switch

13. Rear wheel

14. Charging strip

15. Keypad

16. Display

17. Loop wire for boundary loop and guide wire

18. Connector for connecting the loop wire to

the charging station

19. Stakes

20. Coupler for the loop wire

21. Screws for securing the charging station

4 - Introduction 1285 - 002 - 20.08.2019

22. Extra blades

23. Operator’s Manual and Quick Guide

24. Measurement gauge for help when installing

the boundary wire (the measurement gauge

is broken loose from the box)

25. Power supply (the appearance of the power

supply may differ depending on market)

26. Low voltage cable

27. Alarm decal

28. Cable markers

29. Rating plate (incl. product identification

code)

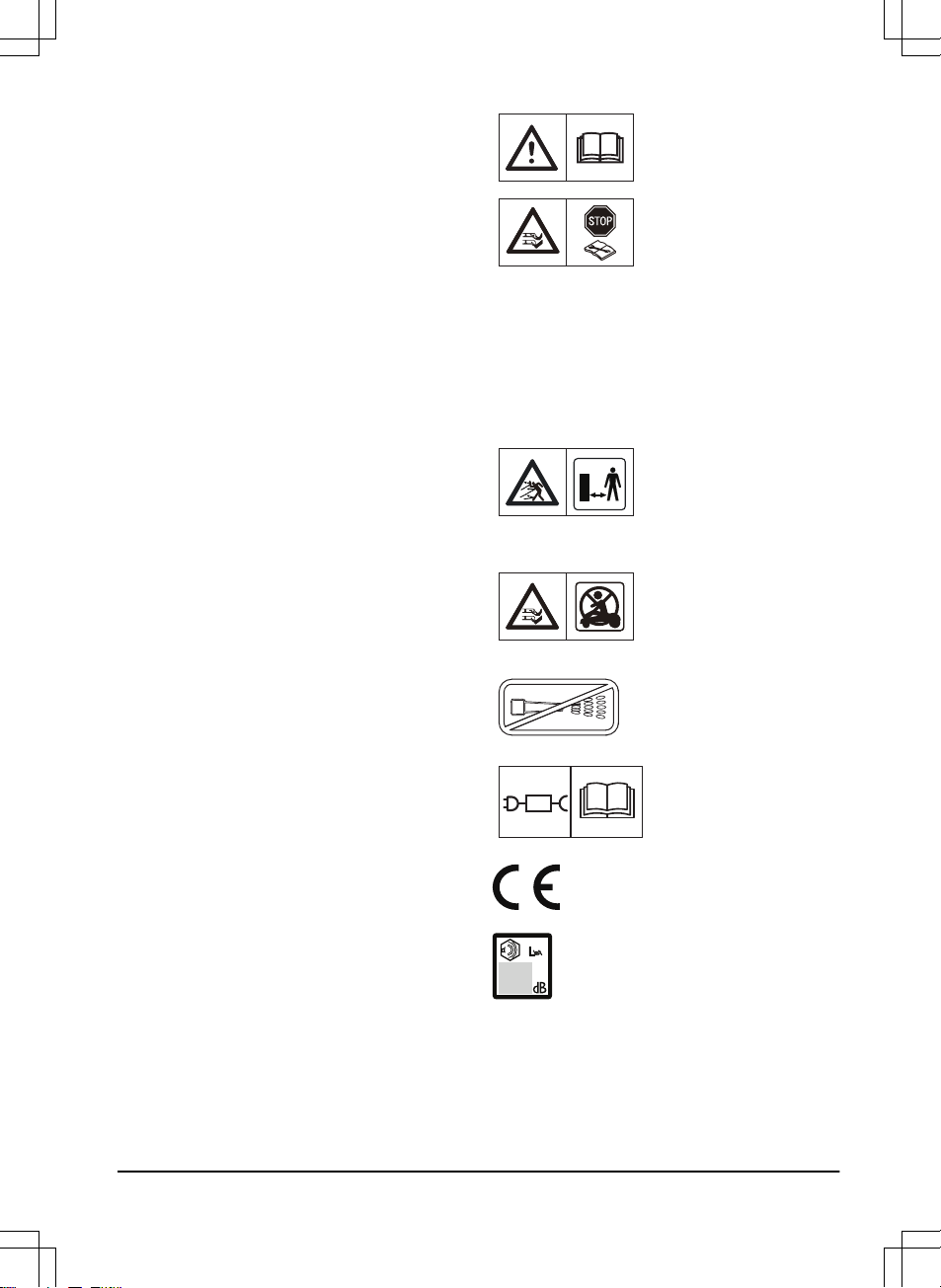

1.2.2 Symbols on the product

These symbols can be found on the product.

Study them carefully.

WARNING: Read the

user instructions before

operating the product.

WARNING: Operate the

disabling device before

working on or lifting the

machine.

The product can only start

when the main switch is

set to

and the correct

PIN code has been en-

tered. Turn the main

switch to

before carry-

ing out any inspections

and/or maintenance.

WARNING: Keep a safe

distance from the ma-

chine when operating.

Keep your hands and feet

away from the rotating

blades.

WARNING: Do not ride

on the machine. Never

put your hands or feet

close to or under the ma-

chine.

Never use a high-pres-

sure washer or even run-

ning water to clean the

product.

Use a detachable power

supply as defined on the

rating label next to the

symbol.

This product conforms to the

applicable EC Directives.

Noise emission to surroundings. The

product’s emissions are set out in

Technical data on page 42

and on the

rating plate.

1285 - 002 - 20.08.2019 Introduction - 5

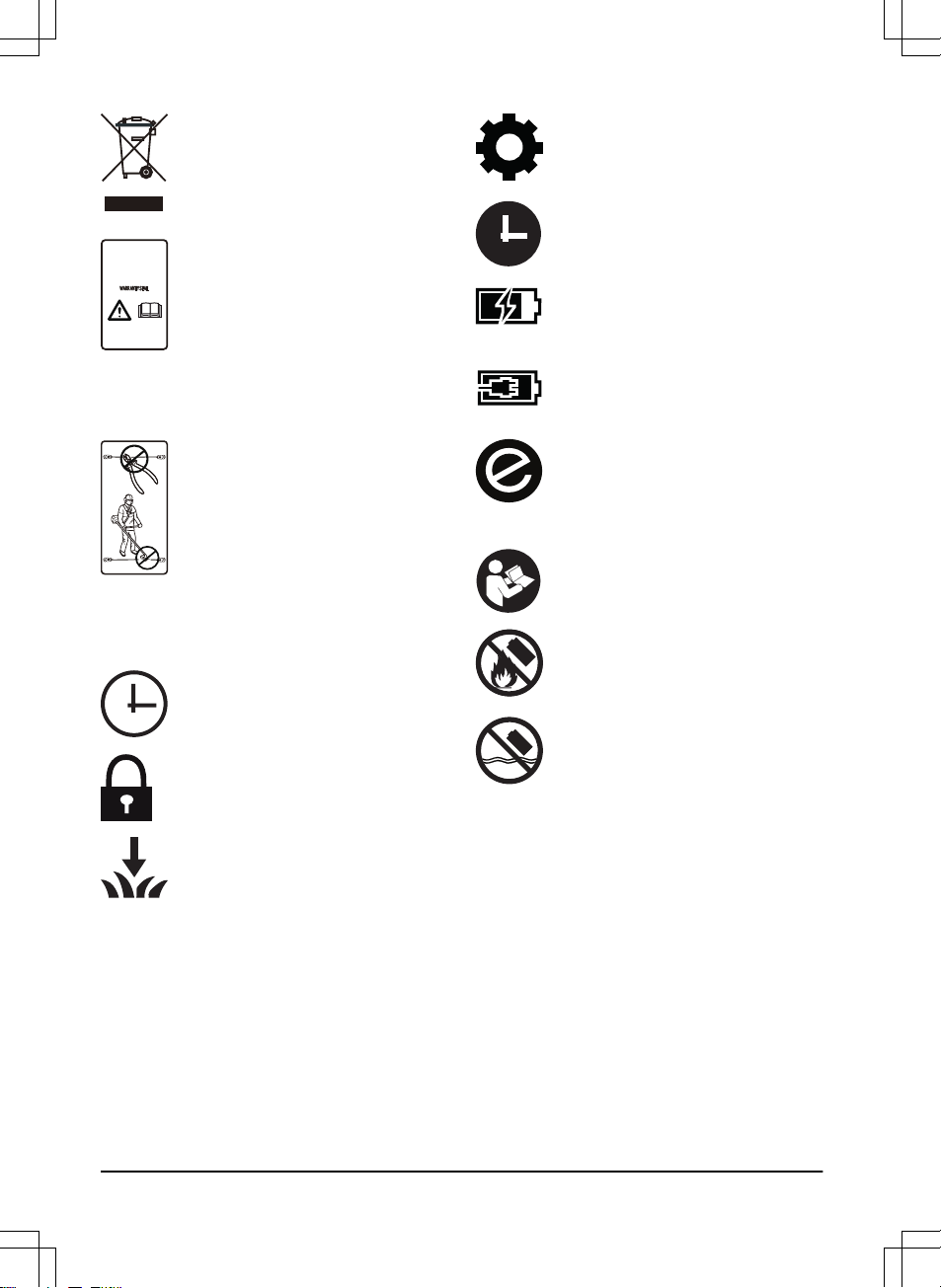

It is not permitted to dispose this

product as normal household waste.

Ensure that the product is recycled in

accordance with local legal

requirements.

The chassis contains components

which are sensitive to electrostatic

discharge (ESD). The chassis must

also be resealed in a professional

manner. For these reasons the chassis

shall only be opened by authorized

service technicians. A broken seal can

result in the entire or parts of the

warranty no longer being valid.

The low voltage cable must not be

shortened, extended or spliced.

Do not use a trimmer nearby the low

voltage cable. Be careful when

trimming edges where the cables are

placed.

Operate the disabling device before

you use or lift the product.

1.2.3 Symbols on the display

The timer function controls when the

product cuts the lawn.

The security function lets the operator

select between 3 security levels.

The installation function for manual

settings for the installation.

The settings function is where the

general settings for the products are

set.

The product will not cut the grass due

to the timer function.

The battery indicator shows the charge

level of the battery. When the product

charges the symbol flashes.

The product is put in the charging

station but do not charge the battery.

The product is set in ECO-mode.

1.2.4 Symbols on the battery

Read the user instructions.

Do not discard the battery into fire and

do not expose the battery to a heat

source.

Do not immerse the battery into water.

6 - Introduction 1285 - 002 - 20.08.2019

1.2.5 Menu structure overview

Installation

Guide width Remote start 1

Narrow

Never Rarely Medium Often Always

Medium Wide Test outTest in

Distance

Remote

start 1

Remote

start 2

Proportion

Remote start 2 Test

settings

Drive past

wire

Settings

ECO

mode

Time & date

Set time Set date Time format

Language Country Reset user

settings

About

Date format

Security

Change

PIN code

Low HighMedium

Security level New

loop signal

Timer

Work

hours 1

Work

hours 2

Work

days

Reset

timer

1285 - 002 - 20.08.2019 Introduction - 7

1.2.6 Display

The display on the product shows information

and settings of the product.

To access the display, push the STOP button.

1.2.7 Keypad

The keypad consists of 4 groups of buttons:

• The START button is used to activate the

product. This is normally the last button to

be pressed before closing the hatch.

• The 3 multi-choice buttons offer various

functions, depending on where in the menu

structure you are.

• The number keys are used for instance to

enter the PIN code or time settings.

• The operation selection button is symbolised

by a house. When the button has been

pressed, the selected operation mode is

shown in the display.

8 - Introduction 1285 - 002 - 20.08.2019

2 Safety

2.1 Safety definitions

Warnings, cautions and notes are used to point

out specially important parts of the manual.

WARNING: Used if there is a risk of

injury or death for the operator or

bystanders if the instructions in the

manual are not obeyed.

CAUTION: Used if there is a risk of

damage to the product, other materials

or the adjacent area if the instructions

in the manual are not obeyed.

Note: Used to give more information that is

necessary in a given situation.

2.2 General safety instructions

The following system is used in the Operator’s

Manual to make it easier to use:

• Text written in

italics

is a text that is shown

on the display of the product or is a

reference to another section in the

Operator’s Manual.

• Text written in bold is one of the buttons on

the keypad of the product.

• Text written in

UPPERCASE

and

italics

refer

to the different operating modes available in

the product.

1285 - 002 - 20.08.2019 Safety - 9

2.2.1 IMPORTANT. READ CAREFULLY

BEFORE USE. KEEP FOR FUTURE

REFERENCE

The operator is responsible for accidents or hazards occurring to

other people or property.

This appliance is not intended for use by persons (including chil-

dren) with reduced physical, sensory or mental capabilities (that

could affect a safe handling of the product), or lack of experience

and knowledge, unless they have been given supervision or in-

struction concerning use of the appliance by a person responsible

for their safety.

This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved. Local regula-

tions may restrict the age of the operator. Cleaning and mainte-

nance shall not be made by children without supervision.

Never connect the power supply to an outlet if the plug or cord is

damaged. Worn or damaged cord increase the risk of electric

shock.

Only charge the battery in the included charging station. Incorrect

use may result in electric shock, overheating or leaking of corro-

sive liquid from the battery. In the event of leakage of electrolyte,

flush with water/neutralizing agent. Seek medical help if it comes

in contact with the eyes.

Use only original batteries recommended by the manufacturer.

Product safety cannot be guaranteed with other than original bat-

teries. Do not use non-rechargeable batteries.

The appliance must be disconnected from the supply mains when

removing the battery.

10 - Safety 1285 - 002 - 20.08.2019

Autres manuels pour AUTOMOWER 105

Table des matières

Autres manuels Husqvarna Tondeuse à gazon

Husqvarna

Husqvarna RZ3016 / 966612302 Manuel utilisateur

Husqvarna

Husqvarna GTH2548 Manuel utilisateur

Husqvarna

Husqvarna RZ 3016 Manuel utilisateur

Husqvarna

Husqvarna 14 Pro Manuel utilisateur

Husqvarna

Husqvarna Z146 Manuel utilisateur

Husqvarna

Husqvarna EZ4824 Manuel utilisateur

Husqvarna

Husqvarna YTH2754T Manuel utilisateur

Husqvarna

Husqvarna LB 548i Manuel utilisateur

Husqvarna

Husqvarna LTH1797 Manuel utilisateur

Husqvarna

Husqvarna YTH180 TWIN Manuel utilisateur

Husqvarna

Husqvarna 917.375940 Manuel utilisateur

Husqvarna

Husqvarna 96795390500 Manuel utilisateur

Husqvarna

Husqvarna WC 48 Se Manuel utilisateur

Husqvarna

Husqvarna 953876533 Manuel utilisateur

Husqvarna

Husqvarna AUTOMOWER 315 Manuel utilisateur

Husqvarna

Husqvarna HU725AWD/BBC / 961430104 Manuel utilisateur

Husqvarna

Husqvarna AUTOMOWER 420 Manuel utilisateur

Husqvarna

Husqvarna MZ 48 Manuel utilisateur

Husqvarna

Husqvarna 917.374421 Manuel utilisateur

Husqvarna

Husqvarna 65021CHV Manuel utilisateur

Husqvarna

Husqvarna CTH2038 Manuel utilisateur

Husqvarna

Husqvarna Rally RE35N20S Manuel utilisateur

Husqvarna

Husqvarna LC221FH Manuel utilisateur

Husqvarna

Husqvarna 967 271901-01 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur

Stihl

Stihl RMA 443 PV Manuel utilisateur
