Hunter Solaris 21685 Manuel utilisateur

Solaris Ceiling Fan

Owner’s Manual

Product:

Trademark:

Quantity:

Electrical Rating:

Ceiling Fan

Revolutions

1 Piece

120 V ~ 60 Hz 140 W

44276-01 r021813

200

Models 21685 21687 21688 21689

44276-01 02/18/2013

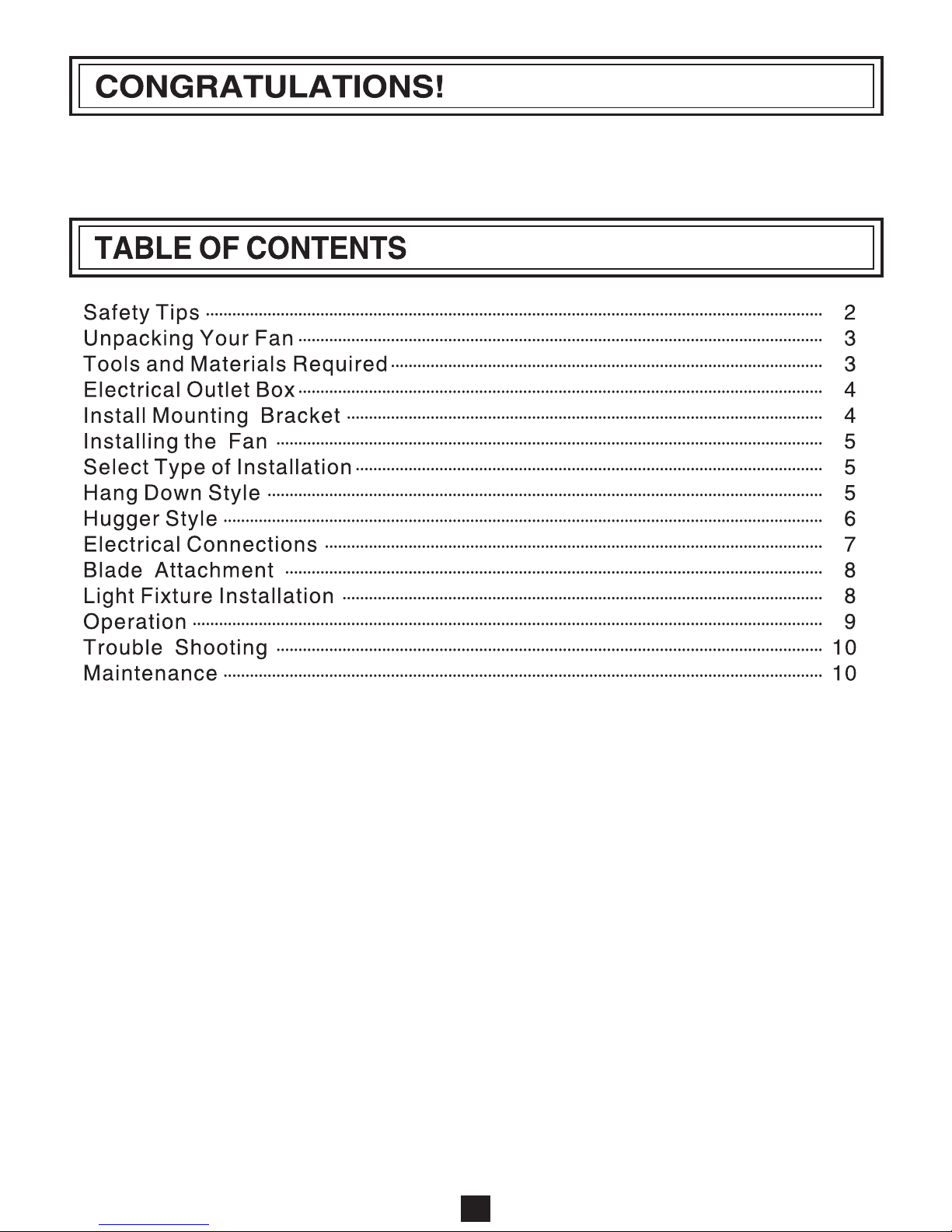

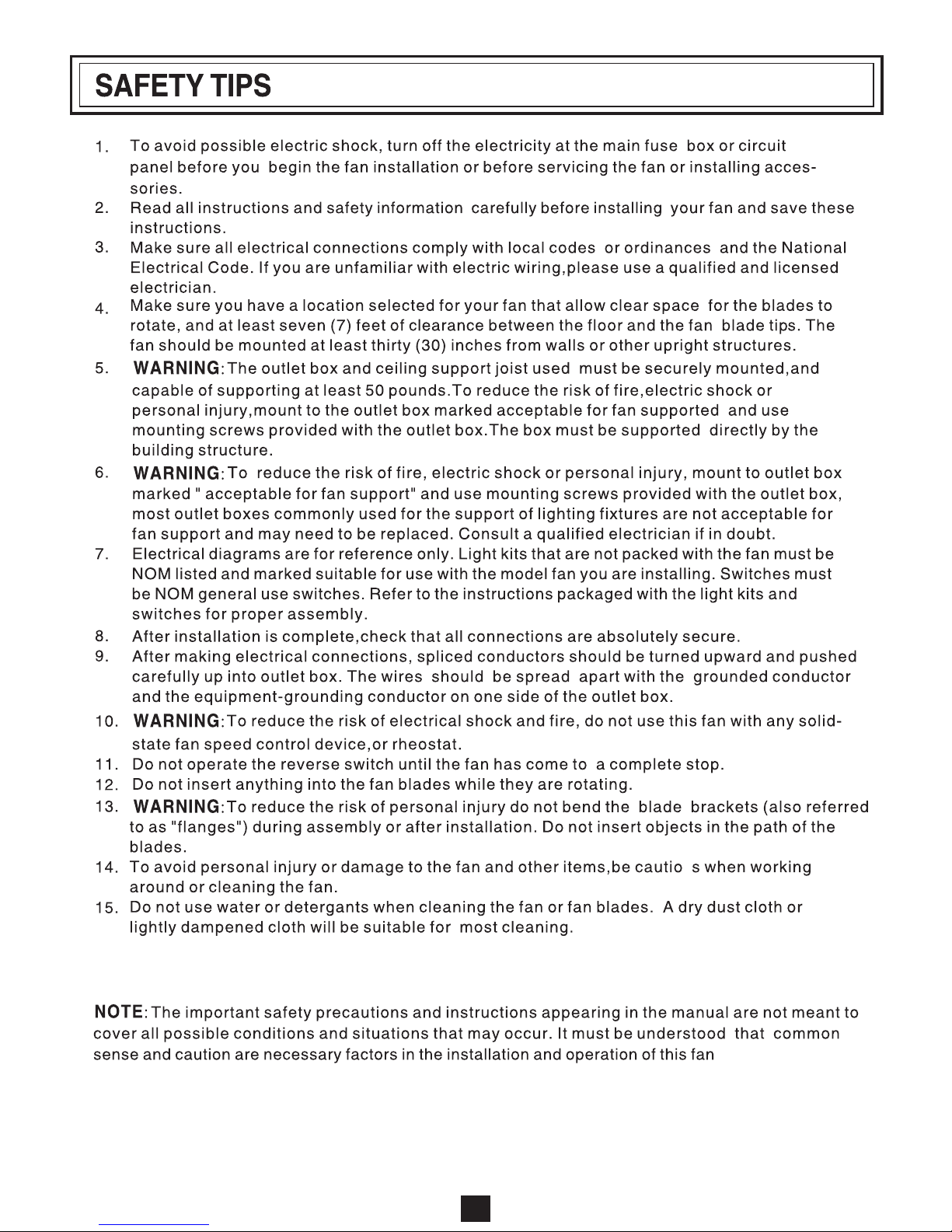

You have chosen the best. Your new Revolutions ceiling fan will provide you with

many years of comfort and satisfaction.

44276-01 02/18/2013

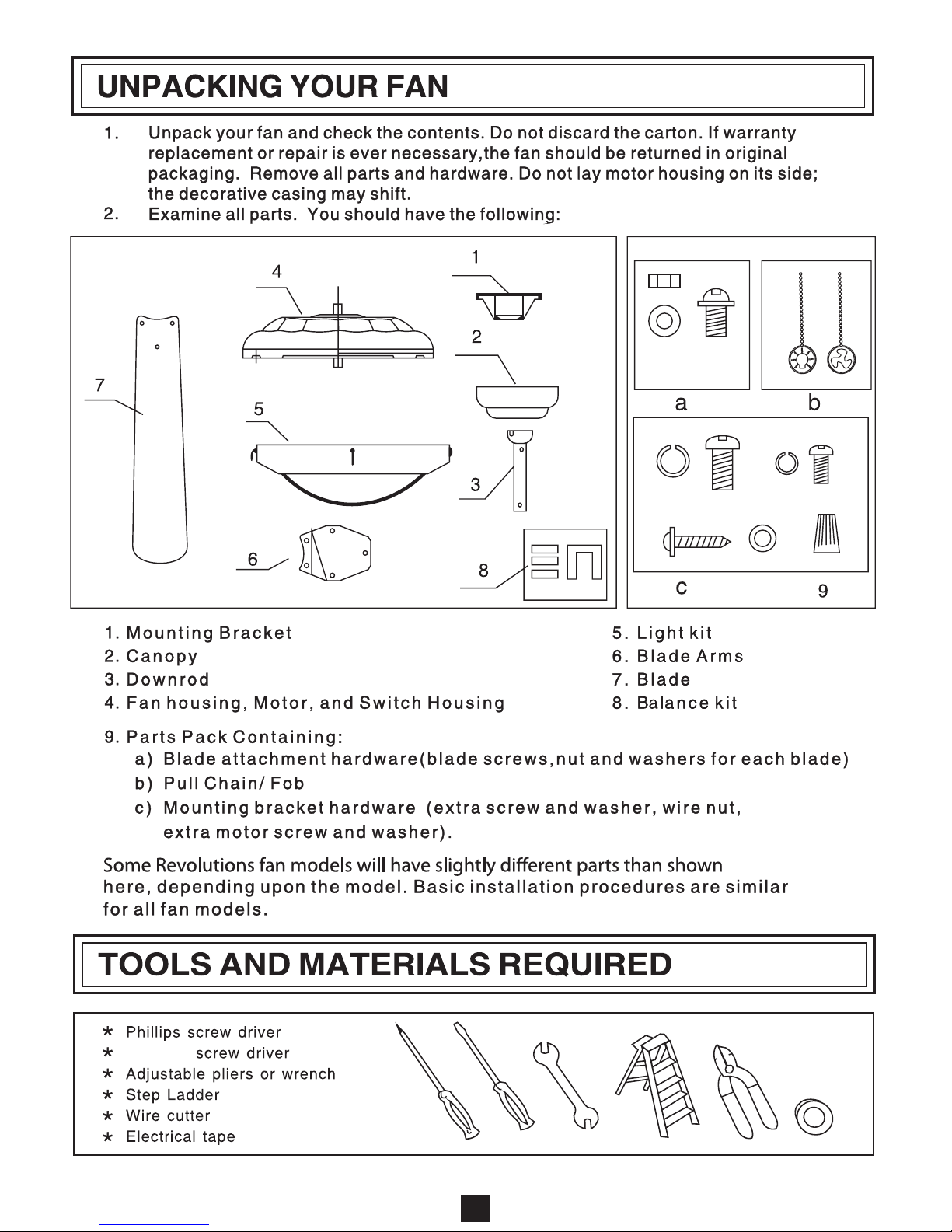

Flat Head

44276-01 02/18/2013

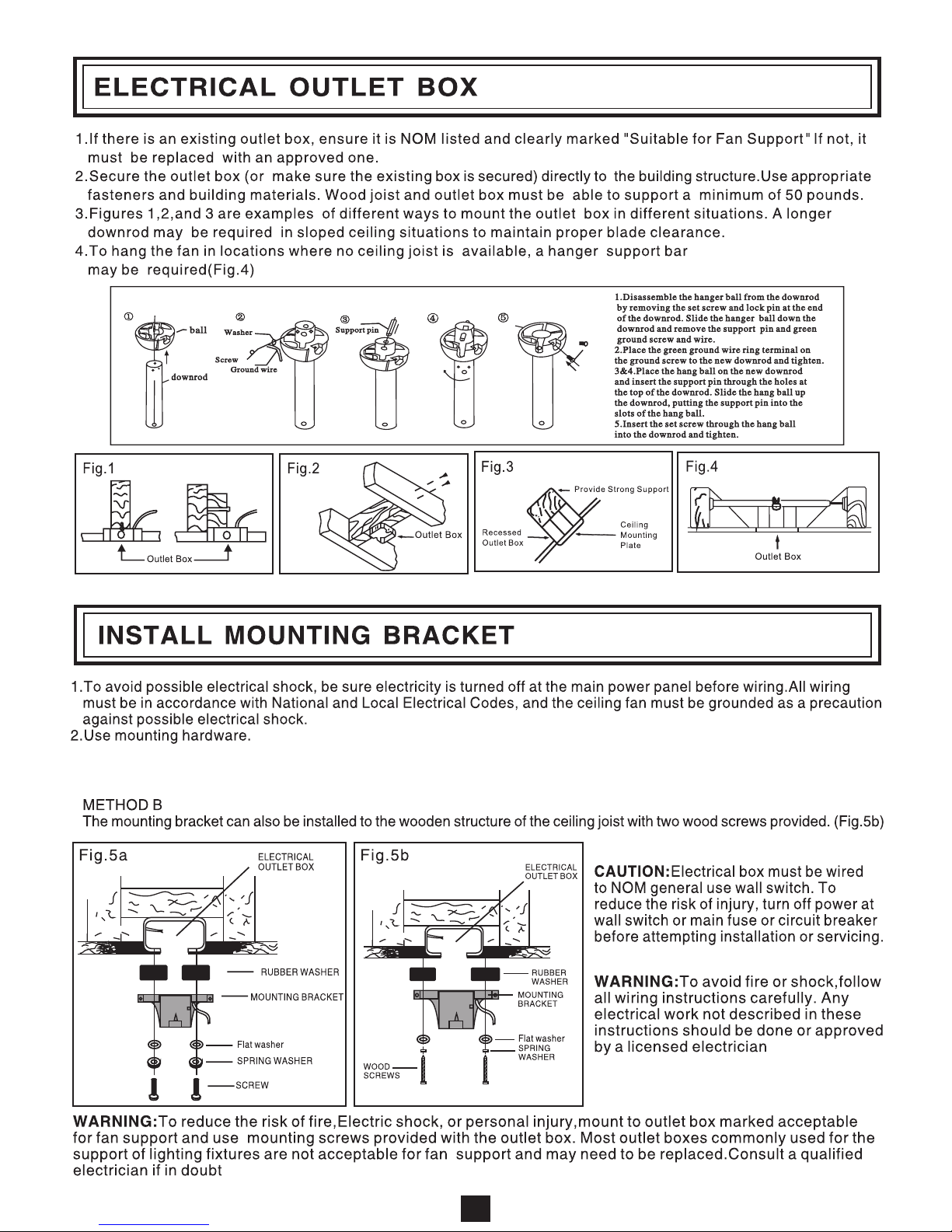

METHOD A

Attach mounting bracket to outlet box using screws provided with the outlet box (Fig. 5a) Install rubber washers in

between the ceiling and mounting bracket to reduce vibration.

44276-01 02/18/2013

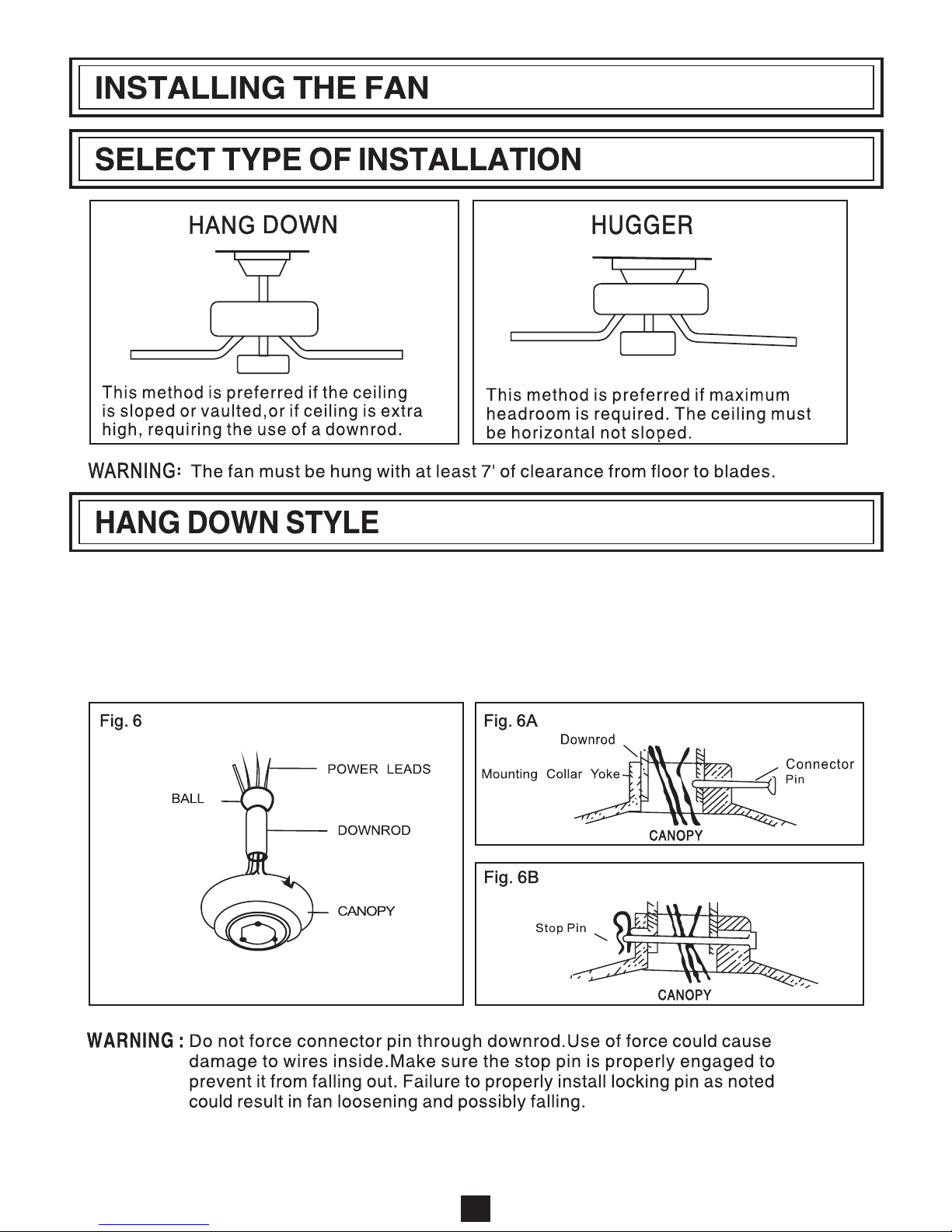

Slide the canopy onto the downrod (Fig. 6). Thread the power leads from the fan through the

canopy and downrod. Take care not to pull excessively on power wires. Damage and loose

connections could result from any abnormal pressure on these wires. Set downrod into yoke.

Rotate until the holes match. Be careful not to damage wiring. Insert connector pin through the

holes (Fig. 6A and 6B). Secure the pin by inserting the stop pin through the connector pin.

44276-01 02/18/2013

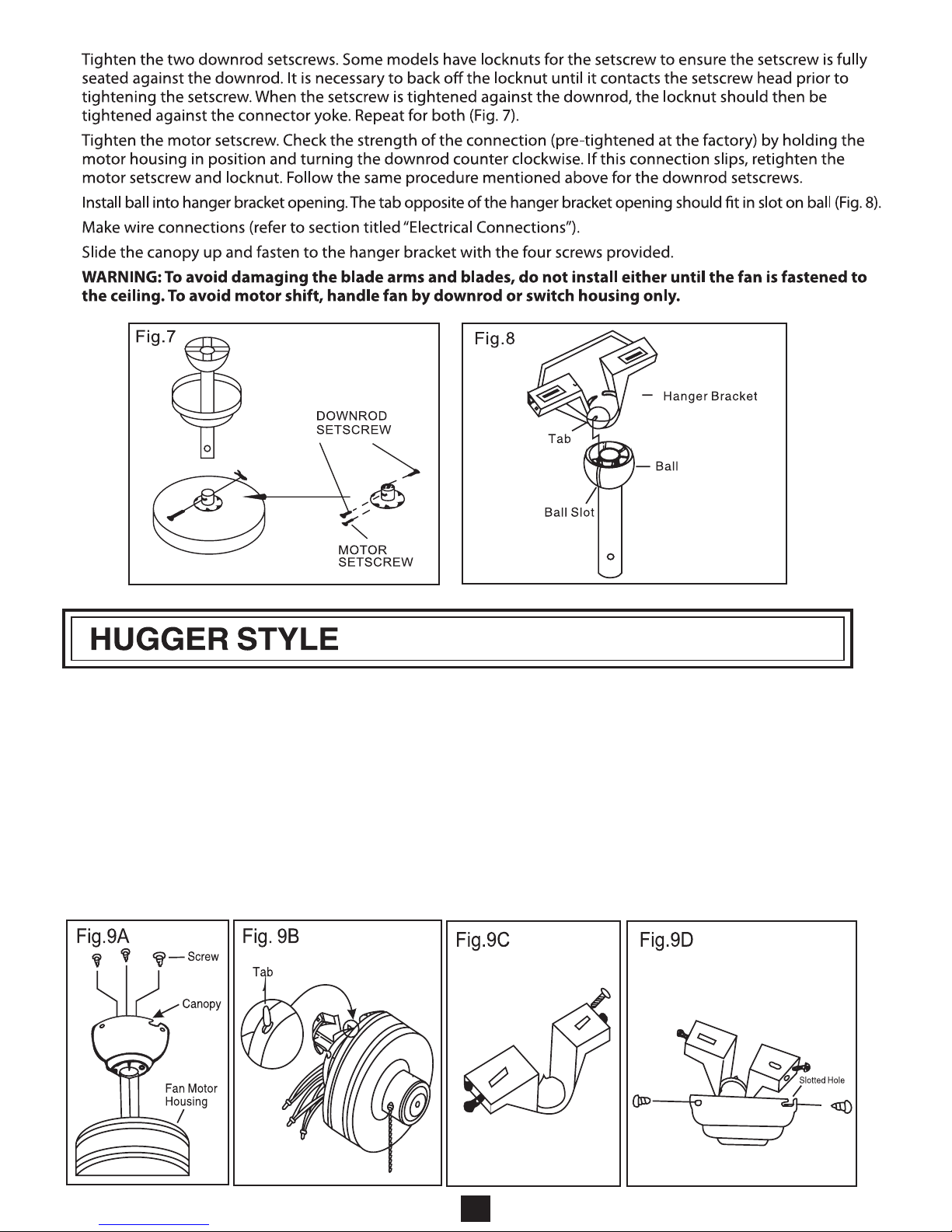

Fasten the canopy directly to the top of the fan motor housing with the three screws provided. (The downrod and

ball are not used for this installation). (Fig. 9A) If a metal ring washer with three holes is provided, use it to install

the canopy.

Hang the canopy (with the fan motor housing attached) from the tab on the hanger bracket (Fig. 9B). This will

allow you to make the electrical connections without having to hold the fan up.

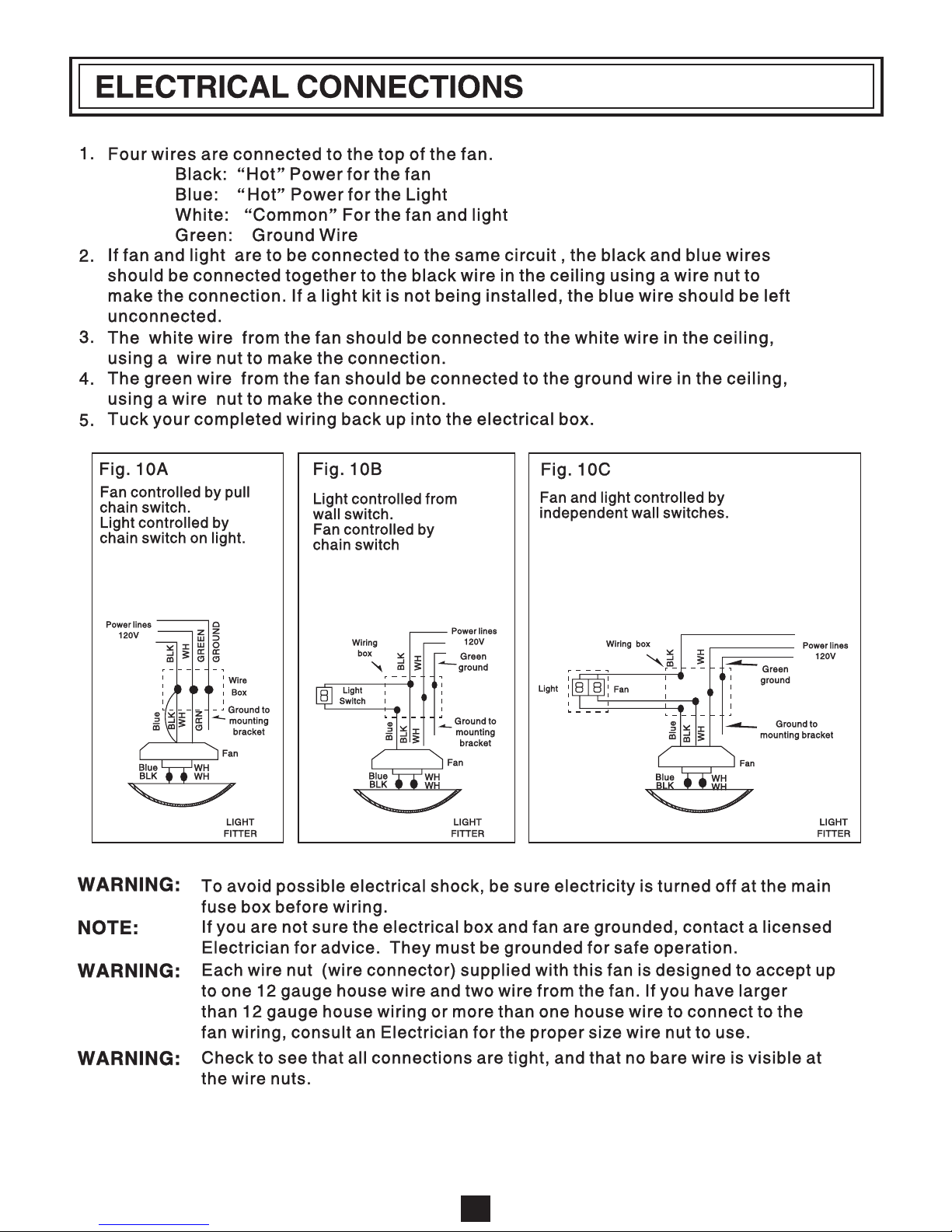

Make the wire connections (refer to section titled “Electrical Connections”).

Put two screws in the hanger bracket, leaving them partially out (Fig. 9C).

Place the canopy up on the hanger bracket by inserting the slotted opening of the canopy on the screws (Fig. 9D).

Insert the remaining screws through the remaining canopy holes and tighten all four screws.

WARNING: Failure to completely tighten the screws in step 1 could result in fan loosening and possibly falling.

44276-01 02/18/2013

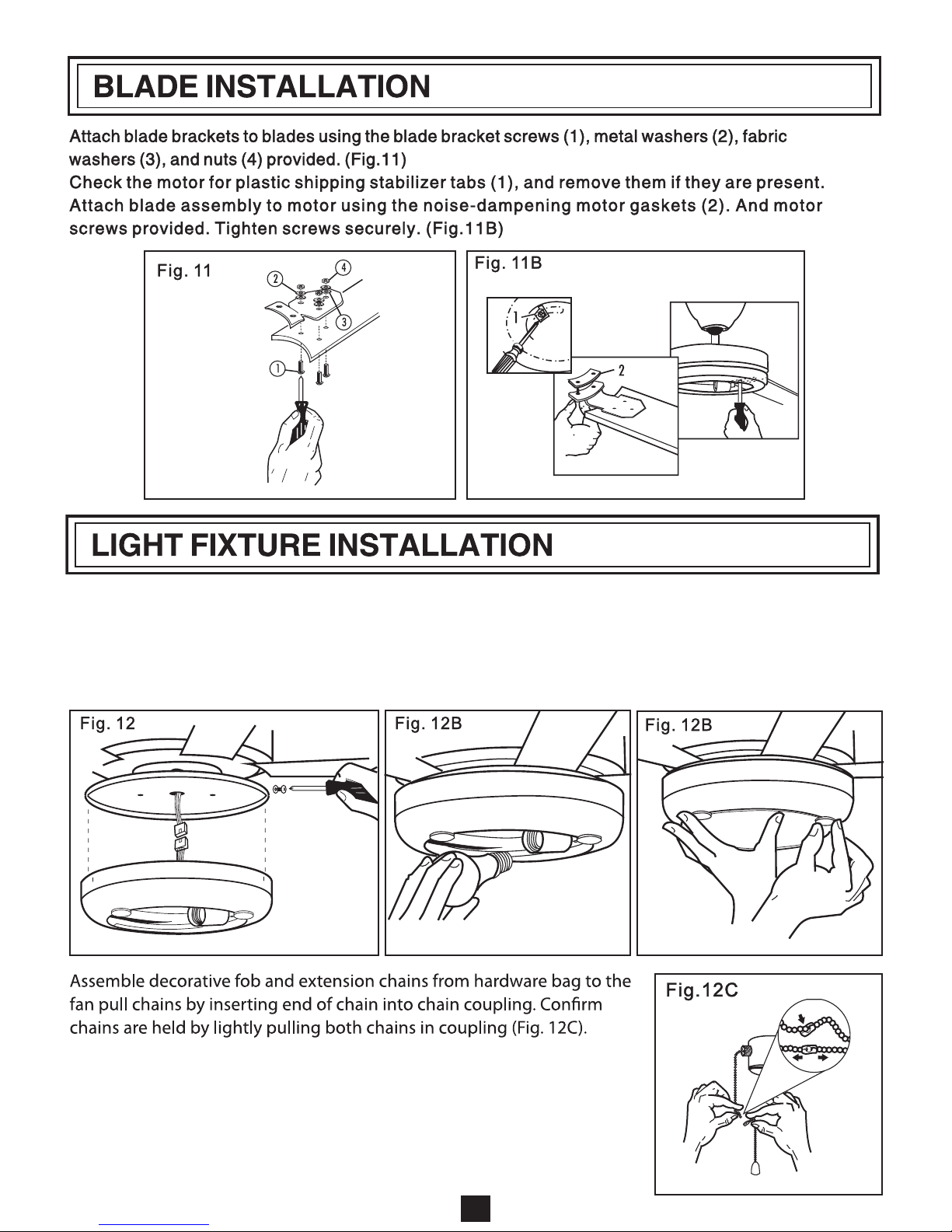

Attach the blue wire plug from the fan to the black wire plug from the light kit. Attach the white wire

plug from the fan to the white wire plug from the light kit. Attach the light kit to the switch housing using

three small screws provided (Fig. 12).

Install light bulbs (not included). Slide fan pull chain through hole in glass bowl and metal cap (Fig. 12B).

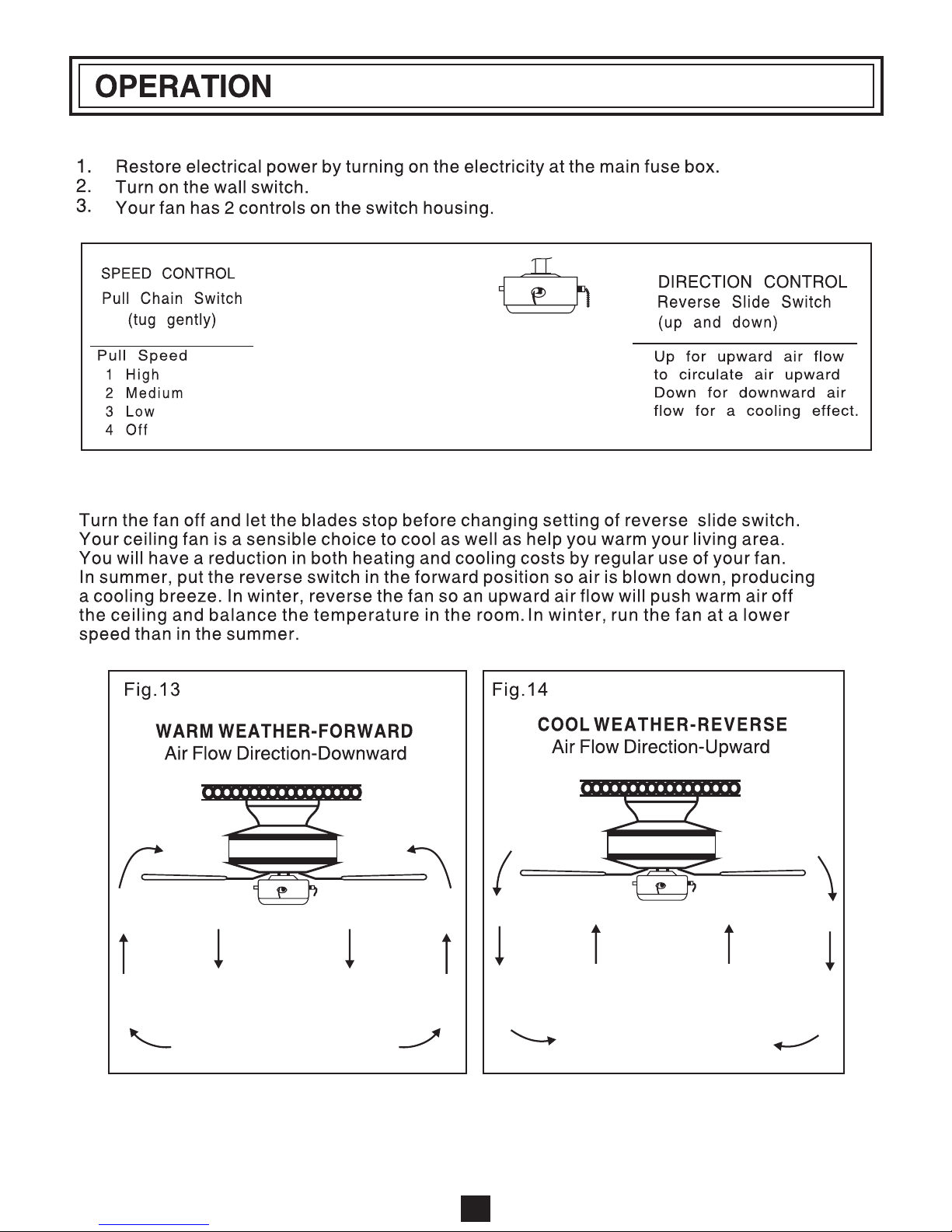

44276-01 02/18/2013
