Congratulations on purchasing your new

Hunter® ceiling fan! It will provide comfort

and performance in your home or ofce for

many years. This installation and operation

manual contains complete instructions for

installing and operating your fan.

We are proud of our work and appreciate

the opportunity to supply you with the best

ceiling fan available anywhere in the world.

To register your fan, please visit:

www.HunterFan.com/register

Save your receipt for proof of purchase.

PAGE

Downrod

PAGE

Finial

PAGE

Blades

M3572-01 • 12/01/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

M3572-01 • 12/01/14 • © Hunter Fan Company

1.888.830.1326

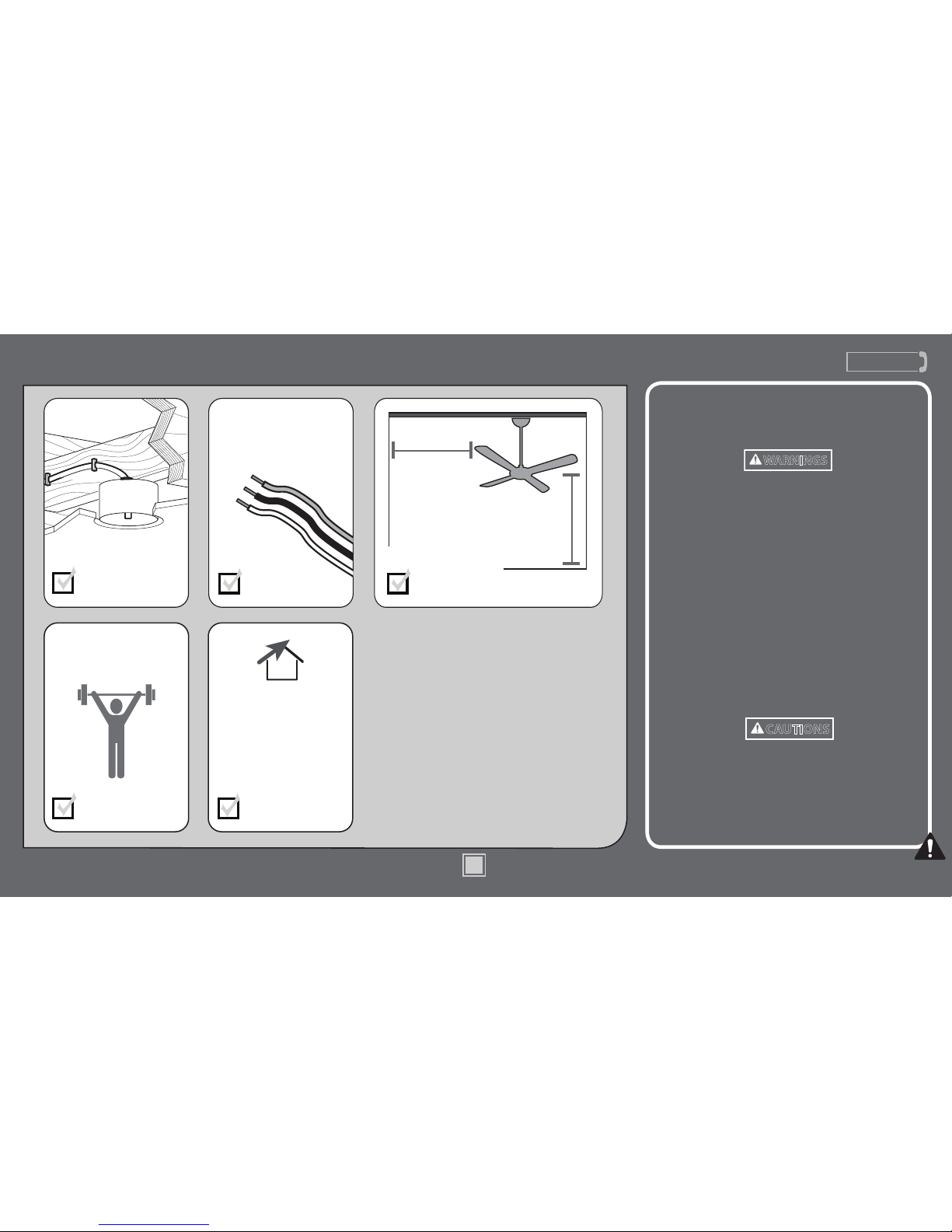

What to Expect with Your Installation

Know your wiring

If you are unfamiliar

with wiring, use a

qualied electrician.

You may need a

friend to help you.

Check box to see

fan weight

Assess location

30 inches

from blade tip

to nearest wall

or obstruction 7 feet

from bottom

edge of blade

to the oor

w.1 - To reduce the risk of re, electrical shock, or

personal injury, mount fan directly from building

structure and/or an outlet box marked acceptable for

fan support of 70 lbs (31.8 kg) and use the mounting

screws provided with the outlet box.

w.2 - To avoid possible electrical shock, before installing

or servicing your fan, disconnect the power by turning

off the circuit breakers to the outlet box and associated

wall switch location. If you cannot lock the circuit

breakers in the off position, securely fasten a prominent

warning device, such as a tag, to the service panel.

w.3 - To reduce the risk of re, electrical shock, or motor

damage, use only Hunter Solid State Speed Controls.

w.4 - To reduce the risk of personal injury, do not bend the

blade brackets when installing the blade brackets, balancing

the blades, or cleaning the fan. Do not insert foreign objects

in between rotating fan blades.

c.1 - All wiring must be in accordance with national and

local electrical codes ANSI/NFPA 70. If you are unfamiliar

with wiring, use a qualied electrician.

c.2 - Use only Hunter replacement parts.

Assess ceiling angle

Read and Save These Instructions

This product conforms to UL Standard 507.

WARNINGS

CAUTIONS

Must be able to

secure the fan to

building structure or

fan-rated outlet box

Ceiling angles greater

than 34° will require an

Angled Mounting Kit.

See page 4 for details.

www.HunterFan.com 1.888.830.1326

Tools Needed

Ladder

Power Drill

(optional)

9/64” Drill Bit

(optional)

Screwdrivers

Pliers Wire Strippers

If mounting to a support structure, you will also need these tools.

M3572-01 • 12/01/14 • © Hunter Fan Company

www.HunterFan.com 1.888.830.1326

M3572-01 • 12/01/14 • © Hunter Fan Company

1.866.268.1936

If you have an angled ceiling:

1. If your ceiling angle is less than 34°, hang your fan

by the standard downrod (included).

2. If your ceiling angle is greater than 34°, you will

also need an Angled Mounting Kit (sold separately).

Guide Touches

BOTH Ceiling & Wall

Guide Touches Wall

but

NOT Ceiling

You need an

Angled

Mounting Kit.

Follow the

instructions in

this manual.

*most common

If you have a at ceiling:

Hang your fan by the standard downrod (included).

Mounting Options

Use Standard Mounting

to hang the fan from a at ceiling.

Use Angled Mounting

to hang the fan from a

vaulted or angled ceiling.

34OCEILING

WALL

OPTION

Standard

Mounting

OPTION 2

Angled

Mounting

2 3

SLIDE

toward ceiling

PLACE

against wall

FOLD

on dotted line

34°

Use the three steps below to determine if your ceiling angle is greater than 34°

Support

Structure

Ceiling

Outlet Box

(required)

Angled

Mounting

Style

Standard

Mounting

Style

Support

Structure

Ceiling

Outlet Box

(required)

M3572-01 • 12/01/14 • © Hunter Fan Company

www.HunterFan.com

1.888.830.1326

www.HunterFan.com

Ceiling Bracket

Refer to warning w.1 on pg. 2

To avoid possible electrical shock, before

installing your fan, disconnect the power by

turning off the circuit breakers to the outlet

box associated with the wall switch location.

For angled ceilings, point

opening toward peak.

If you are unable to do this,

call Technical Support at

1-888-830-1326.

Make sure all four bumpers are

still attached.

Use wood screws

(included) when securing

to support structure with

approved electrical outlet

box. Drill 9/64” pilot holes

in support structure to aid

in securing ceiling bracket

with hardware found in

the hardware bag.

Use machine screws

(provided with outlet

box) when securing to

existing ceiling fan-rated

outlet box. Make sure

it is securely installed

and is acceptable for fan

support of 31.8 kg (70 lbs)

or less.

OFF

Turn Power

M3572-01 • 12/01/14 • © Hunter Fan Company

1.888.830.1326

Downrod

Slide

1 2 3 4 5

678910

Sold Separately

Longer

Downrod

Standard

Downrod

Option 1

Option 2

skip to next page

If you need a different downrod length follow these steps:

Steps 1-5 to remove standard downrod pipe

Steps 6-10 to reassemble with new pipe

Included

(pre-assembled)

www.HunterFan.com

M3572-01 • 12/01/14 • © Hunter Fan Company

KEEP!

8”

3/8”

(not to scale)

Remove the pre-installed

setscrew so that the downrod

can be inserted.

Hand tighten the downrod (at

least 4-5 full turns) until it stops.

The wires can be cut, but

leave at least 8” extending

from the top of the downrod.

Downrod (continued)

8” 3/8”

Tighten the setscrew

with pliers. DO NOT

HAND TIGHTEN.

If the setscrew is not tightened

securely, the fan may fall.

1.888.830.1326

www.HunterFan.com

Tip: If you have

difculty feeding the

wires through the

downrod, try taping the

wires to a thin dowel

rod, then drop the dowel

rod and wires through

the downrod. Be sure to

remove all tape once the

wires are fed through to

the other side.

M3572-01 • 12/01/14 • © Hunter Fan Company

1.888.830.1326

M3572-01 • 12/01/14 • © Hunter Fan Company

www.HunterFan.com

Downrod (continued)

DO NOT PICK THE FAN UP BY THE

CANOPY OR WIRES. Place the downrod

ball into the slot in the ceiling bracket.

Put the wires and downrod through the

canopy. Let the canopy sit loosely on top

of the fan.

www.HunterFan.com 1.888.830.1326

Wiring

(Grounding) Green/Yellow

Stripe

Green/Yellow

Stripe

White

Black

(Grounded)

Note: To connect the wires, hold the bare metal

leads together and place a wire connector over

them, then twist clockwise until tight.

Using the orange wire

connectors from

the hardware bag, connect

the black wire (ungrounded)

from the ceiling to the black

wire from the fan. Connect

the white wire (grounded)

from the ceiling to the white

wire from the fan.

Using an orange wire

connector from

the hardware bag,

connect the 3 grounding

wires (green, green/

yellow stripe, or bare

copper) coming from the

ceiling, downrod, and

hanging bracket.

Turn the splices upward and push them carefully back through the hanger bracket

into the outlet box. Spread the wires apart, with the grounded wires on one side of

the outlet box and the ungrounded wires on the other side of the outlet box.

Refer to CAUTION c.1 on pg. 2

M3572-01 • 12/01/14 • © Hunter Fan Company

(Ungrounded)

www.HunterFan.com 1.888.830.1326

M3572-01 • 12/01/14 • © Hunter Fan Company

Canopy

Lift the canopy into place so that

the screw holes are aligned.

Position the canopy so that, when

lifted into place, the canopy ts into

the hanging bracket as shown.

Screw

Holes

Insert the two canopy screws

found in the hardware bag.

Note: Fan style may vary.
