Hunter Carera Manuel utilisateur

41419-01 10/29/2002

Installation and Operation Manual

For Hunter Ceiling Fans

41419-01 10/29/2002

241419-01 10/29/2002

41419-01 10/29/2002

CONGRATULATIONS!

Your new Hunter ceiling fan is an

addition to your home or office that

will provide comfort and perfor-

mance for many years. This manual

gives you complete instructions for

installing and operating your fan.

We are proud of our work. We ap-

preciate the opportunity to supply

you with the best ceiling fan avail-

able anywhere in the world.

Before installing your fan, record the

following information for your

records and warranty assistance.

Please refer to the carton and the

Hunter nameplate (located on top

outside fan motor housing) for the

proper information.

10/29/2002

Model Name __________________

Catalog No. ___________________

Serial No. _____________________

Date Purchased ________________

Where Purchased ______________

_____________________________

Attach Your Receipt

or a Copy of

Your Receipt Here

441419-01 10/29/2002

CONTENTS

ImportantInformation.....................................................................................................................................5

Step 1 - Getting Ready .....................................................................................................................................6

Step 2 - Installing the Ceiling Plate .................................................................................................................8

Step 3 - Assembling the Fan........................................................................................................................... 11

Step 4 - Wiring the Fan .................................................................................................................................. 14

Step 5 - Installing the Canopy........................................................................................................................ 17

Step 6 - Assembling Fan Blades...................................................................................................................... 18

Step 7 - Installing the Light Bulbs ................................................................................................................. 20

OperatingYourHunterFan ........................................................................................................................... 21

CleaningandMaintenance ............................................................................................................................ 22

Troubleshooting ............................................................................................................................................. 23

41419-01 10/29/2002

IMPORTANT INFORMATION

not lock the circuit break-

ers in the off position, se-

curely fasten a prominent

warning device, such as a

tag, to the service panel.

• All wiring must be in accor-

dancewithnationalandlo-

cal electrical codes. If you

are unfamiliar with wiring,

you should use a qualified

electrician.

• To reduce the risk of per-

sonal injury, do not bend

the blade attachment sys-

tem when installing, bal-

ancing,or cleaning the fan.

Neverinsertforeignobjects

between rotating fan

blades.

• The fan blades cannot be

placed lower than 2,3m

from the floor.

DO YOU NEED HELP?

To install a ceiling fan, be sure you

can do the following:

• Locate ceiling joist or other

suitable support in ceiling.

• Drillholes for and install wood

screws.

• Identify and connect electrical

wires.

• Lift 16 kg.

If you need help installing the fan,

yourHunterfandealercandirect you

to a licensed installer or electrician.

• The installation site must

haveanall-pole switch with

a minimum separation gap

of 3 mm.

WARNINGS

• To avoid possible electrical

shock, before installing

your fan, disconnect the

power by turning off the

circuit breakers to the out-

let box and associated wall

switch location. If you can-

CAUTIONS

• Read entire booklet care-

fully before beginning in-

stallation and save these

instructions.

• To reduce the risk of per-

sonal injury, attach the fan

directly to the support

structureofthe building ac-

cording to these instruc-

tions, and use only the

hardware supplied.

641419-01 10/29/2002

GATHERING THE TOOLS

You need the following tools to in-

stall the fan:

• Electric drill with 9/64" bit and

masonry bit

• Standard screwdriver

• Phillips-head screwdriver

• Wrench or pliers

• Two M5 x 30 mm expansion an-

chors (for concrete ceilings only)

OPTIONAL ACCESSORIES

Consider using Hunter’s optional ac-

cessories, such as a wall-mounted or

remote speed control. Follow the in-

structions for installation and use in-

cluded with each Hunter accessory.

Forquiet and optimum performance

of your Hunter fan, use only Hunter

speed controls.

STEP 1 - GETTING READY

PREPARING THE FAN SITE

Reliable operation, efficiency, and

maximum energy savings depend

upon proper placement and attach-

ment of the fan. For this reason, we

have included a separate booklet —

“Guide to Choosing and Preparing

a Ceiling Fan Site” — to help you

select the best location for your fan.

The booklet also provides informa-

tion to ensure your fan support and

electricoutletboxmeetUL-approved

safety codes for ceiling fans.

The instructions in this installation

manual assume that you have used

the “Guide to Choosing and Prepar-

ing a Ceiling Fan Site” to pick the

fan location and make certain the

proper fan support and outlet box

are installed.

CHECKING YOUR FAN PARTS

Carefully unpack your fan parts to

avoid damage. Check for shipping

damage. If one of the fan blades is

damaged, return all blades for re-

placement.

Hint: Ifinstallingmorethan one fan,

keep the fan blades in sets, as

shipped.

41419-01 10/29/2002

Flush Mounting (Figure1a) fits close

to the ceiling, for low ceilings less

than 2,6 m high.

Figure 1c - Angle Mounting

Figure 1b - Standard Mounting

Figure 1a - Flush Mounting

25,5 cm

30,5 cm

Standard Mounting (Figure 1b)

hangs from the ceiling by a connec-

torpipe (included), for ceilings 2,6 m

orhigher. For ceilings higherthan2,6

m, you can also purchase Hunter ex-

tension rods. All Hunter fans use

sturdy 2 cm inner diameter pipe to

assure stability and wobble-free per-

formance.

Angle Mounting (Figure1c)hangs

from a vaulted or angled ceiling.

841419-01 10/29/2002

STEP 2 - INSTALLING THE CEILING PLATE

1. Drill two pilot holes into the

wood support structure through

the outermost holes on the out-

let box. The pilot holes should be

9/64" in diameter and 4 1/4"

(110mm) apart. See Figure 2a.

2. Insert the 3 rubber isolators into

the 3 round holes in the ceiling

plate as shown in Figure 2b.

Thread the lead wires from the

outlet box through the opening

in the middle of the ceiling plate.

3. Align two opposing oval slots in

the ceiling plate with the pilot

holes in the wood support struc-

ture. See Figure 2b.

ANGLE MOUNTING

For Angle Mounting be sure to orient

the Ceiling Plate so that the arrows

marked on the plate are pointing to-

wards the ceiling peak. See Figure 2b.

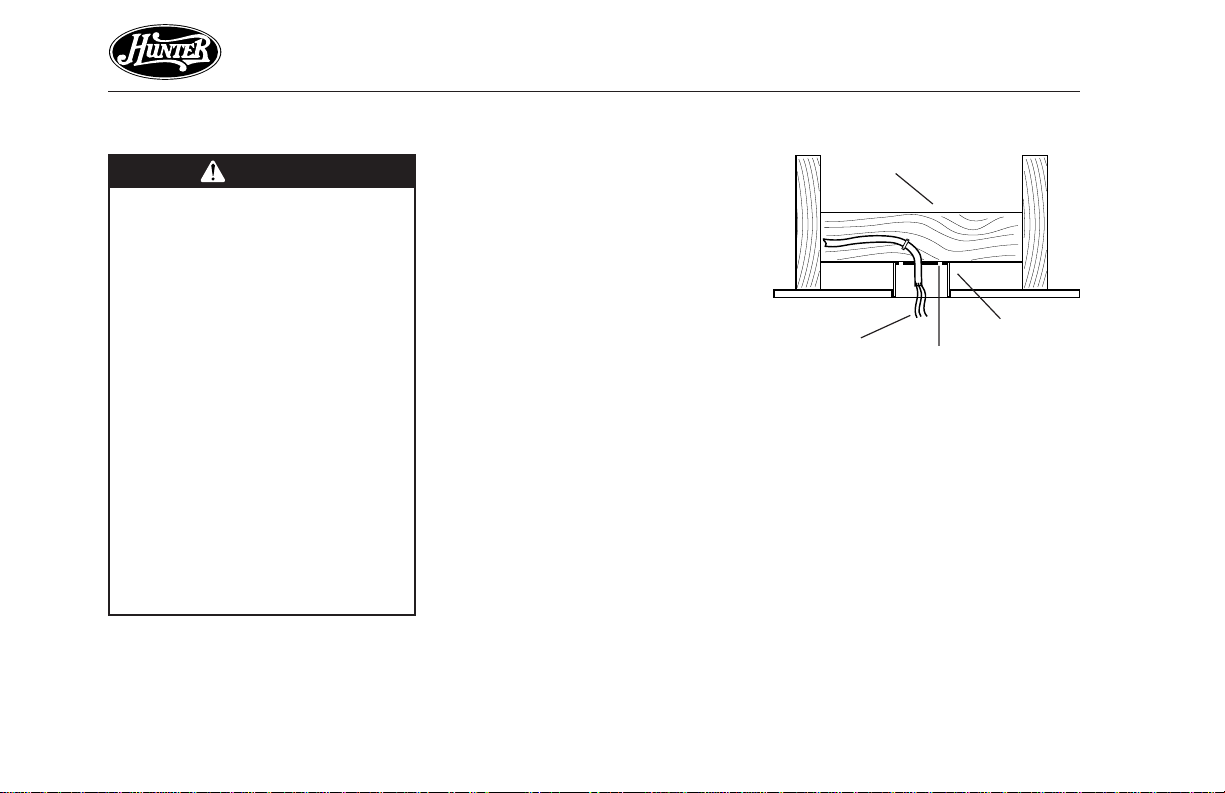

Figure 2a - Pilot Holes and Outlet Box

location

40mm x 80mm

Brace

Outlet Box

Lead Wires Pilot Holes

4. Place a flat washer on each of the

two3" wood screws and pass the

screws through two opposing

oval slots in the ceiling plate, as

shown in Figure 2c.You may sub-

stitute the 3" wood screws with

the provided 1 1/2" wood screws

for shorter depth installations.

Besurethatenoughofthe screws

enters the mounting surface to

support the assembled fan.

WARNING

• To avoid possible electrical

shock, before wiring fan,

disconnect power by turn-

ing off the circuit breakers

both to the outlet box and

toits associated wall switch

location. If you cannot lock

the circuit breakers in the

offposition, securely fasten

a prominent warning de-

vice, such as a tag, to the

service panel.

• All wiring must be in accor-

dance with national and

local electrical codes. If you

are unfamiliar with wiring,

you should use a qualified

electrician.

41419-01 10/29/2002

Figure 2c - Attaching Ceiling Plate to

40 mm x 80 mm Brace

Rubber

Isolators (4)

Outlet

Box

Ceiling

Plate

Flat Washer 3" Wood

Screw (3)

40mm x 80mm

Brace

Note: You must purchase the ex-

pansion anchors separately. Drill

the holes in the ceiling to the

depth and diameter recom-

mended by the manufacturer of

theexpansion anchors.

2. Drill two holes 110 mm (4,32")

apart on either side of the mains

as shown in Figure 2d. The holes

are for M5 x 30 mm expansion

anchors.

3. Drive the expansion anchors into

theholes until the ends of the an-

chors are flush with the ceiling.

See Figure 2e.

5. Tighten the screws into the 9/64"

pilot holes.

Note: The rubber isolators in the

ceiling plate should be compressed

against the ceiling. Do not over-

tighten.

FOR CONCRETE CEILINGS

1. Locatethe electrical supply mains

in the ceiling.

110 mm

Electrical Mains

Ceiling

Masonry Bit

Figure 2d - Drilling Anchor Holes

4. Hold the Ceiling Plate up to the

ceiling and align two opposing

oval slots in the Ceiling Plate with

the expansion anchors. See Fig-

ure 2b. Be sure that the electrical

mains protrude through the cen-

ter opening in the Ceiling Plate

by at least 150 mm. continued

Figure 2b - Correct Position of Ceiling

Plate for Angle Mounting and location

of rubber isolators.

Rubber

Isolators (3)

Arrows

toward

ceiling

peak

Oval slots for

attaching ceiling

plate to ceiling

10 41419-01 10/29/2002

Figure 2f - Attaching Ceiling Plate to

Ceiling

M5 x 30 mm Screw (2)

(supplied with anchor)

Ceiling

Plate Rubber

Isolators

(3)

5. Drive the M5 x 30 mm screws

into the anchors so that the Ceil-

ing Plate is tight against the ceil-

ing. See Figure 2f.

Note: The rubber isolators in the

Ceiling Plate should be com-

pressedagainstthe ceiling. Donot

overtighten.

Figure 2e - Driving Expansion Anchors

into Holes

Expansion

Anchor Flush With

Ceiling

Table des matières

Autres manuels Hunter Ventilateur

Hunter

Hunter 23915 Manuel

Hunter

Hunter Meridale 53306A Manuel d'instructions

Hunter

Hunter 45062-01 Manuel d'instructions

Hunter

Hunter Crestfield Manuel utilisateur

Hunter

Hunter Beck Manuel utilisateur

Hunter

Hunter Orleans 82006 Manuel utilisateur

Hunter

Hunter Crown Canyon II Manuel utilisateur

Hunter

Hunter 99125 Manuel utilisateur

Hunter

Hunter 23915 Mode d’emploi

Hunter

Hunter 41846 Manuel utilisateur

Hunter

Hunter Ashbury 81001 Manuel utilisateur

Hunter

Hunter Vista Verde 51499 Manuel utilisateur

Hunter

Hunter 42406-01 Manuel d'instructions

Hunter

Hunter 99127 Manuel utilisateur

Hunter

Hunter Type 2 Series Manuel de service

Hunter

Hunter 28682 Mode d’emploi

Hunter

Hunter 7 Models Manuel utilisateur

Hunter

Hunter 42674-01 Manuel d'instructions

Hunter

Hunter 52” Low Profile IV Plus LED Manuel d'instructions

Hunter

Hunter Holden Manuel d'instructions

Hunter

Hunter 41675-01 Manuel utilisateur

Hunter

Hunter 20174 Mode d’emploi

Hunter

Hunter 21361 Mode d’emploi

Hunter

Hunter Bennett Collection Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage

Litex Industries

Litex Industries E-CGL52CB5C1 Manuel utilisateur

Lindab

Lindab LTDF Manuel utilisateur
